Citroen DS4 RHD 2011.5 1.G Owner's Manual

Visibility








Interior mood lighting The dimmed passenger compar tment lighting improves visibility in the vehicle whenthe light is poor.

At night, the audio system and digital air conditioning illumination, together with the
illumination of the central dashboard storagebox, comes on automatically when the sidelamps are on. The interior mood li
ghting switches off
automatically when the sidelamps areswitched off.
It can be switched off manually by adjusting theinstrument panel lighting dimmer button to one of the lowest settings.
On cer tain versions, three LEDs, located in the rail linking the rear view mirror to the roof come on as well.


Switching on
Switching off

This comes on automatically when the boot is
opened and switches off automatically when
the boot is closed.





Boot lamp
The lighting time varies according tothe circumstances:


- when the ignition is off, approximately ten minutes,

- in energy economy mode,approximately thirty seconds,

- when the engine is running, no limit.

141Visibility

006
Fittings

Interior fi ttings
1.Sun visorr(see "Familiarisation - § Panoramic
windscreen") 2.Ticket/card holder
3.Storage compar tments4.Illuminatedglove box(see details on a following page)5.Door pockets6.USB port/Auxiliary socket(see details on a following page)7.Cigarette lighter/12 V accessory socket(see details on following pages)8.Por table ashtray(see details on following pages)9.Centre armrest with storage(see details on a following page)

145
Fittings











Illuminated glove
box

Its lid has locations for storing a pen, a pair of glasses, tokens, maps, a cup... )To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the front passen
ger airbag deactivation switch A.
If the vehicle is fitted with air conditioning,it provides access to the ventilation nozzle B,distributing the same cooled air as the vents in
the passenger compartment.
It gives access to the dashboard
fusebox (see
"Practical information - § Changing a fuse").





Portable ashtray
)
Pull the cover to open the ashtray. )
To empty it, remove the ashtray by pulling
it upwards.
To avoid any problem of interference or risk of over turning, do not placethe ashtray near the gear lever.

Cigarette lighter/12 V
accessory socket
)To use the cigarette lighter, press it in and wait a few seconds until it pops outautomatically. )To connect a 12 V accessory (max power:
120 W
), remove the cigarette lighter and connect a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer...
After use, put the cigarette lighter back intoplace straight away.




















USB port/auxiliary
socket

Connected to the USB por t, theportable device charges automatically while in use.
The "AU X "
connection box, located in thecentre console, comprises an auxiliary JACK
socket and/or a USB por t.
It permits the connection of a por table device,
such as a di
gital audio player of the iPod® or ®
USB memory stick type.
It reads cer tain audio file formats allowing them
to be heard via the vehicle's speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them on the multi
functionscreen.
F
or more information on the use of this equipment, refer to the "Audio and Telematics" section.

147Fittings

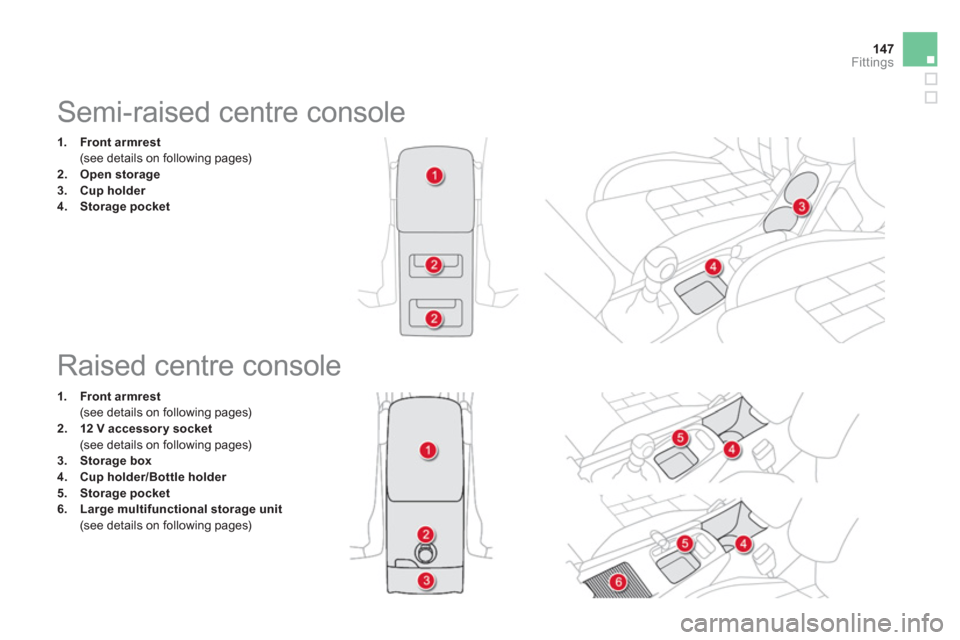

Semi-raised centre console
1.Front armrest
(see details on following pages) 2.Open storage3.Cup holder4.
Storage pocket






Raised centre console
1.Front armrest (see details on following pages) 2.12 V accessory socket (see details on following pages) 3.Storage box4.Cup holder/Bottle holder5.Storage pocket6.Large multifunctional storage unit (see details on following pages)

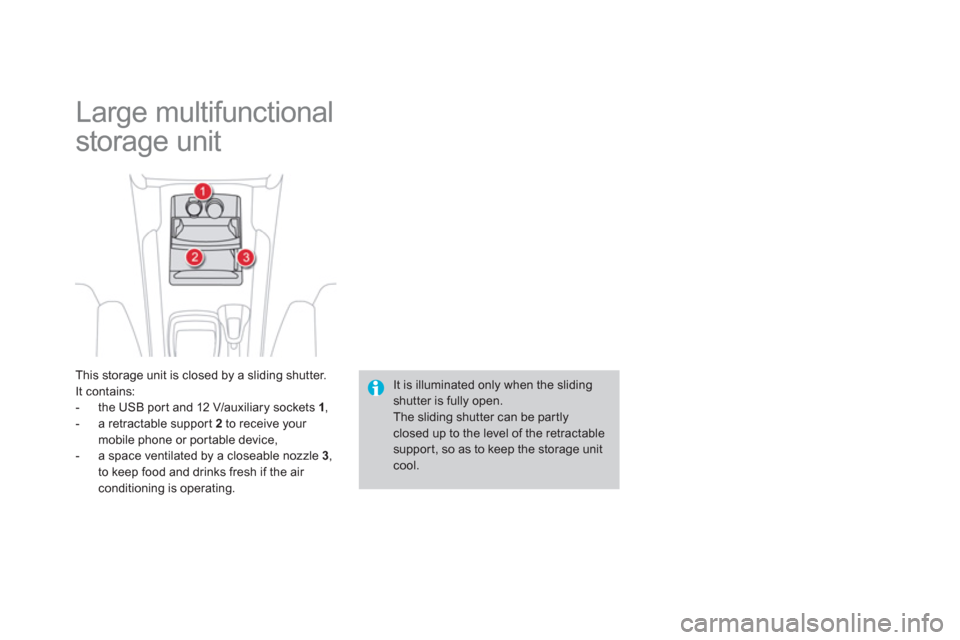

Large multifunctional
storage unit
This storage unit is closed by a sliding shutter.
It contains:
- the USB por t and 12 V/auxiliary sockets 1
,
- a retractable suppor t 2
to receive your mobile phone or por table device,
- a space ventilated by a closeable nozzle 3 ,
to keep food and drinks fresh if the air conditioning is operating.
It is illuminated only when the slidingshutter is fully open.The sliding shutter can be par tly closed up to the level of the retractable suppor t, so as to keep the storage unit cool.
