79Comfort

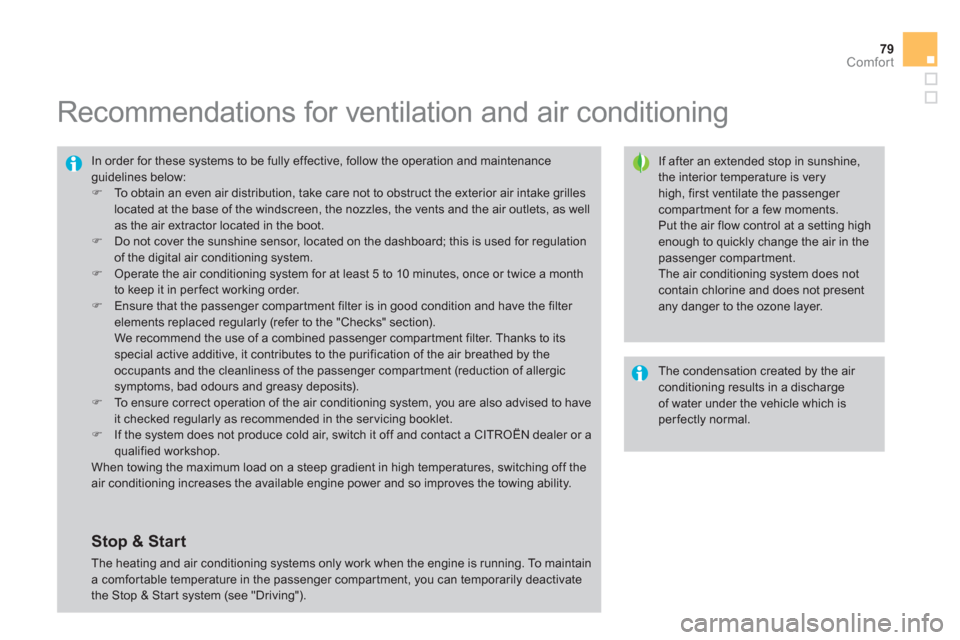

Recommendations for ventilation and air conditioning


If after an extended stop in sunshine, the interior temperature is veryhigh, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in per fect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the ser vicing booklet.
)
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off theair conditioning increases the available engine power and so improves the towing ability.


The condensation created by the air conditioning results in a dischargeof water under the vehicle which is perfectly normal.




Stop & Start
The heating and air conditioning systems only work when the engine is running. To maintaina comfor table temperature in the passenger compartment, you can temporarily deactivatethe Stop & Start system (see "Driving").

Remote control key System which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is also used to locate and star t the vehicle, as well as providing protection against theft.
Unlocking the vehicle
Unfolding the key
)Press this button to unfold the key.


Complete unlocking using the
remote control


Selective unlocking using theremote control
)Press the open padlock to unlockthe vehicle completely.
)Press the open padlock once
to unlock the driver's door only.
) Press the open padlock again to unlock the other doors and the boot.


Opening the windows using the
remote contro
l
) Maintain the press on the open
padlock until the desired position
is obtained. The windows stop as soon as you release the button.



Programming the unlocking
The complete or selective door
un
locking parameter is set via the
vehicle configuration menu.

101Access
Unlocking using the key
)Turn the key for wards in the driver's door lock to unlock the vehicle completely.

Selective unlocking of the boot
)
Press the central button on theremote control to unlock the boot. The doors remain locked.
If selective unlockin
g of the boot is deactivated, pressing this button also unlocks the doors.
Programming the unlocking
The complete or selective boot
unlocking parameter is set via the
vehicle configuration menu.
Selective unlocking of the boot is
activated by default.
Each unlockin
g is confirmed by rapid flashingof the direction indicators for approximatelytwo seconds.
According to the version of your vehicle, the door mirrors unfold at the same time.
In low light, unlocking also brings on the
welcome li
ghting, both interior and exterior (see "Visibility").
Don't forget to lock the boot again by pressing the closed padlock button.

Locking the vehicle
Normal locking using the remote
control
Normal locking using the key
)Turn the key towards the rear in the driver's door lock to lock the vehicle.
) Press the closed padlock to lockthe vehicle.If one of the doors or the boot is still open, the central locking does nottake place; the vehicle locks itself then unlocks straight away, identifiable by the sound of the locks rebounding. When the vehicle is locked, if it isunlocked inadvertently, it will lock itself again automatically after thir ty secondsunless a door or the boot is opened.

The folding and unfolding of the door mirrors using the remote control can bedeactivated by a CITROËN dealer or a qualified workshop.

Lockin
g is confirmed by fixed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors fold at
the same time.
In low light, locking also brings on of
the guide-me-home lighting (see "Visibility").

Locking
)Press this button to lock the vehicle.
The red indicator lamp in the button comes on.











Central locking control
This control allows the simultaneous locking or unlocking of the doors and boot from inside
th
e vehicle.
If one of the doors is open, centrallocking from the inside does not takeplace.

Unlocking
)
Press the button again to unlock
the vehicle.
The red indicator lamp in the button goes off.
When locking/deadlockingfrom the outside
When the vehicle is locked or deadlocked from the outside, the red warning lamp flashes and the button is inoperative. )With normal locking, pull the interior door control lever to unlock
the vehicle. )With deadlocking, you have to use the remote control or the keyto unlock the vehicle.

109Access

This system allows automatic simultaneous locking of the doors and boot as soon as the speed of the vehicle exceeds 6 mph (10 km/h).

Anti-intrusion security


Operation
Activation/Deactivation
You can activate or deactivate this function permanently.
)
With the ignition on, press this buttonuntil an audible signal star ts and a corresponding message is displayed. If one of the doors or the boot is open,
the automatic central lockin
g does not takeplace.
This is signalled by the sound of the locks rebounding, accompanied byillumination of this warning lamp in the
instrument panel, an audible signal
and the displa
y of an aler t message.
Carrying long and voluminousobjects If you want to drive with the boot open, you should press the central locking button to lock the the doors. Other wise,
every time the speed of the vehicle exceeds 6 mph (10 km/h), the lockswill rebound and the alerts mentioned above will appear.


In the event of a serious impact with deployment of an airbag, the vehicle's doors unlock automatically to allow theexit of occupants and access for the security services.
Pressin
g the central locking button unlocks
the vehicle.
Above 6 mph (10 km/h), this locking is
temporary. The state o
f the system stays in memory when
switchin
g off the ignition.

Alarm *
- exterior perimeter
The system checks for opening of the vehicle.
The alarm is triggered if anyone tries to open a
door, the boot, the bonnet...


- interior volumetric
The system checks for any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks a
window, enters the passenger compar tment or moves inside the vehicle.

Locking the vehicle with full
alarm system
- tilt
The system checks for any change in theattitude of the vehicle.
The alarm is triggered if the vehicle is lifted,moved or knocked.
Self-protection function
The system checks for the putting out of ser vice of its components.
The alarm is triggered if the battery, the centralcontrol or the siren wiring are put out of service
or damaged.
For all work on the alarm system, contact a CITROËN dealer or a qualified workshop.


Activation
)Switch off the ignition and get out of the vehicle.)Press the locking button on the remote control.
The monitoring system is active: the indicator lamp in the button flashes once per second.
A
fter the locking button on the remote control
is pressed, the exterior perimeter monitoringis activated after a delay of 5 seconds and the
interior volumetric and anti-tilt monitoring after
a delay of 45 seconds.

Deactivation
)Press the unlocking button on the remotecontrol.
The alarm system is deactivated: the indicator
lamp in the button goes off.


If an opening (door, boot...) is not closed fully, the vehicle is not lockedbut the exterior perimeter monitoring will be activated after a delay of 45 seconds at the same time as the interior volumetric and anti-tilt monitoring.

*

According to country.

115
Access

















Boot
System allowing the mechanical unlocking of
the boot in the event of a battery or central
locking system malfunction.
Tailgate release
Unlocking
)
Fold back the rear seats to gain access to
the lock from inside the boot. ) Insert a small screwdriver into hole Aof thelock to unlock the tailgate. )
Move the latch to the left.
)After unlocking the boot or the vehicle
using the remote control or the key, press
the openin
g control, then raise the tailgate.

Opening Closing
)
Lower the tailgate using the interior grab
handle. ) If necessary, press down on the tailgate
to fully close it.
-
when the engine is running,
this warning lamp comes on,
accompanied by the display of an
aler t message for a few seconds,
- when the vehicle is moving
(speed above6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal andthe display of an aler t message for a fewseconds.



Locking after closing

If the fault persists after closing again, the boot
w
ill remain locked. If the tail
gate is not closed correctly:

This comes on automatically when the boot is
opened and switches off automatically when
the boot is closed.





Boot lamp
The lighting time varies according tothe circumstances:


- when the ignition is off, approximately ten minutes,

- in energy economy mode,approximately thirty seconds,

- when the engine is running, no limit.

153Fittings
) Lower the rear armrest.)
Pull the flap handle downwards. )
Lower the flap.
)
Load the objects from inside the boot.










Ski fl ap
Arrangement for storing and transporting longobjects.
Opening
)Lower the rear armrest for a more comfor table position.
This also gives access to the ski flap.






Rear armrest Comfor t system for the rear passengers.
