04
1
2
1
2
3
4
5

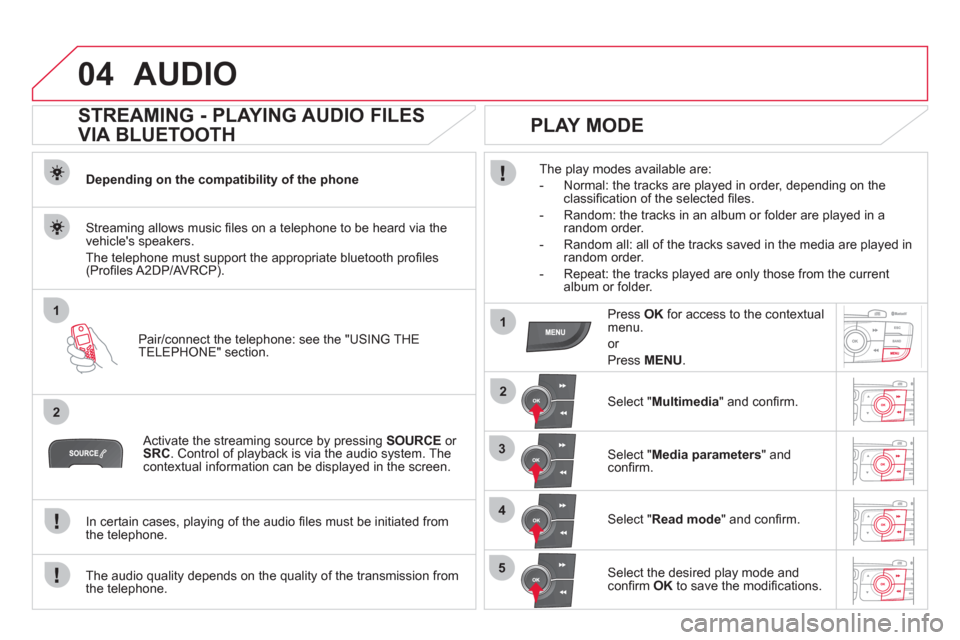

AUDIO






STREAMING - PLAYING AUDIO FILES
VIA BLUETOOTH
Depending on the compatibility of the phone
Pair
/connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music fi les on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth pro
fi les (Profi les A2DP/AV RCP).

Activate the streaming source by pressing SOURCEor
SRC
. Control of playback is via the audio system. Thecontextual information can be displayed in the screen.
In certain cases, pla
ying of the audio fi les must be initiated from
the telephone.
The audio quality depends on the quality o
f the transmission from
the telephone.

PLAY MODE


The play modes available are:


- Normal: the tracks are pla
yed in order, depending on theclassifi cation of the selected fi les.

- Random: the tracks in an album or
folder are played in arandom order.

- Random all: all o
f the tracks saved in the media are played inrandom order.

- Repeat: the tracks pla
yed are only those from the currentalbum or folder.


Press OKfor access to the contextualmenu.

or
Pr
ess MENU.


Select "Multimedia" and confi rm.

Select "Media parameters
" and confi rm.

Select "Read mode
" and confi rm.

Select the desired play mode and confi rm OKto save the modifi cations.

2c
2e
2d
05
367

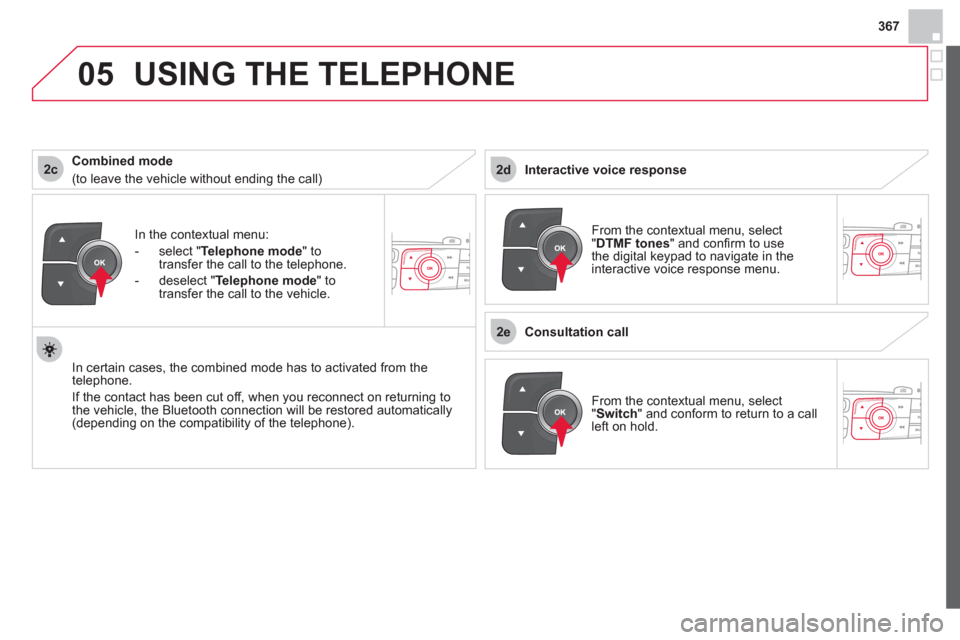

In the contextual menu:
-
select "Telephone mode" totransfer the call to the telephone.
-
deselect " Telephone mode
" totransfer the call to the vehicle.
In certain cases, the combined mode has to activated
from the
telephone.
I
f the contact has been cut off, when you reconnect on returning to
the vehicle, the Bluetooth connection will be restored automatically (depending on the compatibility of the telephone). Combined mode
(to leave the vehicle without ending the call)
USING THE TELEPHONE
From the contextual menu, select "DTMF tones
" and confi rm to usethe digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select
"Switch" and conform to return to a callleft on hold.

Interactive voice res
ponse

Consultation call

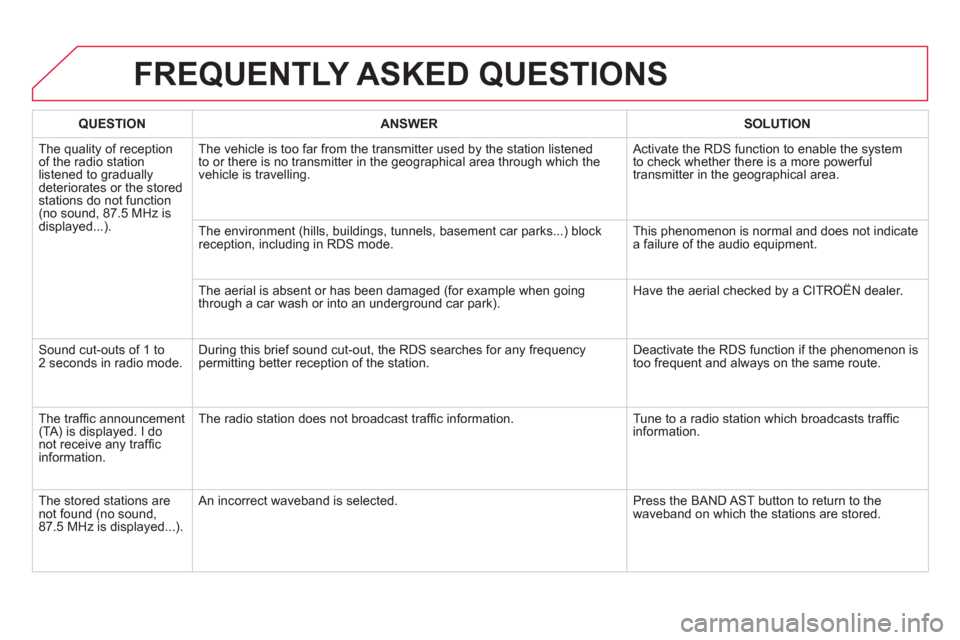

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 MHz is
displayed...). The vehicle is too far from the transmitter used b
y the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more powerful
transm
itter in the geographical area.
The environment
(hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been dama
ged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.

Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
Th
e traffi c announcement(TA) is displayed. I donot receive any traffi c
information.Th
e radio station does not broadcast traffi c information. Tune to a radio station which broadcasts traffi c
information.
Th
e stored stations arenot found (no sound, 87.5 MHz is displayed...). An in
correct waveband is selected. Press the BAND AST button to return to the
waveband on which the stations are stored.

QUESTIONANSWERSOLUTION
A telephone connects
automatically, disconnecting another
telephone. A
utomatic connection overrides manual connection. Modify the telephone settings to remove automatic connection.

The Apple ®
player is®
not recognised whenconnecting to the USB port.
The Apple ®player is of a generation that is not compatible with the USB. Connect the Apple ®player to the AUX Jack socket using a suitable cable (not supplied).

The hard disk or deviceis not recognised whenconnecting to the USBport. Some hard disks and devices need a power suppl
y greater than is
provided by the audio system. Connect the device to the 230 V socket, the 12 V socket or an external power supply.
Caution
:
ensure that the device does not transmit
a voltage greater than 5 V (risk of destruction of
the system).
When streamin
g, the sound cuts momentarily. Some telephones prioritise connection of the "hands-free" profi le. Delete the "hands-free" connection profi le to
improve streaming.

In "Random all" play,not all of the tracks areplayed.
In "Random all" play, the system can only take into account up to 999 tracks.
With the en
gine off, the
audio system switches off after a few minutes of use. When the en
gine is switched off, the audio system operating time
depends on the battery charge.
The switch-off is normal: the audio s
ystem switches to economy mode and switches off to prevent discharging the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.

The message "the audio system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is toohigh, the audio system switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes to
allow the system to cool.

383Visual search
Technical data - Maintenance


Running out of Diesel fuel 232

Checking levels 235-237


- oil

- brake fluid

- coolant

- power steering fluid

- screenwash/headlamp wash fluid
-
additive (Diesel with particle emissions filter)



Changing bulbs 256 -263


- front

- rear


Petrol en
gines 284-285
Diesel engines 286-287
Dimensions 288
Identification markings 289

Bonnet 2
31
Petrol underbonnet 233
Diesel underbonnet 234
Checking components 238 -240
- battery- air filter/passenger compartment filter
- oil filter
- particle emissions filter (Diesel)
- brake pads/discs

Batter
y 269-271
Energy economy mode 272
En
gine compar tment
fuses 264, 267-268

385
Alphabetical index
Dipstick....................................................54,235Directional lighting................................131, 132Direction indicators.......127,172,257,258,261Doors.............................................................113Doors, rear....................................................r169Doors emergency control .............................114
Door trays...................................................... 144
Dynamic emergency braking................192, 196
EBA(Emergency braking assistance)........ 176,177Eco-driving.....................................................34Eco-driving (advice)........................................34Economical driving .........................................34Economy mode.............................................272Electric window controls ...............................116Electronic brake
force distribution (EBFD)............................176Electronic engine immobiliser...............r104, 107Electronic stability control (ESC).................. 177Emergency boot release...............................115Emergency braking system..........................177Emergency call.....................................173, 294Emergency warning lamps...................172, 173eMyWay .................................................68,295Energy economy mode .................................272Engine, Diesel ......................120, 232, 234, 286Engine, petrol ................................ 119,233, 284
Engine compartment............................233,234Engine compartment fusebox.......................263Engine oil level indicator...................r54,57, 235Environment............................................34,107Equipment settings ............................40,64, 68ESC/ASR .......................................................177ESP ............................................................... 177
EG
G.P.S.............................................................304Gearbox, automatic.............................. 207,239Gearbox, electronic.......................203,212,239Gearbox, manual..................201,202,212,239Gear efficiency indicator...............................r202Gear lever........................................................34Gear lever, automatic gearbox.....................207Gear lever, electronic gearbox system.........203Gear lever, manual gearbox.........................201Glove box......................................................145Guidance ..............................................302, 309Guide-me-home............................................128
Filling with fuel ....................................... 118-120Fitting a wheel ............................................... 252Fitting roof bars.............................................274Fittings, boot.................................................154Flashing indicators................127, 172, 258,259Foglamps, rear..............................r126,261, 263Front foglamps ......................126, 132,257,260Front seats................................................88,89Fuel..................................................34,119, 120Fuel consumption............................................34Fuel filler flap.........................................118, 120Fuel gauge....................................................118Fuel tank................................................118, 120Fusebox, dashboard.....................................263Fuses.............................................................263
F
Halogen headlamps......................................257Hands-free kit........................................318,361Hazard warning lamps ..........................172, 173Headlamp adjustment ...................................130Headlamps, directional.................130, 131,257Headlamp wash............................................135Head restraints, front ......................................90Head restraints, rear.......................................r92Heated seats...................................................90Heating......................................................34, 80Height and reach adjustment,steering wheel ..............................................93
H
