Page 49 of 400
47Monitoring
Service
temporarily,
accompanied by a
message. A minor malfunction has occurred for
which there is no specific warning
lamp. Identify the malfunction by reading the message
displayed in the screen, such as, for example:
- the opening of the doors, boot or bonnet,
- the engine oil level,
- the remote control battery,
- the tyre pressures,
- saturation of the particle emission filter on
Diesel vehicles (see "Checks - § Checks/Particle
emissions filter").
For any other malfunctions, contact a CITROËN dealer
or a qualified workshop.
fixed, accompanied
by a message and an
audible signal. A major malfunction has occurred
for which there is no specific warning
lamp. Identify the malfunction by reading the message
displayed in the screen and contact a CITROËN dealer
or a qualified workshop.
Warning lamp
is on
Cause
Action/Observations
Particle
emissions filter
(Diesel)
fixed, accompanied
by an audible signal
message on the risk of
blockage of the particle
emissions filter. This indicates that the particle
emissions filter is starting to become
saturated. As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off.
fixed, accompanied by
an audible signal and
and a message that the
particle emissions filter
additive level is too low.
This indicates the low level of the
additive reservoir. Have the reser voir topped up as soon as possible by a
CITROËN dealer or a qualified workshop.
Page 102 of 400
Remote control key
System which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is also used to locate and start the vehicle,
as well as providing protection against theft.
Unlocking the vehicle
Unfolding the key
Press this button to unfold the key.
Complete unlocking using the
remote control
Selective unlocking using the
remote control
Press the open padlock to unlock
the vehicle completely.
Press the open padlock once to
unlock the driver's door only.
Press the open padlock again to unlock the
other doors and the boot.
Opening the windows using the
remote control
Maintain the press on the open
padlock until the desired position
is obtained. The windows stop as
soon as you release the button.
Programming the unlocking
The complete or selective door
unlocking parameter is set via the
vehicle configuration menu.

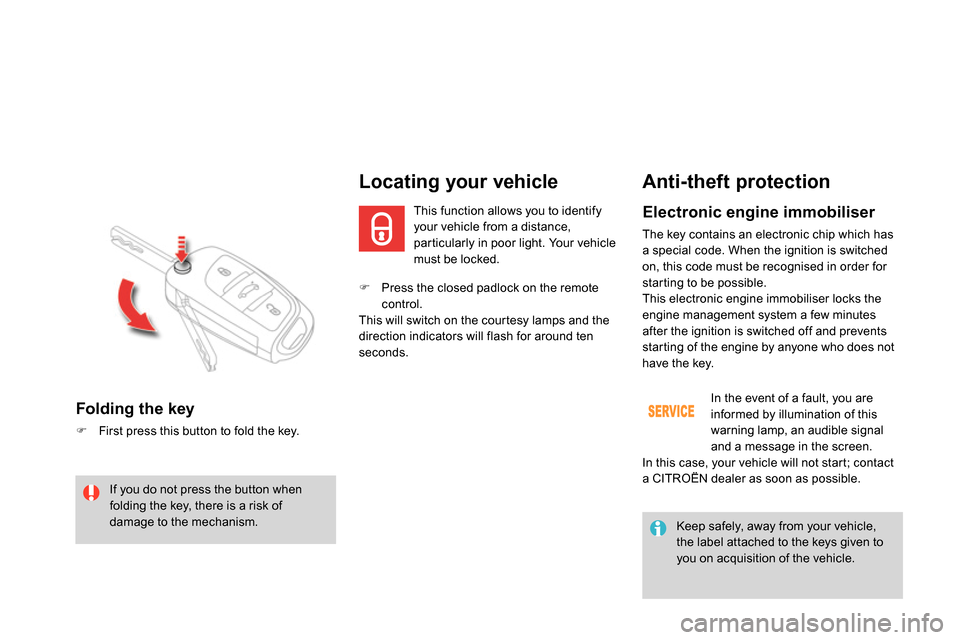

Page 106 of 400
Press the closed padlock on the remote
control.
This will switch on the courtesy lamps and the
direction indicators will flash for around ten
seconds.
Locating your vehicle
This function allows you to identify
your vehicle from a distance,
particularly in poor light. Your vehicle
must be locked.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Folding the key
First press this button to fold the key.
If you do not press the button when
folding the key, there is a risk of
damage to the mechanism.
Keep safely, away from your vehicle,
the label attached to the keys given to
you on acquisition of the vehicle.
Page 109 of 400
107Access
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
Take them to an approved collection
point.
Lost keys
Go to a CITROËN dealer with the vehicle's registration document, your personal
identification documents and if possible the key code label.
The CITROËN dealer will be able to look up the key code and the transponder code
required to order a new key.
Remote control
The high frequency remote control is a sensitive system; do not operate it while it is in your
pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of
your vehicle. You run the risk of stopping it from working and the remote control would have
to be reinitialised.
No remote control can operate when the key is in the ignition switch, even when the ignition
is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the
emergency ser vices more difficult in an emergency.
As a safety precaution, never leave children alone in the vehicle, except for a very short
period.
In all cases, it is essential to remove the key from the ignition switch when leaving the vehicle.
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could
cause malfunctions.
When purchasing a second-hand vehicle
Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to
ensure that only your keys can be used to open and start the vehicle.
Page 279 of 400
277Practical information
Some functions are not available if the
battery is not sufficiently charged.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Do not try to charge a frozen battery;
the battery must first be thawed out to
avoid the risk of explosion. If the battery
has been frozen, before charging have
it checked by a CITROËN dealer or
a qualified workshop who will check
that the internal components have not
been damaged and the casing is not
cracked, which could cause a leak of
toxic and corrosive acid.
Do not reverse the polarity and use
only a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Wash your hands after wards.
It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.
The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with household
waste.
Take used remote control batteries and
vehicle batteries to a special collection point.
Do not push the vehicle to start the
engine if you have an electronic or
automatic gearbox.
Page 390 of 400
Exterior
Remote control 100 -107
- opening / closing
- antitheft protection
- starting
- battery
Lighting c ontrols 124 -128
Headlamp adjustment 130
Guide-me-home lighting 127, 128
Welcome lighting 129
Directional lighting systems 131-132
Changing bulbs 261-265
- front lamps
- front foglamps
- side repeaters
W iper c ontrols 13 3 -137
Changing a wiper blade 279
Door mirrors 94-95
Blind spot sensors 219 -221
D o o r s 113 -114
- opening / closing
- emergency control
Child lock 173
Electric windows 116 -117
A l a r m 11 0 -112
Fuel tank 118 -120
Misfuel prevention 121
Accessories 285-286
Roof bars 280
Braking assistance 178 -179
Trajectory control 179 -180
Tyre under-inflation detection 214-215
Tyre pressures 252, 295
Boot 115
Temporary puncture repair kit 248 -252
Changing a wheel 253 -259
- tools
- removing / refitting
Snow chains 260
Changing bulbs 266 -268
- rear lamps
- 3 rd
brake lamp
- number plate lamp
Parking sensors 229 -230
Parking space sensors 227-228
Towbar 283-284
Towing 281-282
Page 394 of 400
A
ABS and EBFD systems ............................... 178
Accessories .................................................. 285
Accessory socket, 12V ..........146, 147, 150, 156
Adjusting headlamps .................................... 130
Adjusting head restraints ................................ 90
Adjusting seat belt height ..................... 181, 182
Adjusting the steering wheel .......................... 93
Airbags, curtain ..................................... 189, 190
Airbags, front......................................... 186, 190
Airbags, lateral ...................................... 188, 190
Air conditioning ............................................... 34
Air conditioning, automatic ....................... 79, 82
Air conditioning, manual ........................... 79, 80
Air filter .......................................................... 242
Air flow ............................................................ 34
Air vents .......................................................... 78
Alarm ............................................................. 110
Anti-lock braking system
(ABS) .......................................................... 178
Anti-pinch ...................................................... 116
Anti-theft ....................................................... 104
Armrest, front ........................................ 149, 150
Armrest, rear ................................................. 153
Ashtray, portable ........................................... 145
Assistance call .............................. 177, 299, 300
Audible warning ............................................ 177
Audio streaming
(Bluetooth) .................................. 341, 369, 371
Audio system ........................................... 64, 355
Automatic illumination
of headlamps ...................................... 125, 128
Automatic operation of hazard
warning lamps ............................................ 177Automatic rain sensitive windscreen
wipers ................................................. 133, 134
Auxiliary socket .....................................342, 368
Auxiliary sockets ........................................... 146
Backup starting ............................................. 275
Battery ............................................ 242, 274-277
Battery, charging ................................... 276, 277
Battery, remote control ......................... 106, 107
Black panel...................................................... 60
Blind spot sensors ........................................ 219
Bluetooth (hands-free) .......................... 324, 370
Bluetooth (telephone) .................................... 324
Bonnet ........................................................... 235
Bonnet stay ................................................... 235
Boot ............................................................... 115
Boot lamp .............................................. 140, 156
Brake discs .................................................... 244
Brake lamps .................................................. 266
Brake pads .................................................... 244
Brakes ........................................................... 244
Braking assistance system ........................... 178
Capacity, fuel tank ........................................ 118
CD ................................................................. 363
CD MP3 .................................................364, 365
Central locking ...................................... 102, 108Centre console .............................................. 147
Changing a bulb .................................... 261, 266
Changing a fuse ............................................ 268
Changing a wheel ......................................... 253
Changing a wiper blade ........................ 136, 279
Changing the date ..................................... 64, 68
Changing the remote control
battery ......................................................... 106
Changing the time ..................................... 64, 68
CHECK ...................................................... 39, 57
Checking levels ......................................239 -241
Checking the engine oil level .......................... 54
Checking tyre pressures
(using the kit) .............................................. 248
Checks .................................. 237, 238, 242, 244
Child lock ....................................................... 173
Children .......................................... 167, 169 -171
Child seats .................... 160, 161, 165 -167, 172
Child seats, conventional .............................. 166
Cigar lighter ................................................... 146
CITROËN Localised
Assistance Call ........................................... 300
CITROËN Localised
Emergency Call .......................................... 300
Closing the boot .................................... 102, 115
Closing the doors .................................. 102, 113
Cold climate screen ...................................... 279
Colour screen .................................................. 68
Connectors, audio .........................146, 366, 368
Coolant level ................................................. 240
Courtesy lamps ..................................... 129, 138
Cruise control ........................................ 222, 225
Cup holder ..................................................... 147
B
C
Page 396 of 400
Jack ............................................................... 253
JACK socket ..................................146, 342, 368
N
O
JM K
Main beam .................................... 124, 262, 263
Maintenance ................................................... 34
Map reading lamps ....................................... 138
Markings, identification ................................. 295
Massage function ........................................... 91
Mat ................................................................ 151
Menu, main ................................................... 358
Mini fuel level ................................................ 118
Mirror, rear view .............................................. 96
Mirrors, door...................................... 94, 95, 219
Misfuel prevention ......................................... 121
Motor way function (direction indicators) ...... 176
Mountings for ISOFIX seats ......................... 169
MP3 CD .................................................364, 365
Music media players ..................................... 337 Keeping children
safe ...............160, 161, 165, 167, 169 -171, 186
Key in ignition warning .................................. 105
Key with remote control ........ 100, 102, 104, 107
Navigation ............................................. 307, 308
Number plate lamps ...................................... 267
Oil filter .......................................................... 242
Oil level.................................................... 54, 239
Opening the bonnet ...................................... 235
Opening the boot .......................................... 115
Opening the doors ........................................ 113
Operation indicator
lamps .......................................... 46, 50, 51, 53 Labels, identification ..................................... 295
Lamps, warning and
indicator ............................................ 43, 50, 53
Level, brake fluid ........................................... 239
Level, power steering
fluid ............................................................. 240
Levels and checks ................................. 237-241
Lighting bulbs
(replac ement) ...................................... 261, 266
Lighting control stalk ............................. 124, 127
Lighting dimmer .................................. 38, 39, 59
Lighting,
guide-me home ...................................127, 128
Lighting, interior .................................... 138, 139
Loading ................................................... 34, 280
Load reduction mode .................................... 278
Locating your vehicle .................................... 104
Locking from the inside ................................. 108
Locking the boot............................................ 115
Long objects, transporting ............................ 153
Luggage retaining strap ................................ 154
LIgnition ........................................................... 105
Indicator lamps, status .................................... 51
Indicators, direction .............................. 176, 263
Inflating accessories
(using the kit) .............................................. 248
Inflating tyres .................................................. 34
Inputs for audio
system .........................................146, 342, 368
Instrument panel lighting ................................ 59
Instrument panels ..........................38 - 40, 57, 61
Instrument panel screen ................... 38, 39, 213
Intelligent Traction Control ............................ 179
Interior fittings ....................................... 144, 145
Interior mood lighting .................................... 139
ISOFIX .......................................................... 170
ISOFIX child seats ................................. 169 -171
ISOFIX mountings......................................... 169
I
Hill start assist ............................................... 212
Hooks ............................................................ 155
Page 397 of 400
395Alphabetical index
Paint colour code .......................................... 295
Parcel shelf, rear ........................................... 155
Parking brake ........................................ 202, 244
Parking brake, electric .......................... 194, 198
Parking lamps ............................................... 127
Parking sensors, front ................................... 230
Parking sensors, rear.................................... 229
Parking space sensor .................................. 227
Particle emission filter .................. 240, 241, 243
Passenger compartment filter ...................... 242
Personalisation ............................................... 60
Player, CD MP3 .....................................364, 365
Port, USB .............................................. 146, 366
Priming the fuel system ................................ 236
Protecting
children .........160, 161, 165, 167, 169 -171, 186
Puncture ........................................................ 248
Radio ............................................ 333, 334, 359
RCA sockets ................................................. 342
Rear screen (demisting) ............................ 87, 94
Recharging the battery ......................... 276, 277
Reduction of electrical load .......................... 278
Regeneration of the particle
emissions filter ............................................ 243
Reinitialising the electric windows ................ 116
Reinitialising the remote control ................... 106
Remote control .............................. 100, 102, 107
Removable screen
(snow shield) ............................................... 279Safety for children ......................................... 173
Satellite navigation system ............................. 68
Screen, colour and
mapping ........................................40, 305, 345
Screen menu map .........................345, 379, 380
Screen, monochrome ............................. 64, 379
Screen, multifunction
(with audio equipment) ...................64, 68, 358
Screenwash, front ......................................... 135
Seat adjustment ........................................ 88, 89
Seat belts .............................. 166, 181, 182, 184
R
S P
Removing a wheel ........................................ 256
Removing the mat ......................................... 151
Repair kit, puncture ....................................... 248
Replacing bulbs .................................... 261, 266
Replacing fuses ............................................ 268
Replacing the air filter ................................... 242
Replacing the oil filter ................................... 242
Replacing the passenger compartment
filter ............................................................. 242
Replacing wiper blades......................... 136, 279
Resetting the ser vice indicator ....................... 56
Resetting the trip recorder .............................. 58
Rev counter ......................................... 38, 39, 42
Reversing lamps ........................................... 266
Risk areas (update) ....................................... 312
Roof bars ....................................................... 280
Routine checks ..................................... 242, 244
Running out of fuel (Diesel) .......................... 236Seat, rear bench ............................................. 92
Seats, electric ................................................. 89
Seats, rear ....................................................... 92
Selector lever,
electronic gearbox system ......................... 204
Serial number, vehicle .................................. 295
Ser vice indicator ....................................... 55, 57
Ser vicing ......................................................... 34
Setting the clock ....................................... 64, 68
Short-cut menus ........................................... 306
Sidelamps ............................. 124, 127, 262, 266
Side repeater ................................................ 264
Ski flap .......................................................... 153
Snow chains .................................................. 260
Spare wheel .................................................. 253
Speed limiter .........................................222, 223
Speedometer ............................................ 38, 39
Spotlamps, side .................................... 129, 265
Start ............................................................... 275
Starting the vehicle .......................105, 204, 208
Steering mounted
controls ...............................................304, 357
Stopping the vehicle .....................105, 204, 208
Stop & Start ........................................ 74, 83, 86,
118, 216, 235, 242, 274
Storage .................. 144, 145, 147, 149, 150, 154
Storage compartments ......................... 144, 147
Storage drawer ............................................. 152
Storage net .................................................... 154
Stowing rings ................................................ 154
Synchronising the remote control ................. 106
Synthesiser, voice ......................................... 318
System, navigation........................................ 308
