Citroen DS4 RHD 2014.5 1.G Owner's Manual

11 9
Front armrest
Comfort and storage system for the driver and front passenger.
The height and length of the armrest cover can be adjusted.
Height adjustment
F Raise the cover to the required position (low, intermediate or high).
F

I
f you raise the cover slightly beyond the
high position, guide it when lowering it to
the low position.
Longitudinal adjustment
F Slide the cover fully for wards or rear wards.
Storage
A storage space is arranged below the armrest
cover. It houses the back-up reader for the
electronic key of the "Keyless Entry and
starting" system, if the vehicle is so equipped.
F

Ra
ise the lever.
F

R
aise the cover fully.
Fittings

Front armrest
Comfort and storage device for the driver and front passenger.
The length of the armrest cover can be adjusted.
Storage
There is a storage space below the cover of
the armrest. Depending on equipment, this can
contain the back-up reader for the electronic
key of the Keyless Entry and Starting system.
F
R
aise the cover fully.
Longitudinal adjustment
F To move for wards, raise the lever. The armrest slides for wards to its stop.
F

T
o stow it, slide it fully back and press
down to lock it.

121

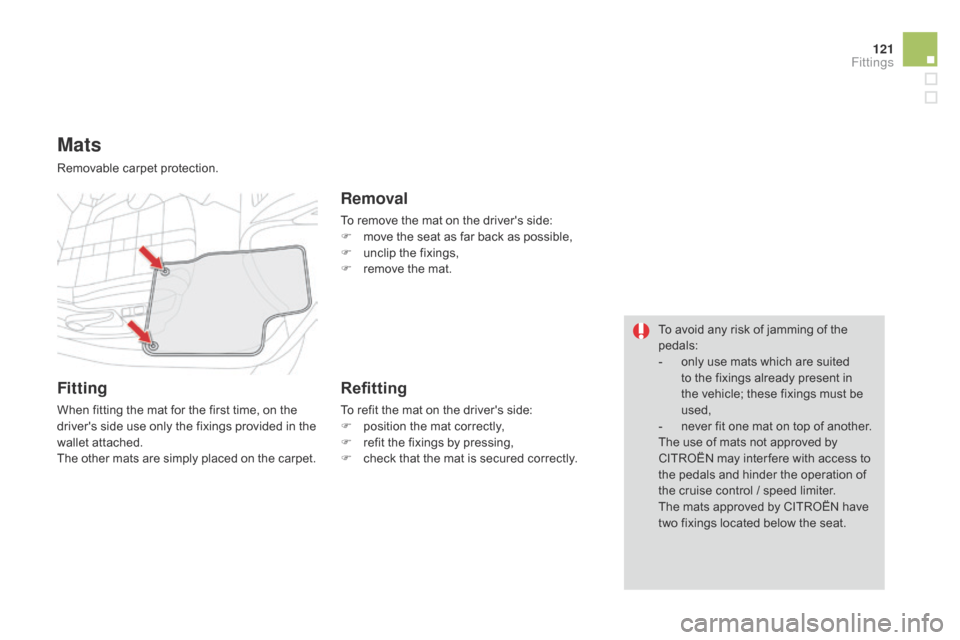

Mats
Removable carpet protection.
Fitting
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the carpet.
Removal
To remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

u
nclip the fixings,
F

r
emove the mat.
Refitting
To refit the mat on the driver's side:
F p osition the mat correctly,
F

r
efit the fixings by pressing,
F

c
heck that the mat is secured correctly. To avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited
to the fixings already present in
the vehicle; these fixings must be
used,
- n ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITROËN have
two fixings located below the seat.
Fittings

Opening
F Raise the front of the drawer and pull it open.

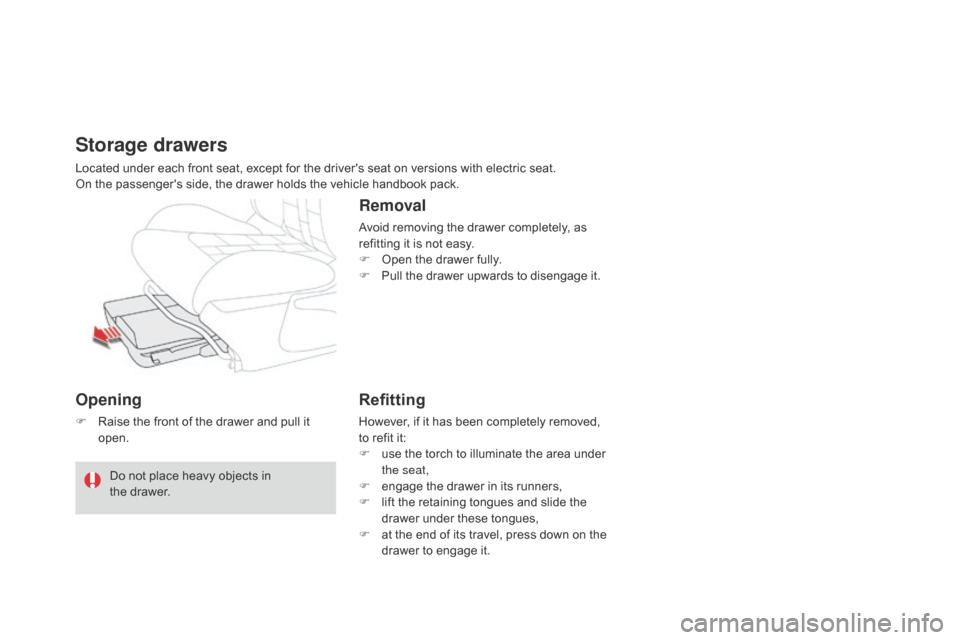

Storage drawers
Located under each front seat, except for the driver's seat on versions with electric seat.
On the passenger's side, the drawer holds the vehicle handbook pack.
Removal
Avoid removing the drawer completely, as
refitting it is not easy.
F

O
pen the drawer fully.
F

P
ull the drawer upwards to disengage it.
Refitting
However, if it has been completely removed,
to refit it:
F

u
se the torch to illuminate the area under
the seat,
F

e
ngage the drawer in its runners,
F

l
ift the retaining tongues and slide the
drawer under these tongues,
F

a
t the end of its travel, press down on the
drawer to engage it.
Do not place heavy objects in
the

drawer.

123

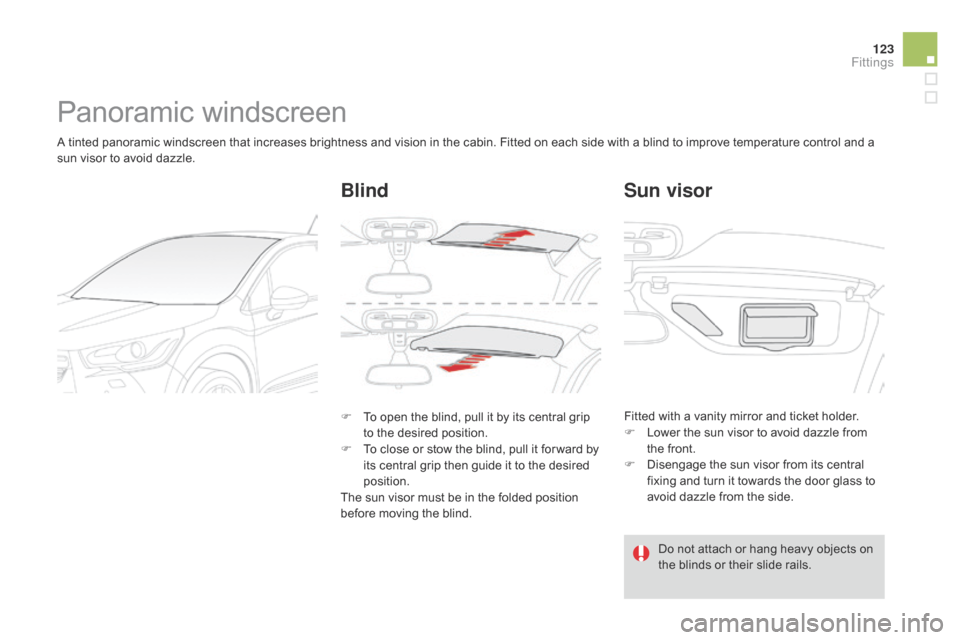

Panoramic windscreen
A tinted panoramic windscreen that increases brightness and vision in the cabin. Fitted on each side with a blind to improve temperature control and a
sun visor to avoid dazzle.F

T
o open the blind, pull it by its central grip
to the desired position.
F

T
o close or stow the blind, pull it for ward by
its central grip then guide it to the desired
position.
The sun visor must be in the folded position
before moving the blind.
Blind
Fitted with a vanity mirror and ticket holder.
F L ower the sun visor to avoid dazzle from
the front.
F

D
isengage the sun visor from its central
fixing and turn it towards the door glass to
avoid dazzle from the side.
Sun visor
Do not attach or hang heavy objects on
the blinds or their slide rails.
Fittings

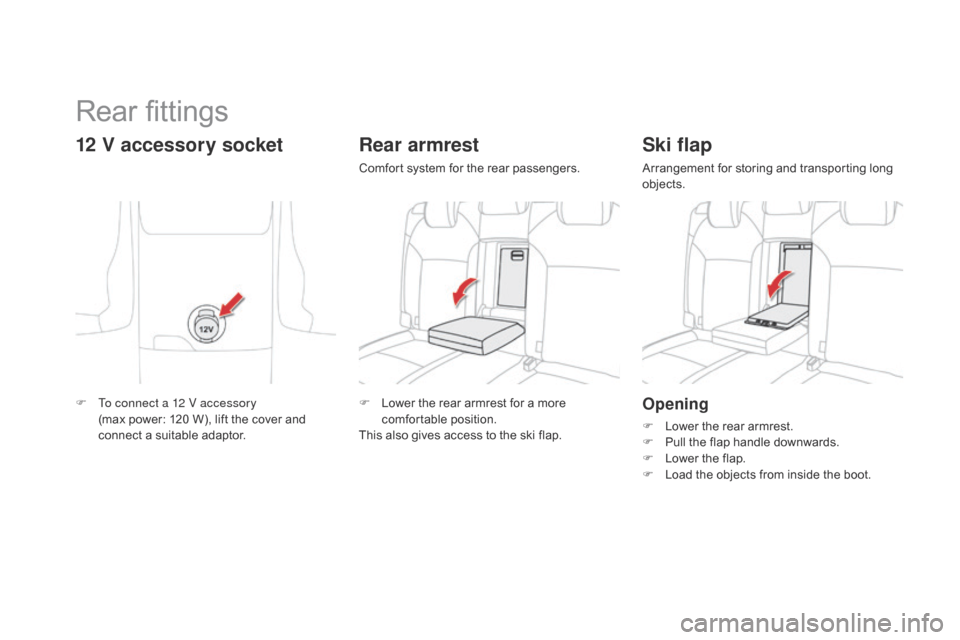

Opening
F Lower the rear armrest.
F P ull the flap handle downwards.
F

L
ower the flap.
F

L
oad the objects from inside the boot.
Ski flap
Arrangement for storing and transporting long
objects.
F

L

ower the rear armrest for a more
comfortable position.
This also gives access to the ski flap.
Rear armrest
Comfort system for the rear passengers.
12 V accessory socket
F To connect a 12 V accessory (max power: 120 W), lift the cover and
connect a suitable adaptor.
Rear fittings

125

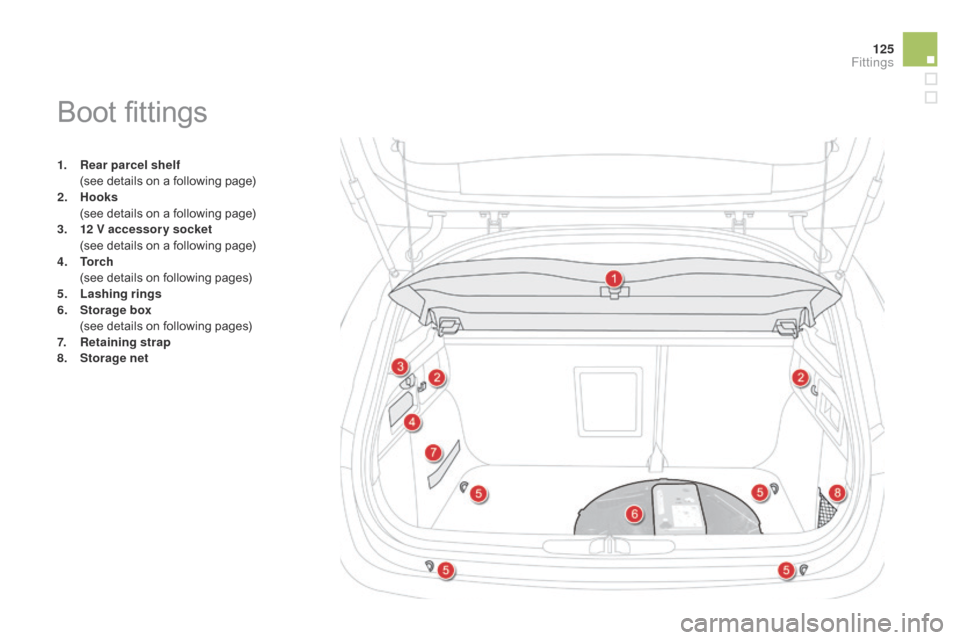

1. Rear parcel shelf (see details on a following page)
2.
Hoo

ks
(

see details on a following page)
3.
1

2 V accessory socket
(

see details on a following page)
4.
T

o r c h
(

see details on following pages)
5.
L

ashing rings
6.
Sto

rage box
(

see details on following pages)
7.
R

etaining strap
8.
Sto

rage net
Boot fittings
Fittings

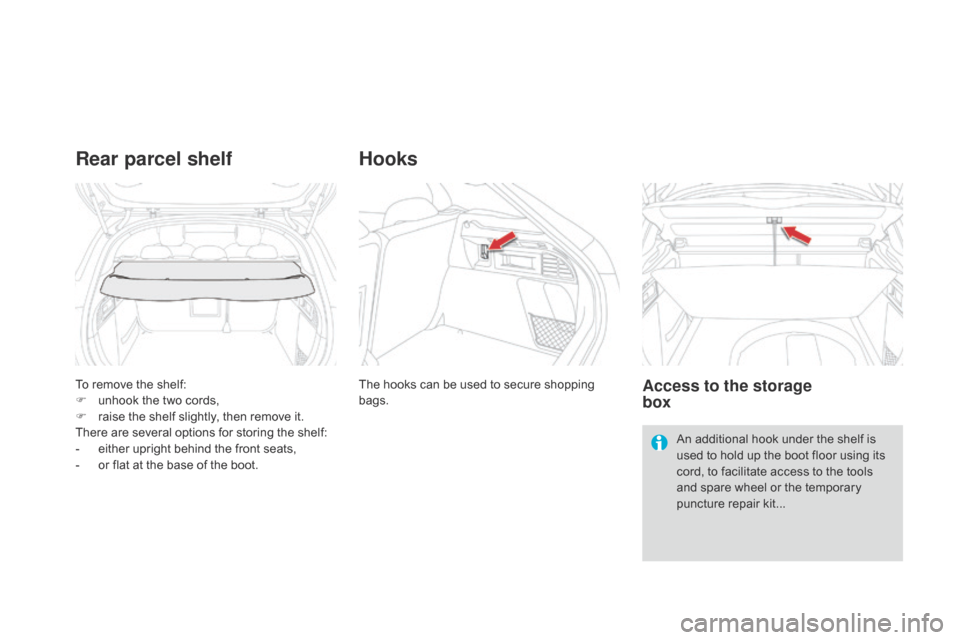

To remove the shelf:
F u nhook the two cords,
F

r
aise the shelf slightly, then remove it.
There are several options for storing the shelf:
-

e
ither upright behind the front seats,
-

o
r flat at the base of the boot.
Rear parcel shelf
The hooks can be used to secure shopping
bags.
Hooks
Access to the storage
box
An additional hook under the shelf is
used to hold up the boot floor using its
cord, to facilitate access to the tools
and spare wheel or the temporary
puncture repair kit...

127
F To connect a 12 V accessory (max power: 120 W), remove the cap and
connect an appropriate adaptor.
F

T
urn the key to the ignition on position.
12 V accessory socket
This is a removable lamp, fitted in the boot
wall, which can be used to light the boot or as
a torch.
For the boot lamp function, refer to the
" Visibility - Boot lamp" section.
To r c h
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.
Observe the polarities when fitting the
rechargeable batteries.
Never replace the rechargeable batteries
with normal disposable batteries.
Fittings

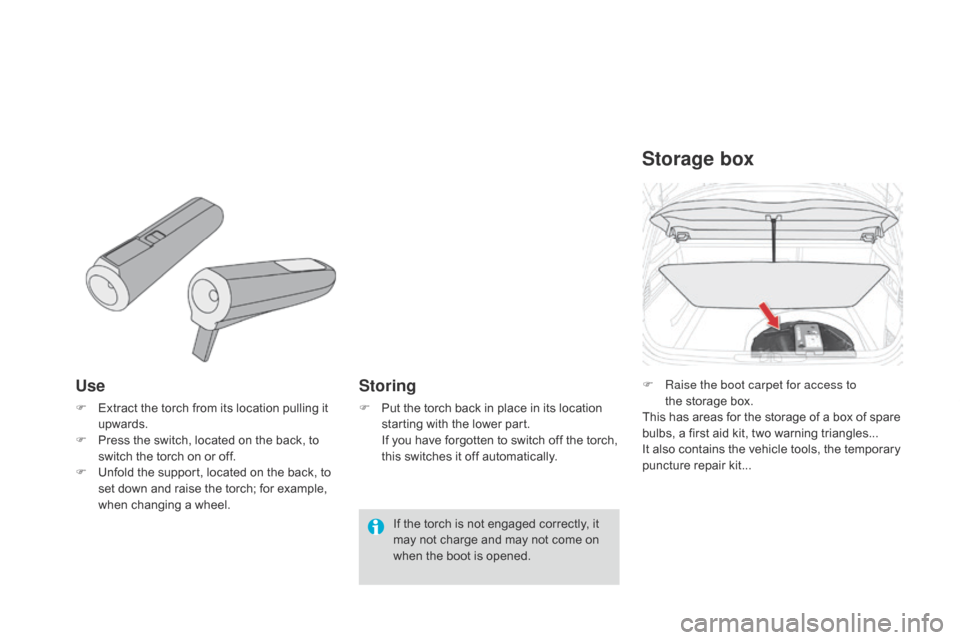

Use
F Extract the torch from its location pulling it upwards.
F

P
ress the switch, located on the back, to
switch the torch on or off.
F

U
nfold the support, located on the back, to
set down and raise the torch; for example,
when changing a wheel.
Storing
F Put the torch back in place in its location starting with the lower part.
I

f you have forgotten to switch off the torch,
this switches it off automatically.
Storage box
F Raise the boot carpet for access to the storage box.
This has areas for the storage of a box of spare
bulbs, a first aid kit, two warning triangles...
It also contains the vehicle tools, the temporary
puncture repair kit...
If the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.
