display Citroen DS4 RHD 2014.5 1.G Owner's Guide

"Driving" menu
The systems with settings that can be adjusted are detailed in the table below.Button Corresponding function Comments
Speed settings Memorisation of speeds for use with the speed limiter or cruise control.
Vehicle settings Access to other functions with settings that can be adjusted. The functions are grouped
together under three tabs:
-

"
[Driving assistance ]"
-

"
[Automatic parking brake]" (Automatic electric parking brake; see the "Driving" section),
-

"
[Automatic rear wiper in reverse]" (Activation of rear wiper coupled to reverse gear; see
the " Visibility" section).
-

"
[Lighting ]"
-

"
[Guide-me-home lighting]" (Automatic guide me home lighting; see the " Visibility"
section),
-

"
[Welcome lighting]" (Exterior welcome lighting; see the "[ Visibility]" section),
-

"
[Adaptive lighting]" (Main / additional directional lighting; see the " Visibility" section).
-

"
[Vehicle access ]"
-

"
[Driver plip action]" (Selective unlocking of the driver's door; see the "[Access]"
section).
-

"
[Unlocking boot]" (Selective unlocking of the boot; see the "Access" section).
Select or deselect the tabs at the bottom of the screen to display the functions required.

53
"Settings" menu
The functions available through this menu are detailed in the table below.Button Corresponding function Comments
Audio settings Adjustment of volume, balance...
Turn off screen Turns off the display in the the touch screen tablet (black screen).
Pressing the black screen restores the display.
System Settings Choice of units:
-

t
emperature (°Celsius or °Fahrenheit)
-

d
istance and fuel consumption (l/100 km, mpg or km/l).
Time/Date Setting the date and time.
Languages Choice of language used: French, English, Italian, Spanish, German, Dutch, Portuguese,
Polish, Turkish, Russian, Serb, Croat, Hungarian.
Screen settings Adjustment of the display settings (scrolling of text, animations...)
Calculator Display the calculator.
Calendar Display the calendar.
Multifunction screens

55

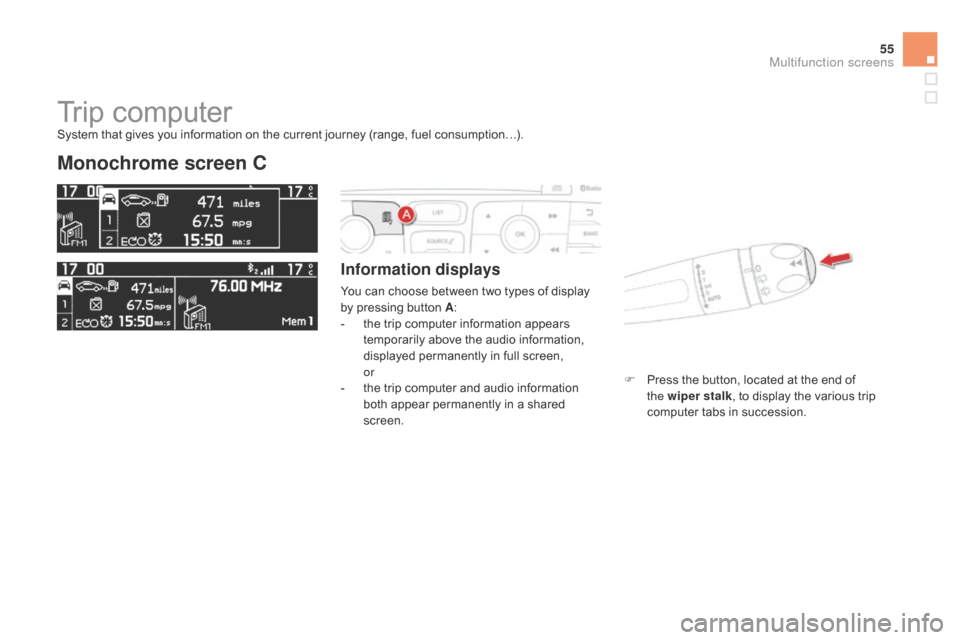

Trip computer
Monochrome screen C
Information displays
You can choose between two types of display
by pressing button A:
-

t
he trip computer information appears
temporarily above the audio information,
displayed permanently in full screen,


or
-

t
he trip computer and audio information
both appear permanently in a shared
screen. F

P
ress the button, located at the end of
the wiper stalk , to display the various trip
computer tabs in succession.
System that gives you information on the current journey (range, fuel consumption…).
Multifunction screens

- the current information tab with:● t he range,
●

t
he current fuel consumption,
●

t
he Stop & Start time counter.
-

t
he trip "1" tab with:
●

t
he distance travelled,
●

t
he average fuel consumption,
●

t
he average speed,
f

or the first trip.
-

t
he trip "2" tab with:
●

t
he distance travelled,
●

t
he average fuel consumption,
●

t
he average speed,


f
or the second trip.
Trip zero reset
F When the trip required is displayed, press the button on the end of the wiper stalk for
more than two seconds.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

57

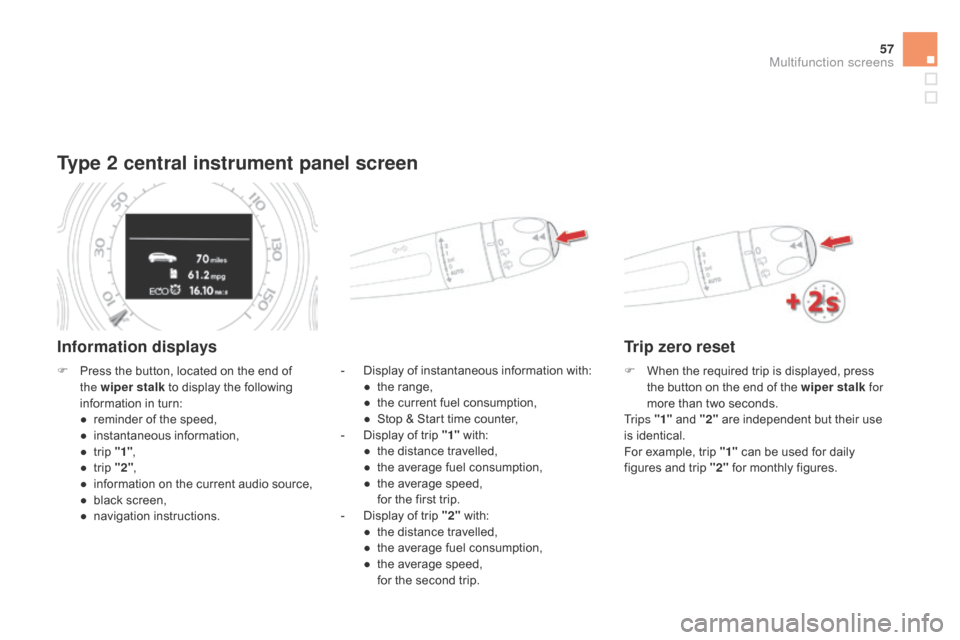

Type 2 central instrument panel screen
Information displays
- Display of instantaneous information with:● t he range,
●

t
he current fuel consumption,
●

S
top & Start time counter,
-

D
isplay of trip "1" with:
●

t
he distance travelled,
●

t
he average fuel consumption,
●

t
he average speed,
f

or the first trip.
-

D
isplay of trip "2" with:
●

t
he distance travelled,
●

t
he average fuel consumption,
●

t
he average speed,
f

or the second trip.
F
P
ress the button, located on the end of
the wiper stalk to display the following
information in turn:
●

r

eminder of the speed,
●
in

stantaneous information,
●

t

rip "1" ,
●

t

rip "2" ,
●

i

nformation on the current audio source,
●

b

lack screen,
●
n

avigation instructions.
Trip zero reset
F When the required trip is displayed, press the button on the end of the wiper stalk for
more than two seconds.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures and trip "2" for monthly figures.
Multifunction screens

Touch screen tablet
Display of information
Permanent display:Temporary display in a new window:
F

P
ress the end of the wiper control stalk for
access to the information and display the
different tabs.
The current instantaneous fuel
consumption tab with:
-
t
he range,
-
t
he current fuel consumption,
-
t
he Stop & Start time counter.
The trip "1" tab with:
-

t
he distance travelled.
-

t
he average fuel consumption,
-

t
he average speed,
f

or the first trip.
The trip "2" tab with:
-

t
he distance travelled.
-

t
he average fuel consumption,
-

t
he average speed,
f

or the second trip.
Trip reset
F Select the "Driving assistance "
menu.
The trip computer information is displayed in
the primary page of the menu.
F

P

ress one of the buttons to display the
desired tab. F
W hen the desired trip is
displayed, press the reset button
or press and hold the end of the
wiper control stalk.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.

59
A few definitions…
This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop.This function is only displayed from
20 mph (30 km/h).
The fuel consumption of your vehicle
will be higher than the official figures
obtained by CITROËN during the
first
3 000 miles (5 000 km) of the
vehicle's life.
Range
(miles or km)
This indicates the distance
which can still be travelled with the fuel
remaining in the tank in relation to the average
fuel consumption over the last few miles
(kilometres) travelled.
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
Current fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption during the
last few seconds.
Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption since the
last trip computer zero reset.
Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip computer zero reset.
Stop & Start time
counter
(minutes / seconds or hours /
minutes)
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on.
Multifunction screens

Locking the passenger doorsUnlocking the passenger
doors
Changing the battery
F Open the doors.
F
O n the rear doors, check that the child lock
is not on (see the corresponding section).
F

R
emove the black cap, located on the edge
of the door, using the integral key.
F

I
nsert the integral key in the socket without
forcing it, then without turning it, move
the latch sideways towards the inside of
the
door.
F

R
emove the integral key and refit the cap.
F

C
lose the doors and check that the vehicle
has locked correctly from the outside. F

P
ull the interior door opening control.Battery ref.: CR2032 / 3 volts.
Battery replacement is signalled by the display
of a message.
F

U
nclip the cover using a small screwdriver
at the cutout.
F

L
ift off the cover.
F

R
emove the flat battery from its location.
F

F
it the new battery into its location
observing the original direction of fitment.
F

C
lip the cover onto the casing.

This system allows automatic simultaneous locking of the doors and boot as soon as the speed of the vehicle
exceeds 6 mph (10 km/h).
Anti-intrusion security
OperationActivation / Deactivation
You can activate or deactivate this function
permanently.
F
W
ith the ignition on, press this button
until an audible signal starts and a
corresponding message is displayed.
If one of the doors or the boot is open, the
automatic central locking does not take place.
This is signalled by the sound of
the locks rebounding, accompanied
by illumination of this symbol in the
instrument panel, an audible signal
and the display of an alert message.
Carrying long and voluminous
objects
If you want to drive with the boot open,
you should press the central locking
button to lock the the doors. Other wise,
every time the speed of the vehicle
exceeds 6 mph (10 km/h), the locks
will rebound and the alerts mentioned
above will appear.
Pressing the central locking button unlocks
the

vehicle.
Above 6 mph (10 km/h), this unlocking is
te m p o r a r y. The state of the system stays in memory when
switching off the ignition.

Boot
F After unlocking the boot or the vehicle using the remote control or the key, press
the opening control, then raise the tailgate.
Opening using the remote
control Closing
F Lower the tailgate using the interior grab
handle.
F

I
f necessary, press down on the tailgate to
fully close it.
-

w
hen the engine is running ,
this warning lamp comes on,
accompanied by the display of an
alert message for a few seconds,
-

w
hen the vehicle is moving (speed above
6 mph (10 km/h)), this warning lamp comes
on, accompanied by an audible signal
and the display of an alert message for a
few
seconds.
If the tailgate is not closed correctly:
