rear view mirror Citroen DS4 RHD 2014.5 1.G Owner's Manual

Instruments and controls
Instrument panels 18 -20
Warning lamps 2 1-34
Indicators
35

-38
Manuel test

3
9
Setting buttons

4
0 - 42
-

t
rip distance recorder
-
d

ashboard lighting dimmer / black panel
-

c
ustomisation of dials and screens
Adjusting headlamps
1

38
Door mirrors

1
09 -110
Electric windows

87
- 88
Dashboard fuses

2

84-287
Opening the bonnet

2

40
Multifunction screens

4

6 -54
Seat belt / front passenger
airbag warning lamp display
1

76 -177, 181
Manual gearbox
2

03
Electronic gearbox
20

4-207
Automatic gearbox

2

08 -211
Parking brake

1

96 -201, 202
Rear view mirror

1

11
Courtesy lamps

1

46
Ventilation
9

2-94
Manual air conditioning

9

5 -96, 101
Digital air conditioning

9

7-100, 101
Demisting / defrosting the rear screen
1

02
Audio system

3

97- 429
Setting the date / time

4

9
Touch screen tablet

3

27-396
Setting the date / time

5

4
Interior mood lighting
1
47
Ignition switch / Steering lock /
Starting with the key

1
89 -191, 195
Steering lock / Starting with the START/STOP button

1
92-195

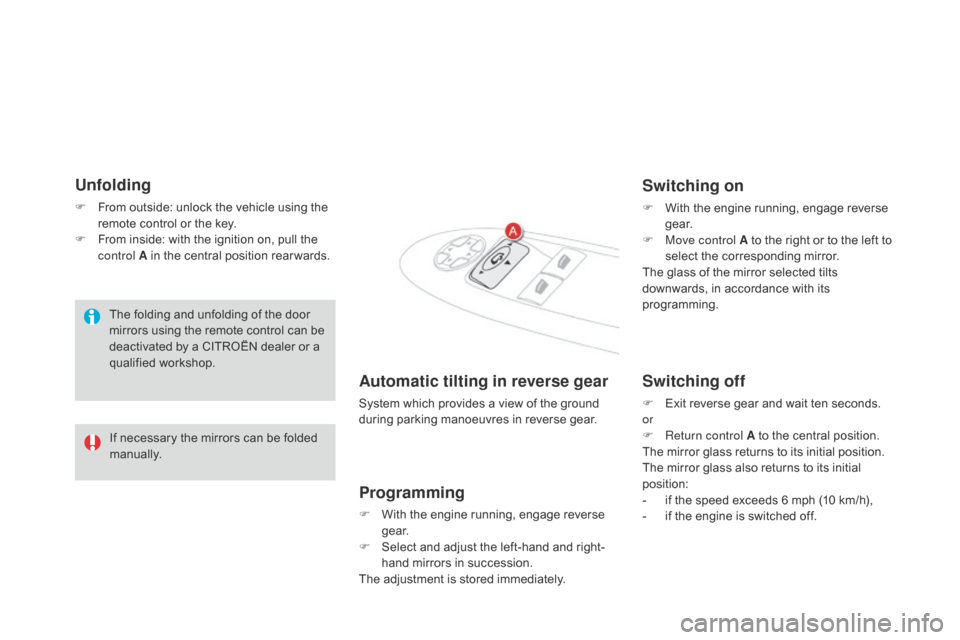

Unfolding
F From outside: unlock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rear wards.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
If necessary the mirrors can be folded
manually.
Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
Programming
F With the engine running, engage reverse g e a r.
F

S
elect and adjust the left-hand and right-
hand mirrors in succession.
The adjustment is stored immediately.
Switching on
F With the engine running, engage reverse g e a r.
F

M
ove control A to the right or to the left to
select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its
programming.
Switching off
F Exit reverse gear and wait ten seconds.
or
F

R
eturn control A to the central position.
The mirror glass returns to its initial position.
The mirror glass also returns to its initial
position:
-

i
f the speed exceeds 6 mph (10 km/h),
-

i
f the engine is switched off.

111

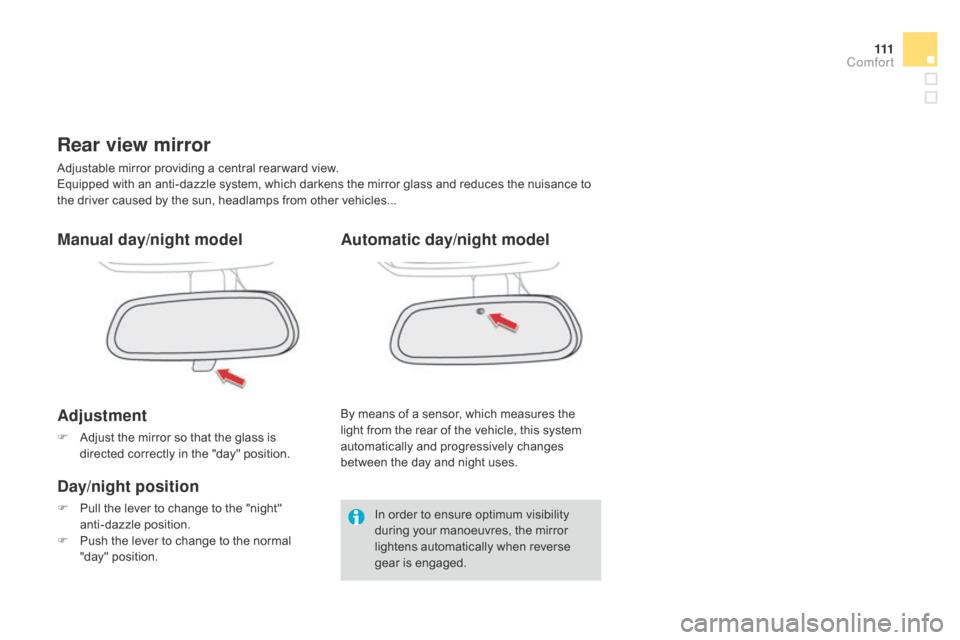

Rear view mirror
Adjustable mirror providing a central rear ward view.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual day/night model
Adjustment
F Adjust the mirror so that the glass is directed correctly in the "day" position.
Day/night position
F Pull the lever to change to the "night" anti-dazzle position.
F

P
ush the lever to change to the normal
"day" position. By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
Automatic day/night model
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Comfort

When a low level of ambient light is detected
by a sunshine sensor, the number plate
lamps,
s
idelamps and dipped beam headlamps
are switched on automatically, without any
action on the part of the driver. They can also
come on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the brightness returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.

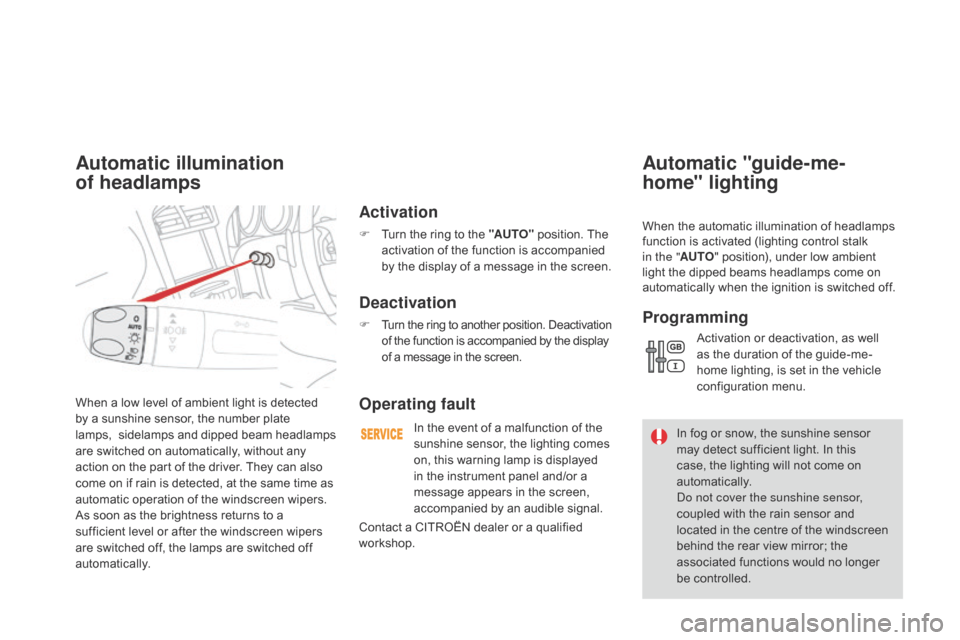

Automatic illumination
of headlamps
Activation
F Turn the ring to the "AUTO" position. The
activation of the function is accompanied
by the display of a message in the screen.
Deactivation
F Turn the ring to another position. Deactivation of the function is accompanied by the display
of a message in the screen.
Automatic "guide-me-
home" lighting
Operating fault
In the event of a malfunction of the
sunshine sensor, the lighting comes
on, this warning lamp is displayed
in the instrument panel and/or a
message appears in the screen,
accompanied by an audible signal. In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
When the automatic illumination of headlamps
function is activated (lighting control stalk
in the "
AUTO" position), under low ambient
light the dipped beams headlamps come on
automatically when the ignition is switched off.
Programming
Activation or deactivation, as well
as the duration of the guide-me-
home lighting, is set in the vehicle
configuration menu.
Contact a CITROËN dealer or a qualified
workshop.

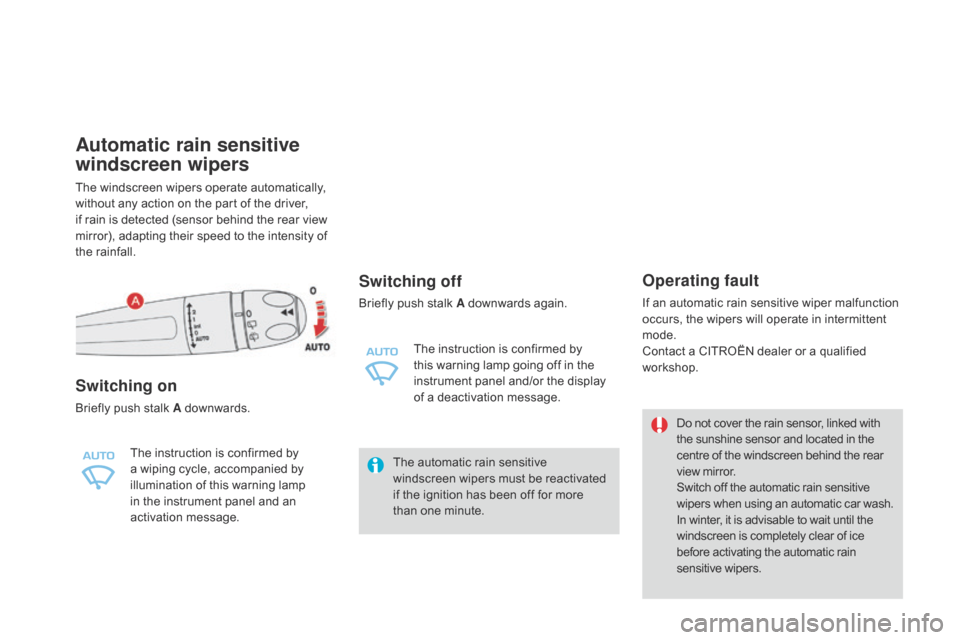

Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically,
without any action on the part of the driver,
if rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Switching on
Briefly push stalk A downwards.The instruction is confirmed by
a wiping cycle, accompanied by
illumination of this warning lamp
in the instrument panel and an
activation message.
Switching off
Briefly push stalk A downwards again.
The instruction is confirmed by
this warning lamp going off in the
instrument panel and/or the display
of a deactivation message.
The automatic rain sensitive
windscreen wipers must be reactivated
if the ignition has been off for more
than one minute.
Operating fault
If an automatic rain sensitive wiper malfunction
occurs, the wipers will operate in intermittent
mode.
Contact a CITROËN dealer or a qualified
workshop. Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.

147

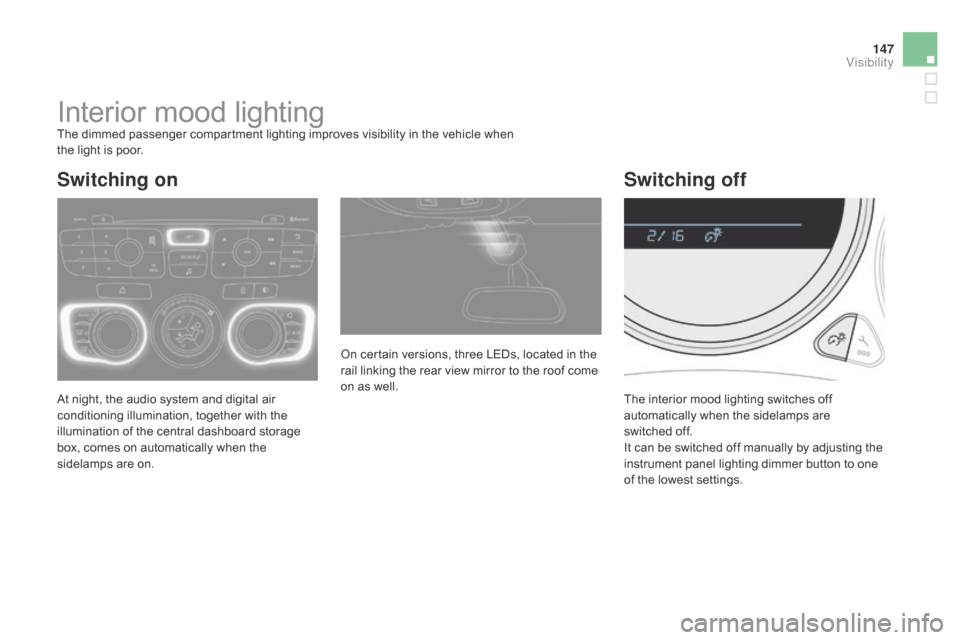

Interior mood lightingThe dimmed passenger compartment lighting improves visibility in the vehicle when
the light is poor.
At night, the audio system and digital air
conditioning illumination, together with the
illumination of the central dashboard storage
box, comes on automatically when the
sidelamps are on.The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually by adjusting the
instrument panel lighting dimmer button to one
of the lowest settings.
On certain versions, three LEDs, located in the
rail linking the rear view mirror to the roof come
on as well.
Switching on
Switching off
Visibility

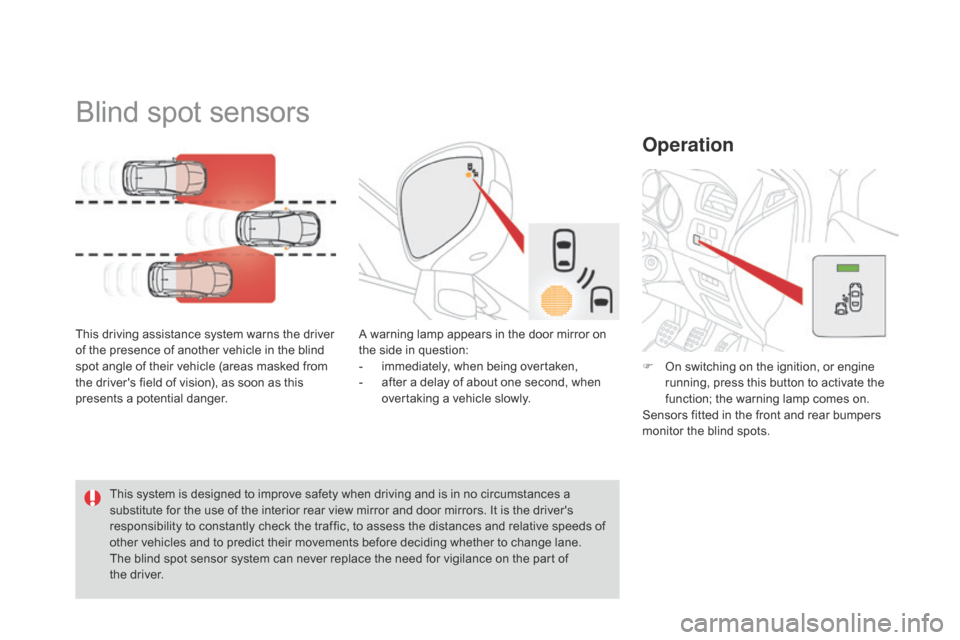

Blind spot sensors
This driving assistance system warns the driver
of the presence of another vehicle in the blind
spot angle of their vehicle (areas masked from
the driver's field of vision), as soon as this
presents a potential danger.
Operation
This system is designed to improve safety when driving and is in no circumstances a
substitute for the use of the interior rear view mirror and door mirrors. It is the driver's
responsibility to constantly check the traffic, to assess the distances and relative speeds of
other vehicles and to predict their movements before deciding whether to change lane.
The blind spot sensor system can never replace the need for vigilance on the part of
the
d
river. F

O
n switching on the ignition, or engine
running, press this button to activate the
function; the warning lamp comes on.
Sensors fitted in the front and rear bumpers
monitor the blind spots.
A warning lamp appears in the door mirror on
the side in question:
-
i
mmediately, when being overtaken,
-
a
fter a delay of about one second, when
overtaking a vehicle slowly.

435
Menu, main ...................................................400
Menus (Touch screen tablet) ........................32
8
Mirror, rear view

............................................. 111
M

irrors, door.................................. 109, 110, 220
Misfuel prevention
...............................

..........238
Mountings for ISOFIX seats

.........................16

1
MP3 CD

................
......................... 344, 407, 408
Navigation
...............................

......................350
Number plate lamps

...................................... 28

2
Oil change

...............................
......................243
Oil consumption

............................................ 24

3
Oil filter
...............

........................................... 247
Oil level .................................................... 35, 243
Opening the bonnet

...................................... 24

0
Opening the boot

..............................
.. 69, 84, 85
Opening the doors

...............................
..... 69, 83
Operation indicator lamps

.........................21

-34Paint colour code
..........................................
3 21
Panoramic windscreen ................................. 12
3
Parcel shelf, rear
........................................... 12

6
Parking brake

........................................ 2
02, 249
Parking brake, electric

.................... 2
4, 196, 249
Parking lamps
............................................... 13

5
Parking sensors, front

...................................23

0
Parking sensors, rear.................................... 229
Particle filter
.......................................... 2

46, 248
Passenger compartment filter
...................... 2

47
Personalisation
...............................

................42
Player, CD MP3

...............................
...... 407, 408
Port, USB

...............................1
16, 344, 348 409
Priming the fuel system

................................23

9
Protecting children

................. 1
50 -166, 178, 181
Puncture
................

........................................262
Quickly detachable towball

...........................3

01
Radio
...............

.......................338 -343, 401- 403
Range, AdBlue

...............................
...............2 51
RDS
................

....................................... 341, 402Rear screen (demisting) ........................
10 2, 109
Recharging the battery ......................... 2 92, 293
Reduction of electrical load

..........................29

4
Regeneration of the particle filter

.................24

8
Reinitialising the electric windows

.................. 87
R

einitialising the remote control
............... 6
8, 75
Remote control

..................................... 6
2- 67, 76
Removable screen (snow shield).................. 295
Removing a wheel

..............................
..........271
Removing the mat

...............................
..........121
Repair kit, puncture

.......................................2

62
Replacing bulbs
..............................

.......276 -283
Replacing fuses
..............................

......284-289
Replacing the air filter

...................................2

47
Replacing the oil filter

...................................2

47
Replacing the passenger
compartment filter

......................................2

47
Replacing wiper blades......................... 144, 295
Resetting the service indicator

.......................38
R

esetting the trip recorder
..............................40
R

ev counter
................................................18

-20
Reversing lamps
........................................... 2

81
Risk areas (update)

.......................................3

59
Roof bars
....................................................... 29

6
Routine checks

......................................24

7-249
Running out of fuel (Diesel)

..........................23

9
Alphabetical index
