transmission Citroen DS4 RHD 2014.5 1.G Owner's Manual

F On the front bumper, unclip the cover by pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towing bar. F
O n the rear bumper, unclip the cover by
pressing at the bottom.
F

S
crew the towing eye in fully.
F

I
nstall the towing bar.
F

S
witch on the hazard warning lamps on
both vehicles.
F

M
ove off gently, drive slowly and for a short
distance.
Towing your vehicle Towing another vehicle
F Place the gear lever in neutral
(position N on an electronic or
automatic gearbox).
F

ailure to observe this instruction
could result in damage to
certain components (braking,
transmission...) and the absence
of braking assistance the next time
the engine is started.
F

U

nlock the steering and release the
parking brake.
F

S

witch on the hazard warning lamps on
both vehicles.
F

M

ove off gently, drive slowly and for a short
distance.

05
365

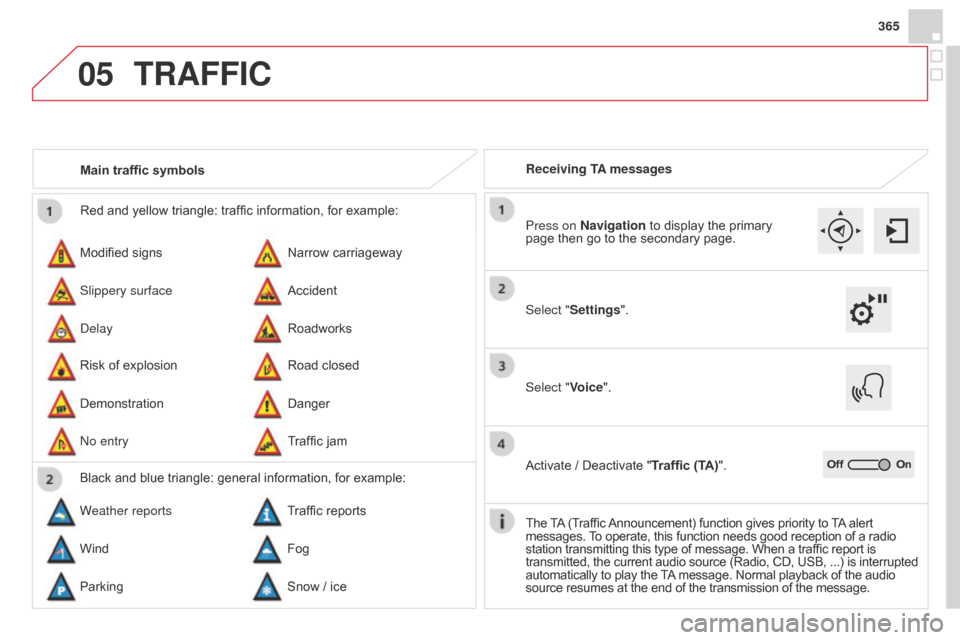

Red and yellow triangle: traffic information, for example:
Modified signs
Risk of explosion Narrow carriageway
Road closed
Slippery surface
Demonstration Accident
Danger
Delay
No entry Roadworks
Traffic jam
Main traffic symbols
Black and blue triangle: general information, for example:
Weather reports Traffic reports
Wind Fog
Parking Snow / ice Receiving TA messages
TRAFFIC
Select "Settings". Press on Navigation to display the primary
page then go to the secondary page.
Select "Voice".
Activate / Deactivate "Traffic (TA)".
The TA (Traffic Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a radio
station transmitting this type of message. When a traffic report is
transmitted, the current audio source (Radio, CD, USB, ...) is interrupted
automatically to play the TA message. Normal playback of the audio
source resumes at the end of the transmission of the message.

04

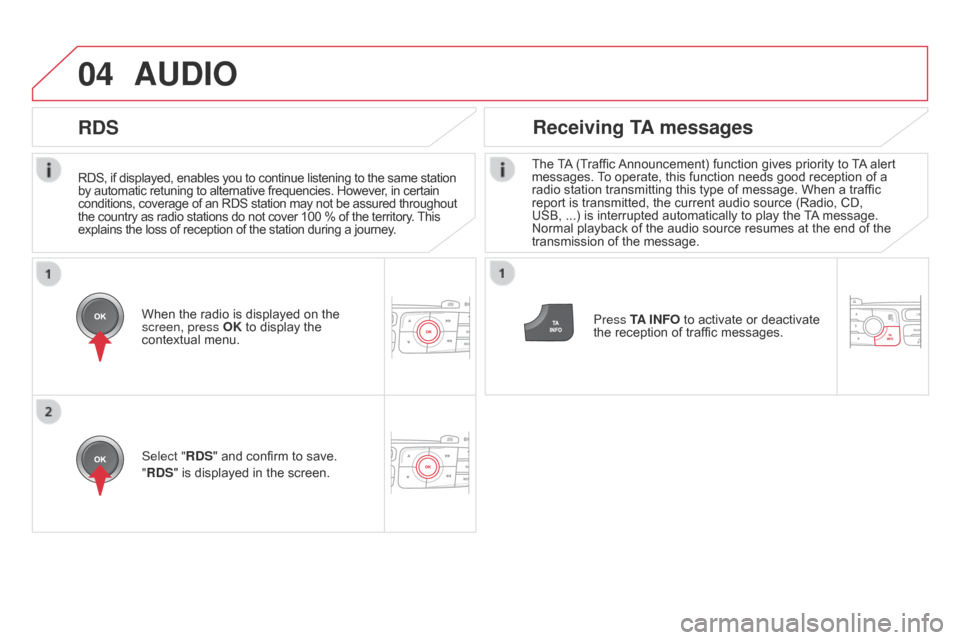

RDS, if displayed, enables you to continue listening to the same station
by automatic retuning to alternative frequencies. However, in certain
conditions, coverage of an RDS station may not be assured throughout
the country as radio stations do not cover 100 % of the territory. This
explains the loss of reception of the station during a journey.
AUDIO
RDS Receiving TA messages
The TA (Traffic Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffic
report is transmitted, the current audio source (Radio, CD,
USB, ...) is interrupted automatically to play the TA message.
Normal playback of the audio source resumes at the end of the
transmission of the message.
Press TA INFO to activate or deactivate
the reception of traffic messages.
When the radio is displayed on the
screen, press OK to display the
contextual menu.
Select "RDS" and confirm to save.
"RDS" is displayed in the screen.

04
403
Make a long press on TA INFO to
display the list of categories.
Receiving INFO messages
The INFO function gives priority to TA alert messages. To be
active, this function needs good reception of a radio station that
transmits this type of message. When a message is transmitted,
the current audio source (Radio, CD, USB,
...) is interrupted
automatically to receive the INFO message. Normal play resumes
at the end of the message transmission.
Select or deselect categories to activate
or deactivate the reception of the
corresponding messages.
AUDIO
Radio text is information transmitted by the radio station related to
the current programme or song.
With the radio displayed on the screen,
press OK to display the contextual
menu.
Select "RadioText (TXT) display" and
confirm OK to save.
Display RADIO TEXT
Screen C

04AUDIO

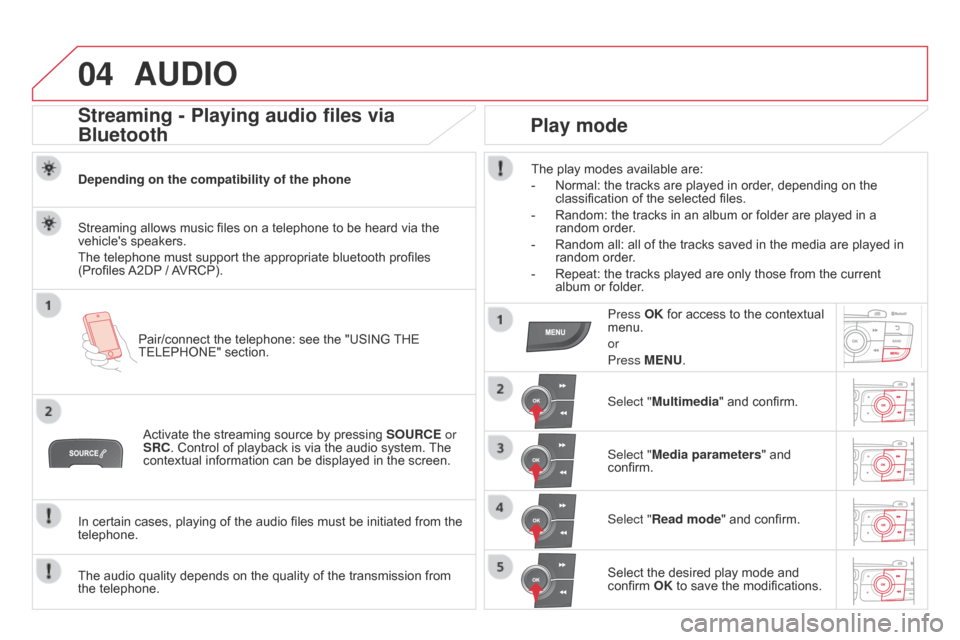

Streaming - Playing audio files via
Bluetooth
Depending on the compatibility of the phonePair/connect the telephone: see the "USING THE
TELEPHONE" section.
Streaming allows music files on a telephone to be heard via the
vehicle's speakers.
The telephone must support the appropriate bluetooth profiles
(Profiles A2DP / AVRCP).
Activate the streaming source by pressing SOURCE or
SRC. Control of playback is via the audio system. The
contextual information can be displayed in the screen.
In certain cases, playing of the audio files must be initiated from the
telephone.
The audio quality depends on the quality of the transmission from
the telephone.
Play mode
The play modes available are:
-
Normal: the tracks are played in order
, depending on the
classification of the selected files.
-

Random: the tracks in an album or folder are played in a
random order

.
-

Random all: all of the tracks saved in the media are played in
random order

.
-

Repeat: the tracks played are only those from the current
album or folder

.
Press OK for access to the contextual
menu.
or
Press MENU.
Select "Multimedia" and confirm.
Select "Media parameters " and
confirm.
Select "Read mode" and confirm.
Select the desired play mode and
confirm OK to save the modifications.
