seat adjustment Citroen DS4 RHD 2015.5 1.G Owner's Manual

COMFORT
88 Front seats
92
R
ear seats
93
S

teering wheel adjustment
94
M

irrors
97
V

entilation / Heating
100
M

anual air conditioning
102
D

ual-zone digital air
conditioning
106
F

ront demist -
defrost
107
R

ear screen demist -
defrost 110 F
ront fittings
113
P

anoramic windscreen
114
C

entre consoles
116
F

ront armrest
119
R

ear fittings
120
B

oot fittings
004005
003FITTIngS
126 Lighting controls
130
A

utomatic illumination of
headlamps
131
W

elcome lighting
132
H

eadlamp beam height
adjustment
133
D

irectional lighting
135
W

iper controls
136
A

utomatic rain sensitive
wipers
14 0
C

ourtesy lamps
141
I

nterior mood lighting
142
B

oot lamp
006VISIBILITY CHILd
SAFETY
14 6 Child seats
14 8
D

eactivating the passenger's
front airbag
155
I

SOFIX child seats
160
C

hild lock

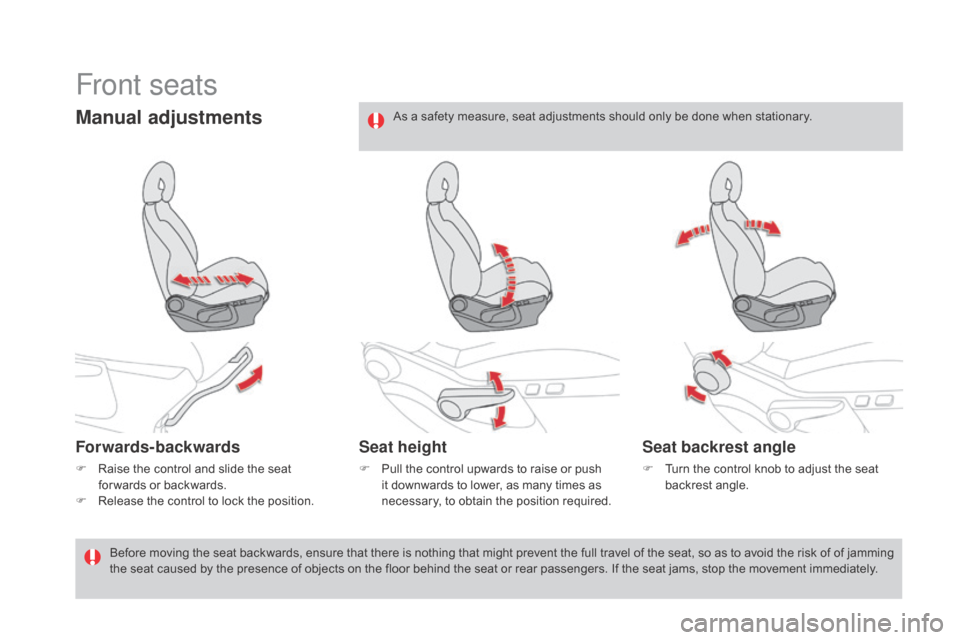

Front seats
Manual adjustments
Forwards-backwards
F Raise the control and slide the seat for wards or backwards.
F

R
elease the control to lock the position.
Seat height
F Pull the control upwards to raise or push it downwards to lower, as many times as
necessary, to obtain the position required.
Seat backrest angle
F Turn the control knob to adjust the seat backrest angle.
As a safety measure, seat adjustments should only be done when stationary.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming
the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

89
driver's seat electric
adjustments
Forwards-backwards
F Push the control for wards or rear wards to slide the seat.
Cushion height and angle
F Tilt the rear part of the control upwards or downwards to obtain the required height.
F

T
ilt the front part of the control upwards or
downwards to obtain the required angle.
Seat backrest angle
F Tilt the control for wards or rear wards to adjust the angle of the seat backrest.
The electrical functions of the driver's seat are deactivated approximately one minute after
the ignition is switched off.
To reactivate them, switch on the ignition.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the
seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.
Comfort

Heated seats control
With the engine running, the front seats can be
heated separately.
F
U
se the adjustment dial, placed on the side
of each front seat, to switch on and select
the level of heating required:
0 : O

ff.
1: L

ow.
2: M

edium.
3: H

igh.
Additional adjustments
Head restraint height and angle
F To raise a head restraint, pull it upwards.
F T o lower the head restraint, press the lug A
and the head restraint at the same time.
F

T
o adjust the angle of the head restraint, tilt
its lower part for wards or rear wards. The head restraint is fitted with a frame
with notches which prevents it from
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Removing a head restraint
F To remove the head restraint, press the
lug A and pull the head restraint upwards.
F

T
o put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
back and press the lug A at the same time.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.

Automatic adjustment of xenon and
full-LEd headlamps
In the event of a fault, do not touch the
xenon bulbs.
Have them checked by a CITROËN
dealer or a qualified workshop.
This system adjusts the height of the xenon
headlamp beams automatically and when
stationary, according to the load in the vehicle, so
as to avoid causing a nuisance to other road user.
If a malfunction occurs, this warning
lamp is displayed in the instrument
panel, accompanied by an audible
signal and a message in the screen.
Headlamp beam height adjustment
To avoid causing a nuisance to other road
users, the height of the halogen headlamp
beams should be adjusted according to the
load in the vehicle.
0.
1 o

r 2 people in the front seats.
-.
3 p

eople.
1.
5 p

eople.
-.
I

ntermediate setting.
2.
5 p

eople + maximum authorised load.
-.
I

ntermediate setting.
3.
D

river + maximum authorised load. The system then places your headlamps in the
lowest position.
Manual adjustment of
halogen headlamps
The initial setting is position "0".

169
Seat belts
Front seat belts
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant,
so improving their protection.
Fastening
F Pull the strap, then insert the tongue in the buckle.
F

C
heck that the seat belt is fastened
correctly by pulling the strap.
Unfastening
F Press the red button on the buckle.
F G uide the seat belt as it reels in.
Seat belt not fastened /
unfastened warning lamp in
the


instrument panel
When the ignition is switched on, this
warning lamp comes on in the instrument
panel if the driver and/or the front
passenger has not fastened their seat belt.
Height adjustment
F To lower the attachment point, squeeze the control A and slide it downwards.
F

T
o raise the attachment point, slide the
control A upwards.
From approximately 12 mph (20 km/h)
this warning lamp flashes for two minutes
accompanied by an audible signal of increasing
volume. Once these two minutes have elapsed,
this warning lamp remains on until the driver
and/or the front passenger fastens their seat
belt.
Safety

The driver must ensure that passengers use
the seat belts correctly and that they are all
restrained securely before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfil their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the length
of the strap to your size. The seat belt is
stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and then
releasing it so that it reels in slightly.Recommendations for
children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure
more than one person.
Never allow a child to travel on your lap.
For more information, refer to the "Child
seats" section.
Advice
In order to be effective, a seat belt must:
- b e tightened as close to the body as
possible,
-

b
e pulled in front of you with a smooth
movement, checking that it does not
twist,
-

b
e used to restrain only one person,
-

n
ot bear any trace of cuts or fraying,
-

n
ot be converted or modified to avoid
affecting its performance.
In accordance with current safety regulations,
for all repairs on your vehicle's seat belts, go
to a qualified workshop with the skills and
equipment needed, which a CITROËN dealer
is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy water or
a textile cleaning product, sold by CITROËN
dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
In the event of an impact
depending on the nature and
seriousness of the impact , the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITROËN dealer or a qualified
workshop.

Under floor storage ................ ........................................ 123
Under-inflation
(detection)
...............................

....................204
Unlocking
..............................

..........................67
Unlocking from the inside

..............................
........................75
Unlocking the boot

.................................... 6
0, 67
Unlocking the doors

.................................. 6
0, 67
Updating risk areas

....................................... 333
U

pdating the date
...................................... 4
6, 51
Updating the time

...................................... 4
6, 51
UREA
...............

..................................... 290, 291
USB
........

....................................... 112, 346, 398
U
V
T
Seats, electric .................................................
89
Se ats, front ............................... ................. 88, 89
Seats, heated
...............................

...................90
Seats, rear
....................................................... 92
S

afety, children
..................................... 15

6, 157
Serial number, vehicle
...............................

..........................311
Service indicator
....................................... 3

6, 39
Servicing
...............................

..........................14
Settings
...............

..... 45, 50, 350, 352, 354, 357
Sidelamps
..................... 1

26, 129, 241, 244, 246
Side repeater
..............................

..................244
Ski flap

..............................
............................11 9
Snow chains
.................................................. 23

9
Socket,
12 V accessory

.................... 1
12, 114, 119, 122
Sockets, audio

...................... 1
12, 346, 397, 398
Speed limiter
...............................

..........213, 215
Speedometer
..............................

.............. 18, 19
Spotlamps, side
.................................... 1

31, 245
Starting the engine

............................... 1
84, 187
Starting using another battery
......................................................... 25

6
Station, radio
.........................................3

42, 390
Stay, bonnet
...............................

...................280
Steering wheel, adjustment
.................................................... 93
St

op & Start
..................... 3
3, 56, 103, 106, 206, 255, 275, 280, 287
Storage
................

............ 110, 111, 114-116, 120
Storage compartments
.......................... 11

0 , 114
Stowing rings
..............................

..................120
Sun visor
....................................................... 11

3
Switching off the engine
...............................

............ 184, 187
Synchronising the remote control
............................................... 6

6, 72, 73Table of weights
....................................3
04, 308
Tables of engines
............................... ...302, 306
Tables of fuses

..............................................24

9
Tank, AdBlue
®
additive ............... ................................ 290, 297
Tank, fuel

...............................
................ 275, 278
Technical data
........................................ 3

0 2 - 311
Telephone
............................................. 3

74, 400
Three flashes (direction indicators)
................................... 16

4
Ticket holder

................................................. 11

0
Time (setting)

..............................
.............. 46, 51
TMC (Traffic info)

.......................................... 33

4
To o l s
................

.............................................. 231
Topping-up the AdBlue
®
additive ...............
........................................ 297
To r c h
..............................

............................... 12 2
Total distance recorder
..............................

.......................... 40
Touch screen tablet ( M e nu s)
.............................. 4

7, 49, 50, 317, 321
To w b a r
................

................................... 183, 264
Towbar with quickly detachable towball
...................................... 26

5
Towed loads

.......................................... 3

04, 308
Towing another vehicle
...............................

.......................... 263
Traction control (ASR)
...............

........................................... 167
Traffic information ( TA)
...............................

...................... 335, 392
Traffic information ( TM C)
...............................

........................... 334
Tr a i l e r
...............

..................................... 183, 264
Trajectory control systems

....................................................... 16

7
Trip computer

...................................... 5
2, 54-56
Trip distance recorder

..................................... 40T

y r e s
..............................................................
..
14
Tyre under-inflation detection
...............
......................................
204
Ventilation
..............................
..................97-10 0
Voice recognition

...............................
...363, 367
