keyless Citroen DS5 2011 1.G User Guide

95
Driving

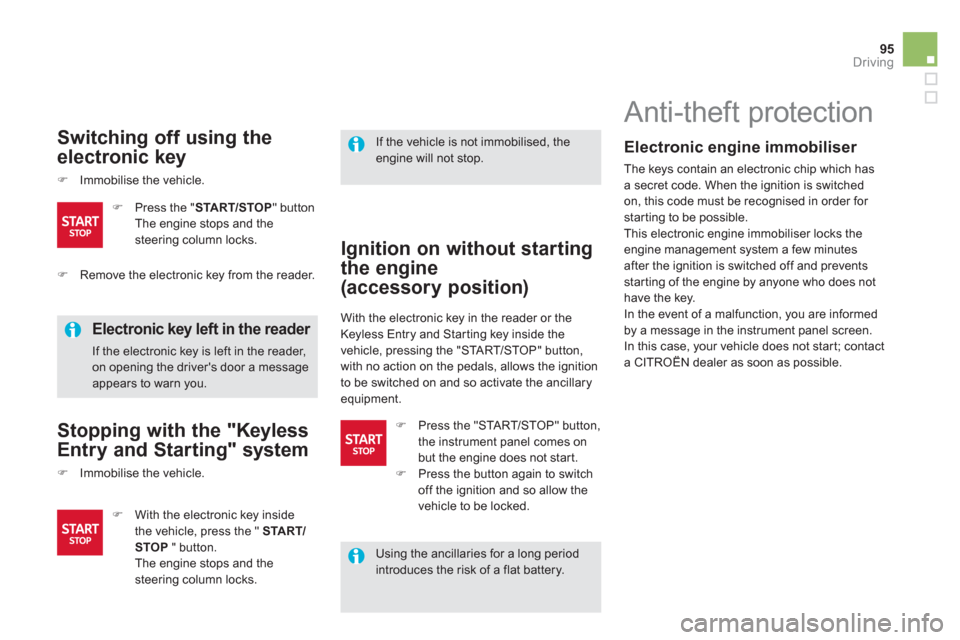

Switching off using the
electronic key
)Immobilise the vehicle.


Electronic key left in the reader

If the electronic key is left in the reader, on opening the driver's door a messageappears to warn you.



Stopping with the "Keyless
Entr
y and Starting" system
)Immobilise the vehicle.
If the vehicle is not immobilised, the
engine will not stop.

Ignition on without starting
the engine
(accessory position)
)
With the electronic key inside
the vehicle, press the " START/
STOP
"
button.
The engine stops and thesteering column locks.
)
Press the "START/STOP
" button
The engine stops and thesteering column locks.











Anti-theft protection


Electronic engine immobiliser

The keys contain an electronic chip which has
a secret code. When the ignition is switched on, this code must be recognised in order for starting to be possible.
This electronic engine immobiliser locks theengine management system a few minutes
after the ignition is switched off and preventsstarting of the engine by anyone who does not have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.

With the electronic key in the reader or the
Keyless Entry and Star ting key inside the
vehicle, pressing the "STA R T/STOP" button,with no action on the pedals, allows the ignition
to be switched on and so activate the ancillaryequipment.
)Remove the electronic key from the reader.
)
Press the "STA R T/STOP" button,
the instrument panel comes on
but the engine does not star t.
) Press the button again to switch
off the ignition and so allow the
vehicle to be locked.

Using the ancillaries for a long period introduces the risk of a flat battery.

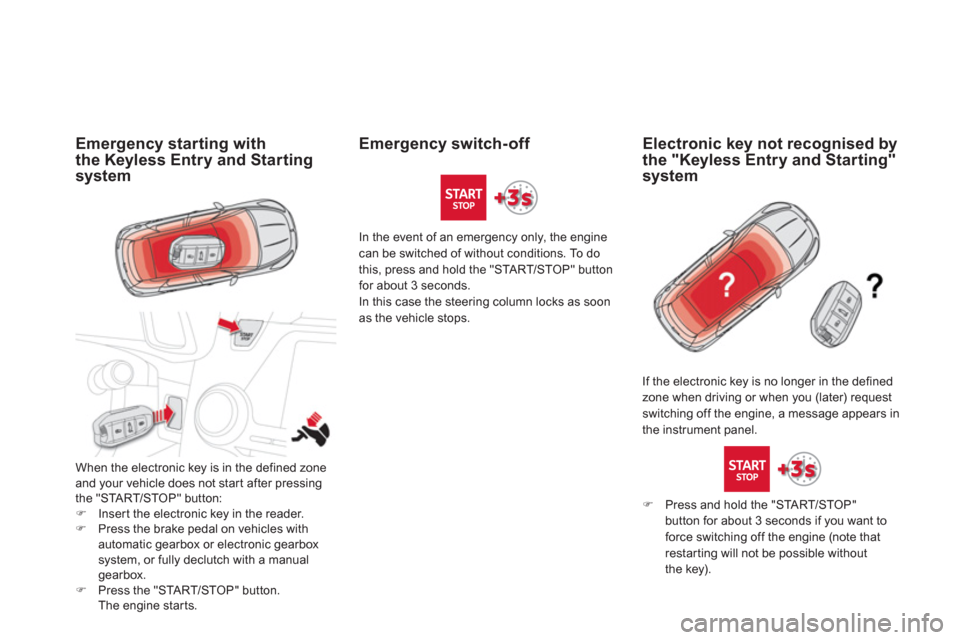

Emergency starting with
the Keyless Entry and Startingsystem
When the electronic key is in the defined zone and your vehicle does not star t after pressingthe "STA R T/STOP" button: )Inser t the electronic key in the reader. )Press the brake pedal on vehicles withautomatic gearbox or electronic gearbox
system, or fully declutch with a manualgearbox.)Press the "STA R T/STOP" button.The engine starts. In the event o
f an emergency only, the enginecan be switched of without conditions. To dothis, press and hold the "START/STOP" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
I
f the electronic key is no longer in the defined
zone when driving or when you (later) request switching off the engine, a message appears in
the instrument panel.

Emergency switch- off
Electronic key not recognised by
the "Keyless Entry and Starting"
system
)Press and hold the "STA R T/STOP"
button for about 3 seconds if you want to
force switchin
g off the engine (note that restarting will not be possible without
the key).

Visibility

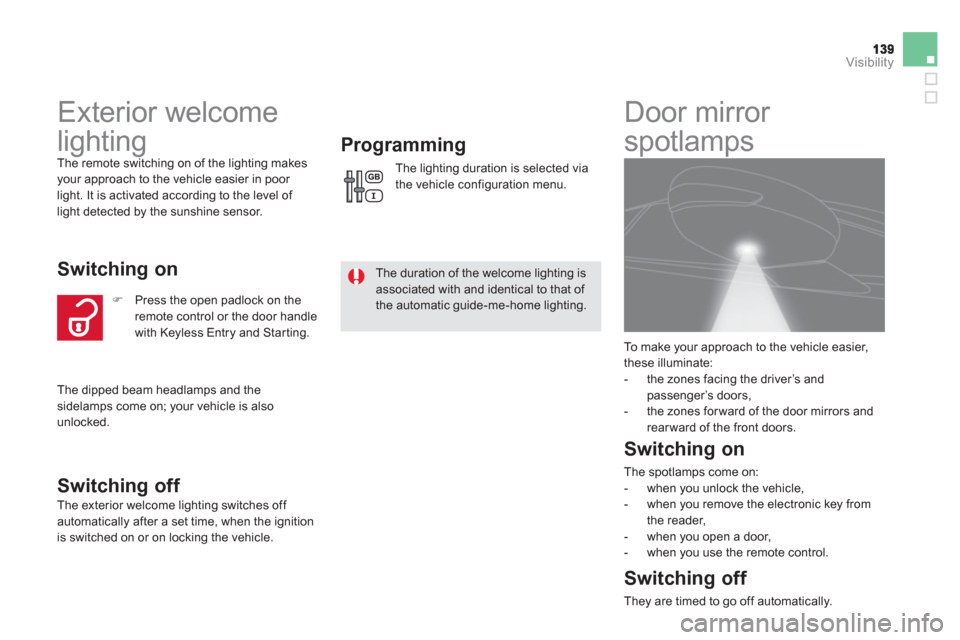

Exterior welcome
lighting
The remote switching on of the lighting makesyour approach to the vehicle easier in poor
light. It is activated according to the level of
light detected by the sunshine sensor.

Switching on

Switchin
g off


The exterior welcome lighting switches off
automatically after a set time, when the ignitionis switched on or on locking the vehicle.
Programming

The lighting duration is selected via
the vehicle configuration menu.
The duration of the welcome lighting isassociated with and identical to that of the automatic guide-me-home lighting.) Press the open padlock on the
remote control or the door handlewith Keyless Entry and Starting.







Door mirror
spotlamps

Switching on
The spotlamps come on:


- when you unlock the vehicle,

- when
you remove the electronic key from
the reader,

- when
you open a door,

- when you use the remote control.



Switching off

They are timed to go off automatically. To m a k e
your approach to the vehicle easier,
these illuminate:


- the zones facing the driver’s andpassenger’s doors,

- the zones forward of the door mirrors and
rearward of the front doors.
The dipped beam headlamps and the sidelamps come on; your vehicle is also unlocked.
