Key Citroen DS5 2011 1.G Owner's Guide

95
Driving

Switching off using the
electronic key
)Immobilise the vehicle.


Electronic key left in the reader

If the electronic key is left in the reader, on opening the driver's door a messageappears to warn you.



Stopping with the "Keyless
Entr
y and Starting" system
)Immobilise the vehicle.
If the vehicle is not immobilised, the
engine will not stop.

Ignition on without starting
the engine
(accessory position)
)
With the electronic key inside
the vehicle, press the " START/
STOP
"
button.
The engine stops and thesteering column locks.
)
Press the "START/STOP
" button
The engine stops and thesteering column locks.











Anti-theft protection


Electronic engine immobiliser

The keys contain an electronic chip which has
a secret code. When the ignition is switched on, this code must be recognised in order for starting to be possible.
This electronic engine immobiliser locks theengine management system a few minutes
after the ignition is switched off and preventsstarting of the engine by anyone who does not have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.

With the electronic key in the reader or the
Keyless Entry and Star ting key inside the
vehicle, pressing the "STA R T/STOP" button,with no action on the pedals, allows the ignition
to be switched on and so activate the ancillaryequipment.
)Remove the electronic key from the reader.
)
Press the "STA R T/STOP" button,
the instrument panel comes on
but the engine does not star t.
) Press the button again to switch
off the ignition and so allow the
vehicle to be locked.

Using the ancillaries for a long period introduces the risk of a flat battery.

Emergency starting with
the Keyless Entry and Startingsystem
When the electronic key is in the defined zone and your vehicle does not star t after pressingthe "STA R T/STOP" button: )Inser t the electronic key in the reader. )Press the brake pedal on vehicles withautomatic gearbox or electronic gearbox
system, or fully declutch with a manualgearbox.)Press the "STA R T/STOP" button.The engine starts. In the event o
f an emergency only, the enginecan be switched of without conditions. To dothis, press and hold the "START/STOP" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
I
f the electronic key is no longer in the defined
zone when driving or when you (later) request switching off the engine, a message appears in
the instrument panel.

Emergency switch- off
Electronic key not recognised by
the "Keyless Entry and Starting"
system
)Press and hold the "STA R T/STOP"
button for about 3 seconds if you want to
force switchin
g off the engine (note that restarting will not be possible without
the key).

Visibility





Exterior welcome
lighting
The remote switching on of the lighting makesyour approach to the vehicle easier in poor
light. It is activated according to the level of
light detected by the sunshine sensor.

Switching on

Switchin
g off


The exterior welcome lighting switches off
automatically after a set time, when the ignitionis switched on or on locking the vehicle.
Programming

The lighting duration is selected via
the vehicle configuration menu.
The duration of the welcome lighting isassociated with and identical to that of the automatic guide-me-home lighting.) Press the open padlock on the
remote control or the door handlewith Keyless Entry and Starting.







Door mirror
spotlamps

Switching on
The spotlamps come on:


- when you unlock the vehicle,

- when
you remove the electronic key from
the reader,

- when
you open a door,

- when you use the remote control.



Switching off

They are timed to go off automatically. To m a k e
your approach to the vehicle easier,
these illuminate:


- the zones facing the driver’s andpassenger’s doors,

- the zones forward of the door mirrors and
rearward of the front doors.
The dipped beam headlamps and the sidelamps come on; your vehicle is also unlocked.

157
Child safety
The incorrect installation of a child seat in a
vehicle compromises the child's protection in the event of an accident.
Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum, even for short journeys.
When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it secures the child seat firmly on the seat of your vehicle. If your passenger seat is adjustable, move it for wards if necessary.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.






Advice on child seats

As a safety precaution, do not leave:
- a child or children alone and unsupervised in a vehicle, - a child or an animal in a vehicle whichis exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.

Children under the age of 10 must not travel
in the "forwards-facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a "rearwards-facing" child seat is installed on the front seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.


Installing a booster seat

The chest par t of the seat belt must be positioned on the child's shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs. CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.

161Child safety

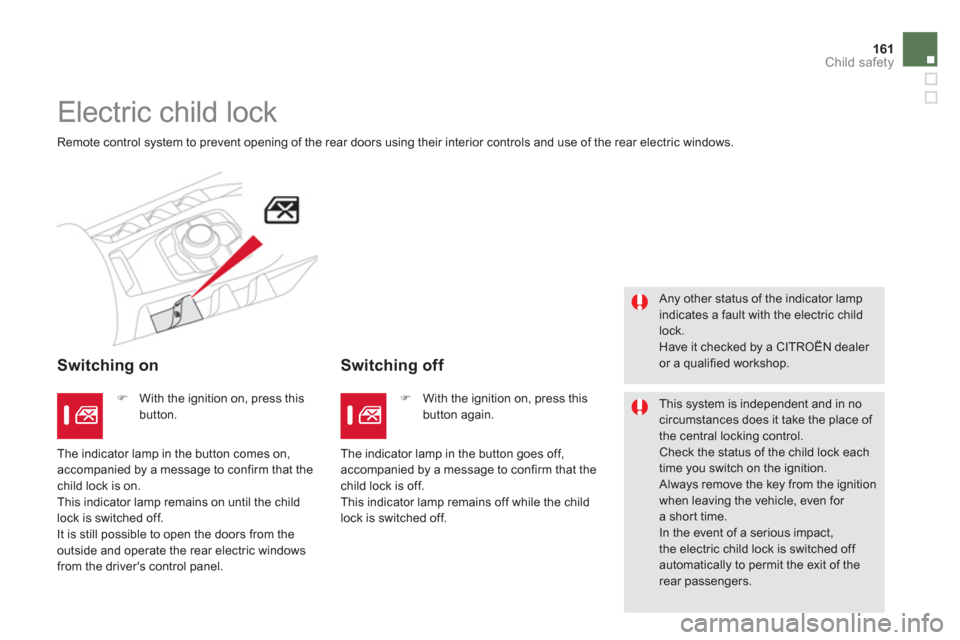

Electric child lock

Remote control system to prevent opening of the rear doors using their interior controls and use of the rear electric windows.


Switching on Switching off


Any other status of the indicator lampindicates a fault with the electric childlock.
Have it checked by a CITROËN dealer or a qualified workshop.


This system is independent and in nocircumstances does it take the place of
the central locking control. Check the status of the child lock eachtime you switch on the ignition.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of a serious impact, the electric child lock is switched off automatically to permit the exit of therear passengers.
)
With the ignition on, press this button. )
With the ignition on, press thisbutton again.
The indicator lam
p in the button comes on,
accompanied by a message to confirm that the child lock is on.
This indicator lamp remains on until the child
l
ock is switched off.
It is still possible to open the doors from the
outside and operate the rear electric windows from the driver's control panel.The indicator lamp in the button
goes off, accompanied by a message to confirm that thechild lock is off.
This indicator lamp remains off while the child
lock is switched off.

Deactivation
Only the passenger's front airbag can be deactivated:)with the ignition off, inser t the key in thefpassenger airbag deactivation switch, )turn it to the "OFF"position,)then, remove the key keeping the switch in
the new position.
Accordin
g to version, this warning lamp comes on either in the
instrument panel or in the seat belt
and passenger's front airbag warning lamp
display when the ignition is on and until the airbag is reactivated.
To assure the safety of your child,the passenger's front airbag must be deactivated when you install a "rear facing" child seat on the front passenger seat. Otherwise, the child would risk beingseriously injured or killed if the airbag were deployed.
If even one of the two airbag warning lamps comes on continuously, donot install a child seat on the frontpassenger seat.
Have it checked by a CITROËN dealer or qualified workshop.



Reactivation

When you remove the child seat, with the
ignition on, turn the switch to the "ON"
position to reactivate the airbag and so assure
the safety of your front passenger in the event
of an impact.
With the ignition on, this warninglamp comes on in the seat belt andpassenger's front airbag warninglamp display for approximately one minute, if the passenger's front
airbag is activated.


Operating fault

If this warning lamp comes on in theinstrument panel, accompanied by an
audible warning and a message in theinstrument panel screen, contact a CITROËN dealer or a qualified workshop to have
the system checked. The airbags may no longer
be deployed in the event of a serious impact.
If this warnin
g lamp flashes, contact
a CITROËN dealer or a qualified workshop. The passenger's front
airbag may no longer be deployed in
the event of a serious impact.

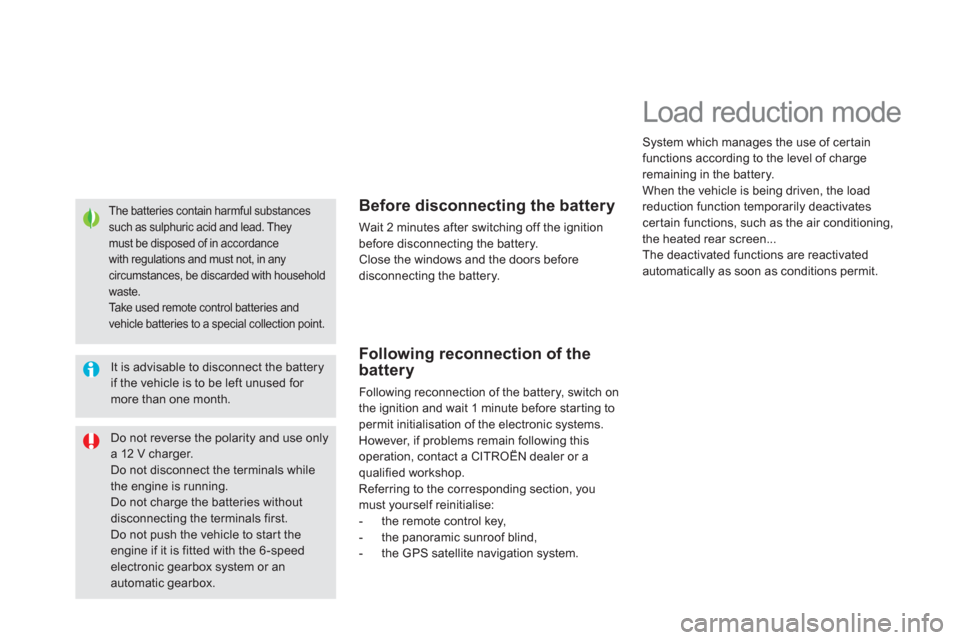

The batteries contain harmful substancessuch as sulphuric acid and lead. They must be disposed of in accordance with regulations and must not, in any circumstances, be discarded with household waste. Take used remote control batteries andvehicle batteries to a special collection point.

Do not reverse the polarity and use only a 12 V charger.
Do not disconnect the terminals whilethe engine is running.
Do not charge the batteries without disconnecting the terminals first.
Do not push the vehicle to star t the engine if it is fitted with the 6 -speed electronic gearbox system or an automatic gearbox.


It is advisable to disconnect the battery if the vehicle is to be left unused for more than one month.


Before disconnecting the battery

Wait 2 minutes after switching off the ignitionbefore disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.

Following reconnection of thebattery

Following reconnection of the battery, switch on
the ignition and wait 1 minute before star ting to
permit initialisation of the electronic systems.However, if problems remain following this
operation, contact a CITROËN dealer or aqualified workshop.
Referring to the corresponding section, you
must yourself reinitialise:


- the remote control key,

- the panoramic sunroof blind,

- the GPS satellite navi
gation system.









Load reduction mode
System which manages the use of certainfunctions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates cer tain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

Fitting roof bars
rack, for a loading height not exceeding40 cm (with the exception of bicycle carriers): 70kg.
If the height exceeds 40 cm, adapt the
speed of the vehicle to the profile of theroad to avoid damaging the roof bars and the fixings on the roof.
Be sure to refer to national legislation in order to comply with the regulations for transporting objects which are longer than the vehicle. When
fitting transverse roof bars, take care toposition them correctly: Use accessories recommended by CITROËN obser ving the manufacturer'srecommendations and fitting instructions so as to avoid the risk of damaging the body (deformation,scratches, ...).
)Remove the cap using an allenTM key. )Put the bars into position then fit and
tighten the securing screws.

1
2
2
3
1
3
4
06
SR
C

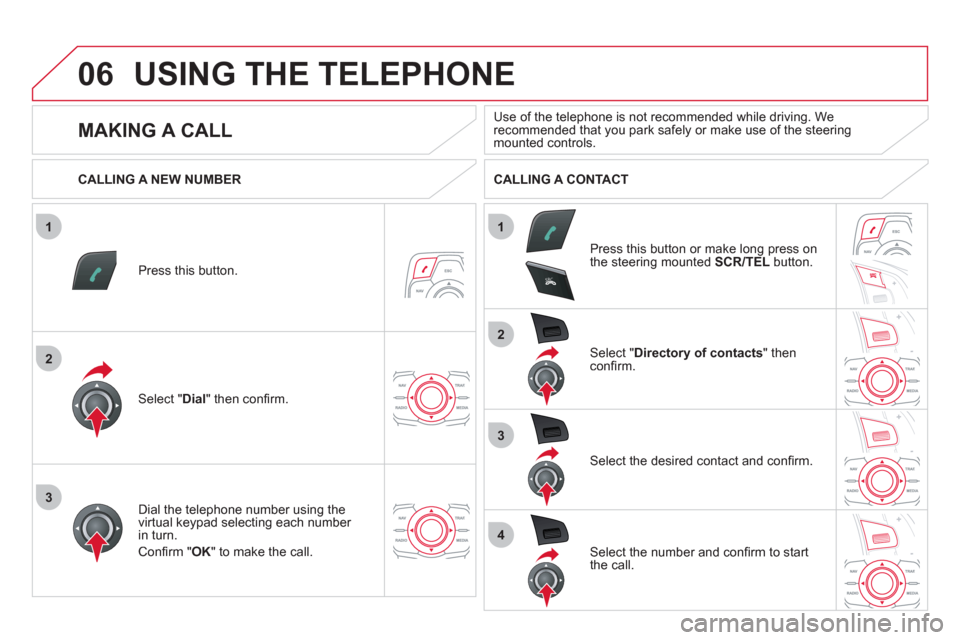

USING THE TELEPHONE
Press this button.
Select " Dial" then confi rm.
Select " Directory of contacts" thenconfi rm.
Dial the telephone number usin
g the
virtual keypad selecting each number in turn.
Confi rm " OK
" to make the call.
Press this button or make lon
g press on
the steering mounted SCR/TEL
button.
CALLING A NEW NUMBER CALLING A CONTACT
Select the desired contact and confi rm.
Select the number and confi rm to start
the call.






MAKING A CALL
Use of the telephone is not recommended while driving. Werecommended that you park safely or make use of the steering mounted controls.

1
2a
2b
2c
2d
06
SRC
273

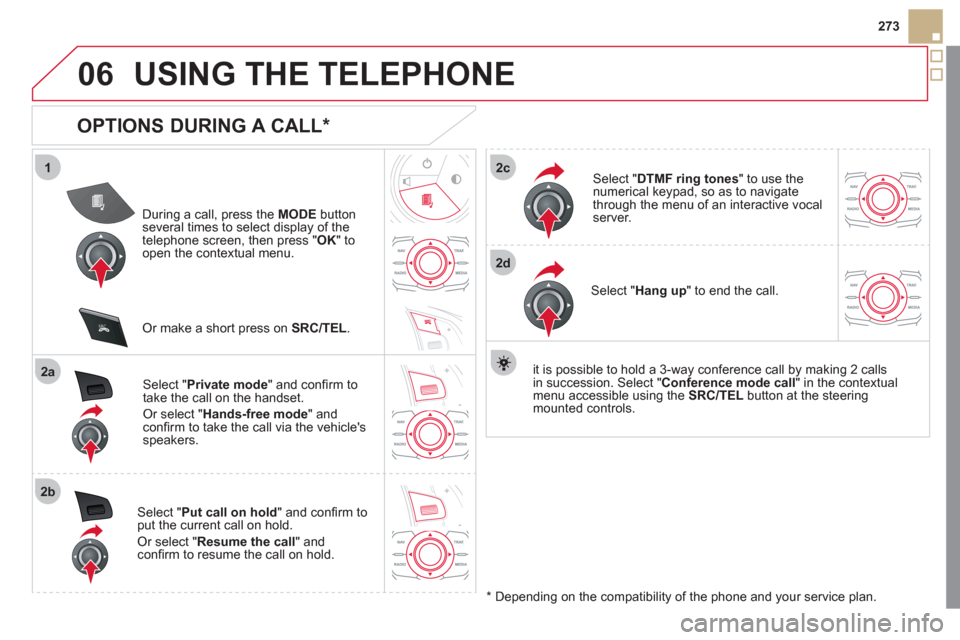

USING THE TELEPHONE

OPTIONS DURING A CALL *


During a call, press the MODE
button several times to select display of the
telephone screen, then press "OK " toopen the contextual menu.
Select " Private mode
" and confi rm totake the call on the handset.
Or select " Hands-free mode" andconfi rm to take the call via the vehicle's
speakers.
Select " Put call on hold" and confi rm to
put the current call on hold.
Or select " Resume the call" andconfi rm to resume the call on hold.
Select " DTMF ring tones
" to use thenumerical keypad, so as to navigate
through the menu of an interactive vocal server.

Select " Hang up " to end the call.
*
Depending on the compatibility of the phone and your service plan. it is possible to hold a 3-wa
y conference call by making 2 callsin succession. Select " Conferencemode call
" in the contextualmenu accessible using the SRC/TELbutton at the steeringmounted controls.
Or make a short press on SRC/TEL.
