key Citroen DS5 2011 1.G Owner's Guide

08
1a
1b
1c
1
2
279
RADIO
By alphabetical list
Pr
ess RADIOor LIST , select the station
of your choice and confi rm.
B
y automatic frequency search
Press or for the automatic searchfor a lower or higher radio frequency.
Or turn the thumb wheel at the steeringmounted controls.
B
y manual frequency search
Pr
ess or to adjust the radiofrequency step by step.
Pr
ess the button on the numerical keypad to recall a preset station.

Or press then turn the thumb wheel at
the steering mounted controls.








SELECTING A STATION


The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode. Thisphenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.


PRESETTING A STATION


Press one of the buttons on thenumerical keypad for 2 seconds to preset the current station.
An audible si
gnal confi rms that thestation has been preset. The qualit
y of reception is represented by the number of active waves in this symbol.

05
7
8
9
10
1

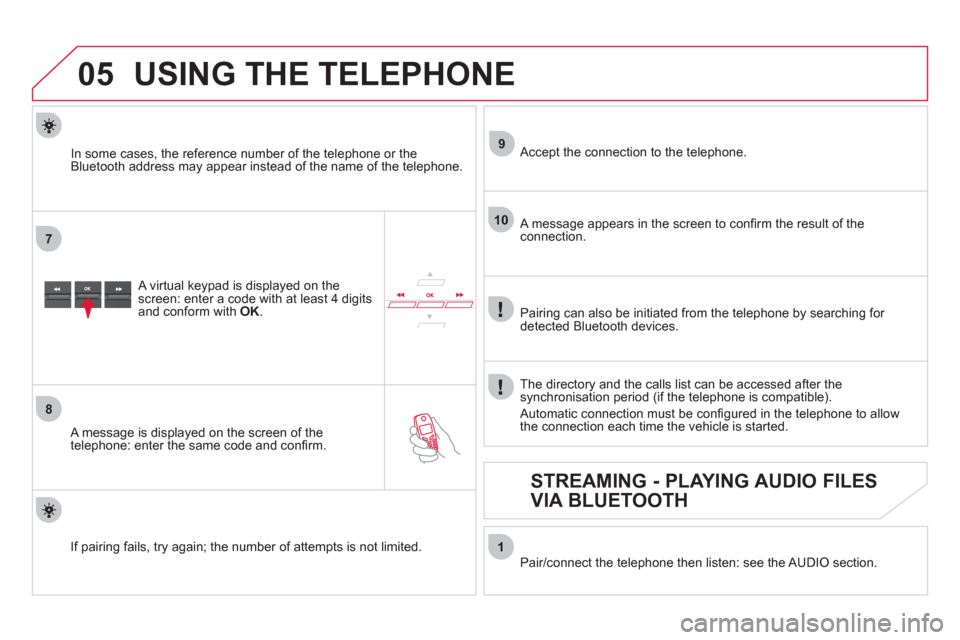

USING THE TELEPHONE

A virtual keypad is displayed on the
screen: enter a code with at least 4 digitsand conform with OK.

A message is displayed on the screen of the
telephone: enter the same code and confi rm.
A message appears in the screen to confi rm the result of theconnection.
Pairin
g can also be initiated from the telephone by searching for detected Bluetooth devices.
Accept the connection to the telephone.

I
f pairing fails, try again; the number of attempts is not limited. The director
y and the calls list can be accessed after the
synchronisation period (if the telephone is compatible).

Automatic connection must be confi gured in the telephone to allow
the connection each time the vehicle is started.

In some cases, the reference number of the tele
phone or the
Bluetooth address may appear instead of the name of the telephone.
Pair/connect the telephone then listen: see the AUDI
O section.








STREAMING - PLAYING AUDIO FILES
VIA BLUETOOTH

2e
2d

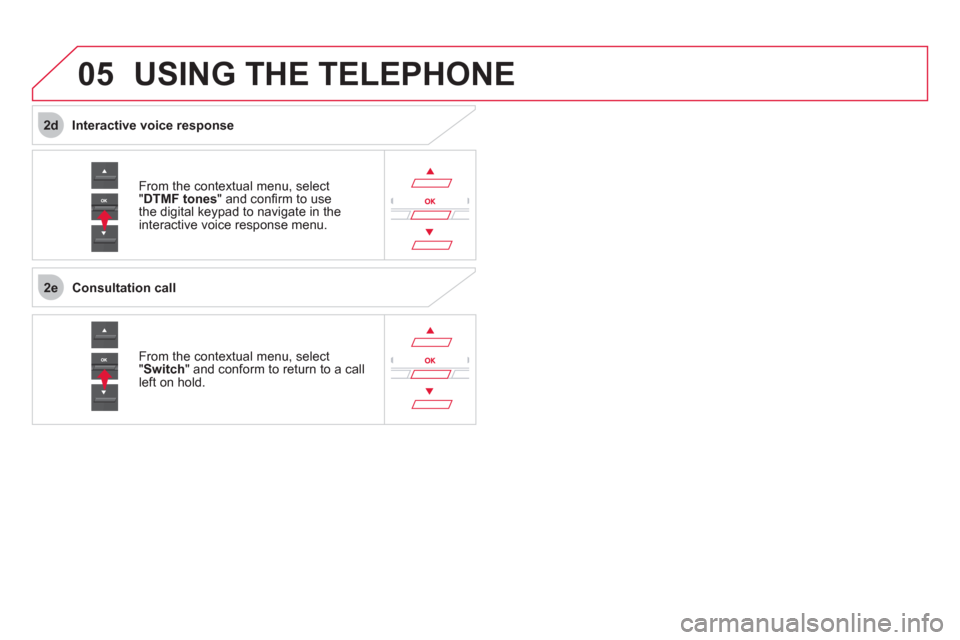

05USING THE TELEPHONE
From the contextual menu, select "DTMF tones " and confi rm to usethe digital keypad to navigate in the
interactive voice response menu.
From the contextual menu, select "Switch" and conform to return to a call left on hold.

Interactive voice response

Consultation call

08TRIP COMPUTER

Each press of the button, located at the end of the
wiper stalk, displays the different trip computer
information in succession, depending on the screen.


- th
e "vehicle
" tab with:
●
the ran
ge, the current fuel consumption and
the distance remaining to the destination or the Stop & Start time counter,

- the "1" tab
(trip 1) with:
●
t
he average speed, the average consumptionand the distance travelled calculated over
trip " 1 ",

- the "2" tab
(trip 2) with the same information for a second trip.
Z
ero reset
When the required trip is displa
yed, press the control
for more than two seconds.
Range:displays the distance which can travelled with the remaining fuel
detected in the tank, based on the average fuel consumption over the last few miles (kilometres).
This displa
yed value may vary signifi cantly following a change in the
vehicle speed or the relief of the route.
When the ran
ge falls below 20 miles (30 km), dashes are displayed.After fi lling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuously in place of the digits, contact a CITROËN dealer. ,g,

A FEW DEFINITIONS
Current fuel consumption:only calculated and displayed above 20 mph (30 km/h).
Average fuel consumption:
this is the average fuel consumption since
the last trip computer zero reset.
Distance travelled:calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to
the fi nal destination, entered by the user. If guidance is activated, the navigation system calculates it as a current value.
Avera
ge speed: this is the average speed calculated since the last tripcomputer zero reset (ignition on).
Sto
p & Start time counter

(minutes/seconds or hours/minutes)
I
f your vehicle is fi tted with Stop & Start, a time counter calculates the
time spent in STOP mode during a journey.
It resets to zero ever
y time the ignition is switched on with the key.

Jack.............................................................186JACK socket..................................80, 286, 311
J
Markings,identification.............................................239Massage function.........................................72Mat................................................................79Menu, main.................................................302Mini fuel level ....................................19, 36, 64Mirror, rear view............................................77Mirrors, door..................................................r76Misfuel prevention.........................................64Motorway function(direction indicators).................................164Mountings for ISOFIXseats.........................................................158MP3 CD .......................................282, 307, 308Music media players ...........................281, 307
Navigation...................................................251Number plate lamps ....................................200
N
Labels, identification...................................239Lamps, warning and indicator.................r29-37Lane Depar ture Warning System(LDWS).....................................................119LED daytime running lamps........................135Level, brake fluid.........................................224Level, headlamp wash................................225Level, power steering fluid ..........................224
Levels and checks...............................220-228Lighting................................................147,148Lighting, guide-me home ....................136, 138Lighting, interior..................................r147,148Lighting bulbs (replacement)..............193-200Lighting control stalk............................132-138Lighting dimmer............................................r42Lighting on reminder...................................r135Loading..................................................24, 212
Load reduction mode ..................................206Localised assistance call............................243Localised emergency call...........................243Locating your vehicle....................................55Locking from the inside.................................55Locking the doors...................................50, 55Long objects, transpor ting............................81
L
Identification plates.....................................239Ignition on................................................51, 95Indicator lamps, status............................29-37Indicators, direction....................................164
Inflating accessories (using the kit)............185Inflating tyres ..............................................239Inputs for audio system .................80, 286, 311Instrument panel lighting..............................42Instrument panels.........................................28Instrument panel screen...............................28Intelligent Traction Control..........................168Interior fittings...............................................78Interior mood lighting..................................148ISOFIX child seats ...............................159-160ISOFIX mountings.......................................158
Keeping children safe...........152-161, 172 , 174Key..........................................................52-53Key, electronic ......................................... 48-54Keyless Entry and Starting...31, 49-51, 94, 95
K
Main beam.............................30, 132, 193-195Maintenance..................................................24Map reading lamps.....................................147
MOil filter........................................................r227Oil level..................................................41, 223Opening the boot..............................48,49,56Opening the doors..................................48,49Operation indicator lamps .......................29-37
O I

339Visual search
Exterior

Electronic key/Keyless Entry andStarting 48 -54, 94-95


- opening/closing

- anti-theft protection

- battery

- startingWelcome lighting 13 9 Directional lighting 141Cornering lighting 142Headlamp height adjustment 140 Changing bulbs 193 -197- front lamps - foglamps- direction indicator repeaters
Wipers 143-145 Changing a wiper blade 146, 208
Doors 48-52, 55 - Keyless Entry and Starting- opening/closing - central locking - emergency control Alarm 57-58

Fuel tank,misfuel prevention 63-65

Cockpit glass roof 61- 62
Roof bars 212
Accessories 213-214


ESC: ABS, EBA, ASR, DSC 167-169
Tyre under-inflation detection 166
Tyre pressures 239 Changing a wheel 186 -192


- tools

- removing/refitting
Te m p o r a ry puncture repair kit 180 -185


Boot 48, 56


- opening/closing

- emergency release


Changing bulbs 198 -200


- rear lamps

- 3rd brake lamp

- number plate lamps

- foglamps

Parking sensors 127-128 To w i n g 2 0 9 To w b a r 210 - 211

Door mirrors 76Door mirror spotlamps 139
