113Driving

Engagement of reverse gear isaccompanied by an audible signal.
If the gear lever is not in position Nonstarting, N
flashes in the instrument panel, accompanied by an audiblesignal and a message in the instrument panel screen. Foot on brakeflashes on the instrument panel, accompanied by anaudible signal and a message in the instrument panel screen, if the brakepedal is not pressed on star ting.

When the engine is idling with the
brakes off, if position R, Aor M
is selected, the vehicle will move off on its own without any action on theaccelerator.

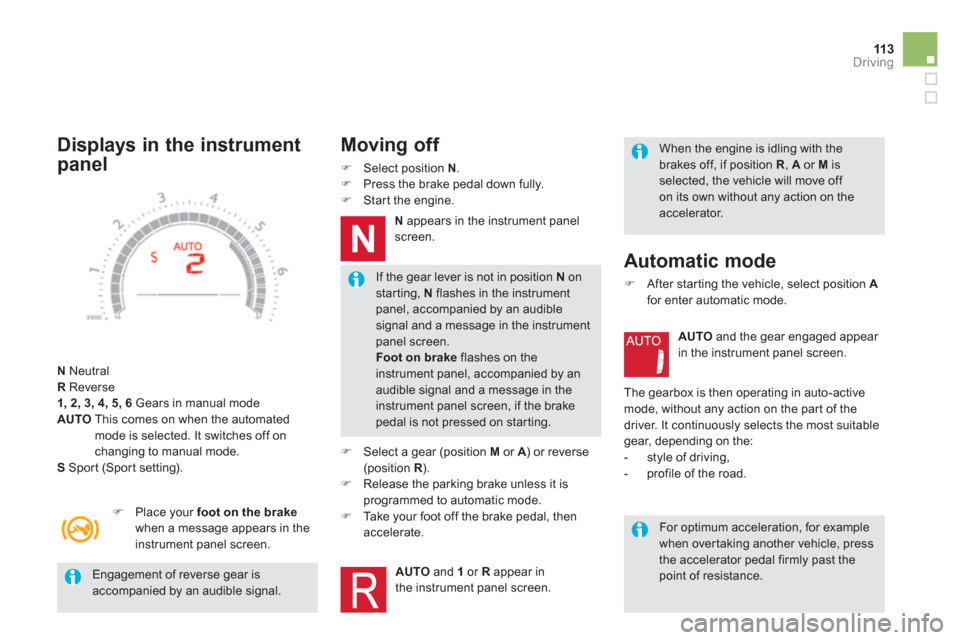

Displays in the instrument
panel
NNeutral
RReverse 1, 2, 3, 4, 5, 6
Gears in manual mode
AUTO
This comes on when the automated mode is selected. It switches off onchanging to manual mode.SSport (Sport setting).
)Place your foot on the brakewhen a message appears in the
instrument panel screen.

Moving off
)
Select position N
. )
Press the brake pedal down fully. )
Start the engine.
N
appears in the instrument panel
screen.
)
Select a gear (position M
or A
) or reverse A(position R).R)
Release the parking brake unless it is
programmed to automatic mode. ) Ta k e your foot off the brake pedal, thenaccelerate.
AUTO
and 1
or Rappear in
the instrument panel screen.

Automatic mode
)
After star ting the vehicle, select position Afor enter automatic mode.
AUTOand the gear engaged appear in the instrument panel screen.
The
gearbox is then operating in auto-active
mode, without any action on the par t of the driver. It continuously selects the most suitablegear, depending on the:


- style of driving,

- profile of the road.


For optimum acceleration, for example when overtaking another vehicle, pressthe accelerator pedal firmly past the point of resistance.

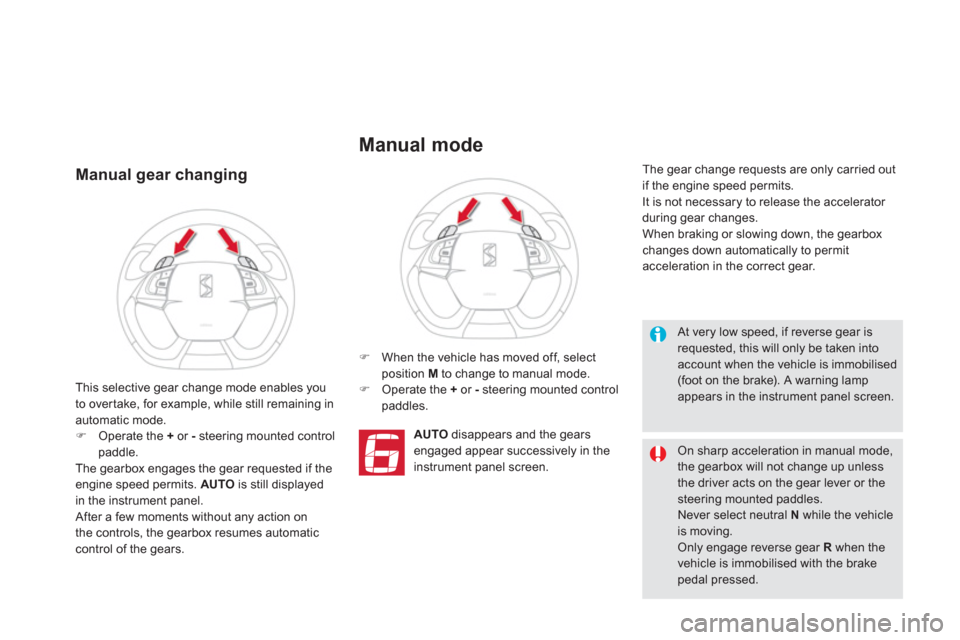

Manual gear changing
) When the vehicle has moved off, selectposition M
to change to manual mode.)
Operate the +
or -steering mounted control
paddles.
AUTOdisappears and the gearsengaged appear successively in theinstrument panel screen.
The gear change requests are only carried out
if the engine speed permits.
It is not necessary to release the accelerator
during gear changes.
When braking or slowing down, the gearboxchanges down automatically to permit
acceleration in the correct gear.
This selective
gear change mode enables you
to over take, for example, while still remaining in automatic mode.)Operate the +or - steering mounted controlpaddle.
The gearbox engages the gear requested if theengine speed permits. AUTOis still displayedin the instrument panel.
After a few moments without any action on
the controls, the gearbox resumes automatic control of the gears.

Manual mode


At very low speed, if reverse gear isrequested, this will only be taken intoaccount when the vehicle is immobilised(foot on the brake). A warning lamp appears in the instrument panel screen.

On sharp acceleration in manual mode,the gearbox will not change up unless the driver acts on the gear lever or thesteering mounted paddles.
Never select neutral N
while the vehicleis moving. Only engage reverse gear Rwhen thevehicle is immobilised with the brakepedal pressed.

115
Driving

You must press the brake pedal when starting the engine.
Whatever the circumstances, you mustmanually apply the parking brake when parking, unless the parking brake is programmed in automatic mode.

When immobilising the vehicle, with the engine running, you must place the gear lever in neutral N.Before carrying out any work in the engine compar tment, check that the gear lever is in neutral N
and that the parking brake is applied.

Stopping the vehicle

With the ignition on, the flashing of this warning lamp,
accompanied by an audible signal and a message
in the instrument panel screen, indicates a
mal
function of the gearbox.
Have it checked by CITROËN or a qualified
workshop. Be
fore switching off the engine, you canchoose to:
- move to position N
to engage neutral,
- leave the gear engaged; in this case, it will
not be possible to move the vehicle.
In both cases, you should apply the parking brake to immobilise the vehicle.


Operating fault

Sport setting
)
After selection of manual
or automated mode, press
the Sbutton to switch on the Sport setting, which providesa more dynamic driving style. Sappears alongside the gear
engaged in the instrument panelscreen.)Press the Sbutton again to switch it off. Sthen disappears from the instrument panel screen.
The Sport setting is switched off every time the
ignition is switched off.

Stop & Start The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...).
The engine restar ts automatically - START mode - as soon as you want to move off. The restar t takes place instantly, quickly and silently.
Per
fect for urban use, the Stop & Star t system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
Going into engine STOP mode
The "ECO"
warning lamp comes
on in the instrument panel and theengine goes into standby:
- with the electronic
gearboxsystem,at speeds below 5 mph (8 km/h), press
the brake pedal or put the gear lever inposition N.
If your vehicle is fitted with the system, a timecounter calculates the sum of the periods in STOP mode during a journey. It rests itself to
zero every time the ignition is switched on with
the STA R T/STOP button.
Never refuel with the engine in STOPmode; you must switch off the ignition with the STA R T/STOP button.
For your comfor t, during parkingmaoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such as for example, braking, power steering...


Special cases: STOP mode not available
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not fastened,

- the vehicle has not exceeded 6 mph(10 km/h) since the last engine start usingthe START/STOP button,

- the electric parking brake is applied or
being applied,

- the engine is needed to maintain acomfor table temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.
In this case, the
"ECO"warning
lamp flashes for a few seconds then goes off.
This operation is per fectly normal.

11 7Driving

Going into engine START mode
The "ECO"
warning lamp goes
off and the engine star ts with the electronicgearboxsystem:


●

gear lever in position Aor M
, release the
brake pedal,

●
or
gear lever in position N
and the brake pedal released, move the gear lever to position A
or M,

●
or engage reverse gear.
START mode is invoked automatically when:
- the driver's door is open,
- the driver's seat belt is not fastened,
- the speed of the vehicle exceeds 7 mph
(11 k m / h) with the electronic gearbox system,
- the electric parking brake is being applied,
- some special conditions (battery charge,engine temperature, braking assistance,
ambient temperature...) where the engine is
needed for control of a system.
Special cases: START invoked automatically

If the system has been deactivatedin STOP mode, the engine restar ts immediately.

At any time, press the "ECO OFF"
switch todeactivate the system.
This is confirmed by the switch warning lamp coming on accompanied by a message in the screen.


Deactivation
In this case the "ECO"
warninglamp flashes for a few seconds, then
goes off. This operation is per fectly normal.

The system is reactivated automaticallyat every new star t using the STA R T/STOP button.

Reactivation
Press the "ECO OFF"switch again.
The system is active again; this is confirmed
by the switch warning lamp going off and a
message in the screen.

Operating fault

In the event of a fault with the system, the
"ECO OFF"
switch warning lamp flashes thencomes on continuously.
Have it checked by a CITROËN dealer or aqualified workshop.
In the event of a fault in STOP mode, the
vehicle may stall. It is then necessary to switch
off the ignition and star t the engine again using
the STA R T/STOP button.

Before doing anything under the bonnet,deactivate the Stop & Start system toavoid any risk of injury resulting from automatic operation of START mode.
This s
ystem requires a 12 V battery with a special specification and technology (reference numbers available from CITROËN dealers).
Fitting a battery not listed by CITROËN
introduces the risk of malfunction of the system.
For charging, use a 12 V charger and do not
reverse the polarity.

Maintenance


The Stop & Star t system makes use of advanced technology. For any work onthe system go to a qualified workshop with the skills and equipment required, which a CITROËN dealer is able toprovide.

Head-up display
System which projects information onto a
transparent strip in the field of vision of the
driver so that they do not have to take their eyes off the road.
This system operates when the engine is running and the settings are stored when the
ignition is switched off.

1
.Head-up display on/off.
2. Display height adjustment.3.
Brightness adjustment.

Once the system has been activated, the
information projected in the head-up display is:
A.The speed of your vehicle.
B.Cruise control/speed limiter
information.

Displays during operation
C.Navigation information (according to
version).
For more information on the navigation system, refer to the "Audio and telematic" section.

121Driving
)With the engine running, press button 1.The activated/deactivated status when theengine was switched off is retained when
the engine is switched on again.
The strip retracts automatically 3 seconds after switching off the engine except in STOP mode
of Stop & Start.

Activation/Deactivation
)
With the engine running, adjust the brightness of the information usingbutton 3:


- towards the rear to increase
the brightness,

- towards the front to decreasethe brightness.



Brightness adjustment

We recommend that adjustments areonly made using these buttons whenthe vehicle is stationary.
When stationary or while driving, no objects should be placed around thetransparent strip (or on its cover) toavoid blocking the strip output and preventing its correct operation.


In certain extreme weather conditions (rain and/or snow, bright sunshine, ...)the head-up display may not be legibleor may suffer temporary inter ference.
Some sunglasses may hamper readingof the information. To clean the transparent strip, use aclean, soft cloth (such as a spectacles cloth or microfibre cloth). Do not usea dry or abrasive cloth or detergent or solvent products as these could scratch the strip or damage the anti-reflection coating.



Height adjustment
)With the engine running, adjust the display
to the required height using button 2:
- towards the rear to move the display up,
- towards the front to move the display down.

135
Visibility

Lighting left on audible signal
An audible signal when a front door
is opened warns the driver that the vehicle's exterior lighting is on, with theignition off and in manual lighting mode.
In this case, switching off the lighting stops the audible signal.
With the ignition off, if the dipped headlamps remain on, the vehicle goes into "ECO" mode to avoid discharging the battery.

In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal sur face of theglass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.

The daytime runninglamps can be activated and deactivated via the configuration menu.



The lighting goes off when you switchoff the ignition, but you can always switch it on again using the lighting control stalk.
Daytime running lamps
(LEDs)
They come on when the engine is star ted.
Depending on the country of sale or whererequired by regulations, they are used for:
- daytime running lamps in day mode andsidelamps in night mode (they are brighter
when daytime running lamps), or
- sidelamps in day and night mode.

147Visibility

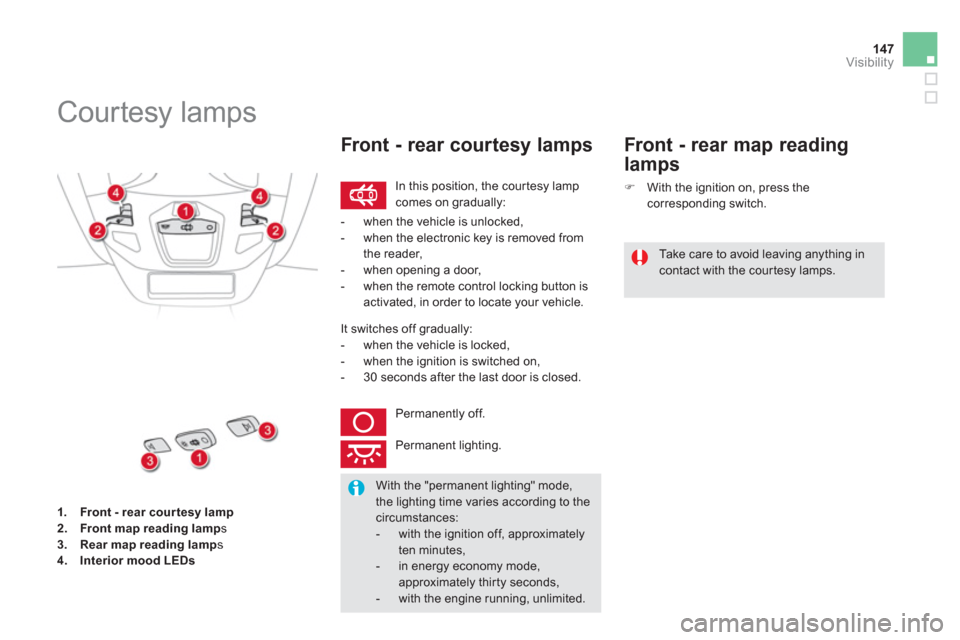

1.Front - rear cour tesy lamp2.Front map reading lamps 3.Rear map reading lamp s4.Interior mood LEDs












Courtesy lamps

In this position, the courtesy lamp comes on gradually:
Front - rear courtesy lamps


Take care to avoid leaving anything in contact with the cour tesy lamps.
With the "permanent lighting" mode, the lighting time varies according to thecircumstances: - with the ignition off, approximatelyten minutes,- in energy economy mode, approximately thirty seconds,- with the engine running, unlimited.
- when the vehicle is unlocked,
- when the electronic ke
y is removed from
the reader,
- when opening a door,
- when the remote control locking button is
activated, in order to locate your vehicle.
It switches o
ff gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanentl
y off.

Permanent lighting.

Front - rear map reading
lamps
)
With the ignition on, press thecorresponding switch.
