59Access





Electric windows
1.Left hand front electric window switch.2.Right hand front electric window
switch.3. Right hand rear electric window switch.
Manual operation
To open or close the window, press or pull theswitch gently. The window stops as soon as the switch is released.
Automatic o
peration
To open or close the window, press or pull
switch fully: the window opens or closes completely when the switch is released.
Pressing the switch again stops the movement of the window.
The electric window switches remain operational for approximately 45 seconds after switching off the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate them,
switch the ignition on again. 4
. Left hand rear electric window switch.5.Deactivating the rear electric window switches,locking the rear doors(child lock).

Safety anti-pinch
When the window rises and meets an obstacle, it stops and immediately partially lowers again.
In the event o
f unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediatel
y until the window closes. Continue
to hold the switch for approximately one second after the window has closed.
The safety anti-pinch function is not active
during this operation.
Deactivating the rear window controls


Reinitialisation of the
electric windows


In the event of contact during operationof the windows, you must reverse the movement of the window. To do this,press the switch concerned.
When operating the passenger electricwindow switches, the driver mustensure that no one is preventing correct closing of the windows. The driver must ensure that the passengers use the electric windowscorrectly.
Be aware of children when operating the windows.
Be aware of passengers or other persons present when closing the
windows using the the electronic key or the "Access and Starting Hands Free"system. Followin
g reconnection of the battery, the
safety anti-pinch function must be reinitialised.The safety anti-pinch function is not active
during these operations:


- lower the window completely, then raise
it, it will rise in ste
ps of a few centimetreseach time the switch is pressed. Repeat
the operation until the window closes
completely,

- continue to press the switch for at least
one second after reaching this position,
window closed.
For the safety of your children, press switch 5to prevent operation of therear windows irrespective of their position.
The warnin
g lamp in the button comes on,accompanied by a message confirmingactivation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also deactivated. Opening the doors from the outside and
operation of the rear electric windows from the
driver's controls remain possible.

61Access





Cockpit glass roof

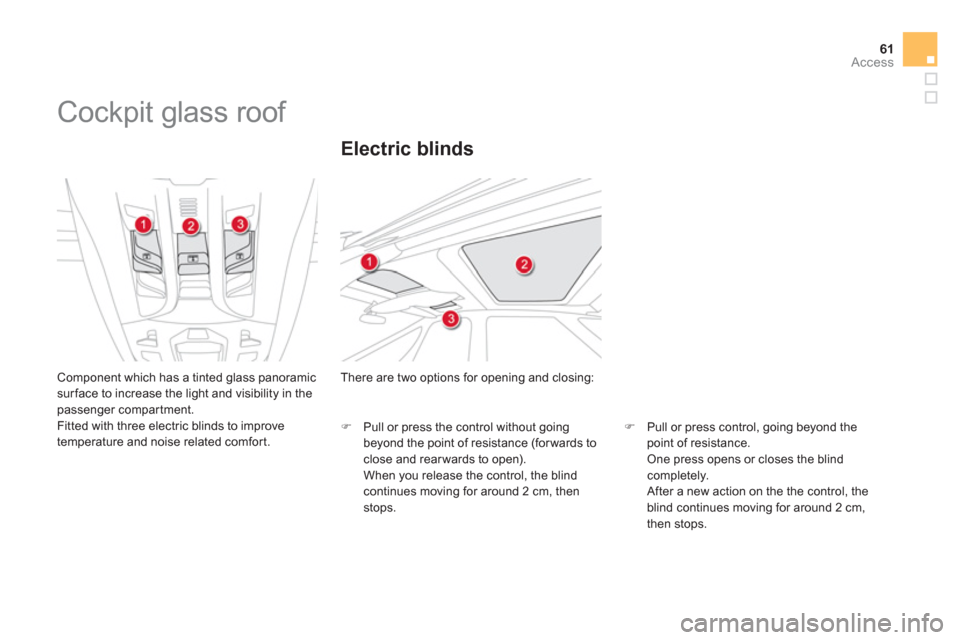

Component which has a tinted glass panoramic sur face to increase the light and visibility in thepassenger compartment.
Fitted with three electric blinds to improve
tem
perature and noise related comfort. There are two options for openin
g and closing:
Electric blinds
) Pull or press control, going beyond the point of resistance.
One press opens or closes the blind
completely.
After a new action on the the control, the
blind continues moving for around 2 cm,
then stops.
) Pull or press the control without goingbeyond the point of resistance (forwards to close and rear wards to open). When you release the control, the blindcontinues moving for around 2 cm, then stops.

Safety anti-pinch
In automatic mode and at the end of its travel,
if the blind meets an obstacle while closing it stops and moves back slightly.
If the blind stops and immediatel
y opens again
during a closing manoeuvre:
) operate the control until the blind is fully open,)
then operate the control until the blind is fully closed. The safety anti-pinch function is not operational during these operations.


If the blind meets an obstacle during operation, you must reverse the movement of the blind. To do this, press the control concerned. When the driver operates the blind control, they must ensure that no one ispreventing correct closing of the blind.
The driver must ensure that passengersuse the blind correctly.
Be aware of children when operating the blind.
Reinitialisation
If power to the blind is cut off while it is moving,
the safety anti-pinch must be reinitialised:)operate the control until the blind is fully closed, )continue to press for at least 3 seconds.
A slight movement of the blind will then be
noticeable, confirming the reinitialisation.

63Access























Fuel tank Capacity of the tank: approximately 60 litres.

Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.Opening the filler cap may result in an inrush of air. This vacuum is entirely normal and results from the sealing of the fuel system.) Take care to select the pump that delivers
the correct fuel type for your vehicle'sengine (reminder on a label on the inside
of the filler flap).) Open the filler cap by turning it a 1/4 turn
to the left. ) Remove the filler cap and hang it on its carrier (on the filler flap).


Opening
If you have put in the wrong fuel for your vehicle, you must have havethe tank drained and refilled with the correct fuel before you start theengine.
With Stop & Star t, never refuel with the system in STOP mode; you must switchoff the ignition with the START/STOP button.
Refuelling
)
Introduce the nozzle and push it in fully(pushing on the the metal non-return
valve Afor a petrol engine). ) Fill the tank (don't continue past the thirdcut-off of the nozzle, as this may cause malfunctions). )
Refit the filler cap turning it a 1/4 turn to
the right. ) Push the filler flap to close it.

Your vehicle is
fitted with a catalytic converter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
The filler neck is narrower, admitting petrol
nozzles only.
For a petrol engine, you must use unleaded fuel only.
)Press
This button remains active for a few minutesafter switching off the ignition. If necessary, switch the ignition on again to reactivate it.

Low fuel level

When the low fuel level in the
tank is reached, this warning lamp comes on in the instrument panel,
accompanied b
y an audible warning
and a message in the instrument
panel screen.
When it first comes on, around 6 litres of fuelremain in the tank.
You must refuel as soon as possible to avoid running out.
Fuel supply cut-off
Your vehicle is equipped with a safety device
which cuts o
ff the fuel supply in the event of a collision.

It remains possible to use a fuel can tofill the tank; this must be done slowly. In order to ensure a good flow of fuel, do not place the nozzle of the fuel canin direct contact with the flap of themisfuel prevention device.

















Misfuel prevention (Diesel) *

Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a
petrol filler nozzle is introduced into the fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains closed and prevents filling. Do not persist but introduce a Diesel type
filler nozzle.

Operation



Tr a v e l l i ng abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel
prevention device may make refuellingimpossible.
Before travelling abroad, we recommend that you check with the CITROËN dealer network,
whether your vehicle is suitable for the fuelpumps in the country in which you want to
travel.


*
Accordin
g to country of sale.

DIESEL
65
Access
Quality of the fuel used for
petrol engines

The petrol engines are perfectly compatible
with E10 or E24 type petrol biofuels (containing10 % or 24 % ethanol), conforming to Europeanstandards EN 228 and EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reser ved exclusively for vehicles marketed for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol mustcomply with European standard EN 15293.
For Brazil only, special vehicles are marketed
to run on fuels containing up to 100 % ethanol(E10 0 type).
Quality of the fuel used for
Diesel engines
The Diesel engines are per fectly compatiblewith biofuels which conform to current and
future European standards (Diesel fuel which complies with standard EN 590 mixed with a
biofuel which complies with standard EN 14214)available at the pumps (containing up to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer tain Diesel
engines; however, this use is subject to strictapplication of the special ser vicing conditions.
Contact a CITROËN dealer or a qualified
workshop.
The use of any other type of (bio)fuel (vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).

003
Comfort

Front seats
Manual
1.Adjustments to the height and angleof
the head restraintTo raise it, pull upwards.
To lower it, press on the lug and the headrestraint at the same time.2.Adjustment of the backrest angleTurn the wheel to adjust the angle of thebackrest. 3.Adjustment of the seat heightRaise or lower the control lever the number
of times required to obtain the desiredposition.4.Forwards-backwards adjustment of the
seat position Lift the control bar and slide the seatforwards or backwards.5.Adjustment of the driver's lumbar
supportTurn the wheel to obtain the desired level
of lumbar support.
