warning Citroen DS5 2011 1.G Repair Manual

The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electricalconsumption.
Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.


Installation of radio communication transmitters

Before installing any after-market radiocommunication transmitter, you can contact a CITROËN dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/10 4/EC).
Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest,warning triangle and spare bulbs andfuses available in the vehicle.
B
y visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of
your vehicle, refills (sealant car tridge for the
temporary puncture repair kit...), ...
"Multimedia":
audio systems, steering mounted audio controls, speakers, Hi-Fi module, Bluetooth hands-free system, por table satellite navigationsystem, semi-integral suppor t bracket for portable navigation system, speed camera
detector, USB Box, reversing camera, por table
video screen, por table video support bracket,
230 V/50 Hz socket, 230 V/12 V adaptor, Wi-Fion board...

225
Checks

Fluid specifi cation

For optimum cleaning and to avoid freezing,
this fluid must not be topped up with or
replaced with plain water.

Screenwash and headlamp
wash fluid
In the case of vehicles fitted withheadlamp washers, the low fluid levelis indicated by an audible signal anda message in the instrument panelscreen.
Top up the reser voir when you stop the vehicle.

Avoid prolonged contact of used oil or fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.

Do not discard used oil or fluids into sewers or onto the ground.
Take used oil to a CITROËN dealer or a qualified workshop (France) or to anauthorised waste disposal site.
Used products
To p p i ng up
This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.
Diesel additive level
(Diesel engine with particle
emission filter)
A low additive level isindicated by illumination of
the service warning lamp, accompanied by an audiblewarning and a message in the instrument panel screen.

227Checks
Refer to the ser vicing booklet for
details of the replacement intervalsfor these components.
Depending on the environment (e.g.
dusty atmosphere) and the use of the vehicle (e.g. city driving), replace them twice as often if necessary (refer to the "Engines" section).
A clogged passenger compartment filter mayhave an adverse effect on the performance
of the air conditioning system and generate undesirable odours.


Air filter and passenger compartment filter
Replace the oil filter each time the
engine oil is changed.
Re
fer to the ser vicing booklet for
details of the replacement inter val for
this component.

Oil filter
Particle emission filter (Diesel)
The start of saturation of the particle filter is indicated by
the temporary illumination of
this warning lamp accompanied by a message in the multi-function screen.
As soon as the traffic conditions permit, regenerate the filter by driving at aspeed of at least 40 mph (60 km/h) until the warning lamp goes off.
If the warning lamp stays on, this indicates a low additive level.


On a new vehicle, the first par ticlefilter regeneration operations may beaccompanied by a "burning" smell,which is perfectly normal.
Following prolonged operation of thevehicle at very low speed or at idle, you may, in exceptional circumstances, notice the emission of water vapour atthe exhaust on acceleration. This does not affect the behaviour of the vehicle or the environment.

233Technical data

*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced b
y 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

WEIGHTS AND TOWED LOADS (in kg)
Petrol enginesTHP155hpTHP200 hp
Gearboxes
Automatic
(6-speed)
Manual(6-speed)
Model codes5FV

5FU



- Unladen wei
ght -
-


- Kerb wei
ght *

1 495

1 505



-
Gross vehicle weight (GVW)

2 035
2 050


-
Gross train weight (GTW)

on a 12 % gradient 3 3352 800



- Braked trailer (within GTW limit) on a 10 % or 12 % gradient-
-


- Braked trailer **
(with load transfer within the
GTW limit)
1 500
1 050


- Unbraked trailer 74 5 75
0



- Recommended nose weight 75

75

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

*
The kerb wei
ght is equal to the unladen weight + driver (75 kg).
**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
Diesel engineseHDi 110hpHDi160 hpPEFHDi160 hp PEF
GearboxesManual (6-speed)


Manual(6-speed)
Automatic(6-speed)

Model codes
9HR

RHH


- Unladen wei
ght---



- Kerb weight *
1 495
1 605
1 615



- Gross vehicle wei
ght (GV W)

2 020
2 1302 125



- Gross train weight (GTW)
on a 12% gradient 3 120
3 330
3 325



- Braked trailer (within GTW limit) on a 10% or 12% gradient -
-
-



- Braked trailer ** (with load transfer with
the GTW limit)
1 400

1 500
1 500



- Unbraked trailer

74 5
750


-
Recommended nose weight
75

1
2
3
04
257

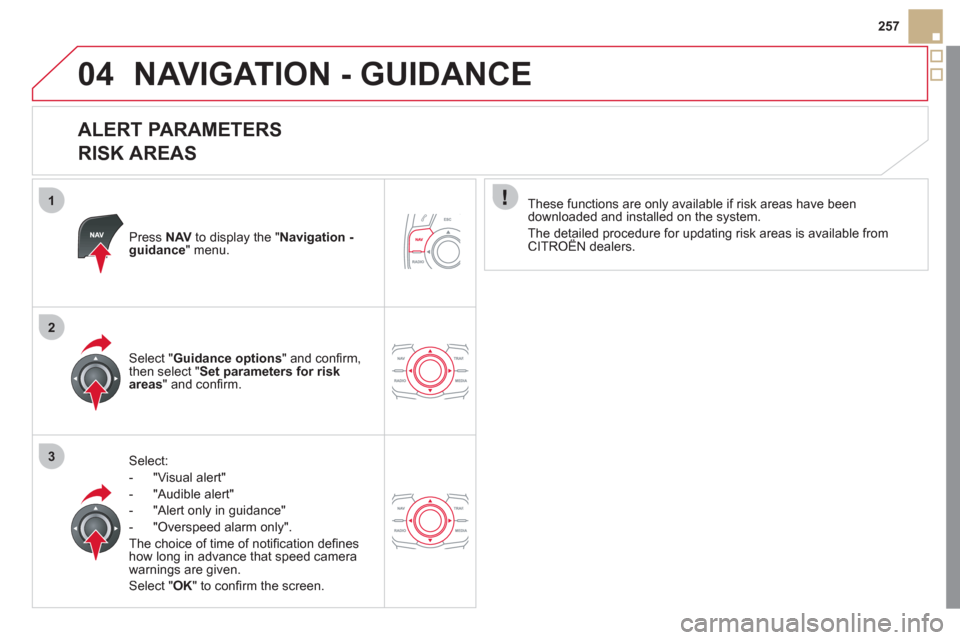

NAVIGATION - GUIDANCE

ALERT PARAMETERS
RISK AREAS
Press NAVto display the "Navigation - guidance" menu.
Select:
- "Vi
sual alert"
- "A
udible alert"
-
"Alert only in guidance"
- "
Overspeed alarm only".
Th
e choice of time of notifi cation defi nes how long in advance that speed camera
warnings are given.
Select " OK
" to confi rm the screen.
Select " Guidance options
" and confi rm,
then select "Set parameters for riskareas
" and confi rm.
These
functions are only available if risk areas have been
downloaded and installed on the system.
The detailed procedure for updating risk areas is available fromCITROÀN dealers.p

293

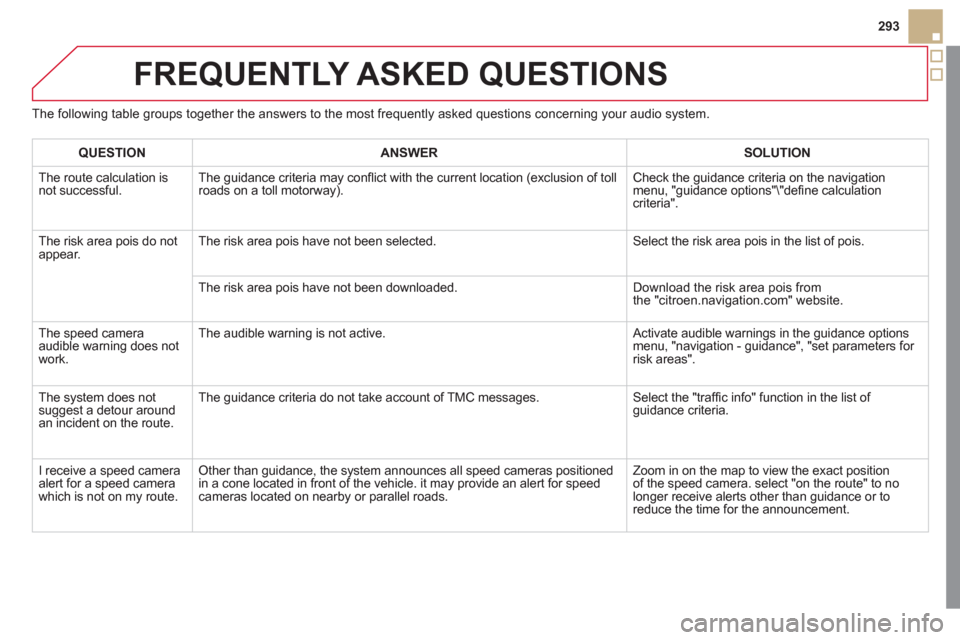

FREQUENTLY ASKED QUESTIONS
The following table groups together the answers to the most frequently asked questions concerning your audio system.
QUESTIONANSWERSOLUTION
The route calculation isnot successful.The guidance criteria may confl ict with the current location (exclusion of toll roads on a toll motorway). Check the guidance criteria on the navigation menu, "guidance options"\"defi ne calculationcriteria".

The risk area pois do not appear. The risk area pois have not been selected. Select the risk area pois in the list of pois.
The risk area pois have not been downloaded. Download the risk area pois from
the "citroen.navigation.com" website.

The speed camera
audible warning does not
work.
The audible warning is not active. Activate audible warnings in the guidance options menu, "navigation - guidance", "set parameters for risk areas".
The system does notsuggest a detour aroundan incident on the route.
The guidance criteria do not take account of TMC messages. Select the "traffi c info" function in the list of guidance criteria.
I receive a speed camera
alert
for a speed camera
which is not on my route.
Other than guidance, the system announces all speed cameras positioned
in a cone located in front of the vehicle. it may provide an alert for speedcameras located on nearby or parallel roads. Zoom in on the map to view the exact position
of the speed camera. select "on the route" to nolonger receive alerts other than guidance or to reduce the time for the announcement.

A
Accessories....................................51, 95, 213Accessory position..................................51, 95Accessory socket, 12 V ..........................78, 79Adjusting headlamps..................................140Adjusting head restraints ........................68, 71Adjusting seat belt height ............................171Adjusting the steering wheel.........................77Airbags..................................................37, 173Airbags, curtain...................................175,176Airbags, front.......................................173,176Airbags, lateral....................................175,176Air conditioning.............................................24Air conditioning, digital ............................85, 86Air filter........................................................r226Air flow..........................................................84Air vents ........................................................84Alarm.............................................................57Anti-pinch................................................60, 62Anti-theft........................................................95Armrest..........................................................78Armrest, front................................................80Armrest, rear.................................................r81Ashtray, removeable.....................................78Assistance call ....................................165,243Audible warning .......................................... 165Audio streaming (Bluetooth)................................285, 312,314Audio system...............................................299Automatic headlampdipping.................30, 137Automatic illumination
of headlamps ....................................133,136Automatic operation of hazard warninglamps ........................................................164
Automatic rain sensitivewindscreen wipers............................143, 145Auxiliary socket.............................80, 286,311
Battery.................................................204, 226Battery, charging.........................................205Battery, remote control.................................53Black panel....................................................43Bluetooth (hands-free)........................268, 313Bluetooth (telephone)..........................268, 313Boot...............................................................56Boot (unlocking)............................................48Brake discs..................................................228Brake lamps................................................198Brake pads ..................................................228Brakes .........................................................228
Changing a wheel................................186-192Changing a wiper blade......................146,208Changing the date ...............................288,323Changing the remotecontrol battery .............................................53Changing the time........................ 43,288,323Checking levels ................................... 223-225Checking the engine oil level................41, 223Checking tyre pressures(using the kit)............................................185Checks................................................220-228Children.................................152-161, 172 , 174Child seats ..................................152,155-160Child seats, conventional ....................155, 156Cigarette lighter.............................................r79Clock ............................................ 43, 288, 323Closing the boot............................................56Closing the doors....................................48,50Connectors, audio.................80, 286,309, 311Coolant level.........................................38,224Coolant temperature indicator......................r38Courtesy lamps ...........................................147Cruise control......................................122, 125Cup holder.....................................................r78
B
Capacity, fuel tank ........................................63CD.......................................................282, 306CD MP3.......................................282,307,308Central locking..............................................48Changing a bulb..................................193-200Changing a fuse ...................................201-203
C
Date (display)......................................288, 323Daytime running lamps ...............193, 196,197Deactivating DSC ........................................ 169Deactivating the passenger airbag.............174
D

335
Alphabetical index
Deadlocking............................................51,52Defrosting......................................................90Demisting......................................................90Diesel additive level....................................225Dimensions.................................................238Dipped beam .........................30, 132,193, 194Dipstick.................................................. 41, 223Directional lighting..............................141,142Direction indicators.............164,193, 196,198Driving economically ....................................24Driving positions (storing) .......................................................70Dynamic emergency
braking ......................................................100Dynamic stability control(DSC)............................................33,36, 167
Eco-driving...................................................24Economy mode ...........................................207Electronic engine immobiliser............................................54, 95Electronic stability control (ESC) ........................................................ 167Emergency boot release...............................56Emergency call...................................165,243Emergency warning lamps.........................164eMyWay................................................43,245Energy economy mode ...............................207Engine, Diesel ......................65, 221, 222, 235
Engine, petrol...............................65,220, 232Engine compartment...........................220,221Engine compartment fusebox .....................................................203Engine oil level indicator.......................r41,223Engines ...............................................232,235Environment............................................24, 53ESC/ASR.............................................167, 169
E
G.P.S...........................................................251Gearbox, automatic............................108,228Gearbox, electronic.....................112, 116,228Gearbox, manual ........................106,107,228Gear shift indicator......................................107Gear lever,automatic gearbox ....................................108Gear lever,electronic gearbox system.......................112Gear lever, manual gearbox.......................106Guidance.....................................................251Guide-me-home..................................136, 138
Halogen headlamps............................193, 195Hands-free kit......................................268,313Hazard warning lamps..........................83, 164Head-up display..........................120, 123, 125Headlamp adjustment .................................140Headlamps, directional.......................141, 193Headlamp wash..........................................144Headlamp wash reser voir...........................r225Head restraints, front..............................68,71Head restraints, rear.....................................r75Heated seats.................................................72Heating..........................................................84Height and reach adjustment,steering wheel ............................................77Hill start assist.............................................105
H
Filling with fuel........................................63-65Fitting a wheel.............................................191Fitting roof bars...........................................212Fittings, boot.................................................82Flashing indicators ..............................138,164Foglamps, front ...................134, 142,193, 197Foglamps, rear...........................r134 , 198, 199Folding/unfoldingthe door mirrors..........................................76Front seats..............................................68-70Fuel..........................................................24,65Fuel consumption..........................................24Fuel filler cap .................................................63Fuel filler flap.................................................63Fuel gauge ....................................................19Fuel tank..................................................63, 64Fusebox, dashboard ...................................202Fuses...........................................................201
FG

Jack.............................................................186JACK socket..................................80, 286, 311
J
Markings,identification.............................................239Massage function.........................................72Mat................................................................79Menu, main.................................................302Mini fuel level ....................................19, 36, 64Mirror, rear view............................................77Mirrors, door..................................................r76Misfuel prevention.........................................64Motorway function(direction indicators).................................164Mountings for ISOFIXseats.........................................................158MP3 CD .......................................282, 307, 308Music media players ...........................281, 307
Navigation...................................................251Number plate lamps ....................................200
N
Labels, identification...................................239Lamps, warning and indicator.................r29-37Lane Depar ture Warning System(LDWS).....................................................119LED daytime running lamps........................135Level, brake fluid.........................................224Level, headlamp wash................................225Level, power steering fluid ..........................224
Levels and checks...............................220-228Lighting................................................147,148Lighting, guide-me home ....................136, 138Lighting, interior..................................r147,148Lighting bulbs (replacement)..............193-200Lighting control stalk............................132-138Lighting dimmer............................................r42Lighting on reminder...................................r135Loading..................................................24, 212
Load reduction mode ..................................206Localised assistance call............................243Localised emergency call...........................243Locating your vehicle....................................55Locking from the inside.................................55Locking the doors...................................50, 55Long objects, transpor ting............................81
L
Identification plates.....................................239Ignition on................................................51, 95Indicator lamps, status............................29-37Indicators, direction....................................164
Inflating accessories (using the kit)............185Inflating tyres ..............................................239Inputs for audio system .................80, 286, 311Instrument panel lighting..............................42Instrument panels.........................................28Instrument panel screen...............................28Intelligent Traction Control..........................168Interior fittings...............................................78Interior mood lighting..................................148ISOFIX child seats ...............................159-160ISOFIX mountings.......................................158
Keeping children safe...........152-161, 172 , 174Key..........................................................52-53Key, electronic ......................................... 48-54Keyless Entry and Starting...31, 49-51, 94, 95
K
Main beam.............................30, 132, 193-195Maintenance..................................................24Map reading lamps.....................................147
MOil filter........................................................r227Oil level..................................................41, 223Opening the boot..............................48,49,56Opening the doors..................................48,49Operation indicator lamps .......................29-37
O I
