If this warning lamp comes on in
the instrument panel, automatic application/release is deactivated
.
The parking brake must be appliedand released manually.
y
Before leaving the vehicle, check
that the the brake warning lamp and
the P warning lamp in the controllever A
are on fixed (not flashing).
97
If towing a trailer or caravan or if theslope might vary (transpor t by boat or lorry, recovery of the vehicle...) make a maximum application of theparking brake - by making a long pull on the control lever A- to immobilise the vehicle.
* Accordin
g to country of sale.
Driving safely

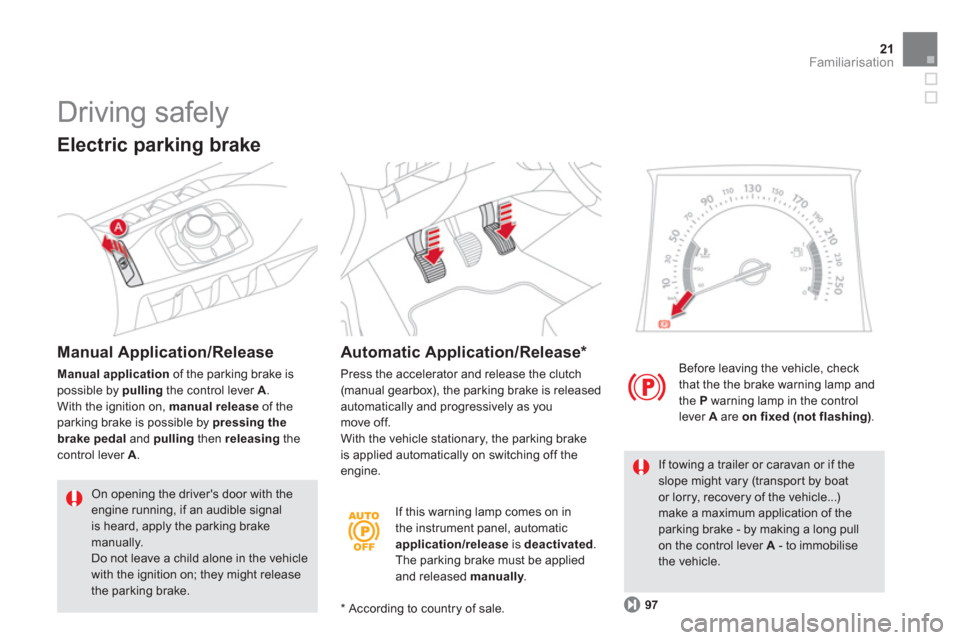

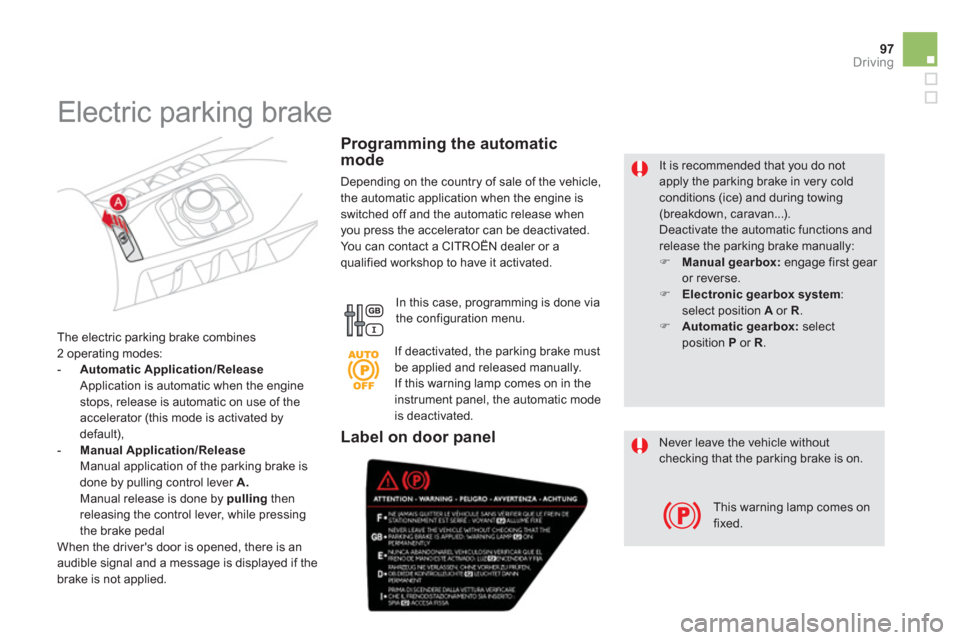

Electric parking brake
Manual Application/Release
Manual application
of the parking brake is possible by pulling
the control lever A. With the ignition on, manual releaseof theparking brake is possible by pressing the brake pedal
and pulling
then releasing
the control lever A
.
On opening the driver's door with theengine running, if an audible signalis heard, apply the parking brake
manually. Do not leave a child alone in the vehicle with the ignition on; they might release the parking brake.
Automatic Application/Release *
Press the accelerator and release the clutch(manual gearbox), the parking brake is releasedautomatically and progressively as you
move off. With the vehicle stationary, the parking brakeis applied automatically on switching off the
engine.
Page 27 of 348
25
Familiarisation
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the heaviest items in the bottom of the boot,as close as possible to the rear seats.Limit the loads carried in the vehicle and reduce wind resistance (roof bars, roof rack, bicycle carrier, trailer...). Use a roof box inpreference.Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold, referring to the label in the door aper ture, driver's side.Carry out this check in par ticular:- before a long journey,- at each change of season,- after a long period out of use. Don't forget the spare wheel and the tyres onany trailer or caravan.
Have your vehicle ser viced regularly (engine oil, oil filter, air filter...) and obser ve the schedule of operations recommended by the manufacturer.
When refuelling, do not continue after the 3rdcut-off of the nozzle to avoid any over flow.
At the wheel of your new vehicle, it is only after the first 1 800 miles (3 000 kilometres) that you will see the fuel consumption settledown to a consistent average.
Page 37 of 348
35
Monitoring
Warning/indicator lampStateCauseAction/Observations
Electric parking
brake
flashing.The electric parking brake is not
app
lied automatically.
The application/release is faulty. You must stop as soon as it is sa
fe to do so.
Park on
flat level ground, switch off the ignition and contact a CITROËN dealer or a qualified workshop.
Electric parking brake fault
fixed. Alone, the electric parking brake has a fault. Contact a CITROËN dealer or a qualified workshop
without delay.
The parking brake can be released manually.
For more information on the electric parking brake,
refer to the "Driving" section.
Braking
fixed. The braking system fluid level has
dropped significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid listed by CITROËN.
If the problem persists, have the system checked by aCITROËN dealer or a qualified workshop.
+
fixed, associated
with the ABS warnin
glamp. Th
e electronic brake force distribution(EBFD) system has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN or a qualified
workshop.
Deactivation of the automatic functions of the electric parkingbrake
fixed. The "automatic application" (on switching off the engine) and
"automatic release" functions aredeactivated or faulty.
Activate the function (according to country) via the
vehicle configuration menu or contact a CITROËN
dealer or a qualified workshop if automatic application/release is not possible.
The parking brake can be released manually using the
emergency release procedure.
For more information on the electric parking brake,
refer to the "Driving" section.
Page 38 of 348
Warning/indicator lampStateCauseAction/Observations
Dynamic stability control(DSC/ASR)
flashing. The DSC/ASR regulation is active. The system optimises traction and improves the
directional stability of the vehicle.
fixed. Unless it has been deactivated(button pressed and its indicator lamp
on) the DSC/ASR system has a fault.Have it checked b
y a CITROËN or a qualified
workshop.
Engine autodiagnosis system
flashing.The engine management system hasa fault. Risk of destruction of the catalytic conver ter.
Have it checked by a CITROËN dealer or a qualified
workshop.
fixed. The emission control system has afault. The warning lamp should go off when the engine is started. If it does not go off, contact a CITROËN dealer or
qualified workshop without delay.
Low fuel levelfixed with the two last
bars flashing.When it first comes on there remainsapproximately 6 litres offfuelin thetank.You must re
fuel as soon as possible to avoid runningout of fuel.This warning lamp will come on every time the ignition
is switched on, until a sufficient addition of fuel is made.
Fuel tank capacit
y: approximately 60 litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injectionsystems.
Anti-lock
Braking System(ABS)
fixed. The anti-lock braking system has a
f
ault. The vehicle retains conventional brakin
g.
Drive carefull
y at reduced speed and contact a CITROËN dealer or a qualified workshop without
delay.
Page 39 of 348
37
Monitoring
Warning/indicator lampStateCauseAction/Observations
Airbags
on temporarily. This lamp comes on for a fewseconds when you turn on the
ignition, then goes off. This lamp should
go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a qualified workshop.
fixed. One of the airbag or seat belt pretensioner systems has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.
Directionalheadlamps
flashing. The directional headlamps system has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.
Seat belt(s)
not fastened/unfastened
fix
ed
or flashingaccompanied by an
audible signal.
A seat belt has not been fastened or
has been unfastened. Pull the strap then inser t the ton
gue in the buckle.
Page 43 of 348
Monitoring

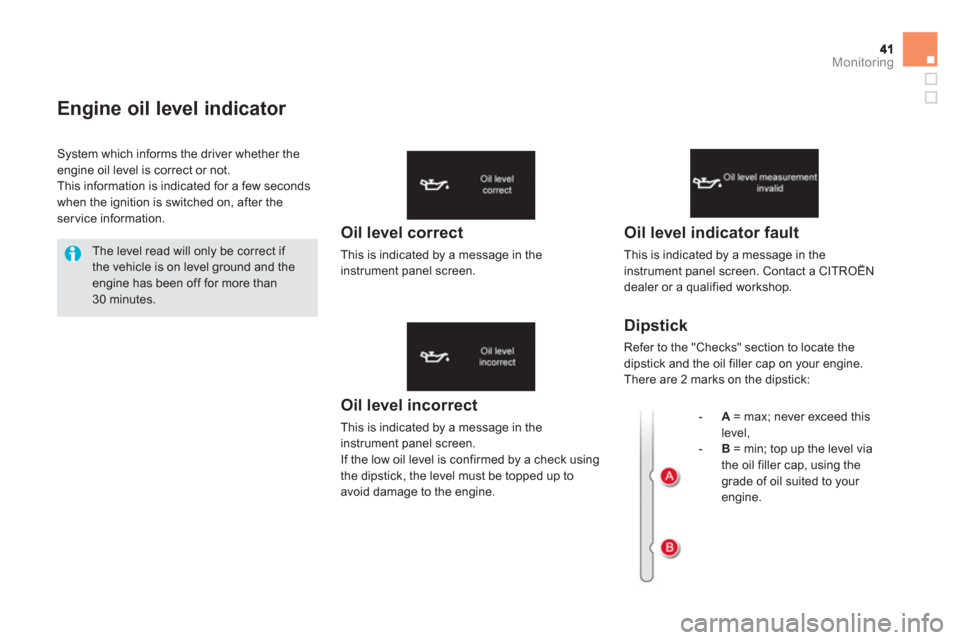

Engine oil level indicator
Oil level incorrect
This is indicated by a message in the instrument panel screen.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to avoid damage to the engine.
Oil level indicator fault
This is indicated by a message in the
instrument panel screen. Contact a CITROËN
dealer or a qualified workshop.
Dipstick
Refer to the "Checks" section to locate the
dipstick and the oil filler cap on your engine.
There are
2 marks on the dipstick:
System which informs the driver whether theengine oil level is correct or not.
This information is indicated for a few secondswhen the ignition is switched on, after theservice information.
The level read will only be correct if the vehicle is on level ground and the engine has been off for more than30 minutes.
-
A= max; never exceed this
level,
-
B= min; top up the level via
the oil filler cap, using the grade of oil suited to your engine.
Oil level correct
This is indicated by a message in the instrument panel screen.
Page 66 of 348

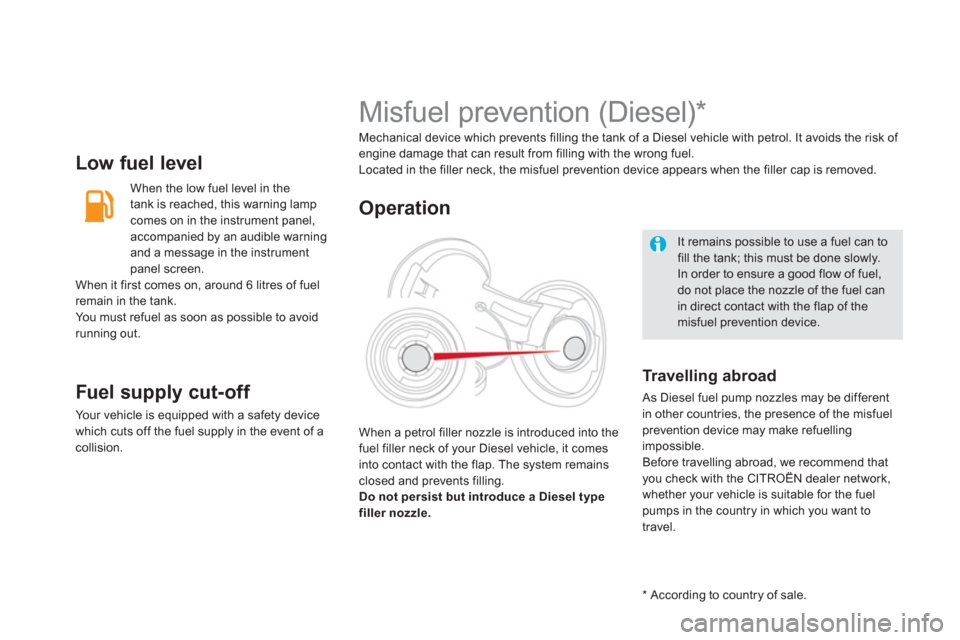

Low fuel level
When the low fuel level in the
tank is reached, this warning lamp comes on in the instrument panel,
accompanied b
y an audible warning
and a message in the instrument
panel screen.
When it first comes on, around 6 litres of fuelremain in the tank.
You must refuel as soon as possible to avoid running out.
Fuel supply cut-off
Your vehicle is equipped with a safety device
which cuts o
ff the fuel supply in the event of a collision.
It remains possible to use a fuel can tofill the tank; this must be done slowly. In order to ensure a good flow of fuel, do not place the nozzle of the fuel canin direct contact with the flap of themisfuel prevention device.
Misfuel prevention (Diesel) *
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
When a
petrol filler nozzle is introduced into the fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains closed and prevents filling. Do not persist but introduce a Diesel type
filler nozzle.
Operation
Tr a v e l l i ng abroad
As Diesel fuel pump nozzles may be different
in other countries, the presence of the misfuel
prevention device may make refuellingimpossible.
Before travelling abroad, we recommend that you check with the CITROËN dealer network,
whether your vehicle is suitable for the fuelpumps in the country in which you want to
travel.
*
Accordin
g to country of sale.
