005005006006007007008008SAFETY
PR ACTICAL
INFORMATION CHILD
SAFETY VISIBILITY
132 Lighting controls
135Daytime running lamps
136Automatic illumination of headlamps
137Automatic headlamp dipping
140Headlamp adjustment
141Directional lighting
143 Wiper controls
145Automatic rain sensitive
wipers
147 Courtesy lamps
148Interior mood lighting
152 Child seats
158 ISOFIX child seats
161Child lock
164 Direction indicators
165Emergency or assistance call
165
Horn
166Tyre under-infl ation detection
167 ESC system
170 Seat belts
173 Airbags
180 Te m p o r a ry puncture
repair kit
186Changing a wheel
193Changing a bulb
201 Changing a fuse
20412 V battery
207 Energy economy mode
208Changing a wiper blade
209Towing the vehicle
210 Towing a trailer
212Fitting roof bars
213 Accessories

Lighting of the indicator lamp indicates the state of the corresponding function.
Switch panels
Opening the fuel filler flap.

Opening the boot. 63 57 D
eactivation of the alarm.
48, 56

Electric parking brake activated.
9
7

Push button star ting/stopping.
94

Deactivation of Stop & Start.
117
Deactivation of parkin
g sensors.
128

Electric child lock.
161


Deactivation of the DSC/ASR system.
169


Activation of Automatic headlamp
dipping.
137
119
Activation of lane depar ture warning.
5
5

Locking/unlocking the passenger compartment.

14 . Controls for electric windows/electric child lock/central locking.
15. eMyWay controls.
16.Gear lever.
17. Heating/air conditioning controls.
18
. Audio system.
19.Hazard warning lamps.
20.Multifunction screen.21. Central adjustable air vents. 22.Clock.
23.Star ting with the STA R T/STOP button.
24.Electronic key reader.
25. Wiper/screenwash/trip computer stalk.
26. Audio equipment steering wheel controls.

Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box/Passenger's airbag deactivationinside.10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t /auxiliary socket.13.Electric parking brake.
27. Driver's airbag.
Horn. 28. Cruise control/speed limiter controls.29.
Switch panel (see previous page).30.
Door mirror adjustment.
31.Lighting and direction indicator stalk32.
Instrument panel. 33.
Seat belt and airbag warning lamps. 34.Courtesy lamp. 35.Head-up display controls. 36.Controls for glass roof panel blind.37.CITROËNLocalised Emergency Call -
CITROËNLocalised Assistance Call.

Electronic key
remote control
Unlocking the vehicle
Complete unlocking
Selective unlockin
g Unlocking the boot
System which permits central unlocking or
locking of the vehicle using the lock or from adistance. It is also used to locate and start thevehicle, as well as providing protection against
theft.
This settin
g is done in the configuration menu.
Complete unlocking is activated bydefault.


Unlocking is confirmed by rapid flashing of the direction indicators for around two seconds.
At the same time, depending onversion, the door mirrors unfold.

Locking the vehicle


Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds.
The door mirrors fold at the same time.
)To unlock only the driver's door,press the open padlock once.
)
To unlock the other doors and the boot,press the open padlock again.
)
Press the closed padlock to lock
the vehicle completely.
Hold the button down until the
windows close completely.

)
Press this button until you hear
th
e boot unlock.

Be aware of children when operatingthe windows.
)
Press the open padlock tounlock the vehicle.

Locking the vehicle
)With the electronic key in the definedzone A , press with a finger on one of the
door handles (at the markings) to lock the
vehicleMaintain pressure with your finger until the
windows close completely.
Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds.The door mirrors fold at the same time.
If one of the doors or the boot is still open or if the key for Keyless Entry and Starting has been left inside the vehicle,the central locking does not take place. When the vehicle is locked, if it isunlocked inadver tently, it will relockautomatically after about thir ty secondsunless a door is opened.
The folding and unfolding of the door mirrors by the remote control can bedeactivated by a CITROËN dealer or a qualified workshop.

As a safety measure (children onboard), never leave the vehicle without taking the key for the Keyless Entry andStarting system, even for a shor t period.Guard against theft when the key for the Keyless Entry and Starting systemis in the defined zone with the vehicle unlocked. After a long period of parking, theautomatic detection functions of the key are inhibited so as to not discharge thevehicle's battery. You should then use the remote control function of the key to unlock the vehicle.

Ensure that no one prevents the correct operation of the windows.Be aware of children when operatingthe windows.

51Access
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative. It also deactivates the manual centralcontrol button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
Using the remote control
) Press the closed padlock to lock
the vehicle completely.
Maintain pressure with
your
finger for more than two seconds to close the windows.) Press the closed padlock again within
five seconds to deadlock the vehicle.

With the electronic ke
y in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressin
g the "STA R T/STOP" button,
with no action on the pedals, allows the ignition
to be switched on and so activate the ancillary
equipment.
Ignition on without starting
the engine
(accessory position)
)
Press the "STA R T/STOP"
button, the instrument panelcomes on but the engine does
not start. ) Press the button again to switch off the ignition and so allow the
v
ehicle to be locked.

Using the ancillaries for a long periodintroduces the risk of a flat battery.


With the Keyless Entry and
startin
g system
By the doors: )
With the electronic key in the defined
zone A , press a finger on the door handle (at the markings) to lock the vehicle.
)
Within five seconds, press the door handle
again to deadlock the vehicle.
Ensure that no one is preventing the correct closing of the windows. Be aware of children when operating
the windows.

Lost electronic key
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), take the Keyless Entry and Starting electronic key when you leave the vehicle, even for a shorttime.
Electrical interference
The Keyless Entry and Star ting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strongmagnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.

59Access

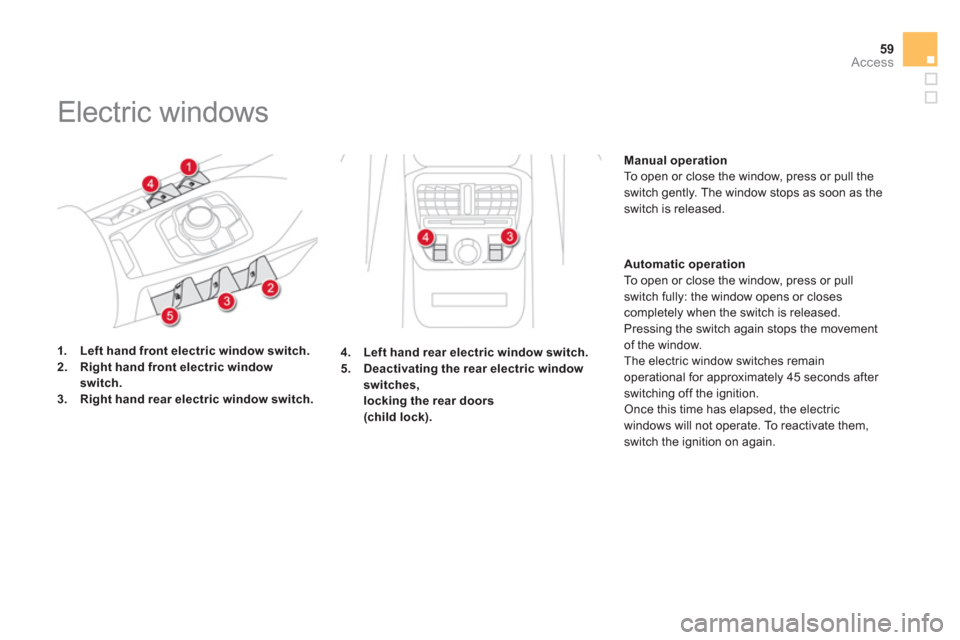

Electric windows
1.Left hand front electric window switch.2.Right hand front electric window
switch.3. Right hand rear electric window switch.
Manual operation
To open or close the window, press or pull theswitch gently. The window stops as soon as the switch is released.
Automatic o
peration
To open or close the window, press or pull
switch fully: the window opens or closes completely when the switch is released.
Pressing the switch again stops the movement of the window.
The electric window switches remain operational for approximately 45 seconds after switching off the ignition.
Once this time has elapsed, the electric
windows will not operate. To reactivate them,
switch the ignition on again. 4
. Left hand rear electric window switch.5.Deactivating the rear electric window switches,locking the rear doors(child lock).

Safety anti-pinch
When the window rises and meets an obstacle, it stops and immediately partially lowers again.
In the event o
f unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediatel
y until the window closes. Continue
to hold the switch for approximately one second after the window has closed.
The safety anti-pinch function is not active
during this operation.
Deactivating the rear window controls


Reinitialisation of the
electric windows


In the event of contact during operationof the windows, you must reverse the movement of the window. To do this,press the switch concerned.
When operating the passenger electricwindow switches, the driver mustensure that no one is preventing correct closing of the windows. The driver must ensure that the passengers use the electric windowscorrectly.
Be aware of children when operating the windows.
Be aware of passengers or other persons present when closing the
windows using the the electronic key or the "Access and Starting Hands Free"system. Followin
g reconnection of the battery, the
safety anti-pinch function must be reinitialised.The safety anti-pinch function is not active
during these operations:


- lower the window completely, then raise
it, it will rise in ste
ps of a few centimetreseach time the switch is pressed. Repeat
the operation until the window closes
completely,

- continue to press the switch for at least
one second after reaching this position,
window closed.
For the safety of your children, press switch 5to prevent operation of therear windows irrespective of their position.
The warnin
g lamp in the button comes on,accompanied by a message confirmingactivation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also deactivated. Opening the doors from the outside and
operation of the rear electric windows from the
driver's controls remain possible.

157
Child safety
The incorrect installation of a child seat in a
vehicle compromises the child's protection in the event of an accident.
Remember to fasten the seat belts or the child seat harnesses keeping the slack relative to the child's body to a minimum, even for short journeys.
When installing a child seat using the seat belt, ensure that the seat belt is tightenedcorrectly on the child seat and that it secures the child seat firmly on the seat of your vehicle. If your passenger seat is adjustable, move it for wards if necessary.
For optimum installation of the "forwards-facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfort.
If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.






Advice on child seats

As a safety precaution, do not leave:
- a child or children alone and unsupervised in a vehicle, - a child or an animal in a vehicle whichis exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To prevent accidental opening of the doors and rear windows, use the "Child lock". Take care not to open the rear windows bymore than one third.To protect young children from the rays of the sun, fit side blinds on the rear windows.

Children under the age of 10 must not travel
in the "forwards-facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.
Deactivate the passenger airbag when a "rearwards-facing" child seat is installed on the front seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.


Installing a booster seat

The chest par t of the seat belt must be positioned on the child's shoulder without touching the neck.
Ensure that the lap part of the seat belt passes correctly over the child's thighs. CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.
