Lighting of the indicator lamp indicates the state of the corresponding function.
Switch panels
Opening the fuel filler flap.

Opening the boot. 63 57 D
eactivation of the alarm.
48, 56

Electric parking brake activated.
9
7

Push button star ting/stopping.
94

Deactivation of Stop & Start.
117
Deactivation of parkin
g sensors.
128

Electric child lock.
161


Deactivation of the DSC/ASR system.
169


Activation of Automatic headlamp
dipping.
137
119
Activation of lane depar ture warning.
5
5

Locking/unlocking the passenger compartment.

23Familiarisation

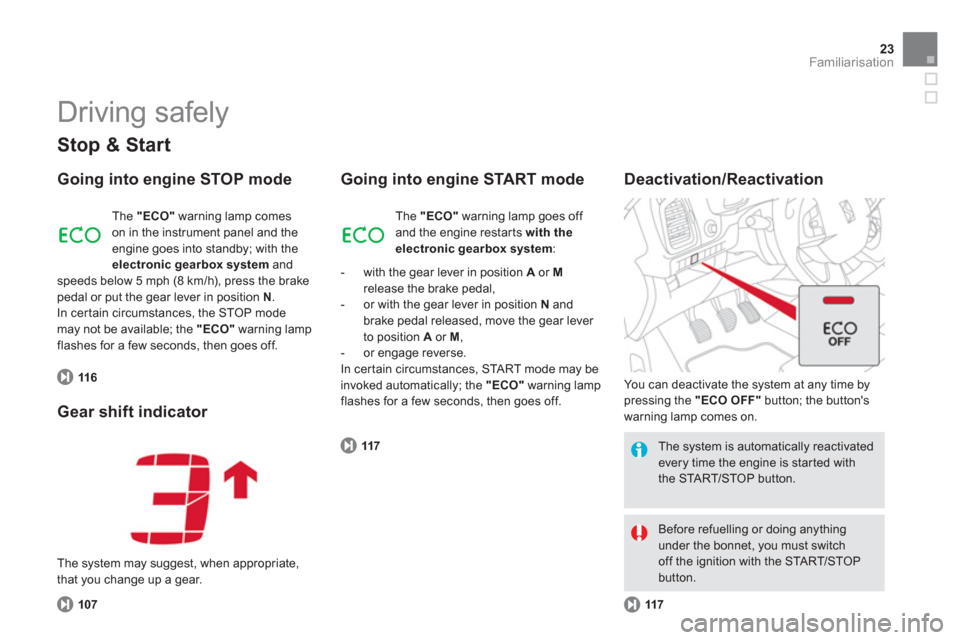

Driving safely


Stop & Start


Going into engine STOP mode
116
The "ECO"warning lamp comes
on in the instrument panel and the
en
gine goes into standby; with theelectronic gearbox system andspeeds below 5 mph (8 km/h), press the brakepedal or put the gear lever in position N.
In certain circumstances, the STOP modemay not be available; the "ECO"warning lamp flashes for a few seconds, then goes off.
Going into engine START mode
Deactivation/Reactivation
117
11
7
The system is automatically reactivated every time the engine is star ted withthe STA R T/STOP button.

Before refuelling or doing anything under the bonnet, you must switchoff the ignition with the START/STOP button. Th
e "ECO"
warning lamp goes off
and the engine restar ts with theelectronic gearbox system:
- with the
gear lever in position A
or Mrelease the brake pedal,
- or with the gear lever in position N
andbrake pedal released, move the gear lever
to position A or M ,
- or engage reverse.
In certain circumstances, STA R T m o d e m ay beinvoked automatically; the "ECO"
warning lampflashes for a few seconds, then goes off. You can deactivate the s
ystem at any time bypressing the "ECO OFF"
button; the button's
warning lamp comes on.
Gear shift indicator
107

The system may suggest, when appropriate,
that you change up a gear.

31Monitoring



Rear foglamps

fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.

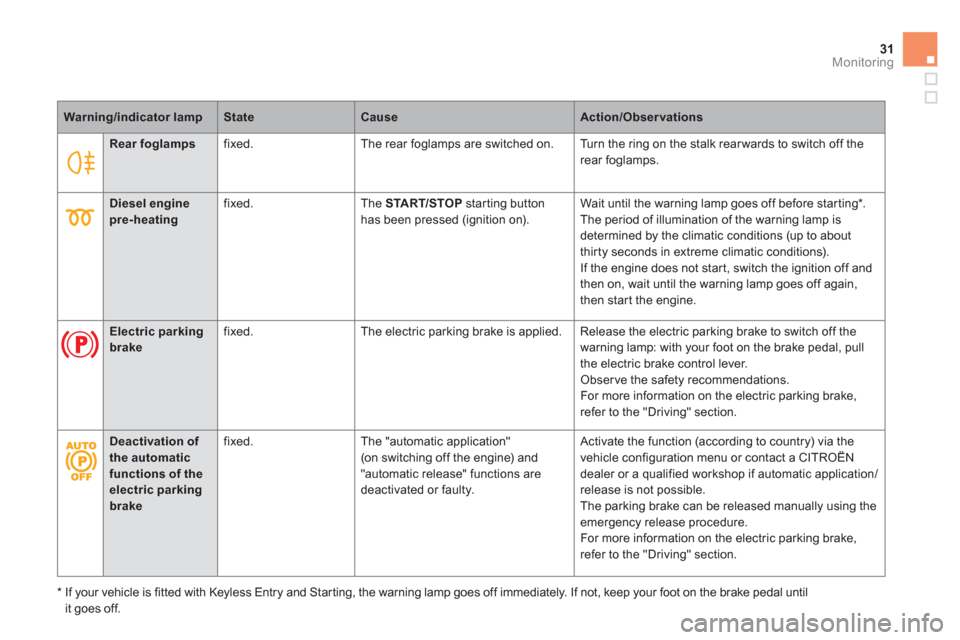

Warning/indicator lampStateCauseAction/Observations



Diesel engine pre-heating fixed. The STA R T/STOP
starting buttonhas been pressed (ignition on). Wait until the warning lamp goes off before star ting *
.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about
thirty seconds in extreme climatic conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.

Electric parking brake
fixed. The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, pull
the electric brake control lever.
Obser ve the safety recommendations.
For more information on the electric parking brake,
refer to the "Driving" section.

Deactivation of the automatic functions of the electric parkingbrake


fixed. The "automatic application" (on switching off the engine) and
"automatic release" functions aredeactivated or faulty.
Activate the function (according to country) via the
vehicle configuration menu or contact a CITROËN
dealer or a qualified workshop if automatic application/
re
lease is not possible.
The parking brake can be released manually using the emergency release procedure.
For more in
formation on the electric parking brake,
refer to the "Driving" section.

*

If your vehicle is fitted with Keyless Entry and Starting, the warning lamp goes off immediately. If not, keep your foot on the brake pedal until
it goes off
.

45
Monitoring
If dashes are displayed continuously
while driving in place of the digits, contact a CITROËN dealer or aqualified workshop.

This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.

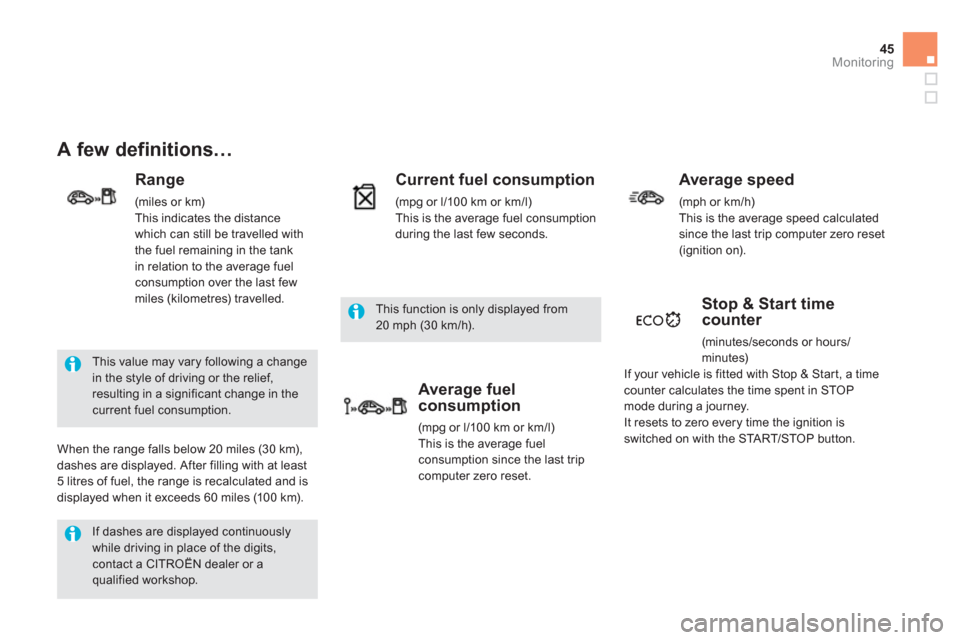

A few definitions…
Range
(miles or km)This indicates the distance
which can still be travelled with
the fuel remaining in the tank in relation to the average fuel consumption over the last few miles (kilometres) travelled.
When the range
falls below 20 miles (30 km),
dashes are displayed. After filling with at least5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).
This function is only displayed from 20 mph (30 km/h).


Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption
during the last few seconds.
Average fuelconsumption
(mpg or l/100 km or km/l)
This is the average fuel consumption since the last tripcomputer zero reset.
Average speed
(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).
Stop & Start timecounter
(minutes/seconds or hours/minutes)
If your vehicle is fitted with Stop & Star t, a time counter calculates the time spent in STOP
mode during a journey. It resets to zero every time the ignition is switched on with the STA R T/STOP button.

51Access

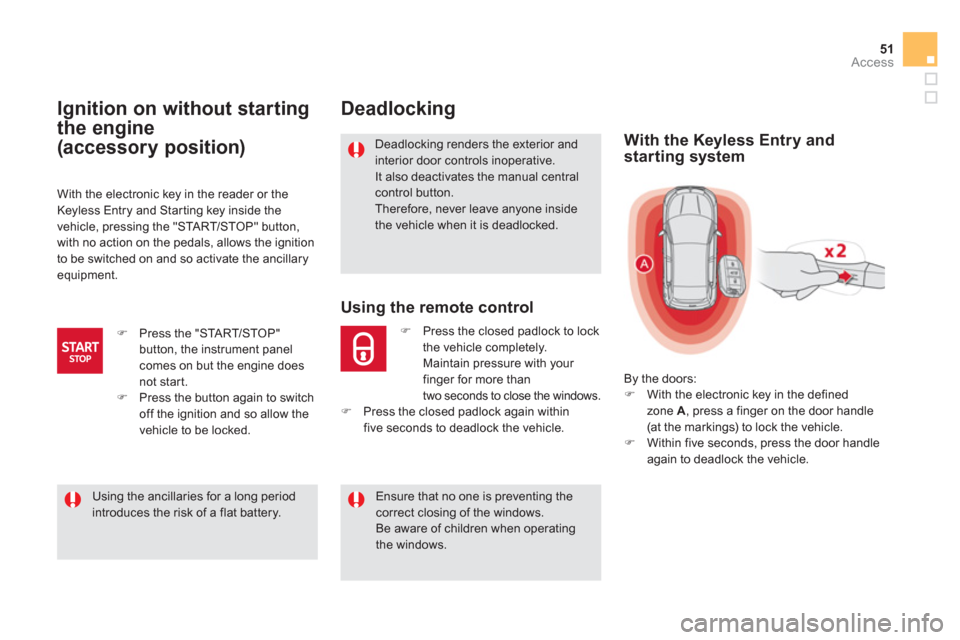

Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative. It also deactivates the manual centralcontrol button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
Using the remote control
) Press the closed padlock to lock
the vehicle completely.
Maintain pressure with
your
finger for more than two seconds to close the windows.) Press the closed padlock again within
five seconds to deadlock the vehicle.

With the electronic ke
y in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressin
g the "STA R T/STOP" button,
with no action on the pedals, allows the ignition
to be switched on and so activate the ancillary
equipment.
Ignition on without starting
the engine
(accessory position)
)
Press the "STA R T/STOP"
button, the instrument panelcomes on but the engine does
not start. ) Press the button again to switch off the ignition and so allow the
v
ehicle to be locked.

Using the ancillaries for a long periodintroduces the risk of a flat battery.


With the Keyless Entry and
startin
g system
By the doors: )
With the electronic key in the defined
zone A , press a finger on the door handle (at the markings) to lock the vehicle.
)
Within five seconds, press the door handle
again to deadlock the vehicle.
Ensure that no one is preventing the correct closing of the windows. Be aware of children when operating
the windows.

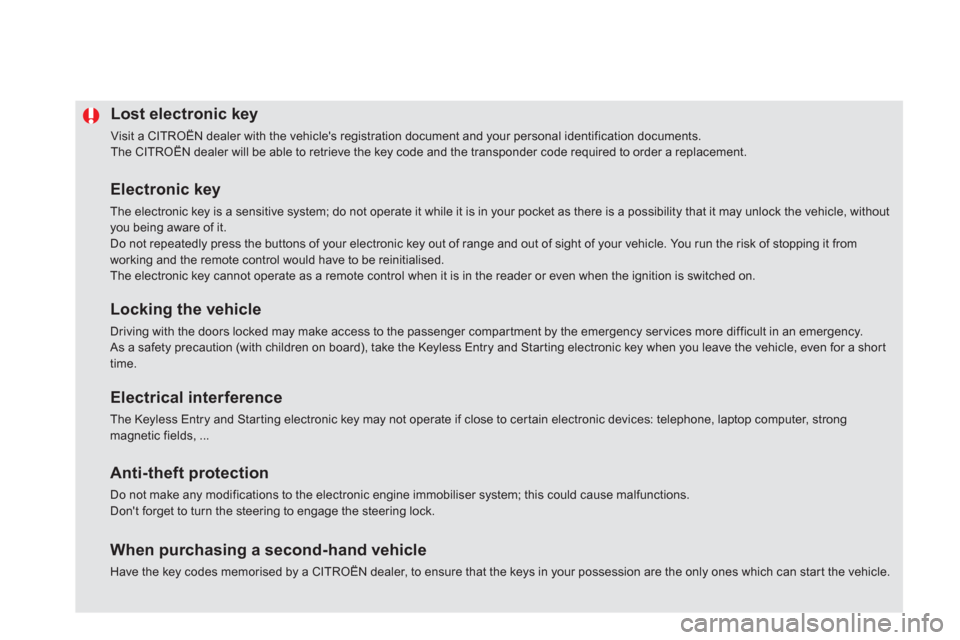

Lost electronic key
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a replacement.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency.
As a safety precaution (with children on board), take the Keyless Entry and Starting electronic key when you leave the vehicle, even for a shorttime.
Electrical interference
The Keyless Entry and Star ting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strongmagnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.

OFF
OFF
OFF
Locking the vehicle
w
ith exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-liftmonitoring to avoid unwanted triggering of thealarm in certain cases such as:
- leaving a window par tially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transportation by sea.
Deactivation of the interior volumetric and anti-tilt monitoring
)
Switch of the ignition and within
ten seconds, press this button
until the indicator lamp is on
continuously.) Get out of the vehicle.
)
Press the locking button on
the remote control immediatelyor lock the vehicle using the Keyless Entry and Starting system.
The exterior perimeter monitorin
g alone is activated: the indicator lamp in the buttonflashes once per second.
To b e effective, this deactivation must be carried
out each time the ignition is switched off.


Reactivation of the interior volumetric and anti-tilt monitoring


Tr iggering of the alarm


This is indicated by sounding of the siren andflashing of the direction indicators for thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in succession.
)Press the unlocking button on
the remote control or unlock thevehicle using the Keyless Entry and Starting system to deactivate
the exterior perimeter monitoring.
) Press the locking button on theremote control or lock the vehicle
using the Keyless Entry and Starting system to activate all the monitoring functions.
The indicator lamp in the button
again flashes once per second.

When the vehicle is unlocked usin
gthe remote control or unlockedusing the Keyless Entry and Starting
system, rapid flashing of the indicator lamp in the button informs you that the alarm
was triggered during your absence. When
the i
gnition is switched on, this flashing stops
immediately.



Failure of the remote control

To deactivate the monitoring functions:
)Unlock the vehicle using the key (integral with
the remote control) in the driver's door lock. )Open the door; the alarm is triggered.)Switch on the ignition; the alarm stops. The
indicator lamp in the button goes off.

Locking the vehicle without
activating the alarm
)Lock or deadlock the vehicle using the key(integral with the remote control) in the driver's door lock.




Operating fault


When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the system.
Have it checked by a CITROËN dealer or a
qualified workshop.


*

According to country.


Automatic activation *



2 minutes after the last door or the boot isclosed, the system is activated automatically. )To avoid triggering the alarm on entering
the vehicle, first press the unlocking buttonon the remote control or unlock the vehicleusing the Keyless Entry and Star ting system.

Safety anti-pinch
When the window rises and meets an obstacle, it stops and immediately partially lowers again.
In the event o
f unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediatel
y until the window closes. Continue
to hold the switch for approximately one second after the window has closed.
The safety anti-pinch function is not active
during this operation.
Deactivating the rear window controls


Reinitialisation of the
electric windows


In the event of contact during operationof the windows, you must reverse the movement of the window. To do this,press the switch concerned.
When operating the passenger electricwindow switches, the driver mustensure that no one is preventing correct closing of the windows. The driver must ensure that the passengers use the electric windowscorrectly.
Be aware of children when operating the windows.
Be aware of passengers or other persons present when closing the
windows using the the electronic key or the "Access and Starting Hands Free"system. Followin
g reconnection of the battery, the
safety anti-pinch function must be reinitialised.The safety anti-pinch function is not active
during these operations:


- lower the window completely, then raise
it, it will rise in ste
ps of a few centimetreseach time the switch is pressed. Repeat
the operation until the window closes
completely,

- continue to press the switch for at least
one second after reaching this position,
window closed.
For the safety of your children, press switch 5to prevent operation of therear windows irrespective of their position.
The warnin
g lamp in the button comes on,accompanied by a message confirmingactivation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also deactivated. Opening the doors from the outside and
operation of the rear electric windows from the
driver's controls remain possible.

63Access























Fuel tank Capacity of the tank: approximately 60 litres.

Additions of fuel must be of at least 5 litres to
be registered by the fuel gauge.Opening the filler cap may result in an inrush of air. This vacuum is entirely normal and results from the sealing of the fuel system.) Take care to select the pump that delivers
the correct fuel type for your vehicle'sengine (reminder on a label on the inside
of the filler flap).) Open the filler cap by turning it a 1/4 turn
to the left. ) Remove the filler cap and hang it on its carrier (on the filler flap).


Opening
If you have put in the wrong fuel for your vehicle, you must have havethe tank drained and refilled with the correct fuel before you start theengine.
With Stop & Star t, never refuel with the system in STOP mode; you must switchoff the ignition with the START/STOP button.
Refuelling
)
Introduce the nozzle and push it in fully(pushing on the the metal non-return
valve Afor a petrol engine). ) Fill the tank (don't continue past the thirdcut-off of the nozzle, as this may cause malfunctions). )
Refit the filler cap turning it a 1/4 turn to
the right. ) Push the filler flap to close it.

Your vehicle is
fitted with a catalytic converter,
a device which helps to reduce the level of
harmful emissions in the exhaust gases.
The filler neck is narrower, admitting petrol
nozzles only.
For a petrol engine, you must use unleaded fuel only.
)Press
This button remains active for a few minutesafter switching off the ignition. If necessary, switch the ignition on again to reactivate it.
