This kit is installed in the storage box, under the boot floor.
Complete system consisting of a compressor
and a sealant car tridge which permits
temporary repair of a tyre so that you can rdrive to the nearest garage.
It is designed to repair most punctures which could affect the tyre, located on the tyre tread
or shoulder.

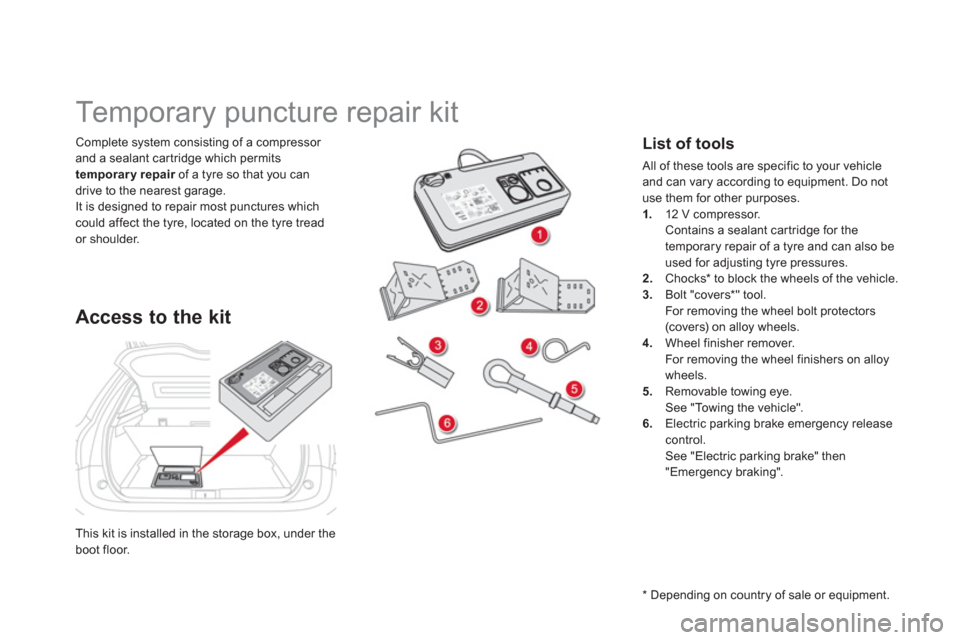

Temporary puncture repair kit
Access to the kit
List of tools
All of these tools are specific to your vehicle
and can vary according to equipment. Do not
use them for other purposes.
1. 12 V compressor.
Contains a sealant cartridge for the
temporary repair of a tyre and can also be
used for adjusting tyre pressures. 2.Chocks * to block the wheels of the vehicle.3.Bolt "covers *
" tool.
For removing the wheel bolt protectors (covers) on alloy wheels. 4. Wheel finisher remover.
For removing the wheel finishers on alloywheels.
5. Removable towing eye.
See "Towing the vehicle".
6.Electric parking brake emergency releasecontrol.
See "Electric parking brake" then
"Emergency braking".
* Dependin
g on country of sale or equipment.
Page 188 of 348

Changing a wheel Procedure for changing a faulty wheel for the spare wheel using the tools provided with the vehicle.
Th
e tools are installed in the boot under
the floor.
Access to the tools
List of tools
All of these tools are specific to your vehicle and can vary according to the level of equipment. Do not use them for other purposes. 1.
Wheelbrace.
For removing the wheel trim and removingthe wheel bolts. 2.Jack with integral handle.
For raising the vehicle.3."Bolt cover" tool.
For removing the bolt protectors (covers)
on alloy wheels.4. Wheel trim remover.
For removing the alloy wheel finishers.
5. Socket for the security bolts (located in the glove box).
For adapting the wheelbrace to the special"security" bolts.
6.Wheel chocks for blocking the vehicle's
wheels.7. Towing eye.
See "Towing the vehicle". 8.Extension spanner.
For slackening/tightening the spare wheelcarrier nut. 9. Emergency release control for the electric parking brake.
See the "Electric parking brake" section, "Emergency braking".
Tyre under-infl ation detection
The spare wheel is not fitted with a sensor. The punctured wheel must berepaired by a CITROËN dealer or a
qualified workshop.
Page 193 of 348

191Practical information
Fitting a wheel
Fitting the "space-saver"spare wheel
If your vehicle is fitted with alloy wheels, when tightening the bolts on fitting, it is normal to notice that the washersdo not come into contact with the "space-saver" spare wheel. The wheel is secured by the conical surface of each bolt.
After changing a wheel
To c o r r e c t ly store the punctured wheelin the boot ( not in the location of the space-saver wheel ), first remove the central cover. When using the "space-saver" typespare wheel, do not exceed 50 mph(80 km/h). Have the tightening of the bolts and thepressure of the spare wheel checkedby a CITROËN dealer or a qualified
workshop without delay. Have the punctured wheel repaired and refitted to the vehicle as soon as possible.
List of operations
)
Put the wheel in place on the hub. )
Screw in the bolts fully by hand. )Pre-tighten the security bolt using the
wheelbrace 1fitted with the security socket 5. )
Pre-tighten the other bolts using the
wheelbrace 1only.
Page 200 of 348

1.Sidelamps(light emitting diodes - LEDs).2.Direction indicators (PY21W amber).3.Reversing lamps (P21W).4. Brake lamps (P21W).5.Foglamps (P21W).
Rear lamps
Direction indicators and brake
lamps (on the wings)
) Open the boot then remove the access cover. )
Disconnect the lamp connector. )
Remove the two lamp fixing nuts.
)Carefully remove the lamp unit from
outside. The retaining clips unclipautomatically. )Turn the bulb holder a quarter of a turn andchange the bulb.
For reassembly, carry out these operations in
reverse order.
Changing the light emittingdiode-LED lamps
For replacement, contact a CITROËN dealer or qualified workshop.
Page 211 of 348

209Practical information
To w i n g
the vehicle
Procedure for having your vehicle towed or for towing another vehicle using a removable
towing eye.
To w i ng your vehicle
To w i ng another vehicle
Access to the tools
The towing eye is installed in the boot under
the floor.
To gain access to it: )open the boot, )remove the towing eye, located in the
tool box.
)
On the front bumper, unclip the cover by
pressing at the bottom to disengage thesecuring lugs. ) Screw the towing eye in fully. )
Install the towing bar. )
Switch on the hazard warning lamps on the
t
owed vehicle.
) On the rear bumper, unclip the cover bylevering at the left with the point of the
towing eye. ) Screw the towing eye in fully. )
Install the towing bar. )
Switch on the hazard warning lamps on the
t
owed vehicle.
When towing with all four wheels on theground, always use a towing bar.
When towing with only two wheels on the ground, always use professionallifting equipment.
When towing with the engine off, thereis no longer any braking or steeringassistance.
)Place the gear lever in neutral(position N
on the electronic gearbox system or automaticgearbox).Failure to obser ve this special condition could result in damageto certain braking components and the absence of braking assistancethe next time the engine is started.
Page 215 of 348

213Practical information
Accessories
A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort":
door deflectors, side window blinds, rear screen blind, isotherm module, coat hanger fixed to head restraint, mobile reading lamp, mirror for caravan, parking sensors...
"Transport systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bic
ycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network, theinstallation must be done using the vehicle's electrical pre-equipment and fitted following the manufacturer's recommendations.
"Styling":
gear lever knobs, aluminium foot rest, alloy wheels, chrome mirror shells, chrome door aperture finishers...
* To avoid an
y risk of jamming the pedals:
- ensure that mats are correctly positionedand secured,
- never fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen
vehicle tracking system, child seats and
booster cushions, breathalyser, first aid kit, fire
extinguisher, warning triangle, high visibility
vest, wheel security bolts, snow chains,non-slip covers...
"Protection":
mats * , seat covers compatible with lateral
airbags, mud flaps, door protective mouldings,bumper protection strips, vehicle cover...
The rear bodywork has been designed to avoid spray.
