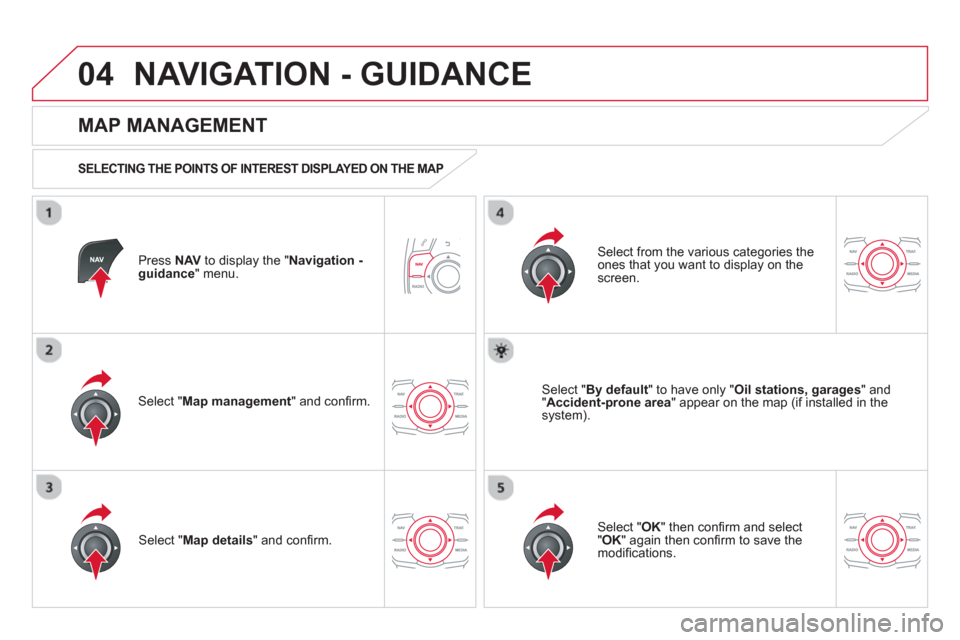

04NAVIGATION - GUIDANCE
Press NAVto display the " Navigation - guidance" menu.


MAP MANAGEMENT


SELECTING THE POINTS OF INTEREST DISPLAYED ON THE MAP
Select " Map management
" and confi rm.
Select from the various categories the
ones that you want to display on thescreen.

Select "Map details" and confi rm.
Select " By default" to have only "Oil stations, garages" and"Accident-prone area
" appear on the map (if installed in the
system).
Select " OK
" then confi rm and select "OK" again then confi rm to save the
modifi cations.

05
271

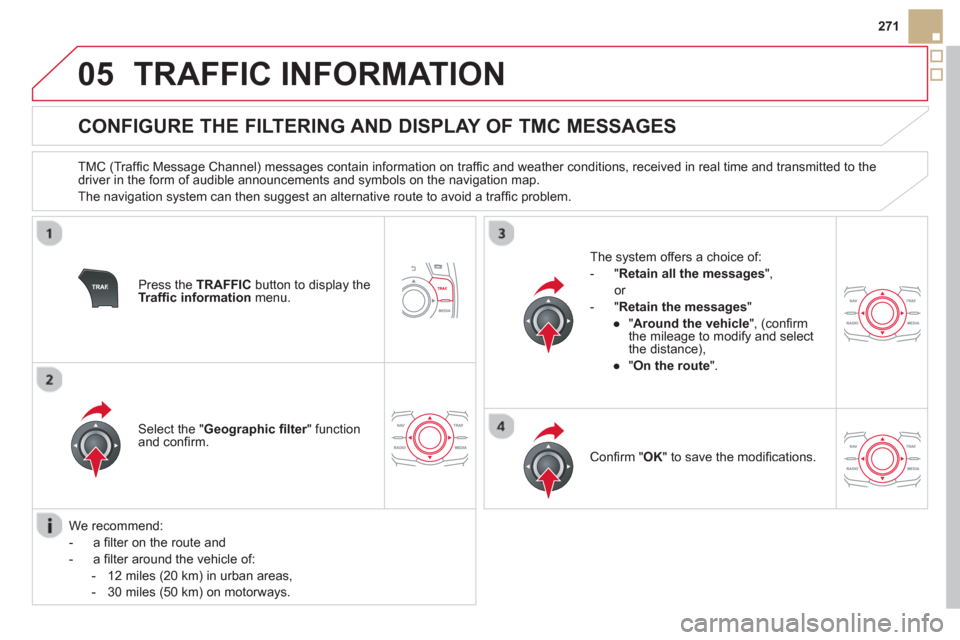

TRAFFIC INFORMATION









CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES


TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navi
gation system can then suggest an alternative route to avoid a traffi c problem.
Pr
ess the TRAFFICbutton to display the Traffi c informationmenu.
Select the "Geographic fi lter" function rand confi rm. The s
ystem offers a choice of:
- " Retain all the messa
ges",
or
-"Retain the messa
ges"
●
"Around the vehicle ", (confi rm
the mileage to modify and select
the distance),

●
" On the rout
e".
Confi rm " OK
" to save the modifi cations.


We recommend:


-
a fi lter on the route and

-
a fi lter around the vehicle of:
- 12 miles
(20 km) in urban areas,
- 30 miles
(50 km) on motorways.

299
FREQUENTLY ASKED QUESTIONS
The following table groups together the answers to the most frequently asked questions concerning your audio system.


QUESTION

ANSWER

SOLUTION

Th
e route calculation is not successful. The guidance criteria may confl ict with the current location (exclusion of
toll roads on a toll motorway). Check the guidance criteria on the Navigation Menu, "Guidance options" "Defi ne calculation criteria".
The P
OIs do not appear. The POIs have not been selected. Select the POIs in the list of POIs.
The P
OIs have not been downloaded. Download the POIs from the website:
"http://citroen.navigation.com".
Th
e Risk areas audiblewarning does not work. The audible warning is not active. Activate audible warnings in the Guidance options menu, "Navigation - guidance", "Set parameters for risk areas".
The system does not
suggest a detour around an incident on the route. The guidance criteria do not take account o
f TMC messages. Select the "Traffi c info" function in the list of guidance criteria.

I receive a Risk area alert
which is not on my route. Other than guidance, the system announces all Risk areas positioned in a cone located in front of the vehicle. It may provide an alert for a Risk area located on nearby or parallel roads. Zoom in on the map to view the exact position of
the Risk area. Select "On the route" to no longer receive alerts other than guidance or to reduce the
time for the announcement.

339Alphabetical index
Paint colour code........................................245Parking brake, electric.................103-110, 234Parking lamps .............................................144Parking sensors, front .................................134Parking sensors, rear..................................r133Particle emission filter................r230,231, 233Passenger compartment filter....................r233Player, CD MP3...........................288,313,314Port, USB......................................86, 291,315Priming the fuel system..............................228Protecting children..............................158 -167, 178, 180Puncture......................................................186
P
R
Radio...................................................284,309Rear foglamp ...............................140, 204, 205Rear screen (demisting) ..........................82, 96Recharging the battery.......................211,212Reduction of electrical load........................213Regeneration of the particleemissions filter..........................................r233Reinitialising the remote control...................57Remote control........................................52-58Removing a wheel......................................195Removing the mat.........................................85Repair kit, puncture .....................................186Replacing bulbs ..................................199-206Replacing fuses ...................................207-209Replacing the air filter.................................r233
T
Replacing the oil filter.................................r233Replacing the passenger compartment filter....................................r233Replacing wiper blades .......................152,214Resetting the service indicator.....................r42Resetting the trip recorder............................r44Reversing camera.......................................135Reversing lamp...................................204, 205
Risk areas (update).....................................262Roof bars.....................................................218Routine checks...................................229-234
Running out of fuel (Diesel) ........................228
Table of weights..................................239,242Ta b l e s of engines................................238,241Tables of fuses............................................207Ta n k, fuel.......................................................69Technical data .....................................238-244Te l e p h o ne...........................................274, 319Te m p e r a t u r e , c o o l a nt ....................................40Te mperature control for heated seats ..........78Temporary tyre repair kit .............................186
Setting the clock.....................46, 47, 295, 329Short-cut menus.........................................256Sidelamps ............138, 141,144, 199,201-204Side repeater...............................................203Ski flap..........................................................87Spare wheel ................................................192Speed limiter.......................................r128, 129Spotlamps, side..................................145, 203Start.............................................................211Starting the vehicle.............100,102,114, 118Steering mounted controls, audio.......254, 307Stopping the vehicle ...........100,102,114, 118Stop & Start...............................49,68, 93, 96, 122, 210, 225,232Storage..............................................84, 86-88Storing driving positions ...............................76Stowing rings................................................88Synchronising the remote control.................57Synthesiser, voice.......................................268System, navigation......................................257
S
Screen, colour and mapping.......................255Screen, instrument panel........................30, 48Screen, monochrome.........................308, 328Screen, multifunction (with audio equipment).............................308Screen menu map ......................296, 328, 329Screenwash ................................................231Screenwash, front....................................... 150Screenwash fluid level................................231Seat, rear bench.....................................79, 81Seat adjustment......................................74, 75Seat belts.....................................161,176-178Seats, rear...............................................r79, 81Serial number, vehicle................................245Ser vice indicator...........................................r41Servicing .......................................................25
