199Practical information

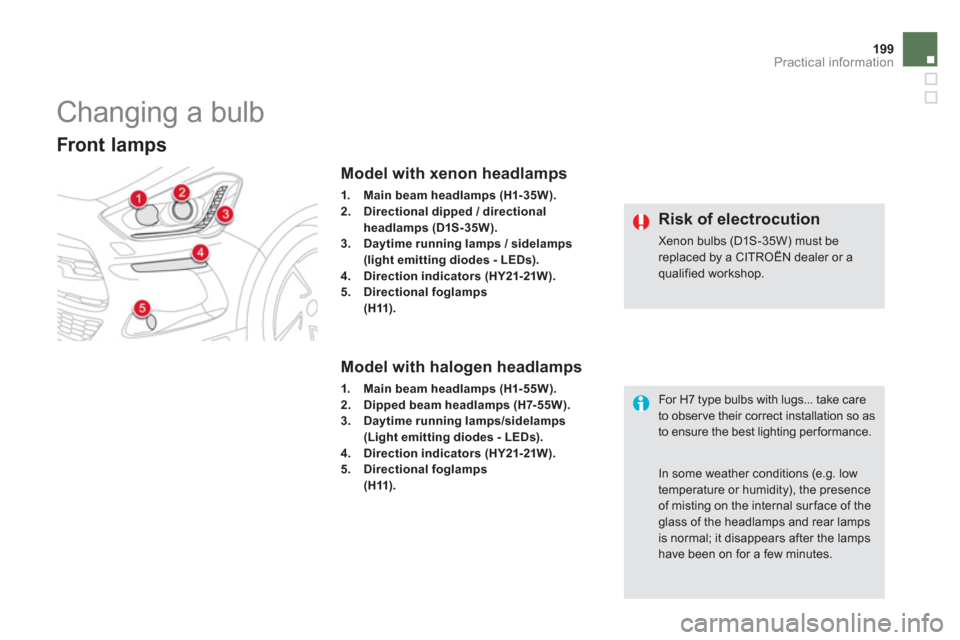

Changing a bulb
Front lamps
Model with xenon headlamps
1.Main beam headlamps (H1- 35W).2.Directional dipped / directional
headlamps(D1S-35W).3.Daytime running lamps / sidelamps(light emitting diodes - LEDs).4.Direction indicators (HY21-21W).5.Directional foglamps(H11).
Model with halogen headlamps
1.Main beam headlamps (H1- 55W).2.
Dipped beam headlamps (H7-55W).3.Daytime running lamps/sidelamps
(Light emitting diodes - LEDs).4.Direction indicators (HY21-21W).5.Directional foglamps(H11).
For H7 type bulbs with lugs... take care to observe their correct installation so asto ensure the best lighting performance.

In some weather conditions (e.g. low temperature or humidity), the presence of misting on the internal surface of the glass of the headlamps and rear lampsis normal; it disappears after the lamps have been on for a few minutes.


Risk of electrocution

Xenon bulbs (D1S-35W) must bereplaced by a CITROËN dealer or aqualified workshop.

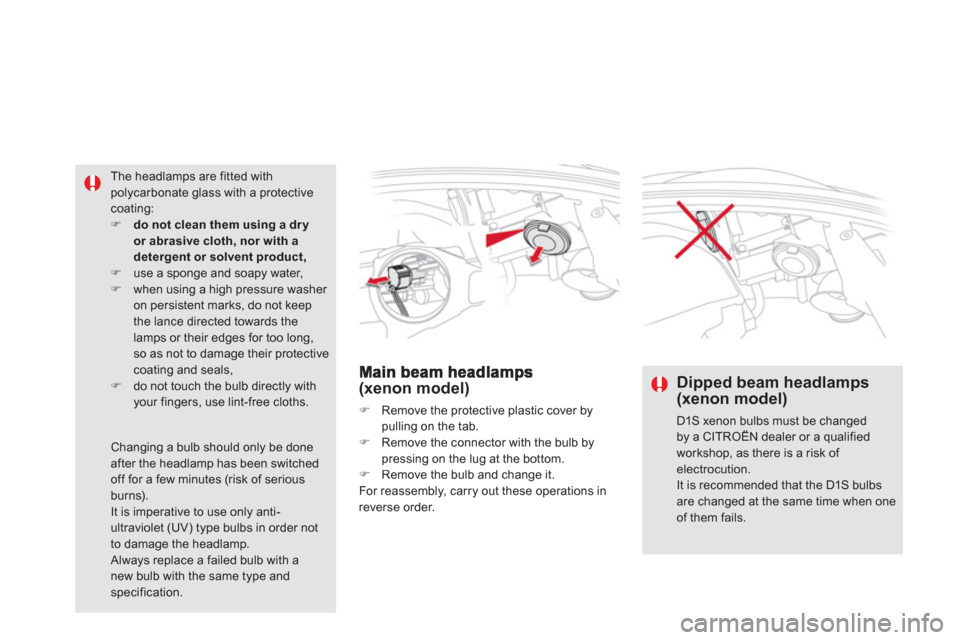

(xenon model)
) Remove the protective plastic cover by
pulling on the tab.) Remove the connector with the bulb bypressing on the lug at the bottom. )
Remove the bulb and change it.
For reassembly, carry out these operations in reverse order.
The headlamps are fitted withpolycarbonate glass with a protectivecoating:)do not clean them using a dryor abrasive cloth, nor with adetergent or solvent product,)use a sponge and soapy water, )when using a high pressure washer on persistent marks, do not keepthe lance directed towards thelamps or their edges for too long,so as not to damage their protectivecoating and seals,)do not touch the bulb directly withyour fingers, use lint-free cloths.


Changing a bulb should only be doneafter the headlamp has been switched off for a few minutes (risk of serious burns).
It is imperative to use only anti-ultraviolet (UV) type bulbs in order not
to damage the headlamp. Always replace a failed bulb with a new bulb with the same type andspecification.
Dipped beam headlamps(xenon model)

D1S xenon bulbs must be changedby a CITROËN dealer or a qualifiedworkshop, as there is a risk of electrocution.
It is recommended that the D1S bulbsare changed at the same time when one of them fails.

Practical information

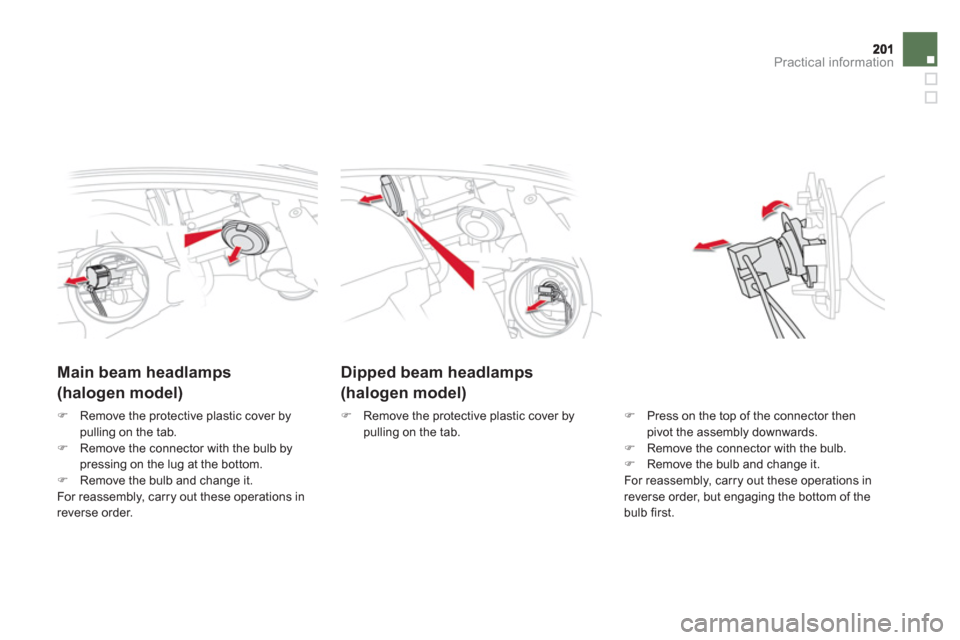

Dipped beam headlamps
(halogen model)





Main beam headlamps (halogen model)
)
Press on the top of the connector thenpivot the assembly downwards. )
Remove the connector with the bulb.)
Remove the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of thebulb first.

)
Remove the protective plastic cover by
pulling on the tab. )Remove the protective plastic cover bypulling on the tab.)Remove the connector with the bulb by pressing on the lug at the bottom. )Remove the bulb and change it.
For reassembly, carry out these operations in
r
everse order.

209Practical information

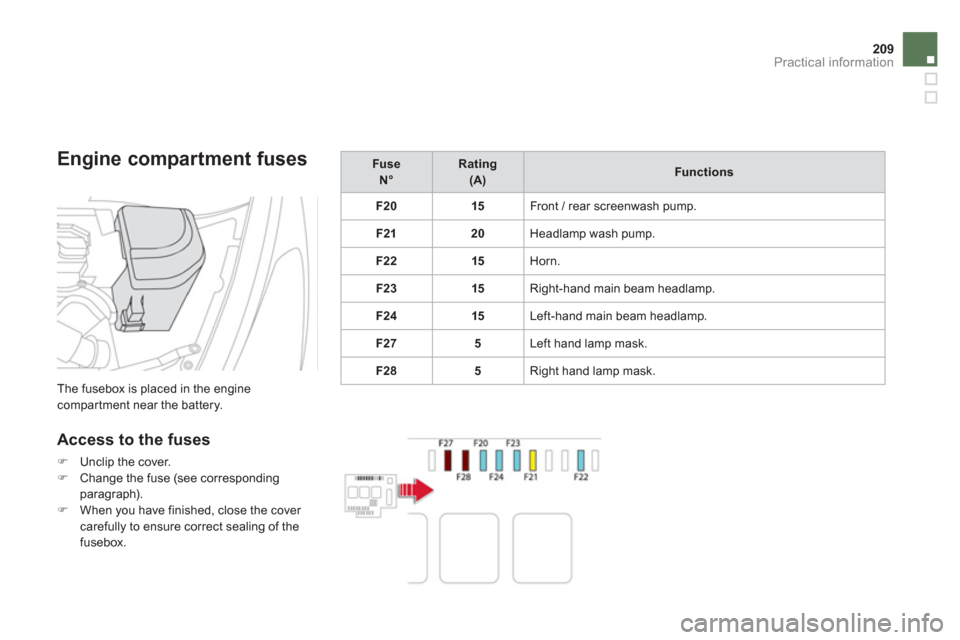

Engine compartment fuses

The fusebox is placed in the engine compartment near the battery.


Access to the fuses
)Unclip the cover. )Change the fuse (see corresponding paragraph).)When you have finished, close the cover carefully to ensure correct sealing of the
f
usebox.


Fuse
N°


Rating(A)Functions
F20 15
Front
/ rear screenwash pump.
F2120 Headlamp wash pump.
F2215
Horn.
F2
315 Right-hand main beam headlamp.
F2
415 Left-hand main beam headlamp.
F275
Left hand lamp mask.
F2
85 Right hand lamp mask.

213Practical information








Load reduction mode
System which manages the use of certainfunctions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates cer tain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you canstill use functions such as the audio and
telematics system, windscreen wipers, dipped
beam headlamps, cour tes
y lamps, etc. for a maximum combined duration of about forty minutes.








Energy economy mode
Switching to economy mode

A message then appears in the instrument panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time,it will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.


Exiting economy mode

These functions are reactivated automatically
next time the vehicle is driven.) In order to resume the use of thesefunctions immediately, star t the engine and
let it run:
- for less than ten minutes, to use
the equipment for approximatelyfive minutes,
- for more than ten minutes, to use theequipment for up to approximately
thirty minutes.

Let the engine run for the duration specified toensure that the battery charge is sufficient.
Do not repeatedly and continuously restar t theengine in order to charge the battery.
A flat battery prevents the engine from star ting (refer to the "Battery" section).

The various caps and covers allow access for
checking the levels of the various fluids and for replacing cer tain components.














Petrol engines
1.
Power steering reservoir.2.
Screenwash and headlamp wash reser voir.3.
Coolant reservoir. 4.
Brake fluid reservoir.5.
Battery / Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick. 9.
Engine oil filler cap.THP 155 6- SPEED AUTOTHP 200 6- SPEED MANUAL

227Checks
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing cer tain components and for primingthe fuel system.

*

According to engine.















Diesel engines
1.
Power steering reservoir.2.Screenwash and headlamp wash reser voir.3.Coolant reservoir.4.
Brake fluid reservoir.
5. Battery / Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick.9.
Engine oil filler cap.10.Priming pump * . 11.
Bleed screw * .
e- HDi 110 6- SPEED ELECTRONIC
HDi 160 PEF 6- SPEED MANUAL / HDi 160 PEF 6- SPEED AUTO

231Checks
Specifi cation of the fl uid
To ensure optimum cleaning and to avoid freezing, the fluid should never be topped up or replaced by plain water.

Screenwash / headlamp
wash level
To check the level or top up the fluid on vehicle fitted with headlamp washers, immobilise the
vehicle and switch of the engine. )Before opening the bonnet, ensure that the engine has completely stopped. )Open the screenwash reser voir filler cap.
Avoid prolonged contact of used oil or fluids with the skin.
Most of these fluids are harmful tohealth or indeed very corrosive.

Do not discard used oil or fluids into sewers or onto the ground.

Take used oil to a CITROËN dealer or a qualified workshop (France) or to anauthorised waste disposal site.








Used products

Topping up

This additive must be topped up by a CITROËN
dealer or a qualified workshop without delay.

Diesel additive level
(Diesel engine with particle
emission filter)

A low additive level is
indicated by illumination of
the ser vice warning lamp,
accompanied by an audible warning and a
message in the instrument panel screen.
) Take and pinch the level gauge to block its breather.)
Remove the gauge completely from
the reservoir to read the level in thetransparent section.) To p u p if necessary.)
Refit the filler cap to the reser voir andclose the bonnet.

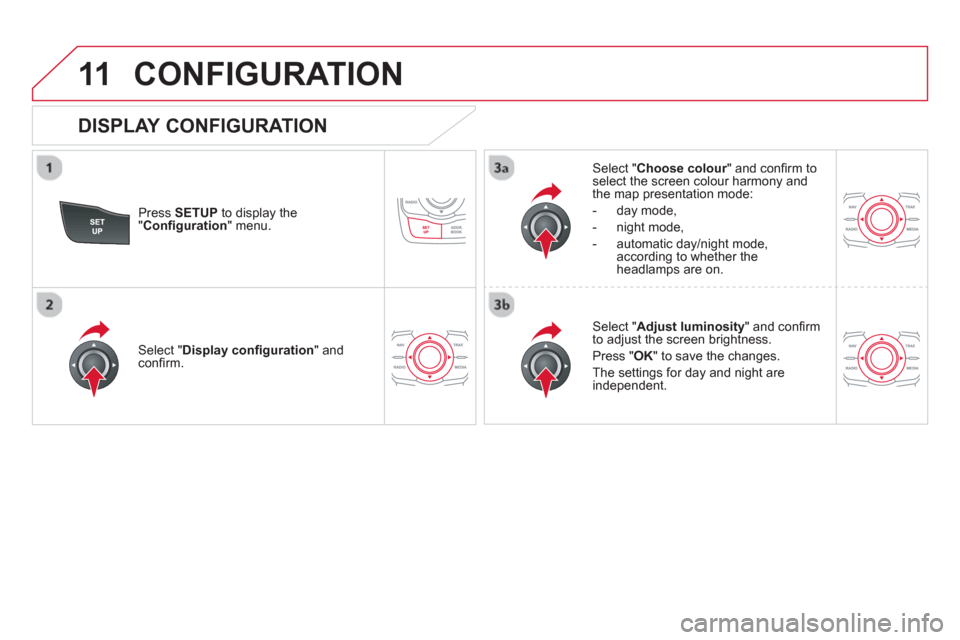

11CONFIGURATION

DISPLAY CONFIGURATION
Press SETUP
to display the"Confi guration
" menu.
Select " Choose colour" and confi rm torselect the screen colour harmony and
the map presentation mode:
-
day mode,
- n
ight mode,
- automatic day
/night mode,according to whether the
headlamps are on.
Select " Adjust luminosity" and confi rm
to adjust the screen brightness.
Pr
ess " OK" to save the changes.
The settings
for day and night are independent.

Select " Display confi guration" and confi rm.

11
295
Pr
ess SETUP
to display the"Confi guration " menu.

Adjust the settings one by one.
Th
en select "OK" on the screen and confi rm to save the settings.

Select " Vehicle parameters
" and confi rm.

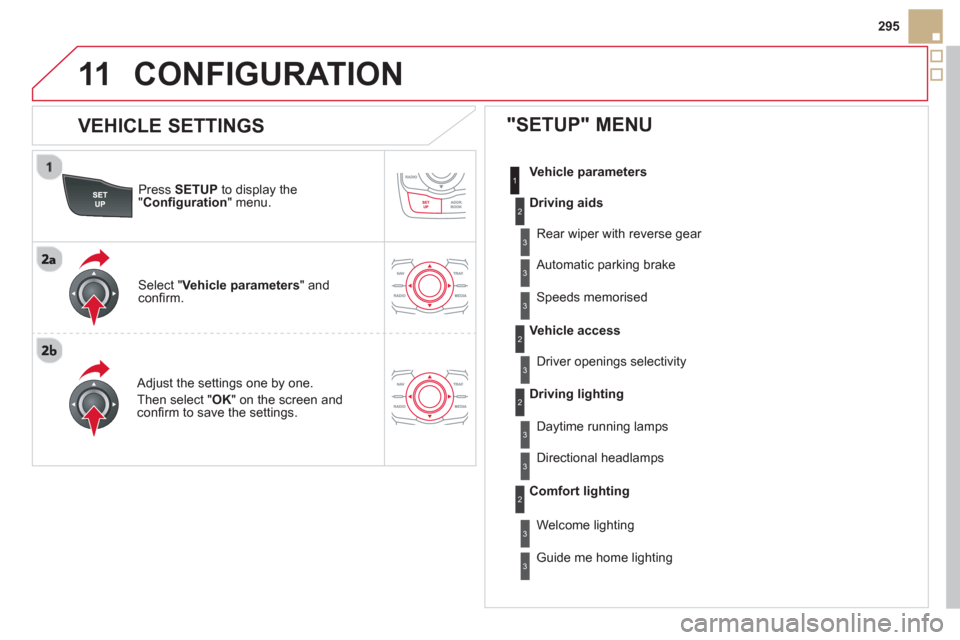

VEHICLE SETTINGS
CONFIGURATION


"SETUP" MENU

Vehicle parameters
Driving aids
Rear wiper with reverse
gear
Automatic parkin
g brake
1
2
Speeds memorised
3
3
3
Vehicle access2
Driver openings selectivity3
Driving lighting2
Daytime running lamps 3

Directional headlamps3
Comfort lighting2
Welcome lighting 3
Guide me home lighting3
