Instrument panel
31 Indicator and warning lamps
40Gauges and indicators
44Adjustment buttons
46 Setting the date and time
46 Clock
48 Tr i p c o m p u ter
52 Electronic key - remote control
61 Boot
62 Alarm
64 Electric windows
66 Cockpit glass roof
68Fuel tank
69 Misfuel prevention (Diesel)
74 Front seats
79Rear seats
82Mirrors
83Steering wheel adjustment
84Interior fi ttings
88Boot fi ttings
89 Tr i a ngle (stowing)
90 Heating and Ventilation
92 Dual-zone digital air conditioning
96 Rear screen demist - defrost
100 Starting-switching off theengine103 Electric parking brake111Hill start assist112 Manual gearbox113Gear shiftindicator114 Automatic gearbox1186-speed electronic gearboxsystem122Stop & Start125 Lane departure warning system126 Head-up display129Speed limiter131 Cruise control133 Parking sensors135 Reversing camera

14 . Controls for electric windows / electric child lock / central locking.
15. eMyWay controls.
16.Gear lever.
17. Heating / air conditioning controls.
18
. Audio system.
19.Hazard warning lamps.
20.Multifunction screen.21. Central adjustable air vents. 22.Clock.
23.Star ting with the STA R T/STOP button.
24.Electronic key reader.
25. Wiper / screenwash / trip computer stalk.
26. Audio equipment steering wheel controls.

Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box / Passenger's airbag deactivation inside. 10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t / auxiliary socket. 13.Electric parking brake.
27. Driver's airbag.
Horn. 28. Cruise control / speed limiter controls.29.
Switch panel (see previous page).30.
Door mirror adjustment.
31.Lighting and direction indicator stalk .32.
Instrument panel. 33.
Seat belt and airbag warning lamps. 34.Courtesy lamp. 35.Head-up display controls. 36.Controls for glass roof panel blind.37.CITROËNLocalised Emergency Call -
CITROËNLocalised Assistance Call(depending on country of sale).

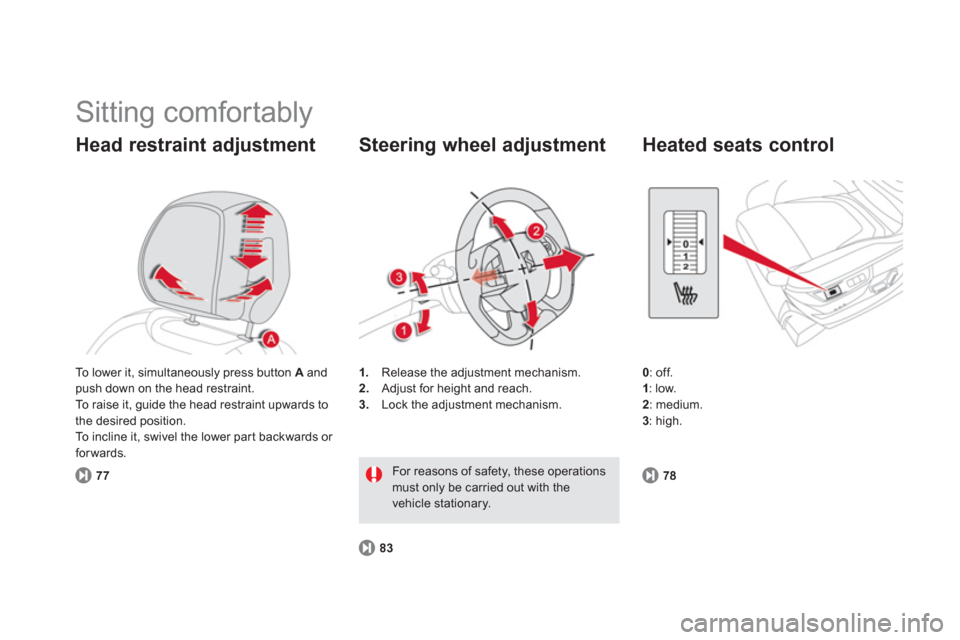

Sitting comfortably
Head restraint adjustment
771
.Release the adjustment mechanism.
2. Adjust for height and reach. 3.
Lock the adjustment mechanism.


Steering wheel adjustment
83
For reasons of safety, these operations must only be carried out with thevehicle stationary.


Heated seats control
0
: off.1: low.2
: medium. 3
: high. To lower it, simultaneously press button
A andpush down on the head restraint.
To raise it, guide the head restraint upwards to
the desired position.
To incline it, swivel the lower part backwards o
r
forwards.
7
8

When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations



STOPfixed, associated withanother warning lamp, accompanied by an audible signal and amessage in the screen. It is associated with a punctured
wheel, the brakin
g system, the power steering, the engine oil pressure,
the engine coolant temperature or a major electrical fault.Stop as soon as it is safe to do so as the en
gine may cut out.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.



Serviceon temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identif
y the fault by reading the message shown in the screen, such as, for example:
- the closing of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- the tyre pressures,
- saturation of the particle emission filter (Diesel).
- ...
For an
y other faults, contact a CITROËN dealer or a qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown on the screen and contact a CITROËN dealer or a yyg g
qualified workshop.
PEF: particle emissions filter,Diesel
fixed, associated
temporarily with a message on the risk of
blockage of the PEF.Thi
s indicates the start of saturation
of the par ticle emissions filter. As soon as traffic conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the ser vice warning lamp goes off.
fixed.This indicates the low level in theDiesel additive reservoir. Have the level topped up b
y a CITROËN dealer or
a qualified workshop as soon as possible.

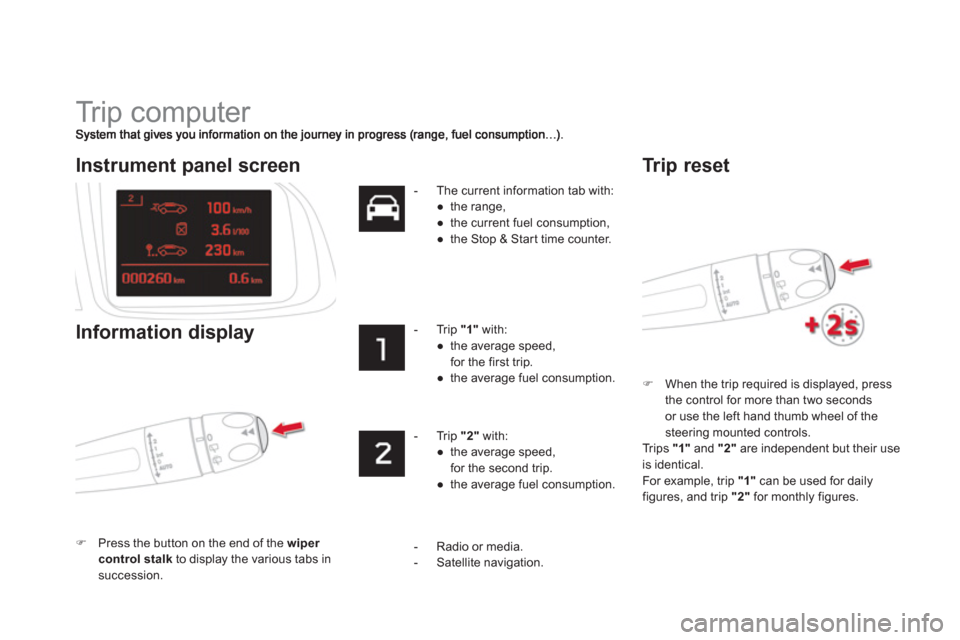

Tr i p c o m p u t e r
)When the trip required is displayed, press
the control for more than two secondsor use the left hand thumb wheel of the
steering mounted controls.
Trips "1"
and "2"are independent but their use
is identical.
For example, trip "1"
can be used for daily
figures, and trip "2"
for monthly figures.
Instrument panel screen
Information displa
y
)Press the button on the end of the wiper control stalk
to display the various tabs in succession.- Th
e current information tab with:
●
the range,
●
the current fuel consumption,
●
the Stop & Star t time counter.


-
Trip "1"
with:
●
the average speed, for the first trip.
●
the average fuel consumption.
-
Trip "2"with:
●
the average speed, for the second trip.
●
the average fuel consumption.


Tr i p r e s e t
- Radio or media.
- Satellite navigation.

83Comfort
Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the da
y and night uses.
Adjustable mirror providing a central rearwardview.
Equipped with an anti-dazzle system, whichdarkens the mirror glass and reduces thenuisance to the driver caused by the sun, headlamps from other vehicles...





Rear view mirror
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.










Steering wheel adjustment
)When stationary, pull the control lever to yrelease the adjustment mechanism.)
Adjust the height and reach to suit your
driving position.) Push the control lever to lock theadjustment mechanism.

As a safety precaution, these operations should only be carried out while the vehicle is stationary.
As a safety measure, the mirrors shouldbe adjusted to reduce the "blind spot".
Seeing clearly
For better rear vision, align the bottom of the rear view mirror with the bottom of the rear screen.

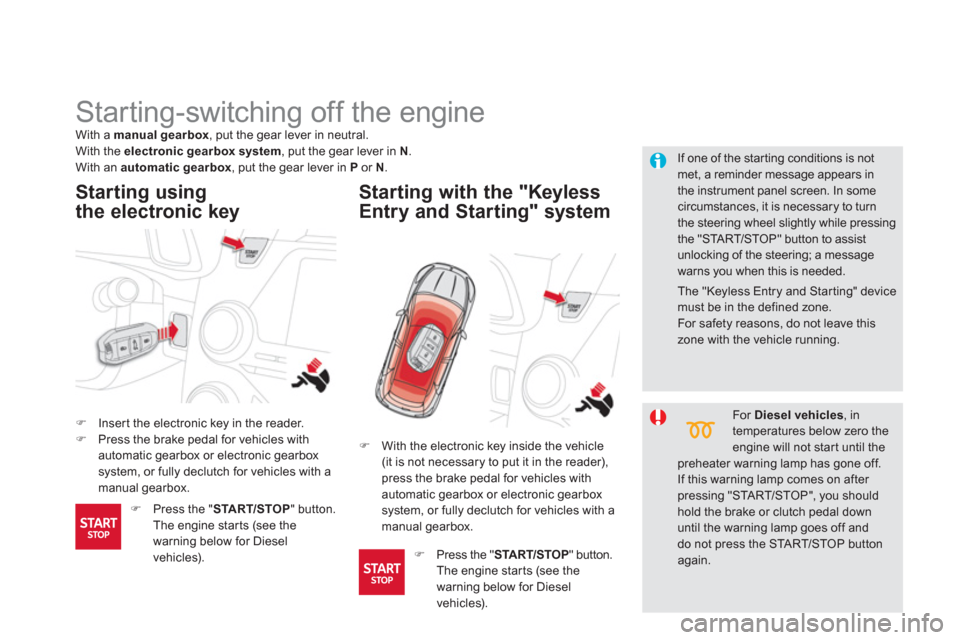

Starting-switching off the engine
)Inser t the electronic key in the reader. )Press the brake pedal for vehicles with automatic gearbox or electronic gearbox
system, or fully declutch for vehicles with amanual gearbox.
Starting using
the electronic key
Startin
g with the "Keyless
Entry and Starting" system


If one of the star ting conditions is not met, a reminder message appears in the instrument panel screen. In some circumstances, it is necessary to turnthe steering wheel slightly while pressingthe "STA R T/STOP" button to assistunlocking of the steering; a messagewarns you when this is needed.
With a manual gearbox, put the gear lever in neutral.With the electronic gearboxsystem
, put the gear lever in N.
With an automatic gearbox
, put the gear lever in Por N
.


For Diesel vehicles
, in
temperatures below zero the engine will not star t until the preheater warning lamp has gone off.
If this warning lamp comes on after pressing "STA R T/STOP", you shouldhold the brake or clutch pedal downuntil the warning lamp goes off anddo not press the STA R T/STOP buttonagain.

)
With the electronic key inside the vehicle(it is not necessary to put it in the reader),
press the brake pedal for vehicles with
automatic
gearbox or electronic gearbox system, or fully declutch for vehicles with a
manual gearbox.
) Press the "START/STOP" button.
The engine star ts (see the
warning below for Diesel
vehicles).
)Press the "START/STOP" button.
The engine star ts (see the
warnin
g below for Diesel
vehicles).

The "Keyless Entry and Starting" devicemust be in the defined zone.
For safety reasons, do not leave thiszone with the vehicle running.

6-speed electronic gearbox system
Six-speed electronic gearbox system which
o
ffers a choice between the comfor t of fully automatic operation or the pleasure of manualgear changing.
There are two driving modes: -automaticmode for automatic control of
t
he gears by the gearbox,-manualmode for sequential gear changingby the driver.
For each of these two modes, there is a a Sport
setting, corresponding to a more
dynamic driving style.
In automatic mode, it remains possible to
change gear manually by using the steering mounted control paddles when required, when
over taking, for example.
R. Reverse)
With your foot on the brake, lift the lever
and push forwards.N.Neutral. ) With your foot on the brake, select this
position to start.
A
. Automatic mode. )
Move the lever backwards to select this
mode. M.
Manual mode with sequential gear changing.)
Lift the lever then move it backwards to select this mode, then use the steeringmounted control paddles to change gear.
S. Sport setting. )
Press the button to switch it on or off.


Gear lever
+.
Change up paddle to the right of the steeringwheel.)Press the back of the "+"
steering mounted paddle to change up a gear.-.
Change down paddle to the left of the
steerin
g wheel. )Press the back of the "-"steering mounted paddle to change down a gear.


Steering mounted control paddles


The steering mounted paddles cannotbe used to select neutral or to engageor disengage reverse gear.

129Driving
The programmed information is grouped
together in the instrument panel screen.
6. Speed limiter on / off indication. 7. Speed limiter mode selection indication. 8.
Programmed speed value.9. Selection of a memorised speed.
(see "Memorising speeds")


Displays in the instrument panel

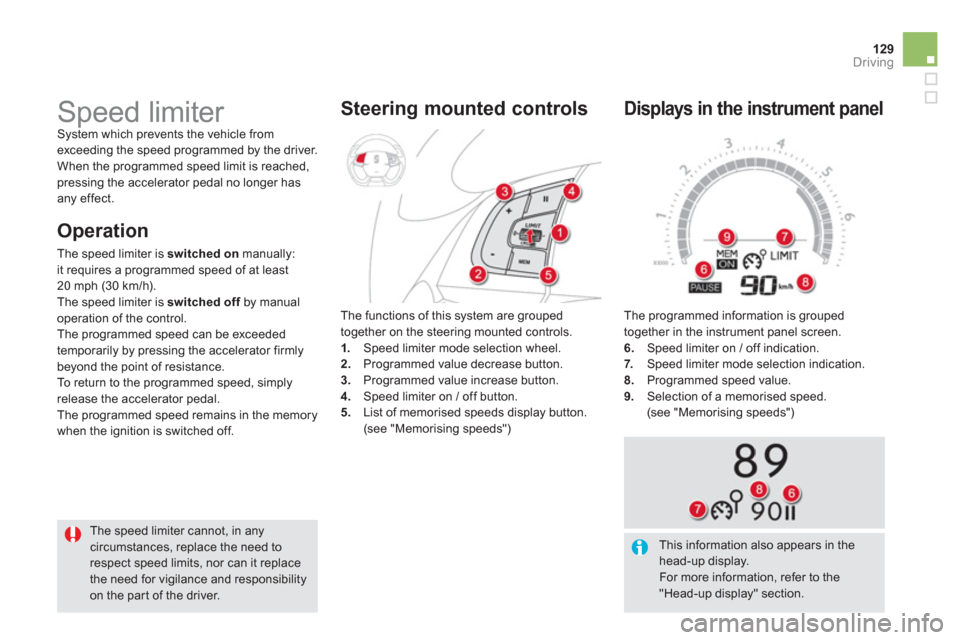

Speed limiter System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal no longer has
any effect.
The speed limiter cannot, in any
circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibilityon the par t of the driver.The functions of this s
ystem are grouped
together on the steering mounted controls. 1.Speed limiter mode selection wheel. 2. Programmed value decrease button. 3.
Programmed value increase button.
4. Speed limiter on / off button.
5. List of memorised speeds display button. (see "Memorising speeds")
Steering mounted controls

O
peration

The speed limiter is switched onmanually:
it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is switched offby manual foperation of the control.
The programmed speed can be exceeded
temporaril
y by pressing the accelerator firmlybeyond the point of resistance.
To return to the programmed speed, simply
release the accelerator pedal.
The pro
grammed speed remains in the memory
when the i
gnition is switched off.
This information also appears in thehead-up display.
For more information, refer to the "Head-up display" section.

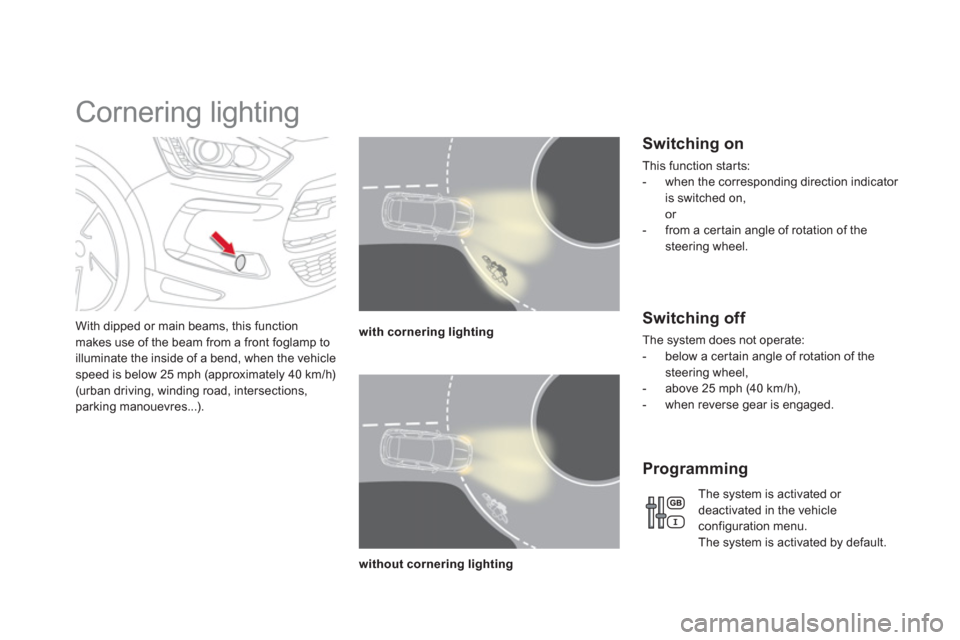

Cornering lighting
With dipped or main beams, this function makes use of the beam from a front foglamp to
illuminate the inside of a bend, when the vehicle
speed is below 25 mph (approximately 40 km/h)(urban driving, winding road, intersections, parking manouevres...).w
ith cornering lighting
without cornering lighting

Switching on

This function starts:


- when the corresponding direction indicator
is switched on,

or

-
from a cer tain angle of rotation of the steering wheel.


Switching off
The system does not operate:


- below a cer tain angle of rotation of thesteering wheel,

- above 25 mph (40 km/h),

- when reverse gear is engaged.

Programming
The system is activated or deactivated in the vehicleconfiguration menu.
The system is activated by default.
