Intelligent traction control
system ("Snow motion")
Your vehicle has a system to help driving on
snow: intelligent traction control.
This system detects situations of difficult
sur face adhesion that could make it difficult to
move off or make progress on deep fresh snow
or compacted snow.
In these situations, the intelligent traction
control
limits the amount of wheel slip to
provide the best traction and trajectory control
for your vehicle.
In extremely severe conditions (deep snow,
mud, ...), when it proves impossible to move off,
it may be useful to temporarily deactivate the
ESP/ASR systems to allow the wheels to spin
freely and so allow movement of the vehicle.
Operation
Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)
In emergency braking, press
ver y firmly without releasing the
pressure.
When changing wheels (tyres and rims),
make sure that these are approved for
your vehicle.
Normal operation of the ABS may make
itself felt by slight vibrations of the brake
pedal. When this warning lamp comes on,
accompanied by an audible signal
and a message, it indicates that
there is a fault with the ABS, which
could cause loss of control of the vehicle when
braking.
When this warning lamp comes on,
coupled with the STOP
warning
lamp, accompanied by an audible
signal and a message, it indicates
that there is a fault with the electronic brake
force distribution (EBFD), which could cause
loss of control of the vehicle when braking.
You must stop as soon as it is safe to do so.
In both cases, contact a CITROËN dealer or a
qualified workshop.
The use of snow tyres is strongly
recommended on sur faces offering low levels
of adhesion.
Page 190 of 372
The driver must ensure that passengers use
the seat belts correctly and that they are all
restrained securely before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfil their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the
length of the strap to your size. The seat belt
is stowed automatically when not in use.
Before and after use, ensure that the seat
belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling firmly on the strap and
releasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one
and a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap. In order to be effective, a seat belt must:
- be tightened as close to the body as
possible,
- be pulled in front of you with a smooth
movement, checking that it does not
twist,
- be used to restrain only one person,
- not bear any trace of cuts or fraying,
- not be converted or modified to avoid
affecting its per formance.
In accordance with current safety
regulations, for all repairs on your vehicle,
go to a qualified workshop with the skills
and equipment needed, which a CITROËN
dealer is able to provide.
Have your seat belts checked regularly by
a CITROËN dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product, sold by
CITROËN dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
In the event of an impact
Depending on the nature and
seriousness of the impact
, the
pretensioning device may be deployed
before and independently of the airbags.
Deployment of the pretensioners is
accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a CITROËN dealer or a qualified
workshop.
Page 216 of 372

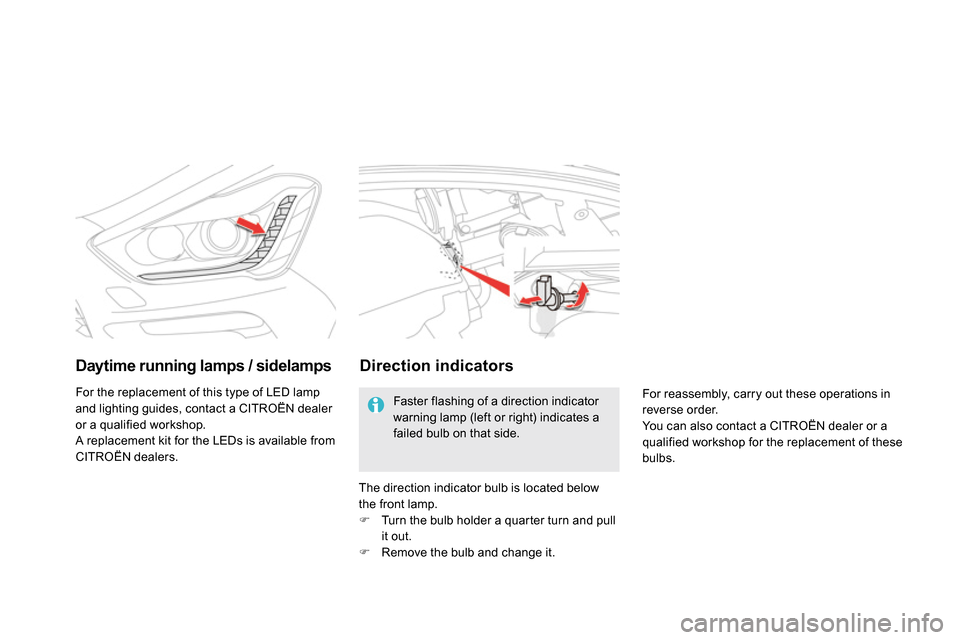

Daytime running lamps / sidelamps
For the replacement of this type of LED lamp
and lighting guides, contact a CITROËN dealer
or a qualified workshop.
A replacement kit for the LEDs is available from
CITROËN dealers.
Direction indicators
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
The direction indicator bulb is located below
the front lamp.
Turn the bulb holder a quarter turn and pull
it out.
Remove the bulb and change it. For reassembly, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
Page 231 of 372
229Practical information
Driving advice
Distribution of loads
Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.
Side wind
Take into account the increased sensitivity
to side wind.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
If the warning lamp and the
STOP
warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.
Ty r e s
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.
Lighting
Check the electrical lighting and signalling
on the trailer.
The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.
Refer to the "Technical data" section for details
of the weights and towed loads which apply to
your vehicle.
Page 233 of 372
231Practical information
Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort":
door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, parking sensors, scented air
freshener, cigarette lighter...
"Transpor t systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network, the
installation must be done using the vehicle's
electrical pre-equipment and fitted following the
manufacturer's recommendations.
"Styling":
aluminium pedals, aluminium foot rest, alloy
wheels, chrome mirror shells, ...
*
To avoid any risk of jamming the pedals:
- ensure that mats are correctly positioned
and secured,
- never fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle
tracking system, child seats and booster
cushions, dog guard, breathalyser, first aid
kit, fire extinguisher, warning triangle, belt
cutter/glass breaker, high visibility vest, wheel
security bolts, snow chains, non-slip covers...
"Protection":
mats * , mud flaps, bumper protection strips,
boot sill protector, vehicle cover...
The rear bodywork has been designed to avoid
spray.
Page 253 of 372
251Te c h n i c a l d a t a
Petrol weights and towed loads (in kg)
Petrol engines
THP
1
55 hp
THP
15 0 hp
THP
160
hp
THP
200 hp
Gearbox
es
Automatic
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)
Manual
(6-speed)
Model codes
5FVA - A /1
5FEA
5FMA - Y - A /D
5FU8
- Unladen weight
1 420
1 497
1 495
1 430
- Kerb weight *
1 495
1 570
1 570
1 505
- Gross vehicle weight (GV W)
2 035
2 030
2 030
2 050
- Gross train weight (GTW)
on a 12 % gradient
3 335
2 830
2 830
2 800
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
1 300
800
800
750
- Braked trailer ** (with load transfer within the
GTW limit)
1 500
800
800
1 050
- Unbraked trailer
74 5
74 5
74 5
750
- Recommended nose weight
75
75
75
75
*
The kerb weight is equal to the unladen weight + driver (75 kg).
**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Page 257 of 372
255Te c h n i c a l d a t a
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
*
The kerb weight is equal to the unladen weight + driver (75 kg).
**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Diesel engines
e-HDi
115 h p
Blue HDi
115 h p
Blue HDi
120 hp
Gearboxes
Electronic
(6-speed)
Manual
(6-speed)
Manual
(6-speed)
Model codes
9HR - 9HD8/PS
BHZ - BHXM/S - M/1S - M/2S
BHZ - BHXM/S - M/1S - M/2S
- Unladen weight
1 420
1 428
1 428
- Kerb weight *
1 495
1 503
1 503
- Gross vehicle weight (GV W)
2 020
2 020
2 020
- Gross train weight (GTW)
on a 12% gradient
3 120
3 120
3 120
- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 100
1 100
1 400
- Braked trailer ** (with load transfer with the
GTW limit)
1 400
1 400
1 400
- Unbraked trailer
74 5
74 5
74 5
- Recommended nose weight
75
75
75
Diesel weights and towed loads (in kg)
Page 258 of 372
* The kerb weight is equal to the unladen weight + driver (75 kg).
**
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Diesel engines
HDi
160 hp
HDi
160 hp
HDi
135 hp
HDi
135 hp
Blue HDi
180 hp
Gearboxes
Manual
(6-speed)
Automatic
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)
Automatic
(6-speed)
Model codes
RRH - RHD8 -
8/1 - 8/1V
RRH - RHDA -
A/1
RRH - RHD8 -
8/1 - 8/1V
RRH - RHDA -
A/1
AHWT/S - T/1S -
T/2S
- Unladen weight
1 530
1 540
1 530
1 540
1 540
- Kerb weight *
1 605
1 615
1 605
1 615
1 615
- Gross vehicle weight (GV W)
2 130
2 125
2 130
2 125
2 125
- Gross train weight (GTW)
on a 12% gradient
3 330
3 325
3 330
3 325
3 325
- Braked trailer (within GTW limit)
on a 10% or 12% gradient
1 200
1 200
1 200
1 200
1 200
- Braked trailer ** (with load transfer
with the GTW limit)
1 500
1 500
1 500
1 500
1 500
- Unbraked trailer
750
750
750
750
750
- Recommended nose weight
75
75
75
75
75
Diesel weights and towed loads (in kg)
Page 358 of 372
A
ABS ............................................................. 182
Accessories ........................................ 105, 231
Accessory position ..................................... 105
Accessory socket, 12V ...........................88, 89
Adjusting headlamps .................................. 152
Adjusting head restraints ........................ 78, 81
Adjusting seat belt height ........................... 187
Adjusting the steering wheel ........................ 87
Airbags .................................................. 41, 189
Airbags, curtain ................................... 191, 192
Airbags, front....................................... 189, 192
Airbags, lateral .................................... 191, 192
Air conditioning ............................................. 25
Air conditioning, automatic .....................95, 96
Air filter ........................................................ 246
Air flow .......................................................... 94
Air vents ........................................................ 94
Alarm ............................................................. 65
Anti-lock braking system
(ABS) ........................................................ 182
Anti-pinch ................................................ 69, 71
Anti-theft ..................................................... 105
Armrest .......................................................... 88
Armrest, front ................................................ 90
Armrest, rear ................................................. 91
Ashtray, removable ....................................... 88
ASR ............................................................. 182
Assistance call ............................ 181, 264, 265
Assistance, emergency braking ................. 182
Audible warning .......................................... 181
Audio streaming
(Bluetooth) ............................... 308, 336, 338
Audio system ............................................... 323
Automatic headlamp dipping ................ 32, 149Automatic illumination of headlamps ... 145, 148
Automatic operation
of hazard warning lamps .......................... 180
Automatic rain sensitive windscreen
wipers ............................................... 155, 157
Auxiliary socket ............................ 90, 305, 335
Battery ......................................... 222-224, 245
Battery, charging .................................223, 224
Battery, remote control ........................... 60, 61
Black panel.................................................... 47
Bluetooth (hands-free) ........................290, 337
Bluetooth (telephone) ..........................290, 337
Boot ............................................................... 64
Boot (opening) ............................................... 55
Brake discs .................................................. 247
Brake lamps ................................................ 216
Brake pads .................................................. 247
Brakes ......................................................... 247
Capacity, fuel tank ........................................ 72
CD ...................................................... 305, 330
CD MP3 .......................................305, 331, 332
B
C
Central locking .............................................. 55
Changing a bulb ................................... 211-218
Changing a fuse ...................................219 -221
Changing a wheel ............................... 202-209
Changing a wiper blade ......................158, 226
Changing the date ................... 48, 49, 315, 347
Changing the remote
control battery............................................. 60
Changing the time ................... 48, 49, 315, 347
Checking levels .................................... 241-244
Checking the engine
oil level ................................................ 45, 241
Checking tyre pressures
(using the kit) ............................................ 201
Checks ................................................ 238 -247
Children ................................ 162-177, 188, 190
Child lock ..................................................... 177
Child seats .......................................... 164-176
Child seats, conventional .................... 170, 171
Cigarette lighter............................................. 89
CITROËN Localised Assistance
Call ............................................................ 265
CITROËN Localised Emergency
Call ............................................................ 265
Clock ....................................... 48, 49, 315, 347
Closing the boot ............................................ 64
Closing the doors ....................................55, 57
Connectors, audio ................ 90, 305, 333, 335
Coolant level ......................................... 42, 243
Coolant temperature
indicator ...................................................... 42
Courtesy lamps ........................................... 159
Cruise control ...................................... 133, 136
Cup holder ..................................................... 88
Page 359 of 372
357Alphabetical index
DAB (Digital Audio Broadcasting) ..............303
Date (setting) .......................... 48, 49 , 315, 347
Daytime running lamps ................211, 214, 215
Deactivating DSC........................................ 184
Deactivating the passenger airbag ............. 190
Deadlocking ............................................58, 59
Defrosting ..............................................86, 100
Demisting ..............................................86, 100
Diesel ............................................................ 33
Diesel additive level .................................... 244
Diesel engine pre-heat warning lamp .......... 33
Dimensions ................................................. 259
Dipped beam ......................... 32, 144, 211, 212
Dipstick .................................................. 45, 241
Directional lighting .............................. 153, 154
Direction indicators ............. 180, 211, 214, 216
Doors emergency control ............................. 62
Driving economically..................................... 25
Driving positions (memorising) ..................... 80
Dynamic emergency braking ...................... 110
Dynamic stability control
(DSC) ..........................................39, 182, 184
Filling with fuel ......................................... 72-74
Fitting a wheel ............................................. 208
Fitting roof bars ........................................... 230
Fittings, boot ................................................. 92
Flashing indicators .............................. 150, 180
Foglamps, front ................... 146, 154, 211, 215
Foglamps, rear ............................ 146, 216, 217
Folding/unfolding the door mirrors ............... 86
Front seats .............................................. 78 - 80
Fuel.......................................................... 25, 74
Fuel consumption .......................................... 25 EBA (Emergency braking assistance) ........ 182
EBFD ........................................................... 182
Eco-driving ................................................... 25
Economy mode ........................................... 225
Electronic brake force distribution
(EBFD) ...................................................... 182Gearbox, automatic .....114, 116, 127, 224, 246
Gearbox, manual ................. 114, 115, 127, 246
Gear lever, automatic gearbox ................... 116
Gear lever, manual gearbox ....................... 115
Gear shift indicator ..................................... 124
G.P.S. .......................................................... 273
Guide-me-home .................................. 148, 150
Halogen headlamps ............................ 211, 213
Hands-free kit .....................................290, 337
Hazard warning lamps .......................... 93, 180
Headlamp adjustment ................................. 152
Headlamps, directional ....................... 153, 211
Headlamp wash .................................. 156, 243
D
F
EG
H
Electronic engine immobiliser............... 61, 105
Electronic gearbox
system ................. 25, 114, 120, 127, 224, 246
Emergency boot release ............................... 64
Emergency call ........................... 181, 264, 265
Emergency starting ..................................... 223
Emergency warning lamps ......................... 180
eMyWay ................................................ 47, 267
Energy economy mode ............................... 225
Engine compartment ..........................238, 239
Engine compartment fusebox ..................... 219
Engine, Diesel .......................74, 239, 240, 253
Engine oil level indicator ....................... 45, 241
Engine, petrol ................................74, 238, 250
Engines ...............................................250, 253
Environment ..... 25, 60, 95, 100, 125, 224, 244Fuel filler cap ................................................. 72
Fuel filler flap ................................................. 72
Fuel gauge .................................................... 72
Fuel tank.................................................. 72, 73
Fusebox, dashboard ................................... 220
Fuses ........................................................... 219
