key Citroen DS5 2014 1.G Owner's Manual

Contents

Contents
6 FA M I L I A R I SAT I O N
356 ALPHABETICAL
INDEX
361 VISUAL SEARCH
Key

safety warning

additional information

contributes to the protection of the environment

programming a function with the
configuration menu

refer to the page indicated

001001002002003003004004 COMFORT ACCESS MONITORINGDRIVING
30 Instrument panel
31 Indicator and warning lamps
42 Gauges and indicators
46 Adjustment buttons
48 Setting the date and time
48 Clock
50 Tr i p c o m p u t e r54 Electronic key - remote
control
56 "Keyless Entry and Starting"
64 Boot
65 Alarm
68 Electric windows
70 Cockpit glass roof
72 Fuel tank
73 Misfuel prevention
(Diesel)78 Front seats
83 Rear seats
86 Mirrors
87 Steering wheel adjustment
88 Interior fi ttings
92 Boot fi ttings
93 Triangle (stowing)
94 Heating and Ventilation
96 Dual-zone digital air
conditioning
100 Rear screen demist - defrost104 Starting-switching off
the engine
107 Electric parking brake
114 Hill start assist
115 Manual gearbox
116 Automatic gearbox
120 Electronic gearbox
124 Gear shift indicator
125 Ty r e u n d e r- i nfl ation detection
127 Stop & Start
130 Lane departure warning
system
131 Head-up display
13 4 Speed limiter
136 Cruise control
138 Parking sensors
14 0 Reversing camera

56, 104127
15 3 147


Electronic key: Keyless Entry
and Starting
This system allows you to unlock, lock and
start your vehicle while keeping the key on your
person and in the recognition zone around the
vehicle.

Exterior

Stop & Start

This system puts the engine temporarily into standby during stops
in the traffic (red lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move off. The Stop & Start
system reduces fuel consumption and exhaust emissions, and offers
the comfort of complete silence when stationary.


Directional lighting

This lighting automatically provides additional
for ward visibility when cornering.



Daytime running lamps

This lighting, switched on automatically when
starting the engine, makes your vehicle more
visible to other road users.

72
54
64
56
Access



1.
Opening the fuel filler flap.
Tank capacity: approximately 60 litres.


Fuel tank


Unlocking

With the electronic key on your person and
in the recognition zone A
around the vehicle,
pass your hand behind the door handle to
unlock the vehicle, then pull on the handle to
open the door.


Locking

With the electronic key in the recognition
zone A
around the vehicle, press with a finger
on the door handle (at the markings) to lock the
vehicle.



Electronic key



A.
Unlocking the vehicle.

B.
Locking the vehicle.

C.
Unlocking the boot and complete unlocking
of the vehicle.



Keyless Entry and Starting

Boot



1.
Unlocking the boot (maintain pressure until
the boot is heard to unlock).

14 .
Controls for electric windows / electric child
lock / central locking.

15.
eMyWay controls.

16.
Gear lever.

17.
Heating / air conditioning controls.

18.
Audio system.

19.
Hazard warning lamps.

20.
Multifunction screen.

21.
Central adjustable air vents.

22.
Clock.

23.
Starting with the START/STOP button.

24.
Electronic key reader.

25.
Wiper / screenwash / trip computer stalk.

26.
Audio equipment steering wheel controls.

Instruments and controls



1.
Bonnet release lever.

2.
Headlamp height adjustment.

3.
Side adjustable air vents.

4.
Front door window demisting/defrosting
vents.

5.
Quarter light demisting windows.

6.
Head-up display.

7.
Windscreen demisting/defrosting vent.

8.
Passenger's airbag.

9.
Glove box / Passenger's airbag
deactivation inside.

10.
12 V accessory socket.

11.
Rear electric window controls.

12 .
Central armrest with storage.
USB port / auxiliary socket.

13.
Electric parking brake.
27.
Driver's airbag.
Horn.

28.
Cruise control / speed limiter controls.

29.
Switch panel (see previous page).

30.
Door mirror adjustment.

31.
Lighting and direction indicator stalk .

32.
Instrument panel.

33.
Seat belt and airbag warning lamps.

34.
Courtesy lamp.

35.
Head-up display controls.

36.
Controls for glass roof panel blind.

37.
CITROËN Localised Emergency Call -
CITROËN Localised Assistance Call
(depending on country of sale).

190187, 190

A.
Left hand front seat belt not fastened or
unfastened warning lamp.

B.
Right hand front seat belt not fastened or
unfastened warning lamp.

C.
Right hand rear seat belt not fastened or
unfastened warning lamp.

D.
Centre rear seat belt not fastened or
unfastened warning lamp.

Front seat belts and
passenger's front airbag

E.
Left hand rear seat belt not fastened or
unfastened warning lamp.

F.
Front passenger's airbag deactivated
warning lamp.

G.
Front passenger's airbag activated warning
lamp.


1.
Open the glove box.

2.
Insert the key (integral with the electronic key).

3.
Select position:
"ON"
(activation), with front passenger or
"for wards facing" child seat,
"OFF"
(deactivation), with "rear facing" child
seat.

4.
Remove the key keeping the switch in the new
position.

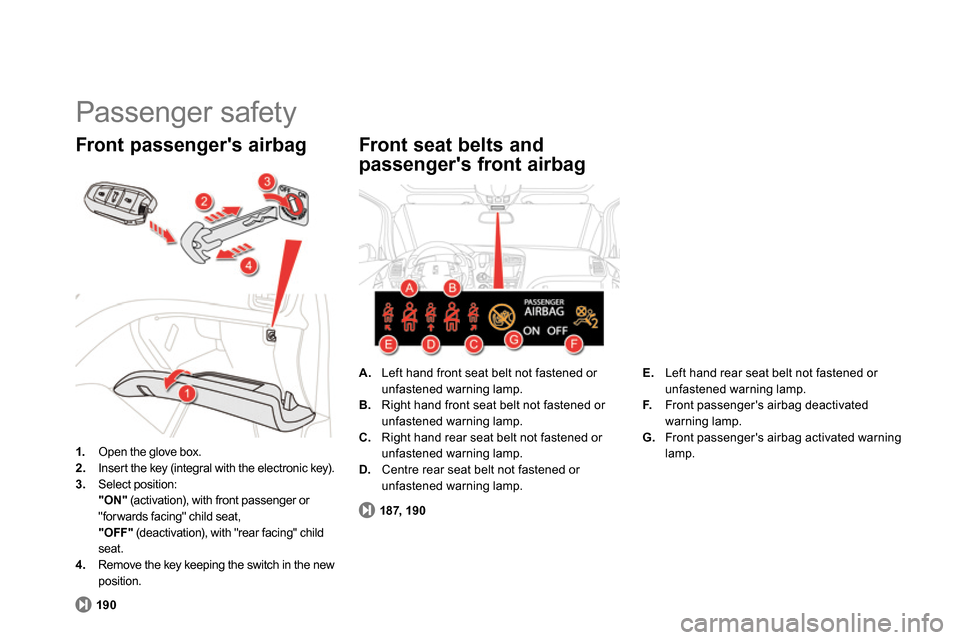

Front passenger's airbag

Passenger safety

104

Starting at temperatures
above zero


- Press the brake pedal.

- Make one short press (about one second)
on the START/STOP
button.



Starting at temperatures
below zero
You must initiate preheating of the Diesel
engine:


- Without
placing your foot on the brake
pedal, make a first short press on the
START/STOP button.

- Wait until the preheater warning lamp
goes off.

- With
your foot on the brake pedal, make
a second short press on the START/
STOP button.





Driving safely


Starting - stopping the engine


Before starting



- Place the gear lever in neutral or in
position N
for an electronic or automatic
gearbox.

- Insert the electronic key in the reader or
keep the Keyless Entry and Starting key in
the vehicle.

43Monitoring






Service indicator


More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no ser vice
information appears in the screen. System which informs the driver when the
next ser vice is due, in accordance with the
manufacturer's ser vicing schedule.
The point at which the ser vice is due is
calculated from the last indicator zero reset. It
is determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice.


Between 600 miles (1 000 km)
and 1 800 miles (3 000 km) remain
before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the ser vice operations comes
on. The distance recorder display line indicates the
distance remaining before the next ser vice is due.

Example:
1 700 miles (2 800 km) remain
before the next ser vice is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the spanner goes off
; the distance recorder
resumes its normal operation. The screen then
indicates the total and trip distances.


Less than 600 miles (1 000 km)
remain before the next service is due

Example:
560 miles (900 km) remain before
the next ser vice is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the ignition is switched on,
the distance recorder resumes its normal
operation. The spanner remains on
to
indicate that a ser vice must be carried out
soon.

Illumination of the key is accompanied
by a message in the instrument panel
screen.

Electronic key
remote control

Unlocking the vehicle


Complete unlocking
Selective unlocking

System which permits central unlocking or
locking of the vehicle using the lock or from a
distance. It is also used to locate and start the
vehicle, as well as providing protection against
theft.
This setting is done in the
configuration menu.
Complete unlocking is activated by
default.

Unlocking is confirmed by rapid flashing
of the direction indicators for around
two seconds.
At the same time, depending on
version, the door mirrors unfold.




To unlock only the driver's door,
press the open padlock once.


Press the open padlock to unlock
the vehicle.



To unlock the other doors and the boot,
press the open padlock again.

Unlocking the vehicle




















"Keyless Entry and Starting" system


System that allows the opening, closing
and starting of the vehicle while keeping the
electronic key on your person.

Complete unlocking




With the electronic key on your person
and in the recognition zone A
, pass your
hand behind the door handle to unlock the
vehicle, then pull the handle to open the
door.
Your passengers can also open their
doors, as soon as the electronic key is in
the recognition zone around the vehicle.



Selective unlocking

This setting is done via the
configuration menu.
By default, complete unlocking is
activated.




To unlock only the drivers door, with the
electronic key on your person, pass your
hand behind the driver's door handle then
pull the door handle to open.


To unlock the complete vehicle, pass your
hand behind one of the passenger door
handles on the same side of the vehicle as
the electronic key is located, then pull the
door handle to open.


Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
The door mirrors unfold at the same
time.
If the alarm is on, the audible warning
when opening a door with the key
(integral with the remote control), will
stop on starting the engine.

It can also be used as a remote control;
see the "Electronic key/remote control"
section.







For reasons of safety and theft
protection, do not leave your electronic
key in the vehicle, even when you are
close to it.
It is recommended that you keep it on
your person: in a pocket, bag, ...
