Snow chains


In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.

The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.

Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.


Advice on installation




If you have to fit the chains during a
journey, stop the vehicle on a flat sur face
on the side of the road.


Apply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.


Fit the chains following the instructions
provided by the manufacturer.


Move off gently and drive for a few
moments, without exceeding 30 mph
(50 km/h).


Stop your vehicle and check that the snow
chains are correctly tightened.


Avoid driving on roads that have been
cleared of snow, to avoid damaging
your vehicle's tyres and the road
sur face. It is recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face. If
your vehicle is fitted with alloy wheels,
check that no part of the chain or its
fixings is in contact with the wheel rim.


Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original tyre size Maximum link size.
215/60 R16
9 mm
225/50 R17
235/45 R18
cannot be fitted with
snow chains
235/40 R19
For more information on snow chains, contact a
CITROËN dealer or a qualified workshop.

231Practical information





Accessories

A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.



"Comfort":

door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, parking sensors, scented air
freshener, cigarette lighter...


"Transpor t systems":

child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network, the
installation must be done using the vehicle's
electrical pre-equipment and fitted following the
manufacturer's recommendations.


"Styling":

aluminium pedals, aluminium foot rest, alloy
wheels, chrome mirror shells, ...

*
To avoid any risk of jamming the pedals:


- ensure that mats are correctly positioned
and secured,

- never fit one mat on top of another.



"Security and safety":

anti-intrusion alarm, anti-tilt unit, stolen vehicle
tracking system, child seats and booster
cushions, dog guard, breathalyser, first aid
kit, fire extinguisher, warning triangle, belt
cutter/glass breaker, high visibility vest, wheel
security bolts, snow chains, non-slip covers...


"Protection":

mats * , mud flaps, bumper protection strips,
boot sill protector, vehicle cover...
The rear bodywork has been designed to avoid
spray.

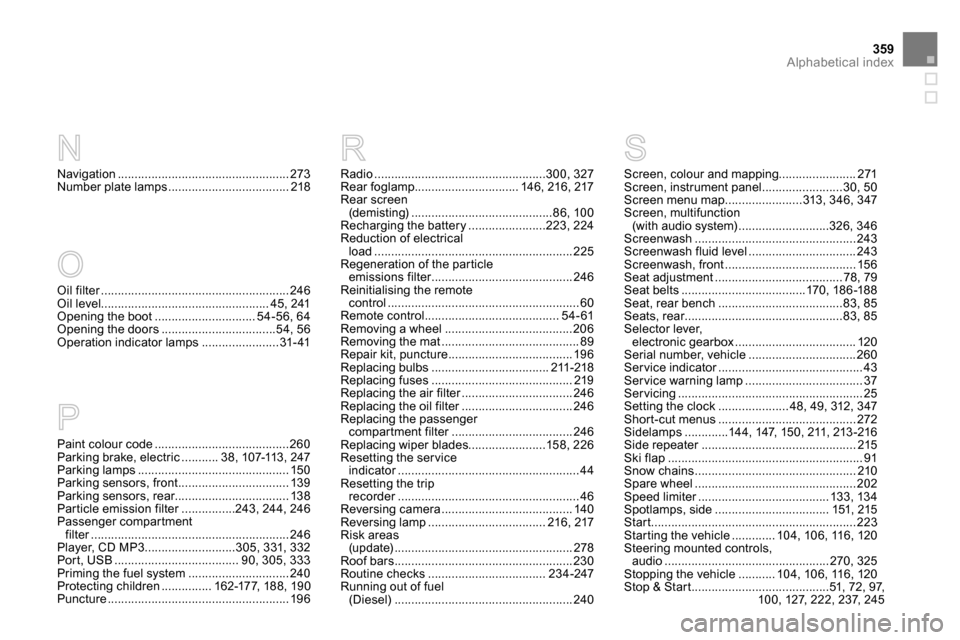

359Alphabetical index
