Changing a fuseProcedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The fuse extraction tweezer is fitted to the back
of the dashboard fusebox cover.
For access to it:
F
r
emove the cover completely,
F

r
emove the tweezer.
Access to tooling
Before changing a fuse, the cause of the failure
must be identified and rectified.
F
I
dentify the failed fuse by checking the
condition of its filament.
changing a fuse
Good Failed
F

U

se the special tweezer to extract the fuse
from its housing.
F

A

lways replace the failed fuse with a fuse
of the same rating.
F

C

heck that the number marked on the
fusebox, the rating marked on the fuse and
the following tables all agree. CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.
Practical information

223
DS5_en_Chap08_info-pratiques_ed01-2015
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery.
Access to the fuses
F Unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox. Fuse
N° Rating
(A) Functions
F20 15Front / rear screenwash pump.
F21 20Headlamp wash pump.
F22 15Horn.
F23 15Right-hand main beam headlamp.
F24 15Left-hand main beam headlamp.
F27 5Left hand lamp mask.
F28 5Right hand lamp mask.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with
household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
It is advisable to disconnect the
battery if the vehicle is to be left
unused for more than one month.
Do not push the vehicle to start the
engine if you have an electronic or
automatic gearbox.Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area
and away from naked flames and
sources of sparks, so as to avoid the
risk of explosion or fire.
Do not try to charge a frozen battery;
the battery must first be thawed
out to avoid the risk of explosion.
If the battery has been frozen,
before charging have it checked by
a CITROËN dealer or a qualified
workshop who will check that the
internal components have not been
damaged and the casing is not
cracked, which could cause a leak of
toxic and corrosive acid.
Do not reverse the polarity and use
only a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Wash your hands after wards.
Before disconnecting the battery
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section,
you must yourself reinitialise (depending on
version):
-

t
he remote control key,
-

t
he electric blind(s),
-
...
S

ome functions are not available if the
battery is not sufficiently charged.

DS5_en_Chap08_info-pratiques_ed01-2015
Changing a wiper blade
Before removing a front
wiper blade
F Within one minute after switching off the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.
Removing
F Raise the corresponding wiper arm.
F U nclip the wiper blade and remove it.
Fitting
F Put the corresponding new wiper blade in place and clip it.
F

F
old down the wiper arm carefully.
After fitting a front wiper
blade
F Switch on the ignition.
F O perate the wiper stalk again to park the
wiper blades.

247
DS5_en_Chap09_verifications_ed01-2015
On vehicles fitted with HDi engines, the fuel
system must be primed if you run out of fuel;
refer to the corresponding engine compartment
view.
Running out of fuel (Diesel)
If the tank on your vehicle is fitted with
a misfuel prevention device, refer to the
"Misfuel prevention (Diesel)" section.F

F
ill the fuel tank with at least five litres of
diesel.
F

O
pen the bonnet.
F

I
f necessary, unclip the styling cover for
access to the priming pump.
F

S
queeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).
F

O
perate the starter until the engine starts
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).
F

I
f the engine does not start after a few
attempts, operate the priming pump again
then start the engine.
F

R
efit the styling cover and clip it in place.
F

C
lose the bonnet.
1.6 Hdi engine
F Fill the fuel tank with at least five litres of Diesel.
F

O
pen the bonnet.
F

I
f necessary, unclip the style cover for
access to the priming pump.
F

S
lacken the bleed screw.
F

S
queeze and release the priming pump
repeatedly until fuel appears in the
transparent pipe.
F

T
ighten the bleed screw.
F

O
perate the starter until the engine starts
(if the engine fails to start at the first
attempt, wait around 15 seconds before
trying again).
F

I
f the engine fails to start after a few
attempts, operate the priming pump again,
then the starter.
F

P
ut the style cover back in position and
clip it in place, ensuring that it has clipped
c o r r e c t l y.
F

C
lose the bonnet.
2.0 Hdi engine
If the engine does not start first time,
don't keep trying but start the procedure
again from the beginning.
BlueHdi 100 engines
F Fill the fuel tank with at least five litres of Diesel.
F

S
witch on the ignition (without starting the
engine).
F

W
ait around 6 seconds and switch off the
ignition.
F

R
epeat the operation 10 times.
F

O
perate the starter to run the engine.
checks

DS5_en_Chap09_verifications_ed01-2015
Checking levels
Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).
Engine oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
It is normal to top up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms). To ensure that the reading is correct,
your vehicle must be parked on a level
sur face with the engine having been off
for more than 30 minutes.
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.checking using the dipstick
Refer to the "Petrol engine" or "Diesel engine"
section for the location of the dipstick in the
engine compartment of your vehicle.
F

T
ake the dipstick by its coloured grip and
remove it completely.
F

W
ipe the end of the dipstick using a clean
non-fluffy cloth.
F

R
efit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B . A = MA X
B = MIN
If you find that the level is above the A mark or
below the B mark, do not star t the engine .
-

I
f the level is above the MAX mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.
-

I
f the level is below the MIN mark, you
must top up the engine oil.

255
DS5_en_Chap09_verifications_ed01-2015

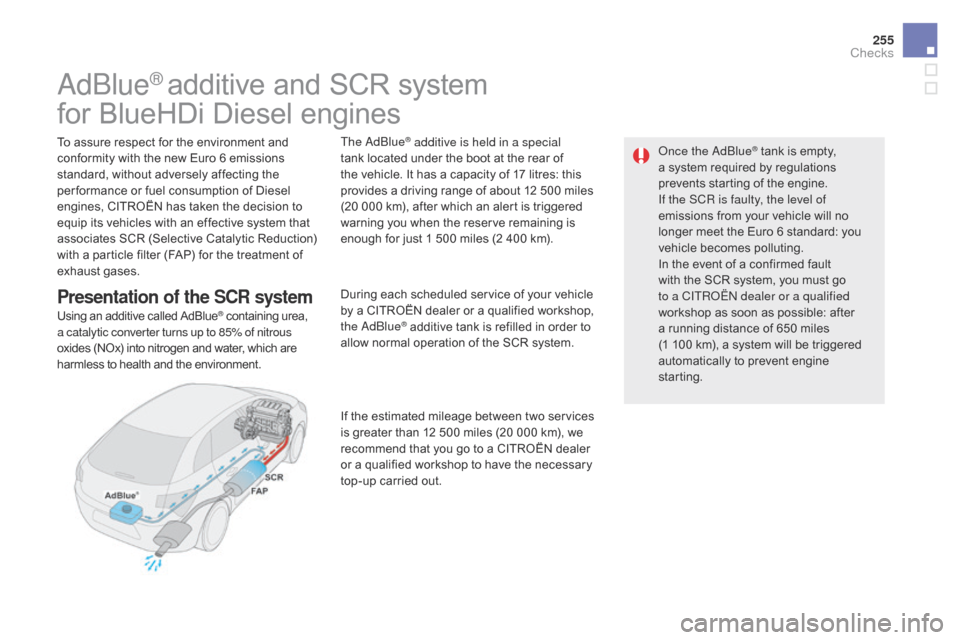

AdBlue® additive and SCR system
for BlueHDi Diesel engines
To assure respect for the environment and
conformity with the new Euro 6 emissions
standard, without adversely affecting the
per formance or fuel consumption of Diesel
engines, CITROËN has taken the decision to
equip its vehicles with an effective system that
associates SCR (Selective Catalytic Reduction)
with a particle filter (FAP) for the treatment of
exhaust gases.
Presentation of the ScR s ystem
Using an additive called AdBlue® containing urea,
a catalytic converter turns up to 85% of nitrous
oxides (NOx) into nitrogen and water, which are
harmless to health and the environment. The AdBlue
® additive is held in a special
tank located under the boot at the rear of
the vehicle. It has a capacity of 17 litres: this
provides a driving range of about 12 500 miles
(20 000 km), after which an alert is triggered
warning you when the reserve remaining is
enough for just 1 500 miles (2 400 km).
During each scheduled service of your vehicle
by a CITROËN dealer or a qualified workshop,
the AdBlue
® additive tank is refilled in order to
allow normal operation of the SCR system.
If the estimated mileage between two services
is greater than 12 500 miles (20 000 km), we
recommend that you go to a CITROËN dealer
or a qualified workshop to have the necessary
top-up carried out. Once the AdBlue
® tank is empty,
a s
ystem required by regulations
prevents starting of the engine.
If the SCR

is faulty, the level of
emissions from your vehicle will no
longer meet the Euro 6 standard: you
vehicle becomes polluting.
In the event of a confirmed fault
with the SCR system, you must go
to a CITROËN dealer or a qualified
workshop as soon as possible: after
a running distance of 650 miles
(1

100 km), a system will be triggered
automatically to prevent engine
starting.
checks

DS5_en_Chap10_caracteristiques_ed01-2015

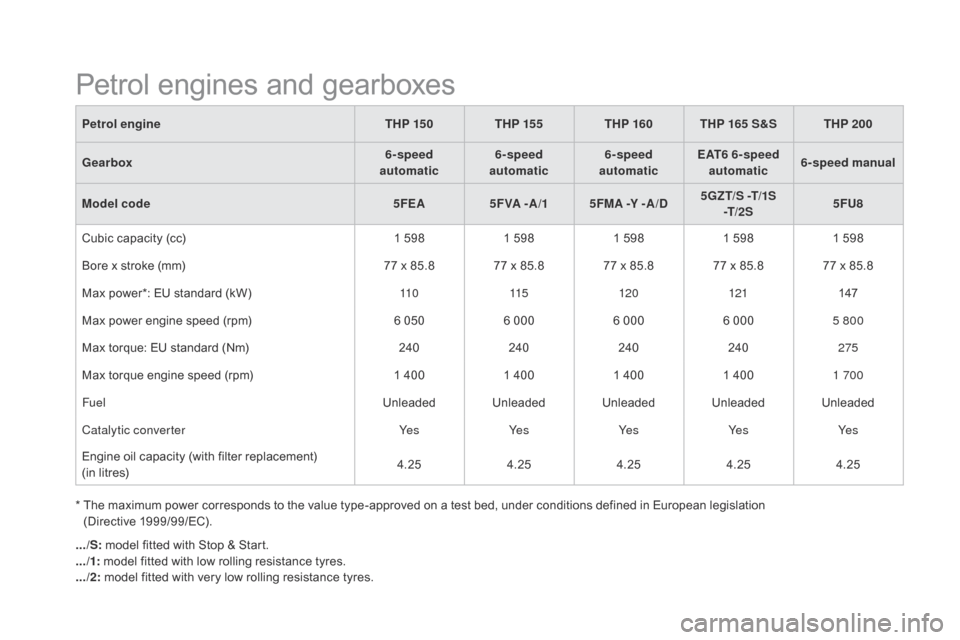

Petrol engineTHP 15 0THP 155 THP 160 THP 165 S&S THP 200
Gearbox 6-speed
automatic 6-speed
automatic 6-speed
automatic EAT6 6-speed
automatic 6-speed manual
Model code 5FEA5 F
v

A - A /15FMA -Y -A /
d5

GZT/S -T/1S -T/2S 5FU8
Cubic capacity (cc) 1 5981 5981 5981 5981 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8 77 x 85.8 77 x 85.8 77 x 85.8
Max power*: EU standard (kW) 11 0115120 121147
Max power engine speed (rpm) 6 0506 000 6 0006 000 5 800
Max torque: EU standard (Nm) 240240240240 275
Max torque engine speed (rpm) 1 4001 4001 4001 400 1 700
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Catalytic converter Ye sYe sYe sYe sYe s
Engine oil capacity (with filter replacement)
(in litres) 4.25
4.254.254.254.25
Petrol engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation
(Directive 1999/99/EC).
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.

269
DS5_en_Chap10_caracteristiques_ed01-2015
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
e-H d i 110
e-H d i 115
BlueH d i 115
BlueH d i 120
Gearbox ETG6 6-speed
electronic ETG6 6-speed
electronic 6-speed
manual 6-speed
manual
Model code 9HR8/PS9H
d8
/PS
BHXM/S -M/1S -M/2S BHZM/S -M/1S -M/2S
Cubic capacity (cc) 1 5601 5601 5601 560
Bore x stroke (mm) 75 x 88.375 x 88.375 x 88.375 x 88.3
Max power*: EU standard (kW) 8284 8588
Max power engine speed (rpm) 3 6003 600 3 7503 750
Max torque: EU standard (Nm) 270270300 300
Max torque engine speed (rpm) 1 7501 7501 7501 750
Fuel DieselDieselDieselDiesel
Catalytic converter Ye sYe sYe sYe s
Particle filter Ye sYe sYe sYe s
Engine oil capacity (with filter replacement)
(in litres) 3.75
3.753.753.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
Technical data

DS5_en_Chap10_caracteristiques_ed01-2015
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
H d i 135
BlueH d i 135
BlueH d i
15 0
Gearbox 6-speed
manual 6-speed
automatic 6-speed
manual 6-speed
manual
Model code RH
d8 -
8/1 - 8/2
RH
d
A -A /1
AH
v
AHSM/S - M/1S
-M/2S AHX AHRM/S -M/1S
-M/2S
Cubic capacity (cc) 1 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 88
Max power*: EU standard (kW) 10 010 011 0
Max power engine speed (rpm) 4 0004 0004 000
Max torque: EU standard (Nm) 320320370
Max torque engine speed (rpm) 2 0002 0002 000
Fuel DieselDieselDiesel
Catalytic converter Ye sYe sYe s
Particle filter Ye sYe sYe s
Engine oil capacity (with filter replacement)
(in litres) -
-6 .1

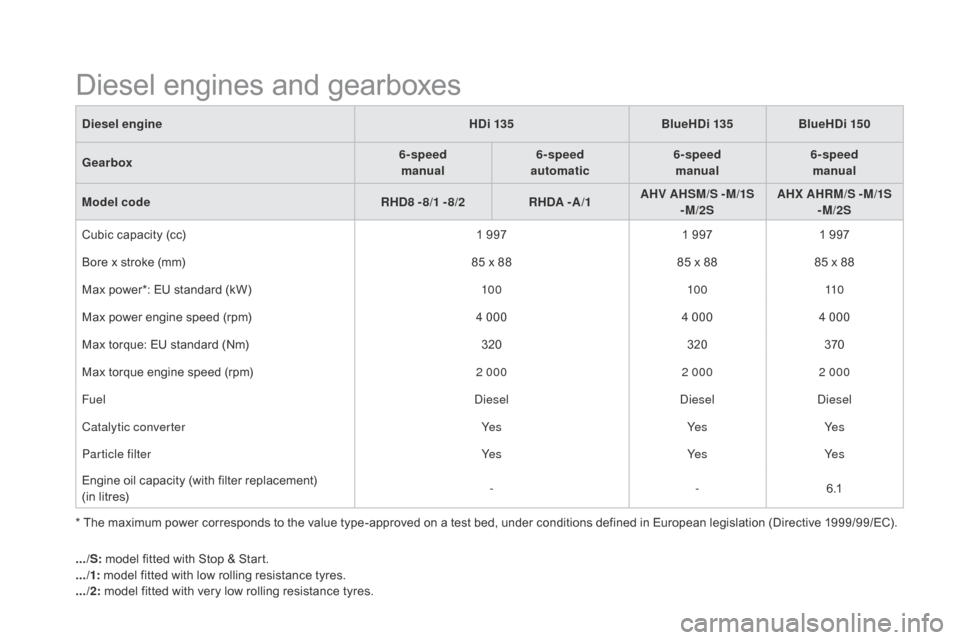

Diesel engines and gearboxes
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
