9

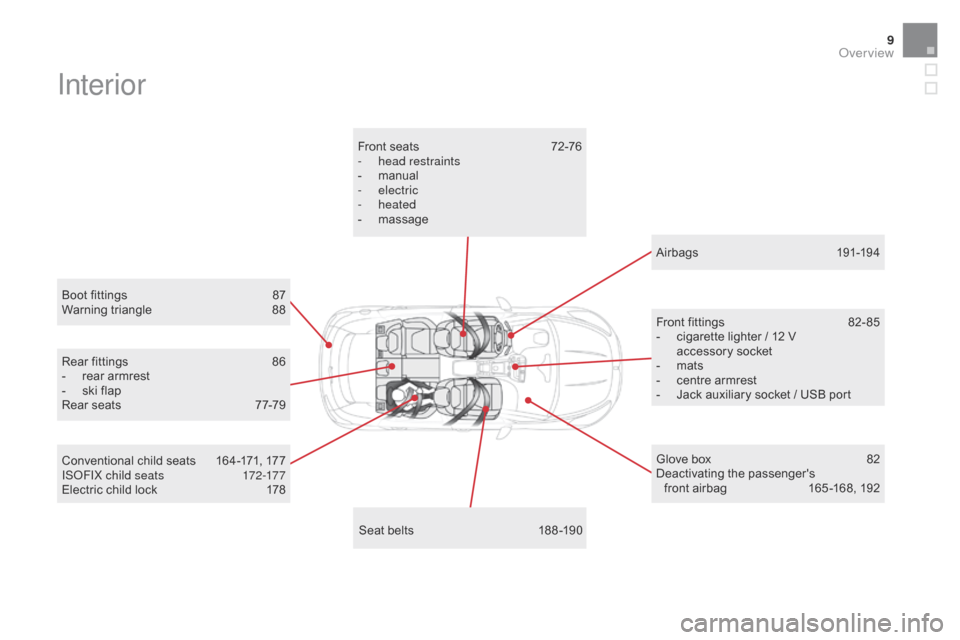

Interior
Boot fittings 87
W arning triangle 8 8
Seat belts

1
88 -190
Front seats

7
2-76
-
h
ead restraints
-
m
anual
-

electric
-

heated
-
m
assage
Conventional child seats
1
64-171, 177
ISOFIX child seats

1
72-177
Electric child lock

1
78 Airbags
19

1-19 4
Front fittings
8
2- 85
-

c
igarette lighter / 12 V
accessory socket
-

m
ats
-

c
entre armrest
-

J
ack auxiliary socket / USB port
Glove box

8
2
Deactivating the passenger's
front airbag

1
65 -168, 192
Rear fittings

8
6
-

r
ear armrest
-

s
ki flap
Rear seats

7
7-79
DS5_en_Chap00b_vue-ensemble_ed01-2015
Over view

Instruments and controls
Automatic headlamps 149 -150
Lane departure warning system

1
25
Volumetric alarm monitoring
6

3-65
Electric windows, front /rear

6

6 - 67
Electric child lock

1

78
Central locking

6

1
Opening the fuel filler flap

2

41
Opening the boot

6

2
Parking sensors

1

39 -140
DSC/ASR systems

1

86 -187
Stop & Start

1

21-124
or
Blind spot sensors

1

26 -128
Side switch panel
Localised emergency call 1
83, 282-283
Localised assistance call

1
83, 282-283
Cockpit glass roof

6
8 - 69
Head-up display

1
29 -130Door mirrors

8
0
Headlamp height adjustment
1
52
centre switch panel
DS5_en_Chap00b_vue-ensemble_ed01-2015

53
DS5_en_Chap02_ouvertures_ed01-2015
Selective boot unlocking Locking the vehicle
Locking is confirmed by fixed
illumination of the direction indicators
for approximately two seconds.
Depending on version, the door mirrors
fold at the same time.F

P
ress the closed padlock to fully
lock the vehicle.
F
H
old the button down until the
windows close completely.
F

P

ress this button until you hear
the boot unlock. The doors
remain locked.
Be particularly aware of children when
operating the windows. If one of the doors or the boot is not fully
closed, locking does not take place.
When the vehicle is locked, if it
is unlocked inadvertently, it will
automatically lock itself again after
about thirty seconds unless a door is
opened.
If the alarm was previously activated, it
will not be reactivated automatically.
If selective boot unlocking is
deactivated, pressing this button
unlocks the whole vehicle.
The selective boot unlocking function
is set in the vehicle configuration
menu.
By default, selective boot unlocking
is on.
Access

55
DS5_en_Chap02_ouvertures_ed01-2015
Locking the vehicle
F With the electronic key on your person in the recognition zone A , press with a finger
or thumb on one of the door handles (at the
markings) to lock the vehicle.
F

M
aintain pressure with your finger or thumb
until the windows close completely.
Locking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
The door mirrors fold at the same time. If one of the doors or the boot is still
open or if the key for Keyless Entry and
Starting system has been left inside
the vehicle or if the ignition is on, the
central locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
If the alarm was previously activated, it
will not be reactivated automatically.
The folding and unfolding of the door
mirrors by the remote control can be
deactivated by a CITROËN dealer or a
qualified workshop.
As a safety measure (children on
board), never leave the vehicle without
taking the key for the Keyless Entry and
Starting system, even for a short period.
Guard against theft when the key for the
Keyless Entry and Starting system is
in the recognition zone with the vehicle
unlocked.
In order to preserve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use. To
restore these functions, press one of
the remote control buttons or start the
engine with the electronic key in the
reader.
Ensure that nothing and no person
prevents the correct operation of the
windows.
Be particularly aware of children when
operating the windows.
This function allows you to identify
your vehicle from a distance,
particularly in poor light. Your vehicle
must be locked.
Locating your vehicle
F Press the closed padlock on the remote
control.
This will switch on the courtesy lamps and
the direction indicators will flash for around
ten
se

conds.
Access

DS5_en_Chap02_ouvertures_ed01-2015
deadlocking
Deadlocking renders the exterior and
interior door controls inoperative.
It also deactivates the manual central
locking button.
You must therefore never leave
anyone inside the vehicle when it is
deadlocked.Using the remote control
F Press the closed padlock to lock the vehicle completely.
M

aintain pressure with your
finger for more than two seconds
to close the windows.
With the Keyless Entry and
Starting system
By the doors:
F W ith the electronic key on your person in
the recognition zone A , press a finger on
the door handle (at the markings) to lock
the vehicle.
F

W
ithin five seconds, press the door handle
again to deadlock the vehicle.
Ensure that nothing or any person
prevents the correct closing of the
windows.
Be particularly aware of children when
operating the windows.
F

P

ress the closed padlock again within five
seconds to deadlock the vehicle.

DS5_en_Chap02_ouvertures_ed01-2015
Unlocking the passenger doors
F Pull the interior door opening control.
Locking the passenger doors
F Open the doors.
F O n the rear doors, check that the child lock
is not on (see the corresponding section).
F

R
emove the black cap, located on the edge
of the door, using the integral key.
F

I
nsert the integral key in the socket without
forcing it, then without turning it, move the
latch sideways towards the inside of the
d o o r.
F

R
emove the integral key and refit the cap.
F

C
lose the doors and check that the vehicle
has locked correctly from the outside.

DS5_en_Chap02_ouvertures_ed01-2015
Lost electronic key
Visit a CITROËN dealer with the vehicle's registration certificate, your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without
you being aware of it.
Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from
working and the remote control would have to be reinitialised.
The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), take the electronic key with you when you leave the vehicle, even for a short time.
Electrical interference
The electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strong magnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and
started.

DS5_en_Chap02_ouvertures_ed01-2015
Electric windows
1. Left hand front electric window switch.
2. Right hand front electric window
switch.
3.
R

ight hand rear electric window switch.
Operation
Manual mode
To open or close the window, press or pull the
switch gently. The window stops as soon as the
switch is released.
4.
Le

ft hand rear electric window switch.
5.
de

activating the rear electric window
switches,
lo

cking the rear doors
(

child lock).
Automatic mode
To open or close the window, press or pull
switch fully: the window opens or closes
completely when the switch is released.
Pressing or pulling the switch again stops the
movement of the window. The electric window switches
remain operational for approximately
45
seconds after switching off the
ignition, while the vehicle's doors are
still closed
Once a door is opened, or once the
45 seconds have elapsed, you have
to switch on the ignition to operate the
windows.

67
DS5_en_Chap02_ouvertures_ed01-2015
Safety anti-pinch
When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.
deactivating the rear
window controlsReinitialisation of the
electric windows
In the event of contact during operation of the windows, you must reverse the movement of
the window. To do this, press the switch concerned.
When operating the passenger electric window switches, the driver must ensure that no one
is preventing correct closing of the windows.
The driver must ensure that the passengers use the electric windows correctly.
Be particularly aware of children when operating the windows.
Be aware of passengers and other persons present close to the vehicle when closing the
windows remotely using the the electronic key or the Keyless Entry and Starting system. Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations.
For each window:
-

l
ower the window completely, then raise
it. It will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
-
c
ontinue to press the switch for at least one
second after reaching this position, window
closed.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
The warning lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also
deactivated.
Opening the doors from the outside and
operation of the rear windows from the driver's
controls remain possible.
Access

177
DS5_en_Chap06_securite-enfants_ed01-2015

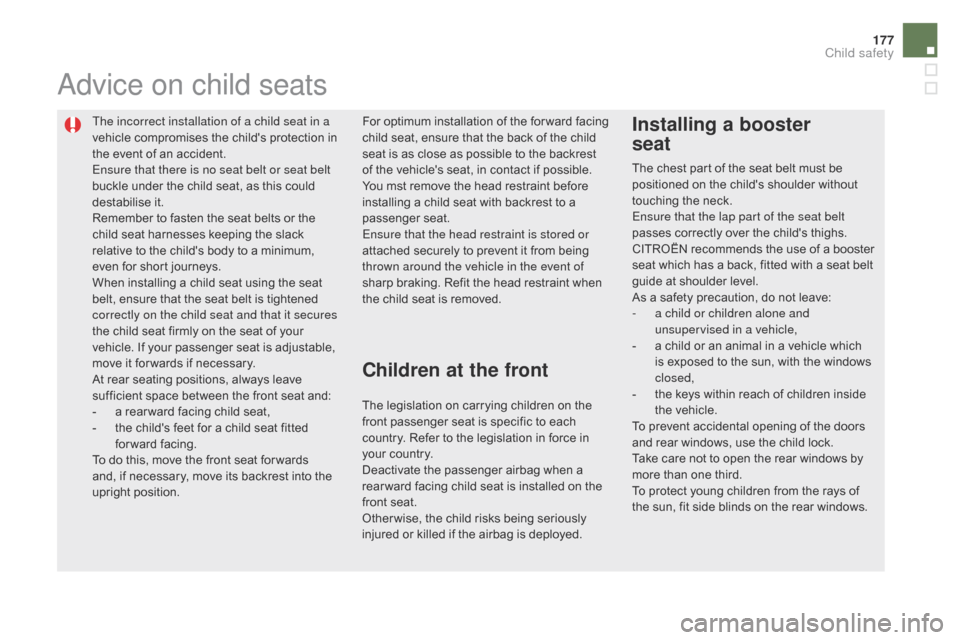

The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it for wards if necessary.
At rear seating positions, always leave
sufficient space between the front seat and:
-
a r
ear ward facing child seat,
-

t
he child's feet for a child seat fitted
forward facing.
To do this, move the front seat for wards
and, if necessary, move its backrest into the
upright position.
Advice on child seats
For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, in contact if possible.
You mst remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.
children at the front Installing a booster
seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

a c
hild or children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger airbag when a
rear ward facing child seat is installed on the
front seat.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed.
child safety
