Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.
Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in
intermittent mode.
Have it checked by CITROËN dealer or a
qualified workshop.

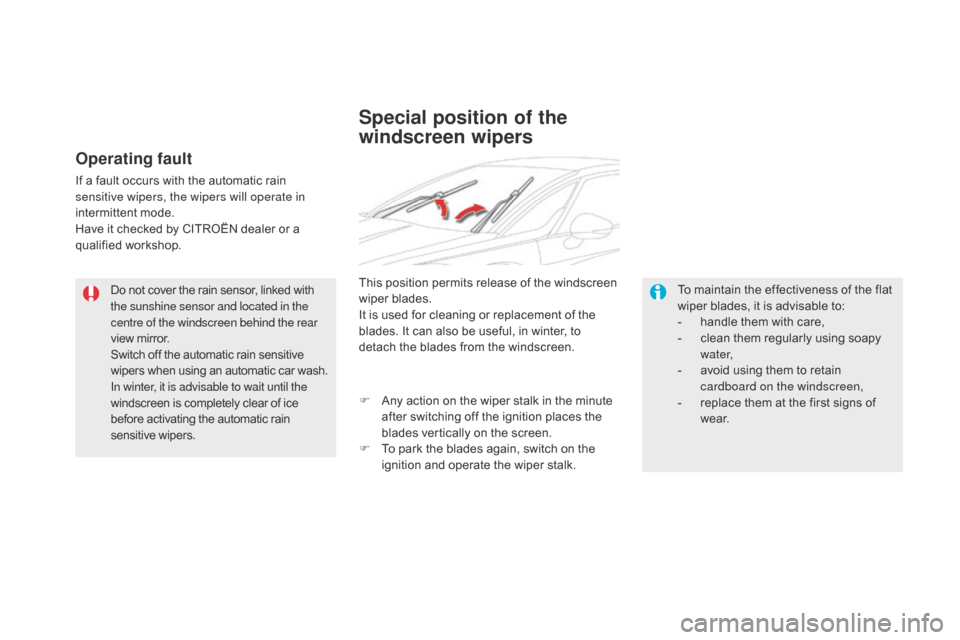

Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-

h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.
F

A
ny action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F

T
o park the blades again, switch on the
ignition and operate the wiper stalk.

DS5_en_Chap08_info-pratiques_ed01-2015

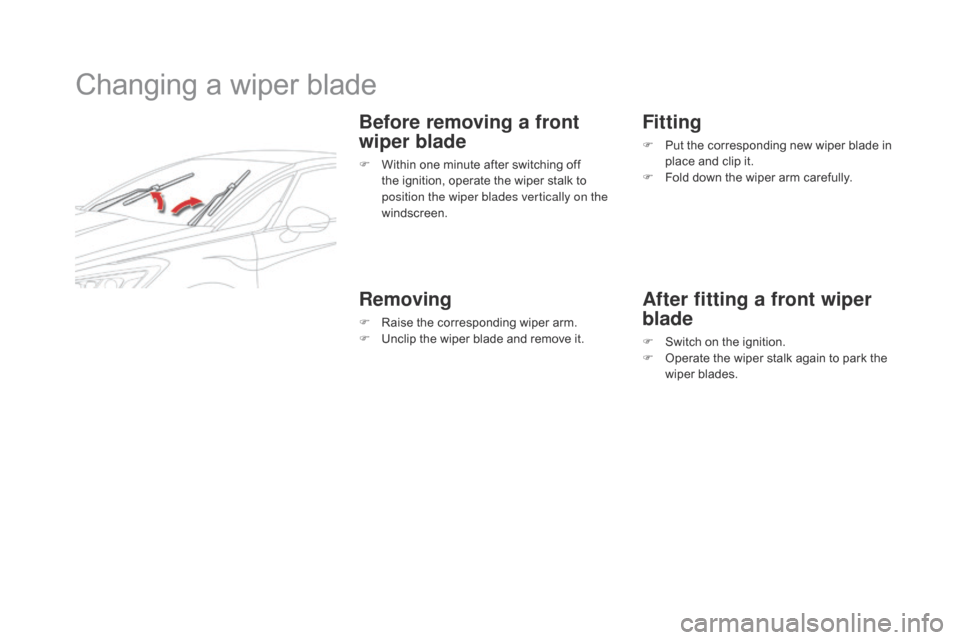

Changing a wiper blade
Before removing a front
wiper blade
F Within one minute after switching off the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.
Removing
F Raise the corresponding wiper arm.
F U nclip the wiper blade and remove it.
Fitting
F Put the corresponding new wiper blade in place and clip it.
F

F
old down the wiper arm carefully.
After fitting a front wiper
blade
F Switch on the ignition.
F O perate the wiper stalk again to park the
wiper blades.

381
DS5_en_Chap12_index-recherche_ed01-2015
Paint colour code ..........................................2 78
Parking brake, electric ............ 2 6, 102, 107, 254
Parking lamps
............................................... 15

0
Parking sensors, front

...................................14

0
Parking sensors, rear.................................... 13 9
Particle filter
.......................................... 2

51, 253
Passenger compartment filter
...................... 25

3
Player, CD MP3

............................. 3
14, 356, 357
Port, USB

........................................ 8
5, 314, 358
Priming the fuel system

................................2

47
Protecting
children
................................ 1

62-178, 190, 192
Puncture
................

........................................ 198
Radio
...............

.............................. 310, 342, 353
RDS
................

............................................... 311
Rear foglamp ................................................. 218
Rear screen (demisting)
............................ 8

0, 95
Recharging the battery

......................... 2
25, 226
Reduction of electrical load
.......................... 2

27
Regeneration of the particle filter

.................25

3
Reinitialising the remote control

.....................59
R

emote control
.................................... 5
2-55, 60
Removing a wheel

..............................
..........208
Removing the mat

...............................
............84
Repair kit, puncture

....................................... 19

8
Replacing bulbs
..............................

.......213 -2 20
Replacing fuses
..............................

.......221-223
Replacing the air filter

...................................25

3
Replacing the oil filter

................................... 25

3
Replacing the passenger
compartment filter

...................................... 25

3
Replacing wiper blades......................... 15 8, 228
Safety for children .................. 162-178, 190, 192
Screen, instrument panel .......................... 1 8, 48
Screen menu map

....... 2
90, 292, 296, 304, 306,
308, 318, 320, 322, 332, 334, 369, 370
Screen, monochrome
.....................3

9, 352, 369
Screenwash fluid level

..................................25

0
Screenwash, front
......................................... 15

6
SCR (Selective Catalytic Reduction)

............25

5
Seat adjustment

...............................
......... 72, 73
Seat belts
....................................... 1

70, 188 -190
Seats, rear
................................................. 7

7, 79
Serial number, vehicle

..................................2

78
Service indicator
............................................. 33
S

ervice warning lamp
..................................... 25
S

ervicing
...............................
..........................14
Settings (Menus)
...............................

.....318-325
Setting the clock

....................................... 4
2, 47
Sidelamps
....... 1

44, 147, 150, 213 -215, 217, 218
Side repeater
..............................

..................217
Ski flap

..............................
..............................86
Snow chains
.................................................. 2

12
Spare wheel
...............................

...........204, 205
Speed limiter
...............................

..........131, 13 3
Spotlamps, side
..................................... 1

51, 217
Resetting the service indicator

.......................
35
R
esetting the trip recorder
..............................
37
R
eversing camera
...............................
..........
141
Reversing lamp
............................................. 2
18
Risk areas (update)
.......................................
3
01
Roof bars
....................................................... 23
3
Routine checks
......................................
2
52-254
Running out of fuel (Diesel)
..........................
2
47
Starting using another battery
......................
2
25
Starting the vehicle
.................. 9
9, 101, 111, 115
Steering mounted controls, audio
........ 2
88, 351
Stickers, expressive
......................................
23
4
Stopping the vehicle
................ 9
9, 101, 111, 115
Stop & Start
................................ 4
9, 92, 95, 121,

224, 241, 244, 252
Storage
................
................................
82, 85 - 87
Storing a speed
.............................................
13
1
Storing driving positions
.................................
74
S
towing rings
..............................
....................
87
Synchronising the remote control
...................
59
S
ystem settings
.............................................
325
Table of weights .................................... 2 67, 272
Tables of engines ............................... ...266, 269
Tables of fuses

.............................................. 2

21
Tank, AdBlue
® additive ......................... 2 55, 260
Tank, fuel
............................... ........................ 243
Technical data
....................................... 2

66 -278
Telephone
.............................................3

36, 360
Temperature control for heated seats

............76
T

emperature, coolant
...................................... 32
T

emporary puncture repair kit
......................19

8
Third brake lamp

........................................... 2

20
Three flashes function (direction indicators)
................................... 18

2
Time
...............

..................................... 38, 42, 47
TMC (Traffic info)

.......................................... 3

02
To o l s
................

......................................204, 205
Total distance recorder
................................... 37
T

ouch screen tablet
.................................. 3
8, 43
Touch screen tablet (Menus)

..........4
3, 285, 289
