Citroen DS5 2016 1.G Owner's Manual
Manufacturer: CITROEN, Model Year: 2016, Model line: DS5, Model: Citroen DS5 2016 1.GPages: 500, PDF Size: 55.11 MB
Page 491 of 500
89 Audio and Telematics
QUESTION
ANSWER
SOLUTION
I cannot connect my
Bluetooth telephone. The telephone's Bluetooth function may be switched off or the
telephone may not be visible. Check that your telephone's Bluetooth function is
switched on.
Check in the telephone settings that it is "visible
to all".
The Bluetooth telephone is not compatible with the system. You can check the compatibility of your
telephone at the brand's website (services).
The volume of the
telephone connected
in Bluetooth mode is
inaudible. The volume depends both on the system and on the telephone. Increase the volume of the audio system, to
maximum if required, and increase the volume of
the telephone if necessary.
The ambient noise level has an influence on the quality of
telephone communication. Reduce the ambient noise level (close the
windows, reduce the booster fan speed, slow
down, ...).
Some contacts are
duplicated in the list. The options for synchronizing contacts are synchronizing the
contacts on the SIM card, the contacts on the telephone, or both.
When both synchronizations are selected, some contacts may be
duplicated. Select "Display SIM card contacts" or "Display
telephone contacts".
Contacts are not shown in
alphabetical order. Some telephones offer display options. Depending on the settings
chosen, contacts can be transferred in a specific order. Modify the display setting in the telephone
directory.
The system does not
receive SMS text messages. The Bluetooth mode does not permit sending SMS text messages
to the system.
Te l e p h o n e
Page 492 of 500
QUESTION
ANSWER
SOLUTION
In changing the setting
of treble and bass the
equalizer setting is
deselected. The selection of an equalizer setting imposes the settings for treble
and bass and vice-versa. Modify the trebke and bass or equalizer settings
to obtain the desired musical ambience.
In changing the equalizer
setting, treble and bass
return to zero.
When changing the
balance settings, the
distribution setting is
deselected. The selection of a distribution setting imposes the balance settings
and vice-versa. Modify the balance or distribution settings to
obtain the desired musical ambience.
When changing an
distribution setting,
the balance setting is
deselected.
Settings
Page 493 of 500
91 Audio and Telematics
QUESTION
ANSWER
SOLUTION
There is a difference in
sound quality between the
different audio sources. For optimum sound quality, the audio settings for Loudness,
Ambience, Treble, Bass, Volume can be adapted to the different
sound sources, which may result in audible differences when
changing source. Check that the audio settings for (Loudness,
Ambience, Treble, Bass, Volume) are adapted
to the sources listened to. Adjust Balance,
Treble, Bassto the middle position, select the
"None" musical ambience and set the loudness
correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.
With the engine off, the
system switches off after a
few minutes of use. When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
The switch-off is normal: the system switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
Page 494 of 500
Page 495 of 500
Page 496 of 500
Page 497 of 500
Page 498 of 500
Page 499 of 500
4Dconcept
Diadeis
Interak
12-15

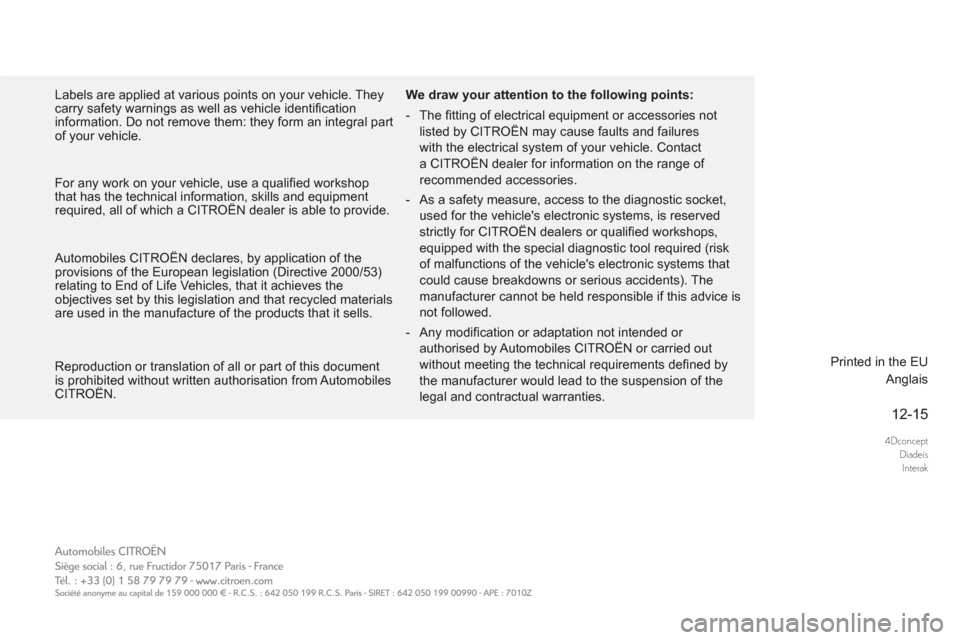

Labels are applied at various points on your vehicle. They
carry safety warnings as well as vehicle identifi cation
information. Do not remove them: they form an integral part
of your vehicle.
Automobiles CITROËN declares, by application of the
provisions of the European legislation (Directive 2000/53)
relating to End of Life Vehicles, that it achieves the
objectives set by this legislation and that recycled materials
are used in the manufacture of the products that it sells.
Printed in the EU
Anglais
For any work on your vehicle, use a qualifi ed workshop
that has the technical information, skills and equipment
required, all of which a CITROËN dealer is able to provide.
Reproduction or translation of all or part of this document
is prohibited without written authorisation from Automobiles
CITROËN.
We draw your attention to the following points:
- The fi tting of electrical equipment or accessories not
listed by CITROËN may cause faults and failures
with the electrical system of your vehicle. Contact
a CITROËN dealer for information on the range of
recommended accessories.
- As a safety measure, access to the diagnostic socket,
used for the vehicle's electronic systems, is reserved
strictly for CITROËN dealers or qualifi ed workshops,
equipped with the special diagnostic tool required (risk
of malfunctions of the vehicle's electronic systems that
could cause breakdowns or serious accidents). The
manufacturer cannot be held responsible if this advice is
not followed.
- Any modifi cation or adaptation not intended or
authorised by Automobiles CITROËN or carried out
without meeting the technical requirements defi ned by
the manufacturer would lead to the suspension of the
legal and contractual warranties.
Page 500 of 500
15DS5.A041
Anglais
