Under-inflationfixed. The pressure in one or more wheels
is too low. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.
+ flashing then fixed,
accompanied by the
Service warning lamp.The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels. Under-inflation detection is not assured.
Have the system checked by a CITROËN dealer or a
qualified workshop.
Warning / indicator lamp
State
cause A
ction / Observations
Engine
autodiagnosis
system flashing.
The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified
workshop.
fixed. The emission control system has
a fault.
The warning lamp should go off when the engine is started.If it does not go off, contact a CITROËN dealer or
qualified workshop without delay.
Low fuel level fixed with the two
l
ast
bars flashing,
accompanied by a
message and an
audible signal. When it first comes on there remains
approximately 6 litres of fuel
in the
tank. You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, accompanied by a message and an
audible signal, until a sufficient addition of fuel is
made.
This audible signal and message are repeated with
increasing frequency as the fuel level drops and
approaches "0".
Fuel tank capacity: approximately 60 litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.

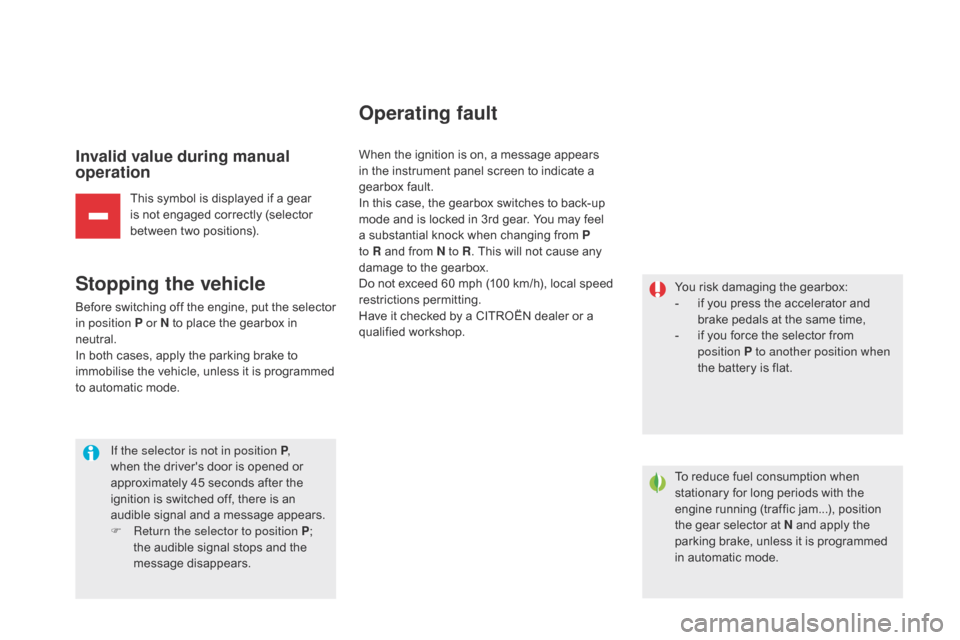

Page 116 of 500
DS5_en_Chap04_conduite_ed02-2015
Invalid value during manual
operation
This symbol is displayed if a gear
is not engaged correctly (selector
between two positions).
Stopping the vehicle
Before switching off the engine, put the selector
in position P or N to place the gearbox in
neutral.
In both cases, apply the parking brake to
immobilise the vehicle, unless it is programmed
to automatic mode.If the selector is not in position P ,
when the driver's door is opened or
approximately 45 seconds after the
ignition is switched off, there is an
audible signal and a message appears.
F
Re
turn the selector to position P ;
the audible signal stops and the
message disappears.
Operating fault
When the ignition is on, a message appears
in the instrument panel screen to indicate a
gearbox fault.
In this case, the gearbox switches to back-up
mode and is locked in 3rd gear. You may feel
a substantial knock when changing from P
to R and from N to R . This will not cause any
damage to the gearbox.
Do not exceed 60 mph (100 km/h), local speed
restrictions permitting.
Have it checked by a CITROËN dealer or a
qualified workshop. You risk damaging the gearbox:
-
if y
ou press the accelerator and
brake pedals at the same time,
-
if y
ou force the selector from
position P to another position when
the battery is flat.
To reduce fuel consumption when
stationary for long periods with the
engine running (traffic jam...), position
the gear selector at N and apply the
parking brake, unless it is programmed
in automatic mode.
Page 200 of 500
DS5_en_Chap08_info-pratiques_ed02-2015
Repair procedure
F Switch off the ignition.F
Un
coil the white pipe G fully.
F Un screw the cap from the white pipe.
F Co nnect the white pipe to the valve of the
tyre to be repaired. F
Co
nnect the compressor's electric plug to
the vehicle's 12 V socket.
F St art the vehicle and leave the engine
running.
Take care, this product is harmful
(e.g. e thylene-glycol, colophony...) if
swallowed and causes irritation to the eyes.
Keep this product out of the reach of
children.Avoid removing any foreign bodies
which have penetrated into the tyre.
1. Sealing
F Turn the selector A to the "sealant"
p osition.
F
Ch
eck that the switch B is in
position "O" .
The vehicle's electric system allows the
connection of a compressor for long
enough to inflate a tyre after a puncture
repair or for inflating a small inflatable
accessory.
Page 202 of 500
DS5_en_Chap08_info-pratiques_ed02-2015
F Turn the selector A to the "air"
position.
F
Un
coil the black pipe H fully.
F
Co
nnect the black pipe to the
valve of the wheel. F
Co
nnect the compressor's electric plug to
the vehicle's 12 V socket.
F St art the vehicle again and leave the
engine running. F
Ad
just the pressure using the compressor
(to inflate: switch B in position "I" ;
to d eflate: switch B i n position "O" and
press button
c), i
n accordance with the
vehicle's tyre pressure label (located on the
left hand door aperture).
A lo
ss of pressure indicates that the
puncture has not been fully plugged;
contact a CITROËN dealer or qualified
workshop for assistance.
F
Re
move and stow the kit.
F
Dr
ive at reduced speed (50 mph [80 km/h]
max) limiting the distance travelled to
approximately 120 miles (200 km).
As soon as possible, go to a CITROËN
dealer or a qualified workshop.
You must inform the technician that you
have used this kit. After inspection, the
technician will advise you on whether
the tyre can be repaired or if it must be
replaced.

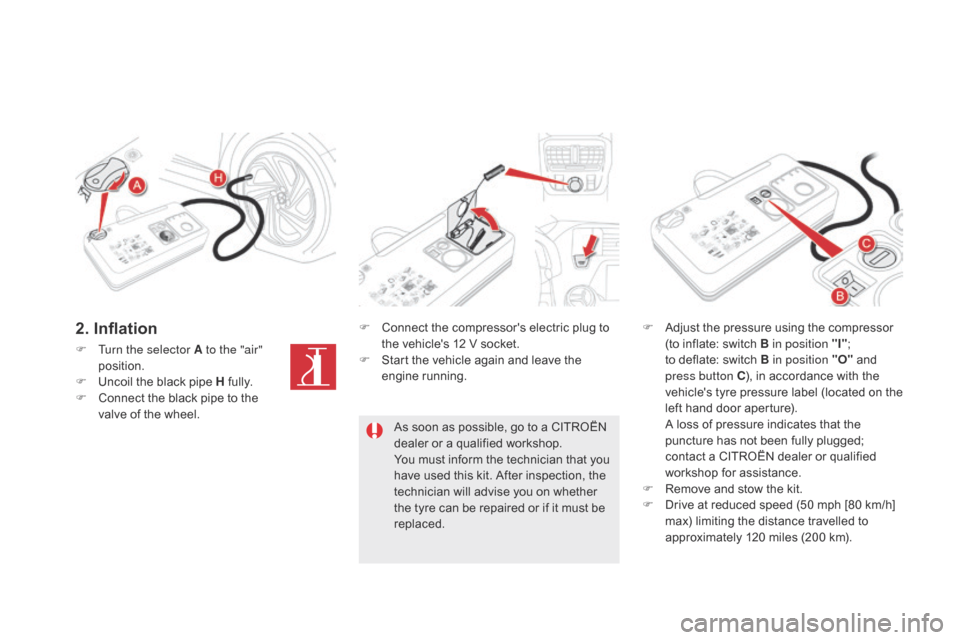

2. Inflation
Page 203 of 500
201
DS5_en_Chap08_info-pratiques_ed02-2015

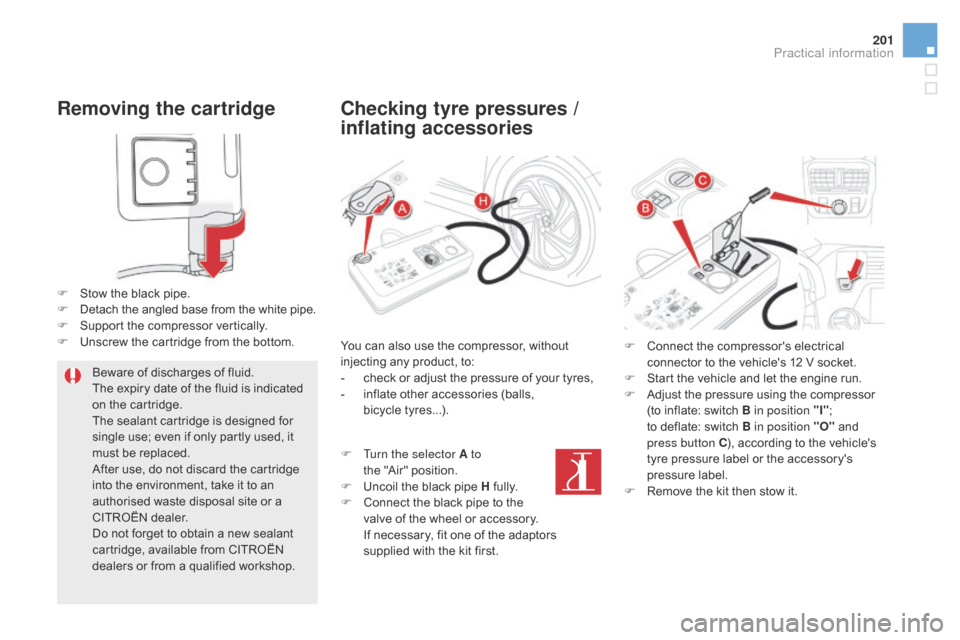

Removing the cartridge
F Stow the black pipe.
F De tach the angled base from the white pipe.
F
Su
pport the compressor vertically.
F
Un
screw the cartridge from the bottom.
Beware of discharges of fluid.
The expiry date of the fluid is indicated
on the cartridge.
The sealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the cartridge
into the environment, take it to an
authorised waste disposal site or a
CITROËN dealer.
Do not forget to obtain a new sealant
cartridge, available from CITROËN
dealers or from a qualified workshop.
checking tyre pressures /
i nflating accessories
You can also use the compressor, without
injecting any product, to:
-
ch
eck or adjust the pressure of your tyres,
-
in
flate other accessories (balls,
bicycle
t
yres...).
F
Tu
rn the selector A to
the
"
Air"
p
osition.
F
Un
coil the black pipe H fully.
F
Co
nnect the black pipe to the
valve of the wheel or accessory.
If n
ecessary, fit one of the adaptors
supplied with the kit first. F Co
nnect the compressor's electrical
connector to the vehicle's 12 V socket.
F
St
art the vehicle and let the engine run.
F
Ad
just the pressure using the compressor
(to inflate: switch B in position "I" ;
to
d
eflate: switch B in position "O" and
press button
c), a
ccording to the vehicle's
tyre pressure label or the accessory's
pressure label.
F
Re
move the kit then stow it.
Practical information
Page 212 of 500
DS5_en_Chap08_info-pratiques_ed02-2015

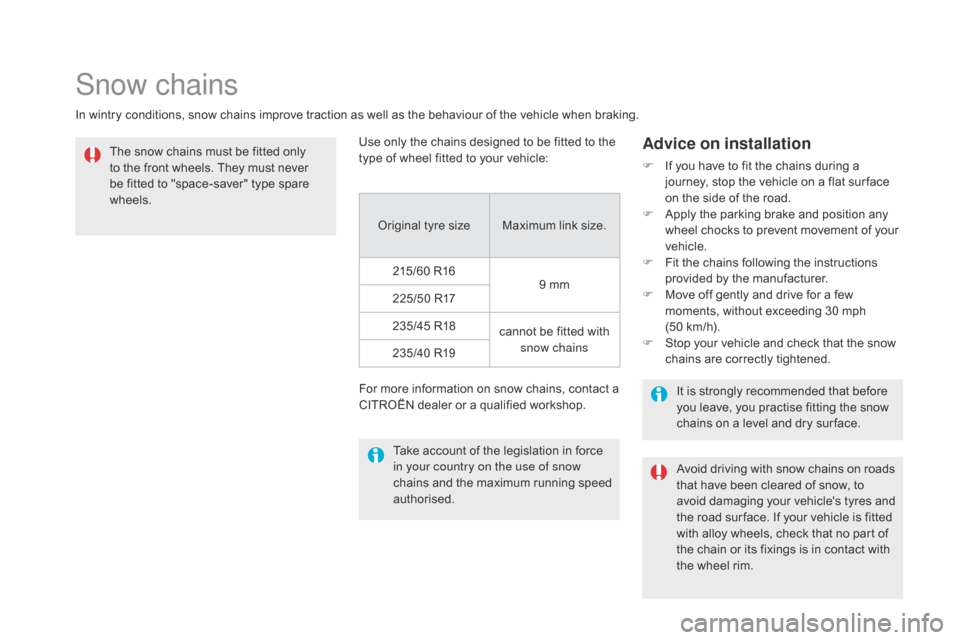

Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
Advice on installation
F If you have to fit the chains during a
journey, stop the vehicle on a flat sur face
on the side of the road.
F
Ap
ply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F
Fi
t the chains following the instructions
provided by the manufacturer.
F
Mov
e off gently and drive for a few
moments, without exceeding 30 mph
(50
k
m/h).
F
St
op your vehicle and check that the snow
chains are correctly tightened.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original tyre size Maximum link size.215/60 R16 9 mm
225/50 R17
235/45 R18 cannot be fitted with
snow chains
235/40 R19
For more information on snow chains, contact a
CITROËN dealer or a qualified workshop. It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
Page 226 of 500
DS5_en_Chap08_info-pratiques_ed02-2015
Starting using another
battery
Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
b o o s t e r.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.F
St
art the engine of the vehicle with the
good battery and leave it running for a
few
mi
nutes.
F Op erate the starter on the broken down
vehicle and let the engine run.
If t
he engine does not start straight away,
switch off the ignition and wait a few
moments before trying again.
When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.
F
Wa
it until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
F
Re
fit the plastic cover to the (+) terminal, if
your vehicle has one.
F
Al
low the engine to run for at least
30
m
inutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.
F
Ra
ise the plastic cover on the (+) terminal,
if your vehicle has one.
F
Co
nnect the red cable to the positive
terminal (+) of the flat battery A (at the metal
elbow) then to the positive terminal
(
+) of the
slave battery B or the booster.
F
Co
nnect one end of the green or black
cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle). Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
F
Co
nnect the other end of the green or black
cable to the earth point
c o
n the broken
down vehicle.
Page 229 of 500
227
DS5_en_Chap08_info-pratiques_ed02-2015
Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system,
w
indscreen wipers, dipped
beam headlamps,
c
ourtesy lamps, etc. for
a maximum combined duration of about
forty
mi
nutes.
Energy economy mode
Switching to economy mode
A message then appears in the instrument
panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time,
it
w
ill be maintained for around 10 minutes
with the Bluetooth hands-free system of your
audio
s
ystem.
Exiting economy mode
These functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
-
fo
r less than ten minutes, to use the
equipment for approximately five minutes,
-
fo
r more than ten minutes, to use the
equipment for up to approximately
thirty
mi
nutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from
starting.
For more information on the battery,
refer to the corresponding section.
Practical information
