Every time the ignition is switched on, the
SERVICE and engine diagnostic warning
lamps come on and the UREA warning lamp
flashes, accompanied by an audible signal and
the display of the message "Emissions fault:
Starting prevented". Starting prevented
To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.You have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting. Freezing of the AdBlue
® additive
The AdBlue
® additive freezes at
temperatures below around -11°C.
The SCR system includes a heater
for the AdBlue
® tank, allowing you to
continue driving in very cold conditions.
checks

DS5_en_Chap09_verifications_ed01-2015

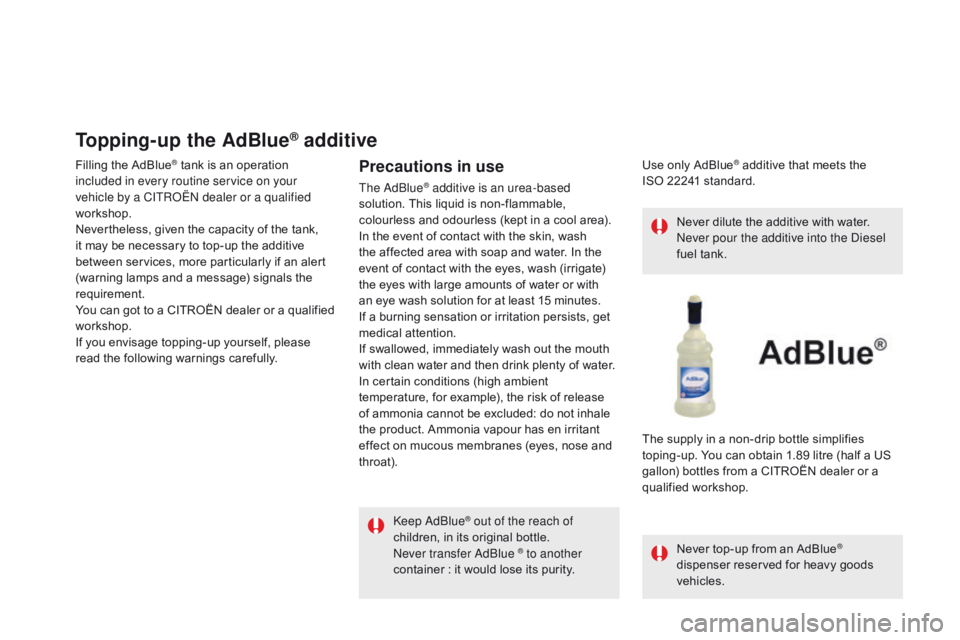

Topping-up the AdBlue® additive
Filling the AdBlue® tank is an operation
included in every routine service on your
vehicle by a CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank,
it may be necessary to top-up the additive
between services, more particularly if an alert
(warning lamps and a message) signals the
requirement.
You can got to a CITROËN dealer or a qualified
workshop.
If you envisage topping-up yourself, please
read the following warnings carefully.Precautions in use
The AdBlue® additive is an urea-based
solution. This liquid is non-flammable,
colourless and odourless (kept in a cool area).
In the event of contact with the skin, wash
the affected area with soap and water. In the
event of contact with the eyes, wash (irrigate)
the eyes with large amounts of water or with
an eye wash solution for at least 15 minutes.
If a burning sensation or irritation persists, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high ambient
temperature, for example), the risk of release
of ammonia cannot be excluded: do not inhale
the product. Ammonia vapour has en irritant
effect on mucous membranes (eyes, nose and
throat).
Keep AdBlue
® out of the reach of
children, in its original bottle.
Never transfer AdBlue
® to another
container : it would lose its purity. Use only AdBlue
® additive that meets the
ISO

22241 standard.
Never dilute the additive with water.
Never pour the additive into the Diesel
fuel tank.
Never top-up from an AdBlue
®
dispenser reserved for heavy goods
vehicles.
The supply in a non-drip bottle simplifies
toping-up. You can obtain 1.89 litre (half a US
gallon) bottles from a CITROËN

dealer or a
qualified workshop.

261
DS5_en_Chap09_verifications_ed01-2015
Never store bottles of AdBlue® in your
vehicle. Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Other wise, by freezing, the AdBlue
® cannot
be poured into its tank. Park your vehicle in a
warmer area for a few hours to allow the top-up
to be carried out.
Procedure
F Press the START/STOP button to switch off the engine. F

R
aise the boot floor for access to the
AdBlue
® tank. Use an object, such as a
bag, to keep the left part up.
Recommendations on storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
checks

DS5_en_Chap09_verifications_ed01-2015

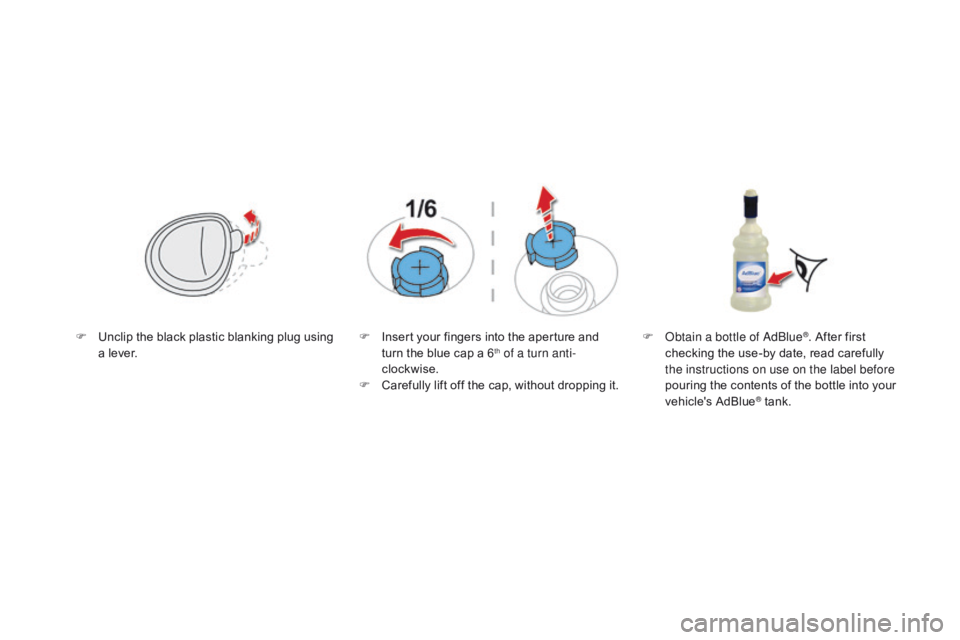

F Unclip the black plastic blanking plug using a lever. F
I nsert your fingers into the aperture and
turn the blue cap a 6th of a turn anti-
clockwise.
F

C

arefully lift off the cap, without dropping it. F
O btain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.

263
DS5_en_Chap09_verifications_ed01-2015
F After emptying the bottle, wipe away any spillage around the tank filler using a damp
cloth.
F

R
efit the blue cap to the tank and turn it a
6
th of a turn clockwise, to its stop.
F
R
efit the black plastic blanking plug,
clipping it in place.
F

L

ower the boot floor and close the tailgate.
Important: if your vehicle's
AdBlue
® tank is completely empty -
w
hich is confirmed by the alert
messages and the impossibility of
starting the engine - you must add at
least 3.8 litres, so two 1.89 litre bottles. If any additive is split or splashed, wash
immediately with cold water or wipe
with a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.Important:
when topping up after
running out of additive , signalled
by the message "Top up emissions
additive: Starting prevented", you must
wait for approximately 5 minutes before
switching on the ignition, without
opening the driver's door, unlocking
the vehicle, placing the key of the
"Keyless Entr y and Star ting" system
inside the vehicle or inser ting the
electronic key in the reader.
Switch on the ignition, wait for
10
seconds, then start the engine.
Never dispose of AdBlue
® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your
dealer.
checks

DS5_en_Chap10_caracteristiques_ed01-2015
Technical data

DS5_en_Chap10_caracteristiques_ed01-2015

DS5_en_Chap10_caracteristiques_ed01-2015

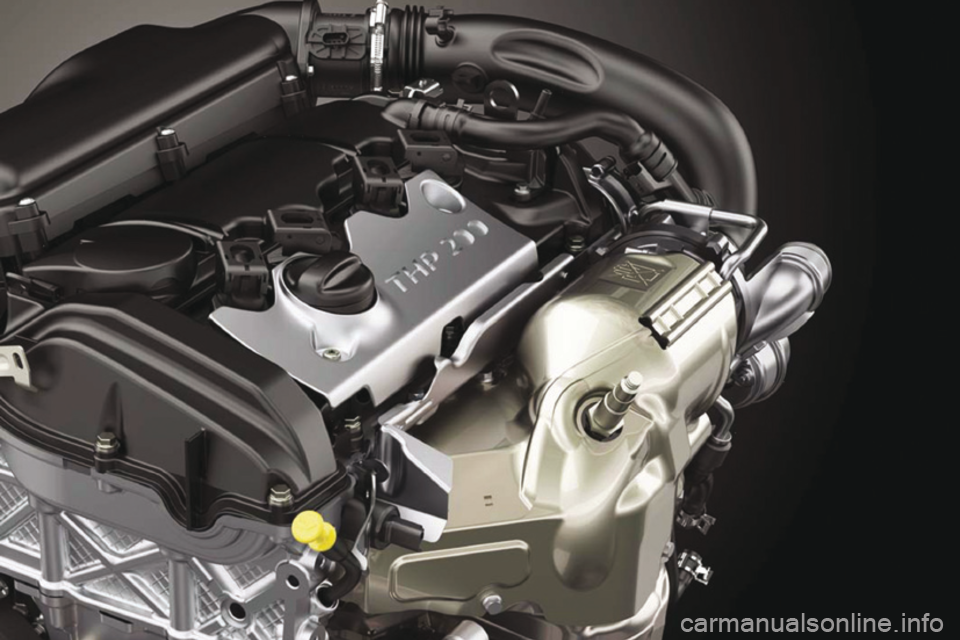

Petrol engineTHP 15 0THP 155 THP 160 THP 165 S&S THP 200
Gearbox 6-speed
automatic 6-speed
automatic 6-speed
automatic EAT6 6-speed
automatic 6-speed manual
Model code 5FEA5 F
v

A - A /15FMA -Y -A /
d5

GZT/S -T/1S -T/2S 5FU8
Cubic capacity (cc) 1 5981 5981 5981 5981 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8 77 x 85.8 77 x 85.8 77 x 85.8
Max power*: EU standard (kW) 11 0115120 121147
Max power engine speed (rpm) 6 0506 000 6 0006 000 5 800
Max torque: EU standard (Nm) 240240240240 275
Max torque engine speed (rpm) 1 4001 4001 4001 400 1 700
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Catalytic converter Ye sYe sYe sYe sYe s
Engine oil capacity (with filter replacement)
(in litres) 4.25
4.254.254.254.25
Petrol engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation
(Directive 1999/99/EC).
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.

267
DS5_en_Chap10_caracteristiques_ed01-2015
Petrol weights and towed loads (in kg)
Petrol engineTHP 15 0THP 155 THP 160 THP 165 S&S THP 200
Gearbox 6-speed
automatic 6-speed
automatic 6-speed
automatic EAT6 6-speed
automatic 6-speed
manual
Model code 5FEA5 F
v

A - A /15FMA -Y -A /
d5GZT/S -T/1S -T/2S5FU8
-

U

nladen weight 1 4971 4201 495 1 4291 430
-

K

erb weight* 1 5701 495 1 5701 504 1 505
-

G

ross vehicle weight (GV W) 2 0302 0352 030 2 0172 050
-

G

ross train weight (GTW)
o

n a 12 % gradient 2 830
3 3352 830 3 1172 800
-

B

raked trailer (within GTW limit)
o

n a 10 % or 12 % gradient 800
1 300 8001 10 0 750
-

B

raked trailer** (with load transfer within the
GTW limit) 800
1 500 8001 400 1 050
-

U

nbraked trailer 74 574 574 5750 750
-

R

ecommended nose weight 7575757575
* The kerb weight is equal to the unladen weight + driver (75 kg).
**

T

he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Technical data

DS5_en_Chap10_caracteristiques_ed01-2015
* The kerb weight is equal to the unladen weight + driver (75 kg).Petrol engine
THP 155THP 165 S&S THP 200
Gearbox 6-speed automaticEAT6 6-speed automatic 6-speed manual
Model code 5 F
v
A - A /1
5GZT/S -T/1S -T/2S 5FU8
-
U
nladen weight
1 5401 539 1 572
-
K
erb weight*
1 6151 6141 647
-
G
ross vehicle weight (GV W)
2 1702 225 2 195
-
G
ross train weight (GTW)
o

n a 12% gradient
3 320
3 225 2 795
-
B
raked trailer (within the GTW limit)
o

n a 10% or 12% gradient
1 150
1 000 600
-
U
nbraked trailer
74 5750600
-
R
ecommended nose weight
757575
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
When towing the maximum authorised speed is reduced (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Petrol weights and towed loads (in kg) - Commercial versions
