Gear shift indicator*
System which reduces fuel consumption by recommending the most appropriate gear.The information appears in the instrument
panel in the form of an arrow.Example:
-

Y
ou are in third gear.
-

Y
ou press the accelerator pedal.
-

T
he system may suggest that you engage
a higher gear.
On vehicle fitted with a manual gearbox,
the arrow may be accompanied by the
gear recommended.
The system adapts its gear change
recommendation according to the
driving conditions (slope, load, ...) and
the demands of the driver (power,
acceleration, braking, ...).
The system never suggests:
-

e
ngaging first gear,
-
enga

ging reverse gear.
With an electronic or automatic
gearbox, the system is only active in
manual mode.
Operation
* Depending on engine.
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.
On BlueHDi Diesel 135 and 150 versions with
manual gearbox, in certain driving conditions
the system may suggest changing into neutral
so that the engine can go into standby (STOP
mode with Stop & Start). In this case, N is
displayed in the instrument panel.

DS5_en_Chap04_conduite_ed01-2015
Under-inflation alert
The alert is given by the fixed illumination
of this warning lamp, accompanied by
an audible signal, and depending on
equipment, the display of a message.
In the event of a problem on one of the tyres ,
the symbol or the message appears, according
to equipment, to identify it.
F
R
educe speed, avoid sudden steering
movements or harsh brake applications.
F

S
top as soon as it is safe to do so. The alert is maintained until the tyre or
tyres concerned is reinflated, repaired
or replaced.
The spare wheel (space-saver type or a
steel rim) does not have a sensor.
The loss of pressure detected does not
always lead to visible deformation of the
tyre. Do not rely on just a visual check.
Operating fault
The flashing and then fixed
illumination of the under-inflation
warning lamp accompanied by the
illumination of the service warning
lamp indicates a fault with the system.
This alert is also displayed when one or
more wheels is not fitted with a sensor
(for example, a space-saver or steel
spare wheel).
Go to a CITROËN dealer or a qualified
workshop
to have the system checked or,
following the repair of a puncture, to have the
original wheel, equipped with a sensor, refitted. In this case, monitoring of the tyre pressures is
not assured.
F

I

f you have a compressor (the one in the
temporary puncture repair kit for example),
check the four tyre pressures when cold.
I

f it is not possible to check the tyre
pressures at the time, drive carefully at
reduced speed.


or
F

I

n the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (according to equipment). Any tyre repair or replacement on a wheel
fitted with this system must be carried out by a
CITROËN dealer or a qualified workshop.
If after changing a tyre, a wheel is not detected
by your vehicle (fitting snow tyres for example),
you must have the system reinitialised by a
CITROËN dealer or a qualified workshop.

123
DS5_en_Chap04_conduite_ed01-2015
The system is reactivated automatically
at every start using the START/STOP
button.
Reactivation
With the Touch screen tablet system
With the control switch on the
dashboard
If the system has been deactivated
in STOP mode, the engine restarts
immediately.
deactivation
When driving on flooded roads, it is
strongly recommended that the system
be deactivated.
Refer to the "A few driving
recommendations" section.
With the Touch screen tablet system
With the control switch on the
dashboard
F At any time, press the "EcO OFF" control
switch to deactivate the system.
This is confirmed by the illumination of
the indicator lamp in the control switch,
accompanied by the display of a message.
F

Sel
ect the "
dr
iving" menu.
F

I
n the page, press the "E
cO
O

FF" button for Stop & Start. F

P
ress the "E
cO O
FF" control switch again.
The system is active again; this is confirmed by
the indicator lamp in the control switch going
off, accompanied by the display of a message.
F
Sel
ect the "
dr
iving" menu.
The system is active again; this is confirmed by
the indicator lamp in the button going off.
The indicator lamp for this button comes on. F

I
n the page, press the "E
cO
O

FF" button for Stop & Start
again.
driving

129
DS5_en_Chap04_conduite_ed01-2015

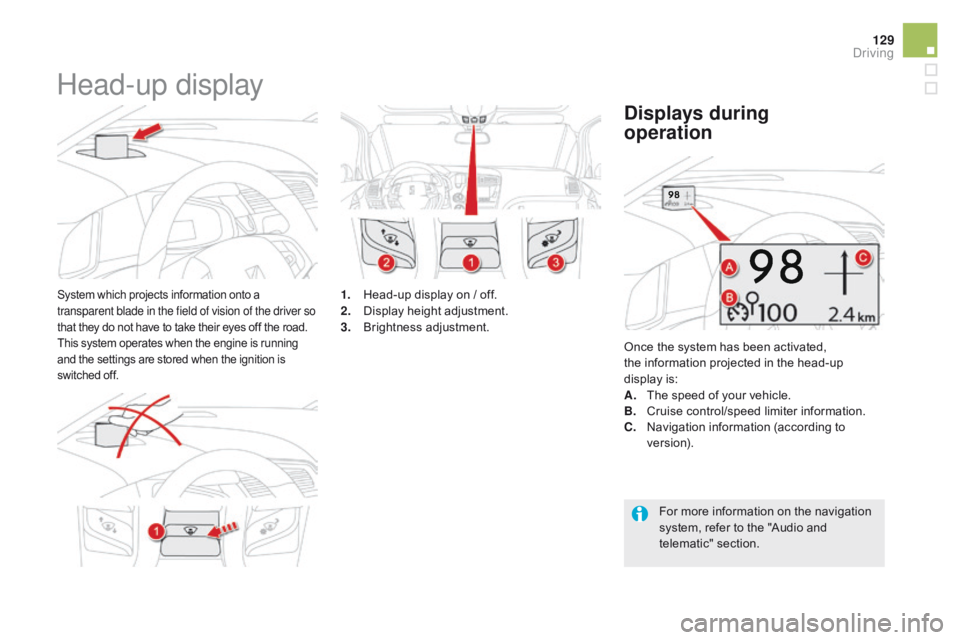

Head-up display
System which projects information onto a
transparent blade in the field of vision of the driver so
that they do not have to take their eyes off the road.
This system operates when the engine is running
and the settings are stored when the ignition is
switched off.1. Head-up display on / off.
2. Display height adjustment.
3.
Br

ightness adjustment. Once the system has been activated,
the information projected in the head-up
display is:
A.
T

he speed of your vehicle.
B.
C

ruise control/speed limiter information.
displays during
operation
c. Navigation information (according to
ve r s i o n).
For more information on the navigation
system, refer to the "Audio and
telematic" section.
driving

DS5_en_Chap04_conduite_ed01-2015
F With the engine running, press button 1. The
activated/deactivated status when the engine was
switched off is retained when the engine is switched
on again.
The blade retracts automatically 3 seconds after switching
off the engine except in STOP mode of Stop & Start.
Activation / de activation
F With the engine running, adjust the
brightness of the information using
button
3:
-

t
owards the rear to increase the
brightness,
-

t
owards the front to decrease the
brightness.
Brightness adjustment
We recommend that adjustments are
only made using these buttons when
the vehicle is stationary.
When stationary or while driving, no
objects should be placed around the
transparent blade (or on its cover) to
avoid blocking deployment of the blade
and preventing its correct operation.
In certain extreme weather conditions
(rain and/or snow, bright sunshine, ...)
the head-up display may not be legible
or may suffer temporary inter ference.
Some sunglasses may hamper reading
of the information.
To clean the transparent blade, use a
clean, soft cloth (such as a spectacles
cloth or microfibre cloth). Do not use
a dry or abrasive cloth or detergent or
solvent products as these could scratch
the blade or damage the anti-reflection
coating.
Height adjustment
F With the engine running, adjust the display to the required height using button 2 :
-

t
owards the rear to move the display up,
-

t
owards the front to move the display
down.

131
DS5_en_Chap04_conduite_ed01-2015
Memorising speeds
Modifying a speed setting
F Go to the main menu by pressing the "MENU" button:
F

Sel
ect the"Personalisation-configuration"
menu and confirm.
F

S
elect " Vehicle parameters" menu and
confirm.
F

S
elect the "Driving assistance" line and
conform.
F

S
elect "Speeds memorised" line and
confirm.
F

S
elect the speed setting to be modified and
confirm.
F

M
odify the speed setting.
F

Sel
ect "OK" and confirm to save the
modifications.
With your Audio system
"MEM" button
F Press this button to display the list of memorised speed settings.
From this screen and using the audio system
buttons, you can:
F

a
ctivate / deactivate the function,
F

s
elect up to five memorised speed settings.
By offering preset speed settings, this function facilitates the programming of a speed setting for both the speed limiter and the cruise
control.
The system includes up to 5 or 6 speeds, depending on equipment, that you can modify.
As a safety measure, the driver must
only modify the speed settings when
stationary.
driving

133
DS5_en_Chap04_conduite_ed01-2015
6. Speed limiter on / pause indication.
7. Speed limiter mode selection indication.
8.
P

rogrammed speed value.
9.
S

election of a memorised speed setting.
displays in the instrument panel

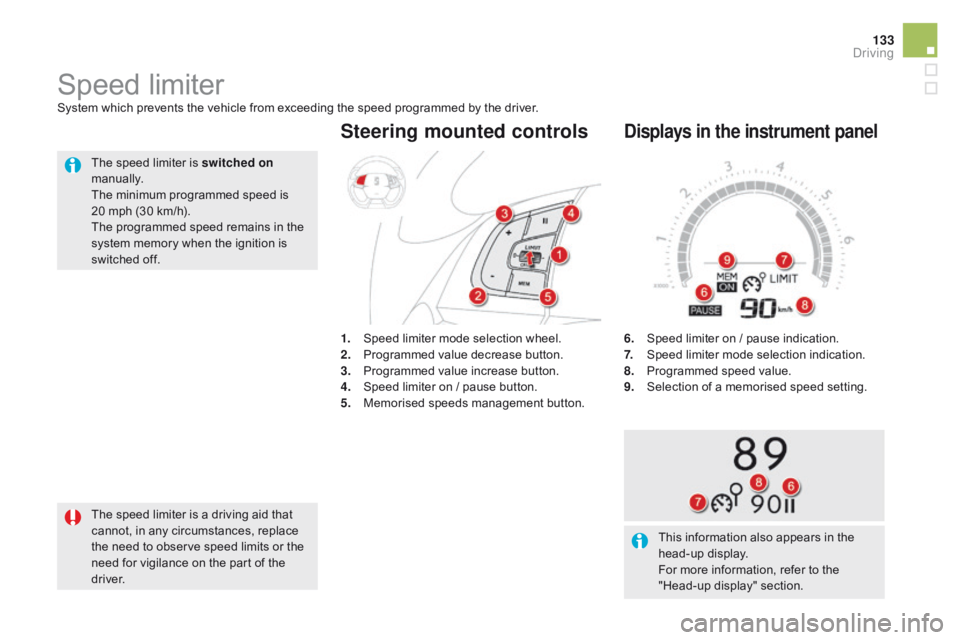

Speed limiter
The speed limiter is a driving aid that
cannot, in any circumstances, replace
the need to observe speed limits or the
need for vigilance on the part of the
driver. 1.
S

peed limiter mode selection wheel.
2.
P
rogrammed value decrease button.
3.
P
rogrammed value increase button.
4.
S
peed limiter on / pause button.
5.
M
emorised speeds management button.
Steering mounted controls
This information also appears in the
head-up display.
For more information, refer to the
"Head-up display" section.
System which prevents the vehicle from exceeding the speed programmed by the driver.
The speed limiter is switched on
manually.
The minimum programmed speed is
20 mph (30 km/h).
The programmed speed remains in the
system memory when the ignition is
switched off.
driving

DS5_en_Chap04_conduite_ed01-2015
F Turn the wheel 1 to the "LIMIT" position
to select the speed limiter; the function is
paused.
F

I
f the speed setting is suitable (last speed
setting programmed in the system) press
button 4 to switch the speed limiter on.

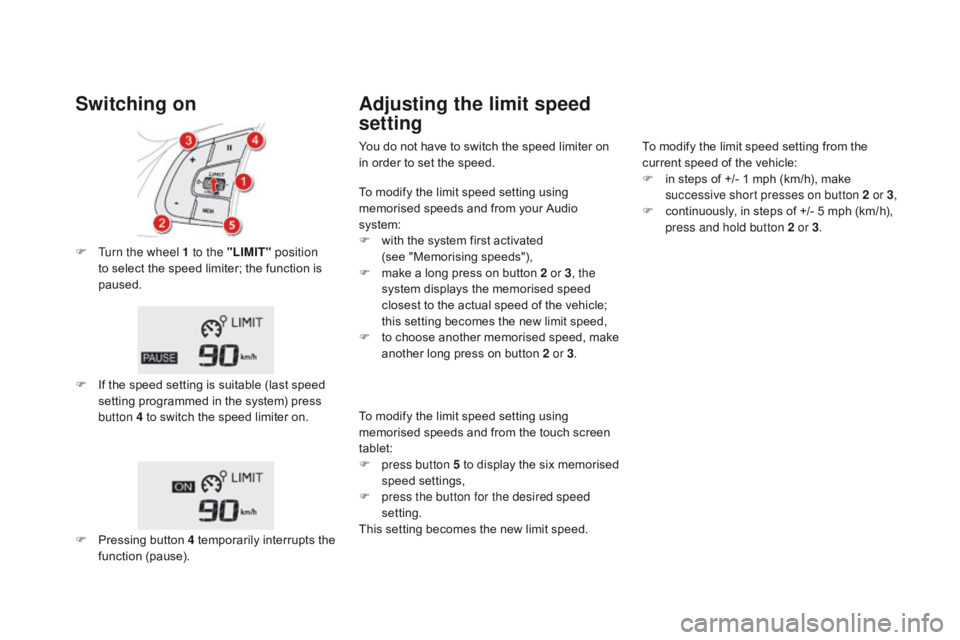

Switching on Adjusting the limit speed
setting
F Pressing button 4 temporarily interrupts the
function (pause). You do not have to switch the speed limiter on
in order to set the speed.
To modify the limit speed setting from the
current speed of the vehicle:
F
i
n steps of +/- 1 mph (km/h), make
successive short presses on button 2 or 3 ,
F
c
ontinuously, in steps of +/- 5 mph (km/h),
press and hold button 2 or 3 .
To modify the limit speed setting using
memorised speeds and from your Audio
system:
F
w
ith the system first activated
(see "Memorising speeds"),
F
m
ake a long press on button 2 or 3
, the
system displays the memorised speed
closest to the actual speed of the vehicle;
this setting becomes the new limit speed,
F
t
o choose another memorised speed, make
another long press on button 2 or 3 .
To modify the limit speed setting using
memorised speeds and from the touch screen
tablet:
F
p
ress button 5 to display the six memorised
speed settings,
F
p
ress the button for the desired speed
setting.
This setting becomes the new limit speed.

135
DS5_en_Chap04_conduite_ed01-2015

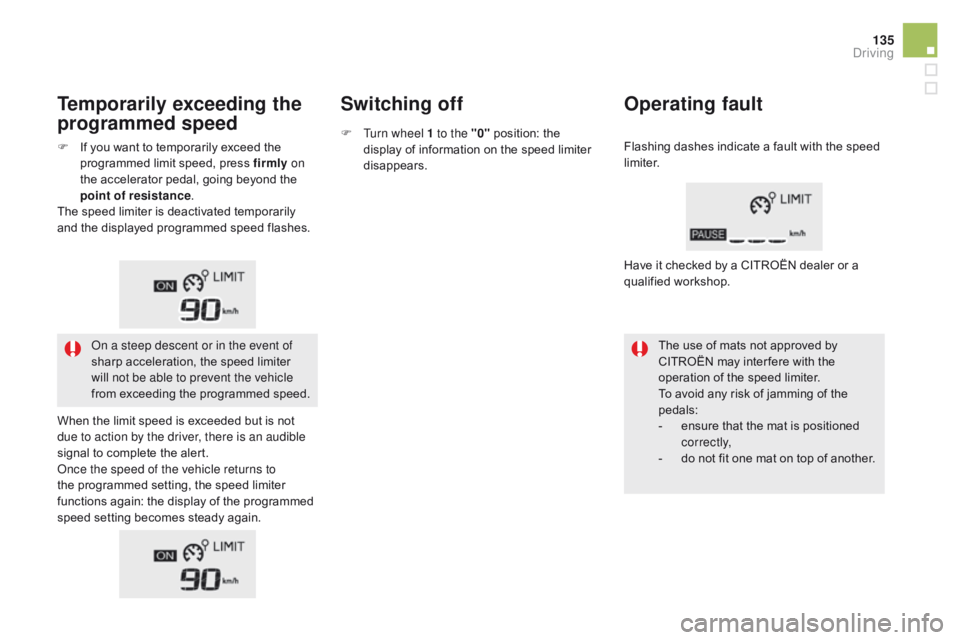

Temporarily exceeding the
programmed speedSwitching off
Operating fault
The use of mats not approved by
CITROËN may inter fere with the
operation of the speed limiter.
To avoid any risk of jamming of the
pedals:
-

e
nsure that the mat is positioned
c o r r e c t l y,
-

d
o not fit one mat on top of another.
F

I

f you want to temporarily exceed the
programmed limit speed, press firmly


on
the accelerator pedal, going beyond the
point of resistance .
The speed limiter is deactivated temporarily
and the displayed programmed speed flashes. F

T

urn wheel 1 to the "0"
position: the
display of information on the speed limiter
disappears. Flashing dashes indicate a fault with the speed
limiter.
On a steep descent or in the event of
sharp acceleration, the speed limiter
will not be able to prevent the vehicle
from exceeding the programmed speed.
When the limit speed is exceeded but is not
due to action by the driver, there is an audible
signal to complete the alert.
Once the speed of the vehicle returns to
the programmed setting, the speed limiter
functions again: the display of the programmed
speed setting becomes steady again. Have it checked by a CITROËN dealer or a
qualified workshop.
driving

DS5_en_Chap04_conduite_ed01-2015
The cruise control system is a driving
aid that cannot, in any circumstances,
replace the need to observe speed
limits, nor the need for vigilance on the
part of the driver.
Cruise control
1. Cruise control mode selection wheel.
2. Button for setting the current speed of the
vehicle as the cruise setting or lowering the
cruise setting.
3.
B

utton for setting the current speed of the
vehicle as the cruise setting or raising the
cruise setting.
4.
C

ruise control pause / resume button.
5.
S

tored speeds management button.
Steering mounted controls
6. Cruise control pause / resume indication.
7. C ruise control mode selected indication.
8.
C

ruise speed setting.
9.
S

electing a memorised cruise speed.
displays in the instrument panelThe cruise control is switched on
manually.
It requires a minimum vehicle speed of
25 mph (40 km/h) as well as:
-

w
ith a manual gearbox, the
engagement of fourth gear or
higher,
-

w
ith an electronic gearbox, the
engagement of the gear selector in
position A, or second gear or higher
in manual mode,
-

w
ith an automatic gearbox, the
engagement of the gear selector in
position
d or second gear or higher
in manual mode.
This information also appears in the
head-up display.
For more information, refer to the
"Head-up display" section.
System which automatically maintains the cruising speed of the vehicle at a setting programmed by
the driver, without any action on the accelerator pedal.
Switching off the ignition cancels any
programmed speed setting.
The operation of the cruise control can be
interrupted (pause):
-

b

y pressing control 4 or by pressing the
brake or clutch pedal,
-

a

utomatically, if operation of the dynamic
stability control system is triggered. As a safety measure, you are advised
to keep your feet near the pedals at all
times.
