checking oil CITROEN DS5 2016 Owners Manual

13
Maintenance - Technical data
Checking levels 248 -251
- oil
-

b
rake fluid
-

p
ower steering fluid
-


coolant
-

s
creenwash/headlamp wash fluid
Checking components

2
52-254
-

a
ir filter
-
p

assenger compartment filter
-

o
il filter
-

e
lectric parking brake
-

b
rake pads / discs
Changing bulbs
2

13-220
-
front
-
rear Opening the bonnet

2
44
Under the bonnet, petrol

2
45
Under the bonnet, Diesel

2
46Dimensions
2

77
Identification markings
2

78
Running out of fuel (Diesel)

2
47 12V battery
2 24-226
Load reduction, economy mode 2 27
Engine compartment
fuses

2
21, 223
Petrol engines
2 66
Diesel engines 2 69 -271
Petrol weights

2
67-268
Diesel weights

2
72-276
DS5_en_Chap00b_vue-ensemble_ed01-2015
Over view

DS5_en_Chap01_controle-de-marche_ed01-2015

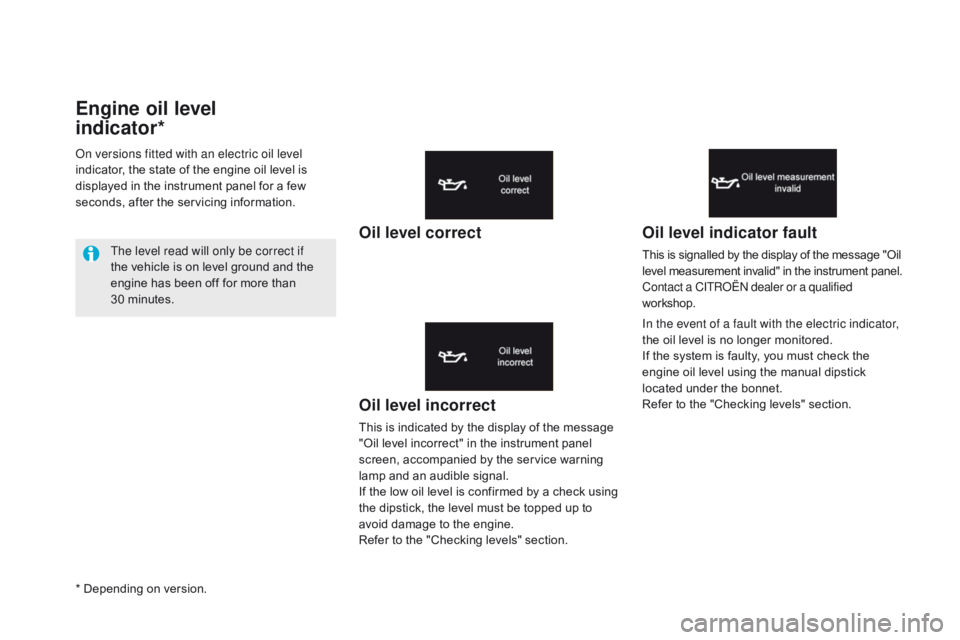

Engine oil level
indicator*
Oil level incorrect
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
Refer to the "Checking levels" section.
Oil level indicator fault
This is signalled by the display of the message "Oil
level measurement invalid" in the instrument panel.
Contact a CITROËN dealer or a qualified
workshop.
In the event of a fault with the electric indicator,
the oil level is no longer monitored.
If the system is faulty, you must check the
engine oil level using the manual dipstick
located under the bonnet.
Refer to the "Checking levels" section.
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.
The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.
Oil level correct
* Depending on version.

203
DS5_en_Chap08_info-pratiques_ed01-2015
Removing the cartridge
F Stow the black pipe.
F D etach the angled base from the white pipe.
F

S
upport the compressor vertically.
F

U
nscrew the cartridge from the bottom.Beware of discharges of fluid.
The expiry date of the fluid is indicated
on the cartridge.
The sealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the cartridge
into the environment, take it to an
authorised waste disposal site or a
CITROËN dealer.
Do not forget to obtain a new sealant
cartridge, available from CITROËN
dealers or from a qualified workshop.
checking tyre pressures /
inflating accessories
You can also use the compressor, without
injecting any product, to:
-

c
heck or adjust the pressure of your tyres,
-

i
nflate other accessories (balls, bicycle
tyres...).
F

T
urn the selector A to the "Air"
position.
F

U
ncoil the black pipe H fully.
F

C
onnect the black pipe to the
valve of the wheel or accessory.
I

f necessary, fit one of the adaptors
supplied with the kit first. F
C onnect the compressor's electrical
connector to the vehicle's 12 V socket.
F

S
tart the vehicle and let the engine run.
F

A
djust the pressure using the compressor
(to inflate: switch B in position "I" ; to
deflate: switch B in position "O" and press
button
c
)
, according to the vehicle's tyre
pressure label or the accessory's pressure
label.
F

R
emove the kit then stow it.
Practical information

245
DS5_en_Chap09_verifications_ed01-2015
The various caps and covers allow access for
checking the levels of the various fluids and for
replacing certain components.

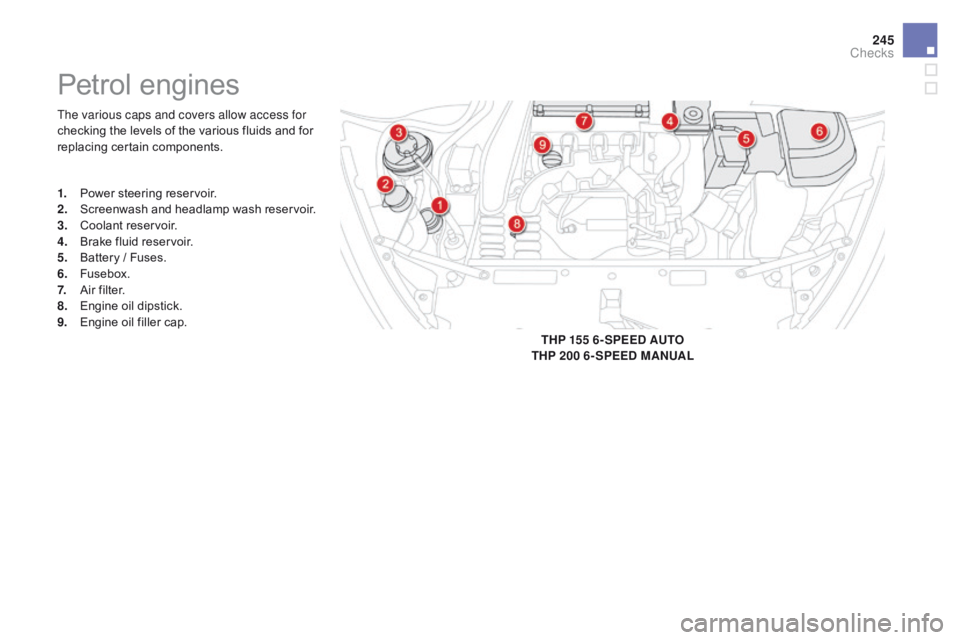

Petrol engines
1. Power steering reservoir.
2. Screenwash and headlamp wash reservoir.
3.
C

oolant reservoir.
4.
B

rake fluid reservoir.
5.
B

attery / Fuses.
6.
F

usebox.
7.
A

ir filter.
8.
E

ngine oil dipstick.
9.
E

ngine oil filler cap. THP 155 6- SPEE
d

AUTO
THP 200 6- SPEE
d

MANUAL
checks

DS5_en_Chap09_verifications_ed01-2015
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.
* According to engine.
Diesel engines
1. Power steering reservoir.
2. Screenwash and headlamp wash reservoir.
3.
C

oolant reservoir.
4.
B

rake fluid reservoir.
5.
B

attery / Fuses.
6.
F

usebox.
7.
A

ir filter.
8.
E

ngine oil dipstick.
9.
E

ngine oil filler cap.
10.
P

riming pump*.
11.
B

leed screw*. e- H
di 1

15 ETG6
H
di 1

60 6- SPEE
d
MAN / H
di 1
60 6- SPEE
d
AUTO

DS5_en_Chap09_verifications_ed01-2015
Checking levels
Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).
Engine oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles so equipped, or
using the dipstick.
It is normal to top up the oil level between
two services (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms). To ensure that the reading is correct,
your vehicle must be parked on a level
sur face with the engine having been off
for more than 30 minutes.
Check all of these levels regularly, in line with the manufacturer's service schedule. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.checking using the dipstick
Refer to the "Petrol engine" or "Diesel engine"
section for the location of the dipstick in the
engine compartment of your vehicle.
F

T
ake the dipstick by its coloured grip and
remove it completely.
F

W
ipe the end of the dipstick using a clean
non-fluffy cloth.
F

R
efit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A
and B . A = MA X
B = MIN
If you find that the level is above the A mark or
below the B mark, do not star t the engine .
-

I
f the level is above the MAX mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.
-

I
f the level is below the MIN mark, you
must top up the engine oil.

249
DS5_en_Chap09_verifications_ed01-2015
Power steering fluid level
The power steering fluid level should
be close to the "MA X" mark. With
the engine cold, unscrew the cap to
check the level. The brake fluid level should be close
to the "MA X" mark. If it is not, check
the brake pad wear.
Brake fluid level
Changing the fluid
Refer to the manufacturer's service schedule
for details of the interval for this operation.
Fluid specification
The brake fluid must conform to the
manufacturer's recommendations.

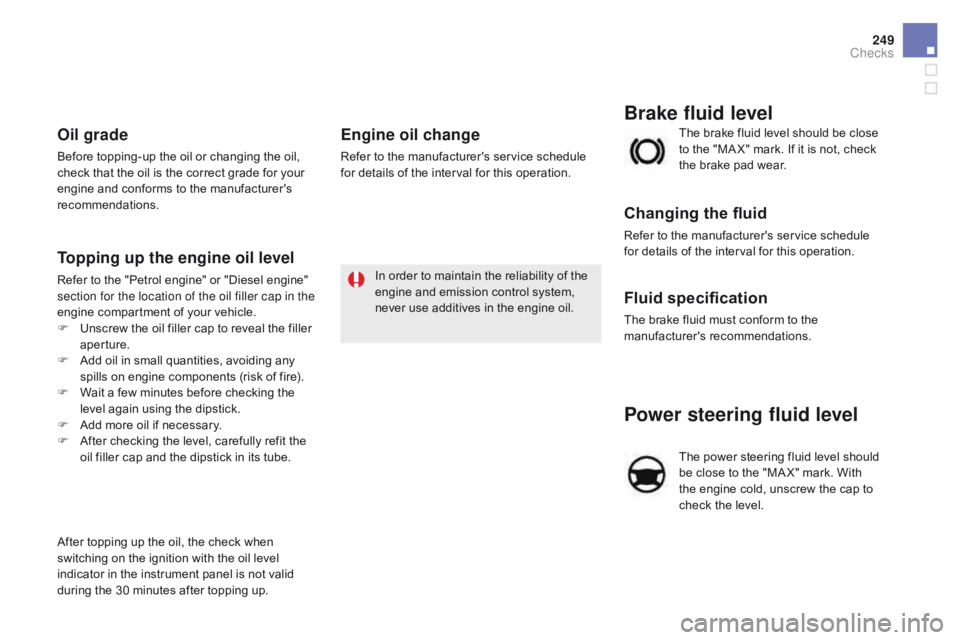

Oil grade
Before topping-up the oil or changing the oil,
check that the oil is the correct grade for your
engine and conforms to the manufacturer's
recommendations.
Topping up the engine oil level
Refer to the "Petrol engine" or "Diesel engine"
section for the location of the oil filler cap in the
engine compartment of your vehicle.
F
U
nscrew the oil filler cap to reveal the filler
aperture.
F

A
dd oil in small quantities, avoiding any
spills on engine components (risk of fire).
F

W
ait a few minutes before checking the
level again using the dipstick.
F

A
dd more oil if necessary.
F

A
fter checking the level, carefully refit the
oil filler cap and the dipstick in its tube.
After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel is not valid
during the 30 minutes after topping up.
Engine oil change
Refer to the manufacturer's service schedule
for details of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
never use additives in the engine oil.
checks

253
DS5_en_Chap09_verifications_ed01-2015

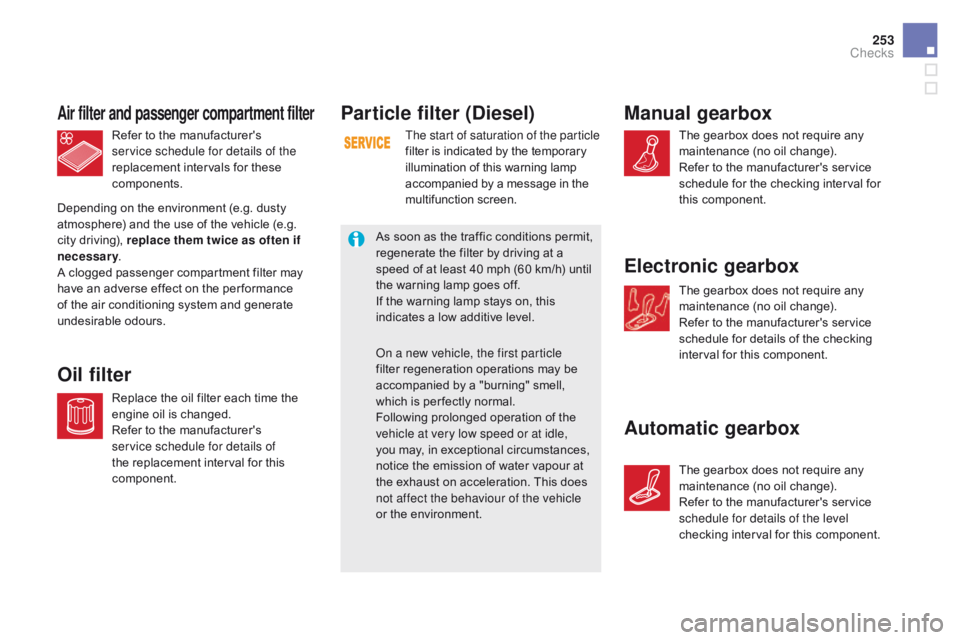

Particle filter (diesel)
The start of saturation of the particle
filter is indicated by the temporary
illumination of this warning lamp
accompanied by a message in the
multifunction screen.
As soon as the traffic conditions permit,
regenerate the filter by driving at a
speed of at least 40 mph (60 km/h) until
the warning lamp goes off.
If the warning lamp stays on, this
indicates a low additive level.
On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burning" smell,
which is per fectly normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Air filter and passenger compartment filter
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
Oil filter
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle (e.g.
city driving), replace them twice as often if
necessary
.
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.
Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.
Electronic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for details of the checking
interval for this component.
Automatic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for details of the level
checking interval for this component.
checks

DS5_en_Chap12_index-recherche_ed01-2015
Accessories ................................................. 235
Accessory position ....................................... 10
0
Accessory socket, 12V

............................. 8
2, 83
Additive, AdBlue
.............................. 2

9, 255 -263
Adjusting headlamps
.................................... 15

2
Adjusting head restraints

..........................7

2, 75
Adjusting seat belt height

.............................18

9
Adjusting the steering wheel

..........................81
A

dvice on care and maintenance
.................23

4
Advice on driving

..............................
..............98
Airbags
...............

..................................... 31, 191
Airbags, curtain
..................................... 19

3, 19 4
Airbags, front......................................... 191, 19 4
Airbags, lateral
...................................... 19

3, 19 4
Air conditioning, automatic

....................... 9
0, 91
Air filter

...............
........................................... 253
Air flow

..............................
..............................14
Air vents
..............................

............................89
Alarm
............................................................... 63
A

nti-lock braking system (ABS)
....................18

4
Anti-pinch
.................................................. 6

7, 68
Anti-theft immobiliser
.................................... 10

0
Apple
® player ................................................ 31 6
Armrest, front ............................................ 8
2, 85
Armrest, rear

............................................. 8
2, 86
Ashtray
...............

............................................. 82
Assistance call
...............................

....... 183, 282
Assistance, emergency braking
................... 18

4
Audible warning
............................................ 18

3
Audio cable
........................................... 3

14, 355
Audio streaming (Bluetooth)
..............................

............ 316, 359
Audio system

...............................
............ 39, 349
Automatic headlamps
............................. 2

0, 149
Automatic illumination of headlamps

....14

5, 148
Automatic operation of hazard warning
lam

ps
............................................ 18

2Automatic rain sensitive windscreen
wipers
...............
..................................
155, 157
Auxiliary sockets
............................. 8
5, 314, 359
Changing a fuse
.....................................
2
21-223
Changing a wheel
...............................
...
2 0 3 - 2 11
Changing a wiper blade
........................
15
8, 228
Changing the date
..................................... 4
2, 47
Changing the remote control battery ............................................... 59
Changing the time
......................... 3
8, 39, 42, 47
Checking levels
......................................
2
4 8 - 2 51
Checking the engine oil level
.................. 3
6, 248
Checking tyre pressures (using the kit)
..............................
................
203
Checks
...............
................... 245, 246, 252-254
Children
...............................
... 162-178, 190, 192
Child lock
...............................
........................
178
Child seats
..............................
...............
16 4 -17 7
Child seats, conventional
....................... 17
0, 171
Child seats, ISOFIX
...............................
17
3 -175
Cigarette lighter............................................... 83
CITROËN Localised Emergency Call
.......................................... 28
2
Cleaning (advice)
.......................................... 23
4
Clock ............... ................................................
38
Closing the boot ............................... ...............62
Closing the doors
............................... ....... 53, 55
Cockpit glass roof

...........................................68
C

onnectors, audio
...................8
5, 314, 358, 359
Coolant level
..............................

............. 32, 250
Coolant temperature indicator

........................32
C

ourtesy lamps
.............................................15

9
Cruise control
........................................ 13

1, 13 6
Cup holder

...............................
........................82
Customising stickers
..................................... 23

4
Battery
...............................

............ 224-226, 252
Battery, charging
...............................
.... 225, 226
Battery, remote control
............................. 5
9, 60
Black panel ...................................................... 38
Blind spot sensors
........................................ 12
6
BlueHDi
...............................
..................
118 , 2 5 5
Bluetooth connection
............3
28, 336, 337, 360
Bluetooth (hands-free)
.................. 3
36, 337, 360
Bluetooth (telephone)
............................3
36, 360
Boot
........
.........................................................
62
Boot (opening)
...............................
..................
53
Brake discs ....................................................
25 4
Brake lamps ............................... ...................
218
Brake pads ............................... .....................254
Braking assistance system

...........................18

4
Braking system warning lamp

.........................2

7
Capacity, fuel tank ........................................2 41
CD .............................. ........................... 314, 355
CD MP3

................
................................. 314, 357
Central locking

.......................................... 5
3, 55
Changing a bulb
..................................... 2

13 -2 20
