steering CITROEN DS5 2016 Owners Manual

11
Lighting controls 144-150
Direction indicators 1 82 Wiper c ontrols 15
5 -15 8
Trip computer

4
8 - 49

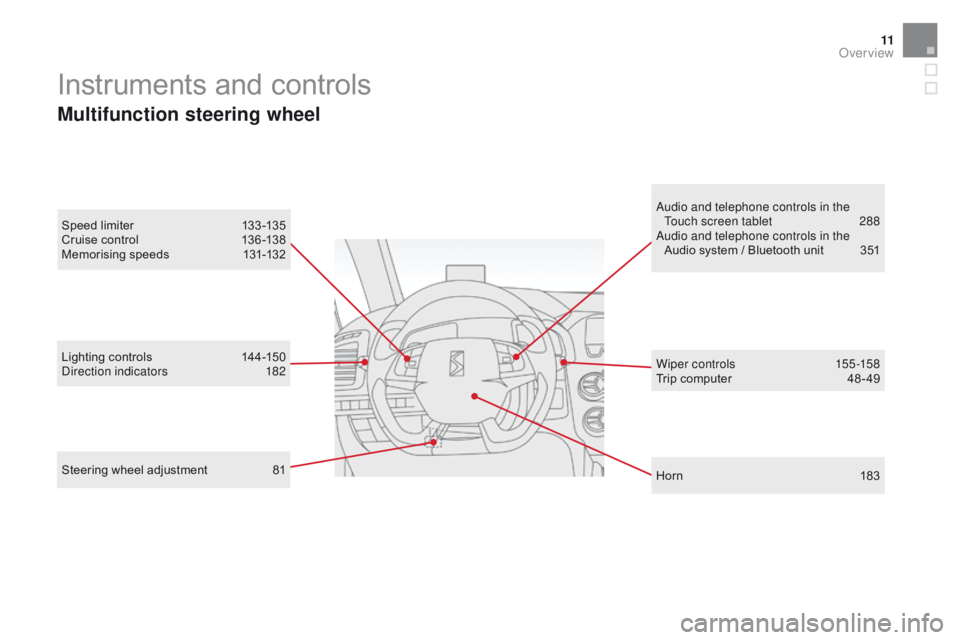

Instruments and controls
Multifunction steering wheel
Horn 183
Speed limiter

1

33 -135
Cruise control

1

36 -138
Memorising speeds

1

31-132
Audio and telephone controls in the
Touch screen tablet
2
88
Audio and telephone controls in the Audio system / Bluetooth unit
3
51
Steering wheel adjustment
8
1
DS5_en_Chap00b_vue-ensemble_ed01-2015
Over view

13
Maintenance - Technical data
Checking levels 248 -251
- oil
-

b
rake fluid
-

p
ower steering fluid
-


coolant
-

s
creenwash/headlamp wash fluid
Checking components

2
52-254
-

a
ir filter
-
p

assenger compartment filter
-

o
il filter
-

e
lectric parking brake
-

b
rake pads / discs
Changing bulbs
2

13-220
-
front
-
rear Opening the bonnet

2
44
Under the bonnet, petrol

2
45
Under the bonnet, Diesel

2
46Dimensions
2

77
Identification markings
2

78
Running out of fuel (Diesel)

2
47 12V battery
2 24-226
Load reduction, economy mode 2 27
Engine compartment
fuses

2
21, 223
Petrol engines
2 66
Diesel engines 2 69 -271
Petrol weights

2
67-268
Diesel weights

2
72-276
DS5_en_Chap00b_vue-ensemble_ed01-2015
Over view

DS5_en_Chap01_controle-de-marche_ed01-2015

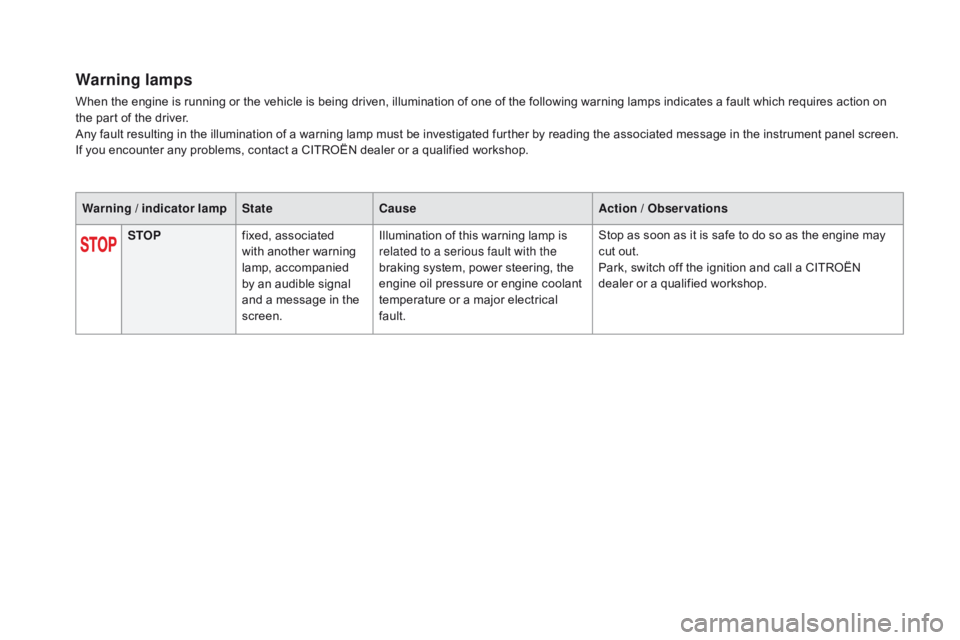

Warning lamps
When the engine is running or the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on
the part of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.Warning / indicator lamp State
cau

seAction / Observations
STOP fixed, associated
with another warning
lamp, accompanied
by an audible signal
and a message in the
screen. Illumination of this warning lamp is
related to a serious fault with the
braking system, power steering, the
engine oil pressure or engine coolant
temperature or a major electrical
fault. Stop as soon as it is safe to do so as the engine may
cut out.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.

DS5_en_Chap01_controle-de-marche_ed01-2015
Trip computer
System that gives you information on the current journey (range, fuel consumption…).F
W
hen the trip required is displayed, press
the control for more than two seconds
or use the left hand thumb wheel of the
steering mounted controls.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
Instrument panel screen
Information display
F Press the button on the end of the wiper
control stalk to display the various tabs in
succession. -

T
he current information tab with:
●
t
he range,
●
t
he current fuel consumption,
●
t
he Stop & Start time counter.
- Trip
"1" with:
●
t
he average speed,
f

or the first trip.
●
t
he average fuel consumption.
- Trip
"2" with:
●
t
he average speed,
f

or the second trip.
●
t
he average fuel consumption.
Trip reset
- Radio or media.
- S
atellite navigation.

81
DS5_en_Chap03_confort_ed01-2015

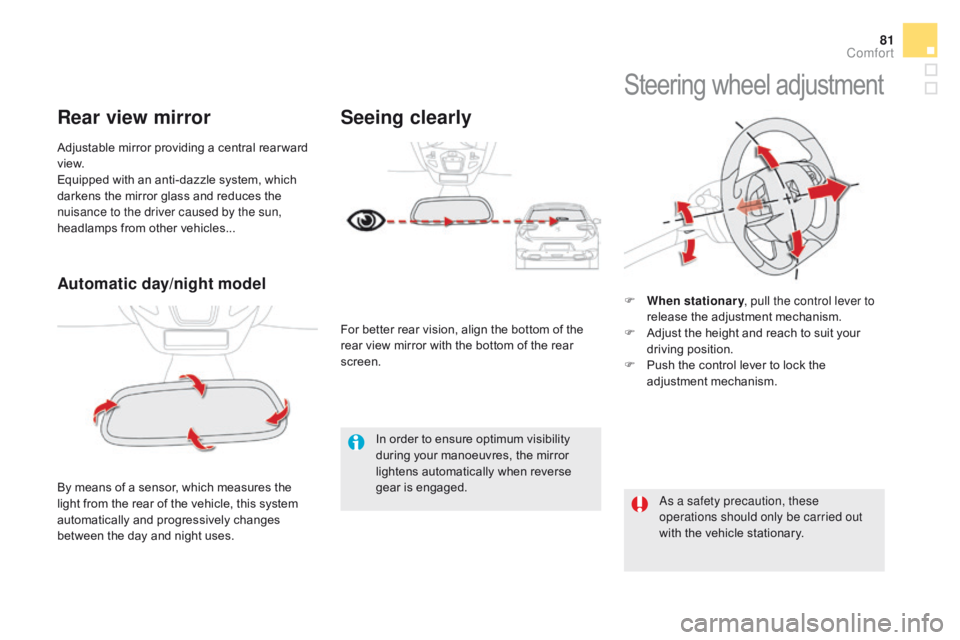

Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses. Adjustable mirror providing a central rear ward
view.
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles...
Rear view mirror
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
Steering wheel adjustment
F When stationary, pull the control lever to
release the adjustment mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ush the control lever to lock the
adjustment mechanism.
As a safety precaution, these
operations should only be carried out
with the vehicle stationary.
Seeing clearly
For better rear vision, align the bottom of the
rear view mirror with the bottom of the rear
screen.
comfort

85
DS5_en_Chap03_confort_ed01-2015

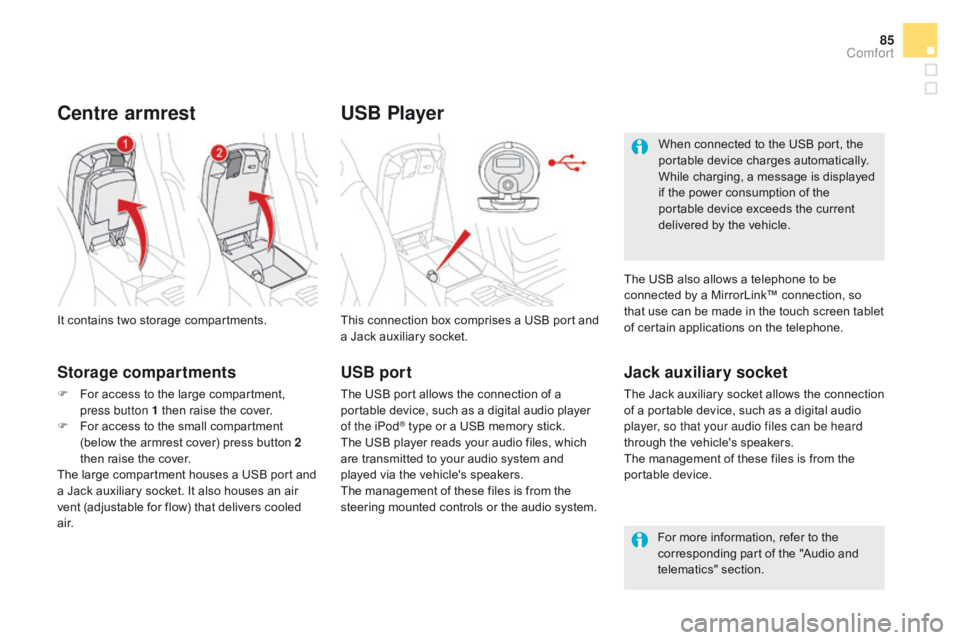

USB Player
This connection box comprises a USB port and
a Jack auxiliary socket.
Jack auxiliary socket
The Jack auxiliary socket allows the connection
of a portable device, such as a digital audio
player, so that your audio files can be heard
through the vehicle's speakers.
The management of these files is from the
portable device.
It contains two storage compartments.
centre armrest
Storage compartments
F For access to the large compartment,
press button 1 then raise the cover.
F

F
or access to the small compartment
(below the armrest cover) press button 2
then raise the cover.
The large compartment houses a USB port and
a Jack auxiliary socket. It also houses an air
vent (adjustable for flow) that delivers cooled
a i r. For more information, refer to the
corresponding part of the "Audio and
telematics" section.
USB port
The USB port allows the connection of a
portable device, such as a digital audio player
of the iPod
® type or a USB memory stick.
The USB player reads your audio files, which
are transmitted to your audio system and
played via the vehicle's speakers.
The management of these files is from the
steering mounted controls or the audio system. When connected to the USB port, the
portable device charges automatically.
While charging, a message is displayed
if the power consumption of the
portable device exceeds the current
delivered by the vehicle.
The USB also allows a telephone to be
connected by a MirrorLink™ connection, so
that use can be made in the touch screen tablet
of certain applications on the telephone.
comfort

99
DS5_en_Chap04_conduite_ed01-2015
Starting-switching off the engine
F Insert the electronic key in the reader.
F P ress the brake pedal for vehicles with
an automatic or electronic gearbox, or
fully declutch for vehicles with a manual
gearbox.
Starting using
the electronic key Starting with the "Keyless
Entry and Starting"
system
If one of the starting conditions is not
met, a reminder message appears in
the instrument panel screen. In some
circumstances, it is necessary to turn
the steering wheel slightly while pressing
the "START/STOP" button to assist
unlocking of the steering; a message
warns you when this is needed.
With a manual gearbox
, put the gear lever in neutral.
With an electronic gearbox , put the gear lever in N.
With an automatic gearbox , put the gear lever in P or N.
For
d iesel vehicles, in
temperatures below zero the
engine will not start until the
preheater warning lamp has gone off.
If this warning lamp comes on after
pressing "START/STOP", you should
hold the brake or clutch pedal down
until the warning lamp goes off and
do not press the START/STOP button
again.
F

W

ith the electronic key inside the vehicle
(it is not necessary to put it in the reader),
press the brake pedal for vehicles with
an automatic or electronic gearbox, or
fully declutch for vehicles with a manual
gearbox.
F

P

ress the " START/STOP "
button.
T

he engine starts (see the
warning below for Diesel
vehicles). F

P

ress the " START/STOP "
button.
T

he engine starts (see the
warning below for Diesel
vehicles). The "Keyless Entry and Starting" device
must be in the recognition zone.
For safety reasons, do not leave
this
zone with the vehicle running.
driving

DS5_en_Chap04_conduite_ed01-2015
Switching off using the
electronic key
F Immobilise the vehicle.
Electronic key left in the reader
If the electronic key is left in the reader,
on opening the driver's door a message
appears to warn you.
Stopping with the "Keyless
Entry and Starting"
system
F Immobilise the vehicle.If the vehicle is not immobilised, the
engine will not stop.
Switching the ignition on
(without starting)
F With the electronic key inside the vehicle, press the " S TA R T/
STOP " button.
T

he engine stops and the
steering column locks.
F

P
ress the "
START/STOP " button
T
he engine stops and the
steering column locks.
Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a CITROËN dealer as soon as possible.
With the electronic key in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressing the "START/STOP" button,
with no action on the pedals
, allows the
ignition to be switched on.
F

R

emove the electronic key from the reader. F

P

ress the "START/STOP" button,
the instrument panel comes on
but the engine does not start.
F

P

ress the button again to switch
off the ignition and so allow the
vehicle to be locked.
With the ignition on, the system goes
into energy economy mode when
necessary to maintain the state of
charge of the battery.
Switching off the engine leads to a loss
of braking assistance.

101
DS5_en_Chap04_conduite_ed01-2015
Emergency starting with the
"Keyless Entry and Starting"
system
When the electronic key is in the recognition
zone and your vehicle does not start after
pressing the "START/STOP" button:
F
I
nsert the electronic key in the reader.
F

P
ress the brake pedal on vehicles with an
automatic or electronic gearbox, or fully
declutch with a manual gearbox.
F

P
ress the "START/STOP" button.
T

he engine starts. In the event of an emergency only, the engine
can be switched of without conditions. To do
this, press and hold the "START/STOP" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
If the electronic key is no longer in the
recognition zone when driving or when you
(later) request switching off the engine, a
message appears in the instrument panel.
Emergency switch-offElectronic key not recognised by
the "Keyless Entry and Starting"
system
F Press and hold the "START/STOP"
button for about 3 seconds if you want to
force switching off the engine (note that
restarting will not be possible without
the
key).
driving

DS5_en_Chap04_conduite_ed01-2015

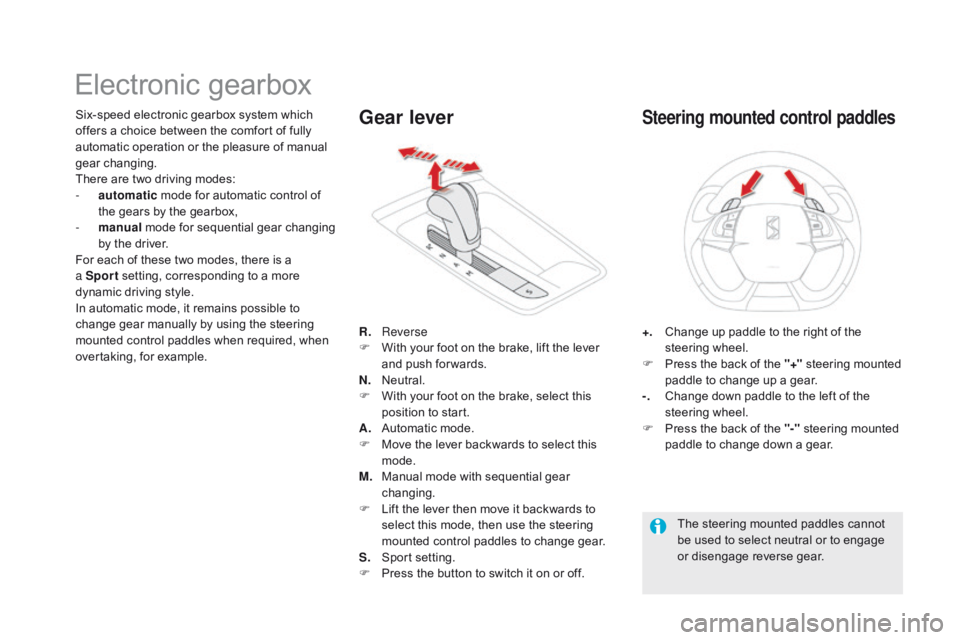

Electronic gearbox
Six-speed electronic gearbox system which
offers a choice between the comfort of fully
automatic operation or the pleasure of manual
gear changing.
There are two driving modes:
-
a
utomatic mode for automatic control of
the gears by the gearbox,
-

m
anual mode for sequential gear changing
by the driver.
For each of these two modes, there is a
a Sport setting, corresponding to a more
dynamic driving style.
In automatic mode, it remains possible to
change gear manually by using the steering
mounted control paddles when required, when
overtaking, for example. R.
R

everse
F

W
ith your foot on the brake, lift the lever
and push forwards.
N.
N

eutral.
F

W
ith your foot on the brake, select this
position to start.
A.
A

utomatic mode.
F

M
ove the lever backwards to select this
mode.
M.
M

anual mode with sequential gear
changing.
F

L
ift the lever then move it backwards to
select this mode, then use the steering
mounted control paddles to change gear.
S.
S

port setting.
F

P
ress the button to switch it on or off.Gear lever
+. Change up paddle to the right of the steering wheel.
F

P
ress the back of the "+" steering mounted
paddle to change up a gear.
-.
C

hange down paddle to the left of the
steering wheel.
F

P
ress the back of the "-" steering mounted
paddle to change down a gear.
Steering mounted control paddles
The steering mounted paddles cannot
be used to select neutral or to engage
or disengage reverse gear.
