CITROEN DS5 2017 Owners Manual

129
DS5_en_Chap04_conduite_ed01-2015

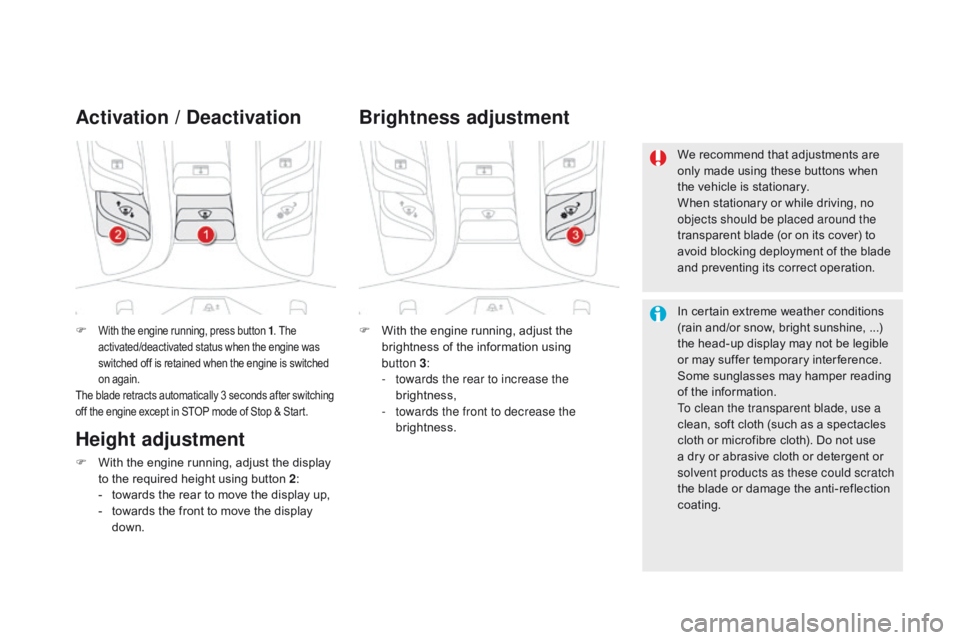

Head-up display
System which projects information onto a
transparent blade in the field of vision of the driver so
that they do not have to take their eyes off the road.
This system operates when the engine is running
and the settings are stored when the ignition is
switched off.1. Head-up display on / off.
2. Display height adjustment.
3.
Br

ightness adjustment. Once the system has been activated,
the information projected in the head-up
display is:
A.
T

he speed of your vehicle.
B.
C

ruise control/speed limiter information.
displays during
operation
c. Navigation information (according to
ve r s i o n).
For more information on the navigation
system, refer to the "Audio and
telematic" section.
driving

DS5_en_Chap04_conduite_ed01-2015
F With the engine running, press button 1. The
activated/deactivated status when the engine was
switched off is retained when the engine is switched
on again.
The blade retracts automatically 3 seconds after switching
off the engine except in STOP mode of Stop & Start.
Activation / de activation
F With the engine running, adjust the
brightness of the information using
button
3:
-

t
owards the rear to increase the
brightness,
-

t
owards the front to decrease the
brightness.
Brightness adjustment
We recommend that adjustments are
only made using these buttons when
the vehicle is stationary.
When stationary or while driving, no
objects should be placed around the
transparent blade (or on its cover) to
avoid blocking deployment of the blade
and preventing its correct operation.
In certain extreme weather conditions
(rain and/or snow, bright sunshine, ...)
the head-up display may not be legible
or may suffer temporary inter ference.
Some sunglasses may hamper reading
of the information.
To clean the transparent blade, use a
clean, soft cloth (such as a spectacles
cloth or microfibre cloth). Do not use
a dry or abrasive cloth or detergent or
solvent products as these could scratch
the blade or damage the anti-reflection
coating.
Height adjustment
F With the engine running, adjust the display to the required height using button 2 :
-

t
owards the rear to move the display up,
-

t
owards the front to move the display
down.

131
DS5_en_Chap04_conduite_ed01-2015

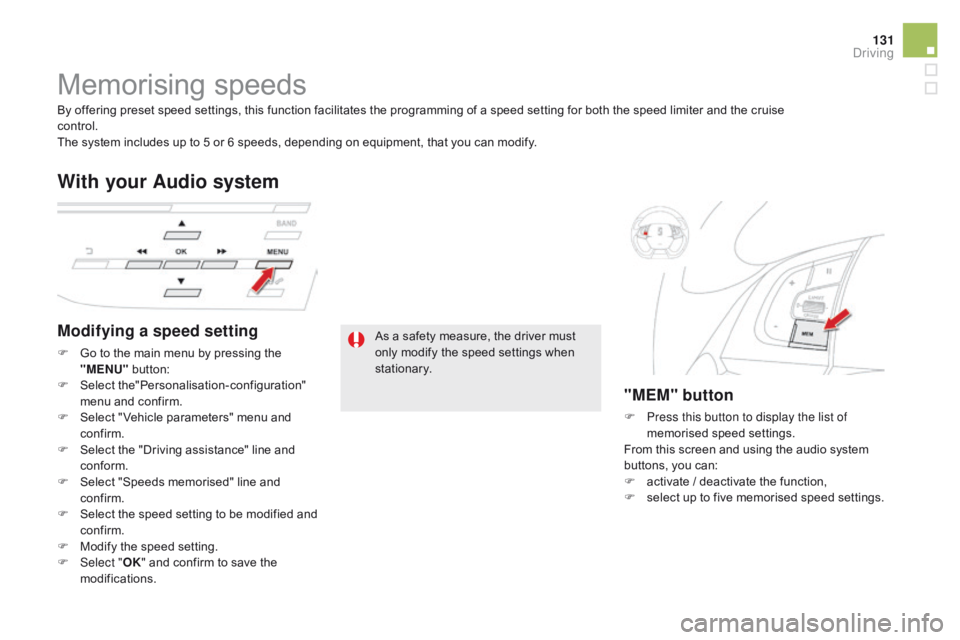

Memorising speeds
Modifying a speed setting
F Go to the main menu by pressing the "MENU" button:
F

Sel
ect the"Personalisation-configuration"
menu and confirm.
F

S
elect " Vehicle parameters" menu and
confirm.
F

S
elect the "Driving assistance" line and
conform.
F

S
elect "Speeds memorised" line and
confirm.
F

S
elect the speed setting to be modified and
confirm.
F

M
odify the speed setting.
F

Sel
ect "OK" and confirm to save the
modifications.
With your Audio system
"MEM" button
F Press this button to display the list of memorised speed settings.
From this screen and using the audio system
buttons, you can:
F

a
ctivate / deactivate the function,
F

s
elect up to five memorised speed settings.
By offering preset speed settings, this function facilitates the programming of a speed setting for both the speed limiter and the cruise
control.
The system includes up to 5 or 6 speeds, depending on equipment, that you can modify.
As a safety measure, the driver must
only modify the speed settings when
stationary.
driving

DS5_en_Chap04_conduite_ed01-2015

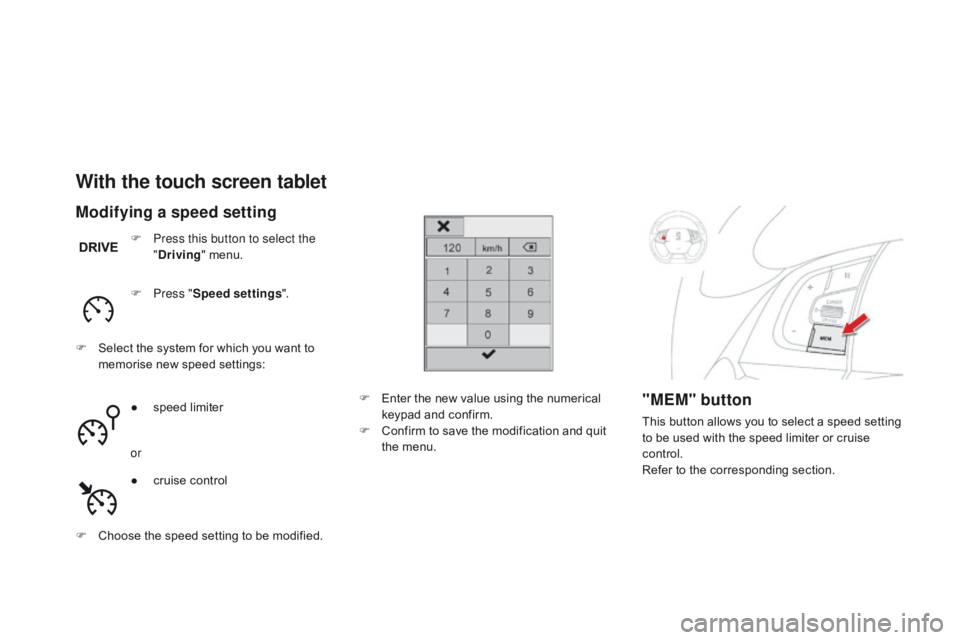

With the touch screen tablet
F Press this button to select the "dr iving" menu.
F

P
ress " Speed settings ".
F

S

elect the system for which you want to
memorise new speed settings:
F

C

hoose the speed setting to be modified. F

E
nter the new value using the numerical
keypad and confirm.
F

C
onfirm to save the modification and quit
the menu.
"MEM" button
This button allows you to select a speed setting
to be used with the speed limiter or cruise
control.
Refer to the corresponding section.
Modifying a speed setting
● speed limiter
or
●

c
ruise control

133
DS5_en_Chap04_conduite_ed01-2015

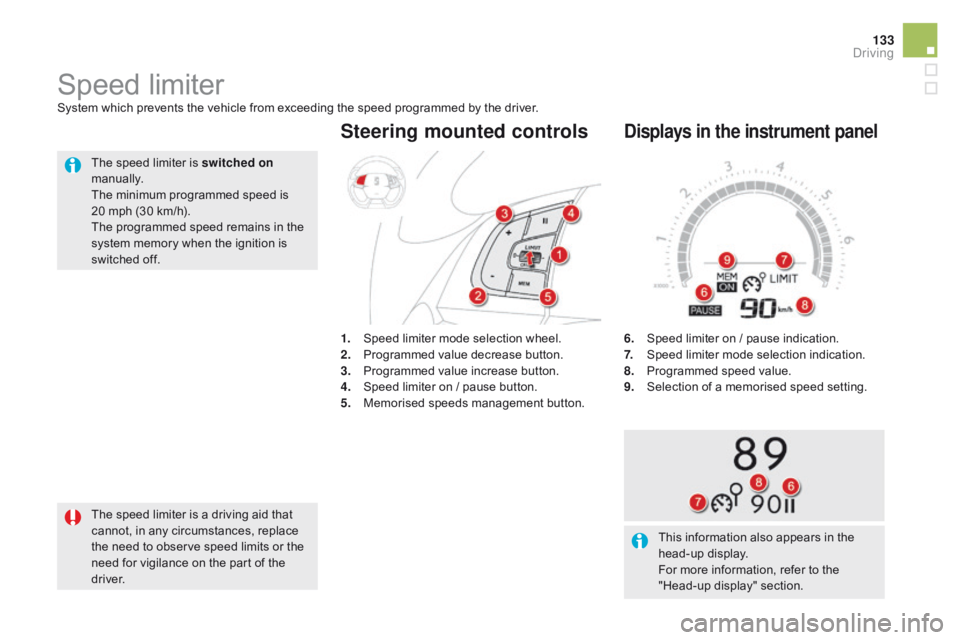

6. Speed limiter on / pause indication.
7. Speed limiter mode selection indication.
8.
P

rogrammed speed value.
9.
S

election of a memorised speed setting.
displays in the instrument panel
Speed limiter
The speed limiter is a driving aid that
cannot, in any circumstances, replace
the need to observe speed limits or the
need for vigilance on the part of the
driver. 1.
S

peed limiter mode selection wheel.
2.
P
rogrammed value decrease button.
3.
P
rogrammed value increase button.
4.
S
peed limiter on / pause button.
5.
M
emorised speeds management button.
Steering mounted controls
This information also appears in the
head-up display.
For more information, refer to the
"Head-up display" section.
System which prevents the vehicle from exceeding the speed programmed by the driver.
The speed limiter is switched on
manually.
The minimum programmed speed is
20 mph (30 km/h).
The programmed speed remains in the
system memory when the ignition is
switched off.
driving

DS5_en_Chap04_conduite_ed01-2015

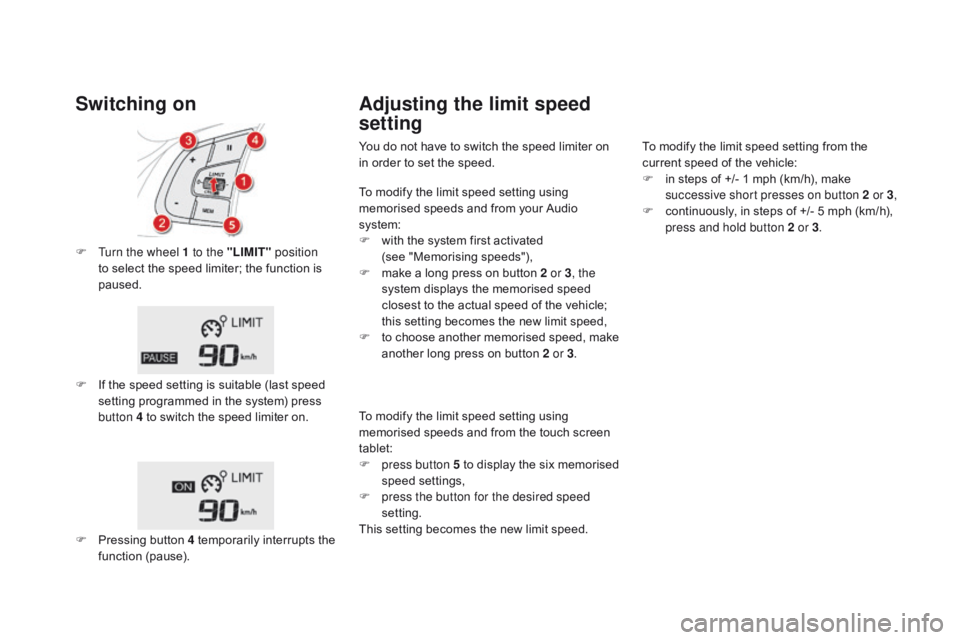

F Turn the wheel 1 to the "LIMIT" position
to select the speed limiter; the function is
paused.
F

I
f the speed setting is suitable (last speed
setting programmed in the system) press
button 4 to switch the speed limiter on.
Switching on Adjusting the limit speed
setting
F Pressing button 4 temporarily interrupts the
function (pause). You do not have to switch the speed limiter on
in order to set the speed.
To modify the limit speed setting from the
current speed of the vehicle:
F
i
n steps of +/- 1 mph (km/h), make
successive short presses on button 2 or 3 ,
F
c
ontinuously, in steps of +/- 5 mph (km/h),
press and hold button 2 or 3 .
To modify the limit speed setting using
memorised speeds and from your Audio
system:
F
w
ith the system first activated
(see "Memorising speeds"),
F
m
ake a long press on button 2 or 3
, the
system displays the memorised speed
closest to the actual speed of the vehicle;
this setting becomes the new limit speed,
F
t
o choose another memorised speed, make
another long press on button 2 or 3 .
To modify the limit speed setting using
memorised speeds and from the touch screen
tablet:
F
p
ress button 5 to display the six memorised
speed settings,
F
p
ress the button for the desired speed
setting.
This setting becomes the new limit speed.

135
DS5_en_Chap04_conduite_ed01-2015
Temporarily exceeding the
programmed speedSwitching off
Operating fault
The use of mats not approved by
CITROËN may inter fere with the
operation of the speed limiter.
To avoid any risk of jamming of the
pedals:
-

e
nsure that the mat is positioned
c o r r e c t l y,
-

d
o not fit one mat on top of another.
F

I

f you want to temporarily exceed the
programmed limit speed, press firmly


on
the accelerator pedal, going beyond the
point of resistance .
The speed limiter is deactivated temporarily
and the displayed programmed speed flashes. F

T

urn wheel 1 to the "0"
position: the
display of information on the speed limiter
disappears. Flashing dashes indicate a fault with the speed
limiter.
On a steep descent or in the event of
sharp acceleration, the speed limiter
will not be able to prevent the vehicle
from exceeding the programmed speed.
When the limit speed is exceeded but is not
due to action by the driver, there is an audible
signal to complete the alert.
Once the speed of the vehicle returns to
the programmed setting, the speed limiter
functions again: the display of the programmed
speed setting becomes steady again. Have it checked by a CITROËN dealer or a
qualified workshop.
driving

DS5_en_Chap04_conduite_ed01-2015

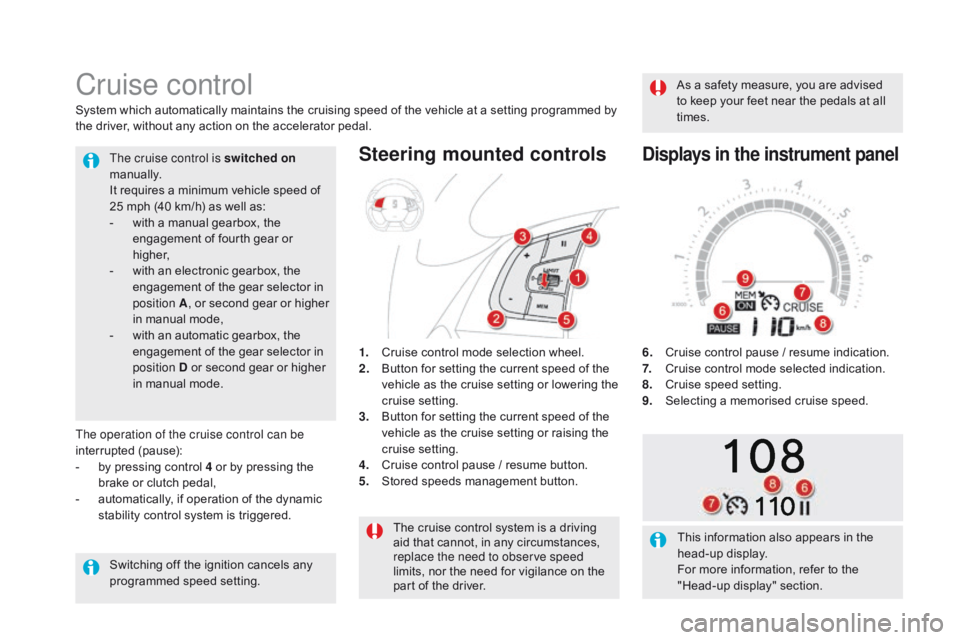

The cruise control system is a driving
aid that cannot, in any circumstances,
replace the need to observe speed
limits, nor the need for vigilance on the
part of the driver.
Cruise control
1. Cruise control mode selection wheel.
2. Button for setting the current speed of the
vehicle as the cruise setting or lowering the
cruise setting.
3.
B

utton for setting the current speed of the
vehicle as the cruise setting or raising the
cruise setting.
4.
C

ruise control pause / resume button.
5.
S

tored speeds management button.
Steering mounted controls
6. Cruise control pause / resume indication.
7. C ruise control mode selected indication.
8.
C

ruise speed setting.
9.
S

electing a memorised cruise speed.
displays in the instrument panelThe cruise control is switched on
manually.
It requires a minimum vehicle speed of
25 mph (40 km/h) as well as:
-

w
ith a manual gearbox, the
engagement of fourth gear or
higher,
-

w
ith an electronic gearbox, the
engagement of the gear selector in
position A, or second gear or higher
in manual mode,
-

w
ith an automatic gearbox, the
engagement of the gear selector in
position
d or second gear or higher
in manual mode.
This information also appears in the
head-up display.
For more information, refer to the
"Head-up display" section.
System which automatically maintains the cruising speed of the vehicle at a setting programmed by
the driver, without any action on the accelerator pedal.
Switching off the ignition cancels any
programmed speed setting.
The operation of the cruise control can be
interrupted (pause):
-

b

y pressing control 4 or by pressing the
brake or clutch pedal,
-

a

utomatically, if operation of the dynamic
stability control system is triggered. As a safety measure, you are advised
to keep your feet near the pedals at all
times.

137
DS5_en_Chap04_conduite_ed01-2015

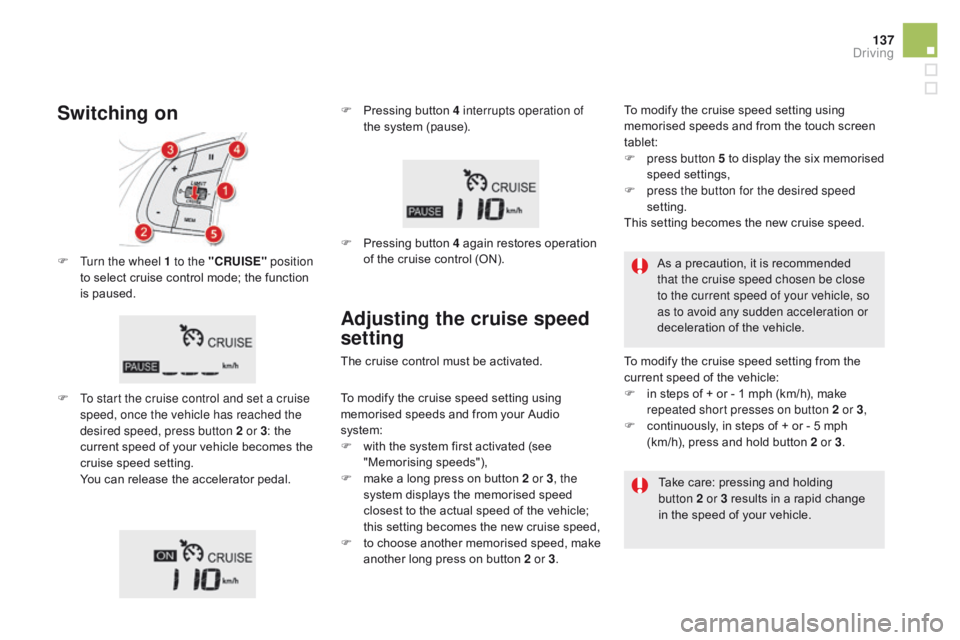

F Turn the wheel 1 to the "cRUISE" position
to select cruise control mode; the function
is paused.
F

T
o start the cruise control and set a cruise
speed, once the vehicle has reached the
desired speed, press button 2 or 3 : the
current speed of your vehicle becomes the
cruise speed setting.
Y

ou can release the accelerator pedal.
Switching onF Pressing button 4 interrupts operation of the system (pause).
F

P
ressing button 4 again restores operation
of the cruise control (ON).
Adjusting the cruise speed
setting
The cruise control must be activated. As a precaution, it is recommended
that the cruise speed chosen be close
to the current speed of your vehicle, so
as to avoid any sudden acceleration or
deceleration of the vehicle.
To modify the cruise speed setting from the
current speed of the vehicle:
F
i
n steps of + or - 1 mph (km/h), make
repeated short presses on button 2 or 3 ,
F

c
ontinuously, in steps of + or - 5 mph
(km/h), press and hold button 2 or 3 .
Take care: pressing and holding
button
2 or 3 results in a rapid change
in the speed of your vehicle.
To modify the cruise speed setting using
memorised speeds and from your Audio
system:
F

w
ith the system first activated (see
"Memorising speeds"),
F

m
ake a long press on button 2 or 3 , the
system displays the memorised speed
closest to the actual speed of the vehicle;
this setting becomes the new cruise speed,
F

t
o choose another memorised speed, make
another long press on button 2 or 3. To modify the cruise speed setting using
memorised speeds and from the touch screen
tablet:
F

p
ress button 5 to display the six memorised
speed settings,
F
p
ress the button for the desired speed
setting.
This setting becomes the new cruise speed.
driving

DS5_en_Chap04_conduite_ed01-2015
Only activate the cruise control if the
traffic conditions will allow you to drive
for a certain time at a steady speed
and at a safe distance from the vehicle
ahead.
Do not activate the cruise control in
urban areas, in heavy traffic, on winding
or steep roads, on slippery or flooded
roads, or in conditions of poor visibility
(heavy rain, fog, falling snow...).
In some circumstances, it may not
be possible to maintain or reach the
programmed speed: towing, vehicle
heavily loaded, steep climb.
Switching off
You may have to brake to control the speed of
your vehicle. In this case, the cruise control is
automatically paused.
To activate the system again, press button 4.Temporarily exceeding the
programmed speed
F Turn wheel 1 to the "0" position: the cruise
control information disappears from the
screen.
When required (overtaking manoeuvre...), it is
possible to exceed the programmed speed by
pressing the accelerator pedal.
The cruise control is temporarily overridden
and the programmed speed setting flashes.
To return to the programmed speed, simply
release the accelerator pedal.
Once the vehicle has returned to the
programmed speed, the cruise control takes
over again: the display of the programmed
speed setting becomes steady again.
When descending a steep hill, the
cruise control system cannot prevent
the vehicle from exceeding the
programmed speed.
Operating fault
Flashing dashes indicate a fault with the cruise
control system.
Have it checked by a CITROËN dealer or a
qualified workshop. The use of mats not approved by
CITROËN may inter fere with the
operation of the cruise control.
To avoid any risk of jamming of the
pedals:
-

e
nsure that the mat is positioned
c o r r e c t l y,
-

n
ever fit one mat on top of another.
