F Position the foot of the jack 2 on the ground
and ensure that it is directly below the
front
A or rear B jacking point provided on
the underbody, whichever is closest to the
wheel to be changed. F
Ra ise the vehicle until there is sufficient
space between the wheel and the ground
to admit the spare (not punctured) wheel
easily.
F

R
emove the bolts and store them in a clean
place.
F

R
emove the wheel.
F
E xtend the jack 2 until it comes into contact
with the jacking point A or B used; the
contact sur face at the jacking point A or B
must be correctly engaged with the central
part of the head of the jack
Ensure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop -
Risk of injury!
Ensure that the jack is positioned only at one of the jacking points A or B under the vehicle,
making sure that the vehicle's contact sur face is centred on the head of the jack. Other wise
there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury!
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
Fitting a wheel
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers
do not come into contact with the
"space-saver" spare wheel. The wheel
is secured by the conical sur face of
each bolt.
After changing a wheel
The wheel with the punctured tyre cannot
be fitted under the vehicle. It must be
stowed flat on the boot floor; use a cover
to protect the inside of the boot.
When using the "space-saver" type spare
wheel, do not exceed 50 mph (80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked by a
CITROËN dealer or a qualified workshop
without delay.
Have the punctured wheel repaired and
refitted to the vehicle as soon as possible.
List of operations

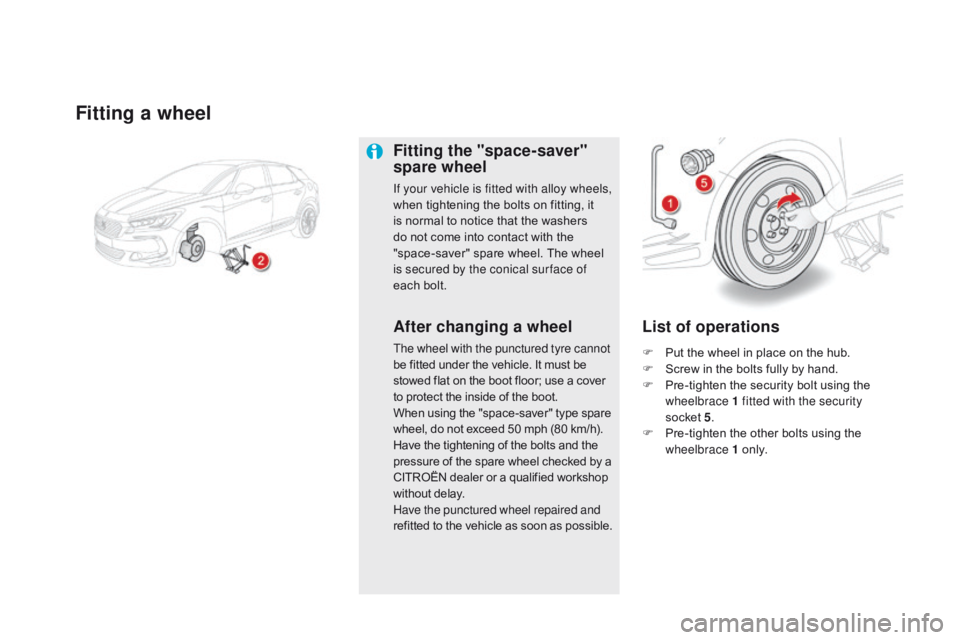

F Put the wheel in place on the hub.
F S crew in the bolts fully by hand.
F

P
re-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket
5 .
F


P
re-tighten the other bolts using the
wheelbrace 1 o n l y.

2 11
DS5_en_Chap08_info-pratiques_ed01-2015

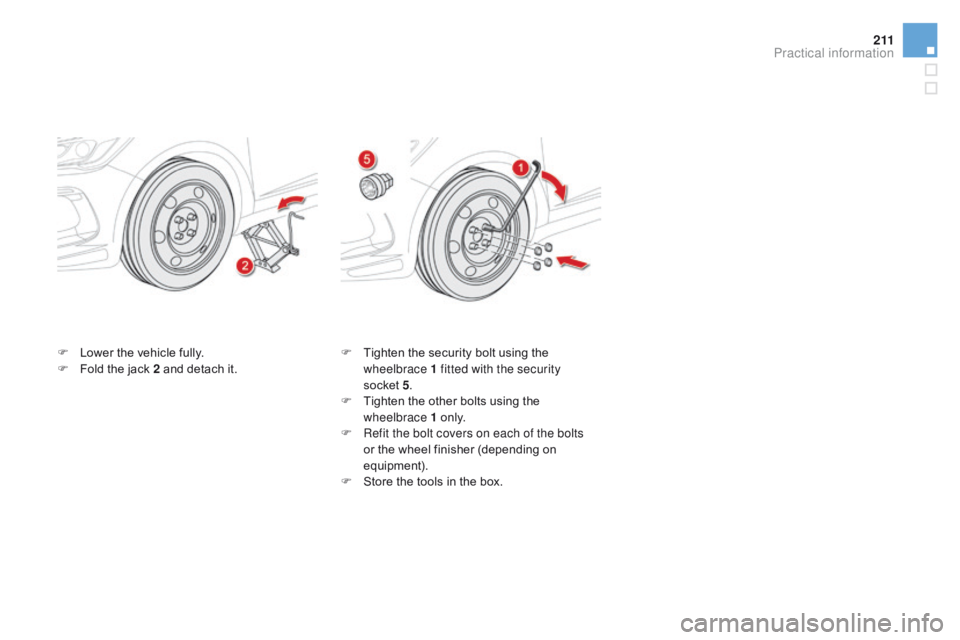

F Lower the vehicle fully.
F F old the jack 2 and detach it. F
T ighten the security bolt using the
wheelbrace 1 fitted with the security
socket
5 .
F


T
ighten the other bolts using the
wheelbrace 1 o n l y.
F

R
efit the bolt covers on each of the bolts
or the wheel finisher (depending on
equipment).
F

S
tore the tools in the box.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50
km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.

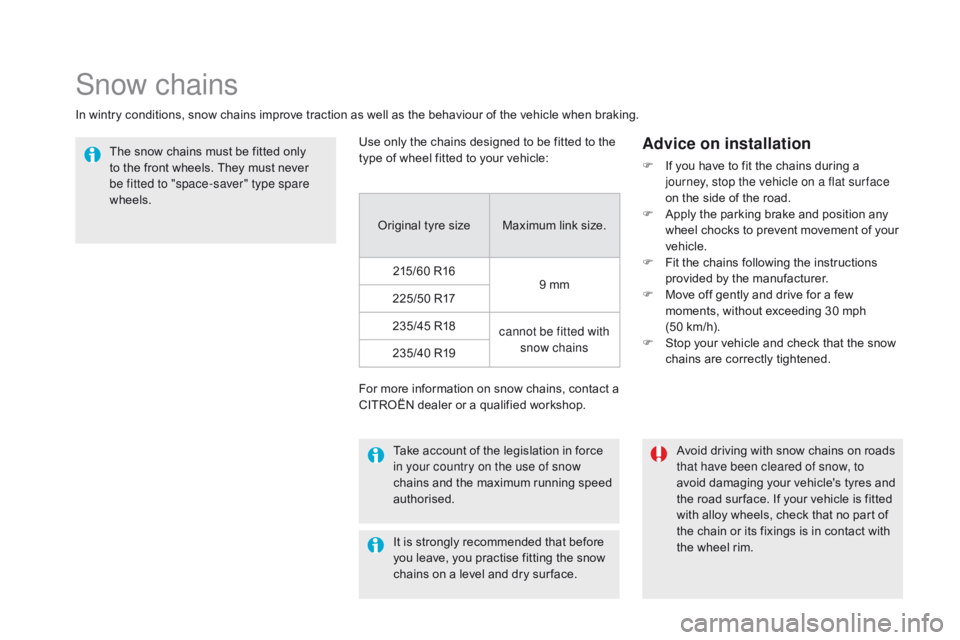

Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original tyre size Maximum link size.215/60 R16 9 mm
225/50 R17
235/45 R18 cannot be fitted with
snow chains
235/40 R19
For more information on snow chains, contact a
CITROËN dealer or a qualified workshop.
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.

213
DS5_en_Chap08_info-pratiques_ed01-2015
Changing a bulb
Front lamps

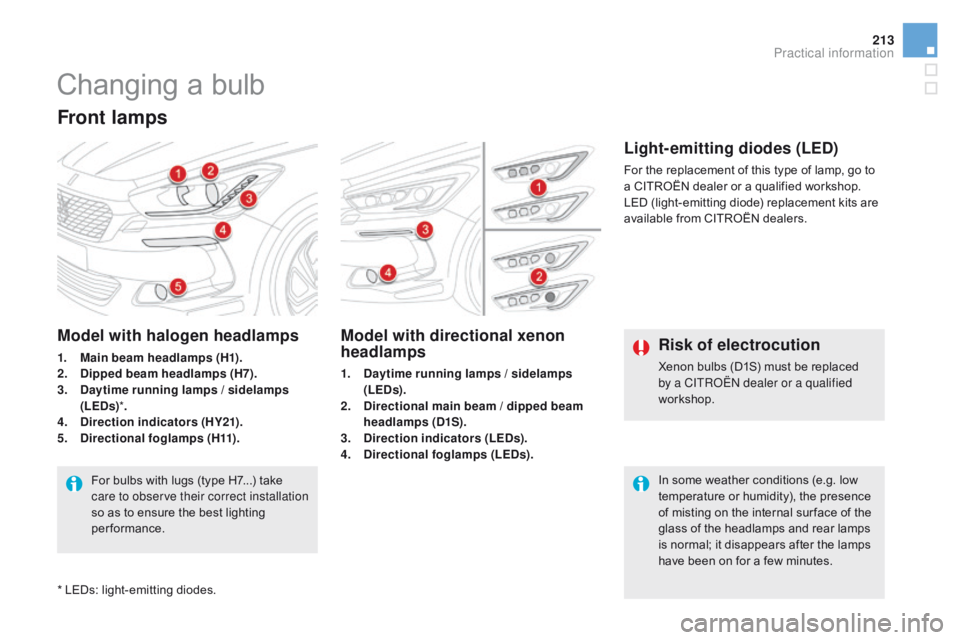

Model with directional xenon
headlamps
1. daytime running lamps / sidelamps
(LEds ).
2.
di

rectional main beam / dipped beam
headlamps (
d1S

).
3.
di

rection indicators (LE
ds
).
4.
di

rectional foglamps (LE
ds

).
Model with halogen headlamps
1. Main beam headlamps (H1).
2. di
pped beam headlamps (H7).
3.
da

ytime running lamps / sidelamps
(LE
d s)*.
4.
di

rection indicators (HY21).
5.
di

rectional foglamps ( H11) .
For bulbs with lugs (type H7...) take
care to observe their correct installation
so as to ensure the best lighting
performance. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.Risk of electrocution
Xenon bulbs (D1S) must be replaced
by a CITROËN dealer or a qualified
workshop.
Light-emitting diodes (LEd)
For the replacement of this type of lamp, go to
a CITROËN dealer or a qualified workshop.
LED (light-emitting diode) replacement kits are
available from CITROËN dealers.
* LEDs: light-emitting diodes.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
daytime running lamps / sidelamps
For the replacement of this type of LED lamp
and lighting guides, contact a CITROËN dealer
or a qualified workshop.
A replacement kit for the LEDs is available from
CITROËN dealers.

215
DS5_en_Chap08_info-pratiques_ed01-2015
dipped beam headlamps
(halogen model)
Main beam headlamps
(halogen model)
F Press on the top of the connector then
pivot the assembly downwards.
F

R
emove the connector with the bulb.
F

R
emove the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of the
bulb first.
F
R
emove the protective plastic cover by
pulling on the tab.
F
R
emove the protective plastic cover by
pulling on the tab.
F

R

emove the connector with the bulb by
pressing on the lug at the bottom.
F

R

emove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
Front foglamps
F Remove the deflector under the body.
F D isconnect the bulb connector.
F

T
urn the bulb a quarter of a turn, withdraw
and change it.
To refit, carry out these operations in reverse
o r d e r.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.

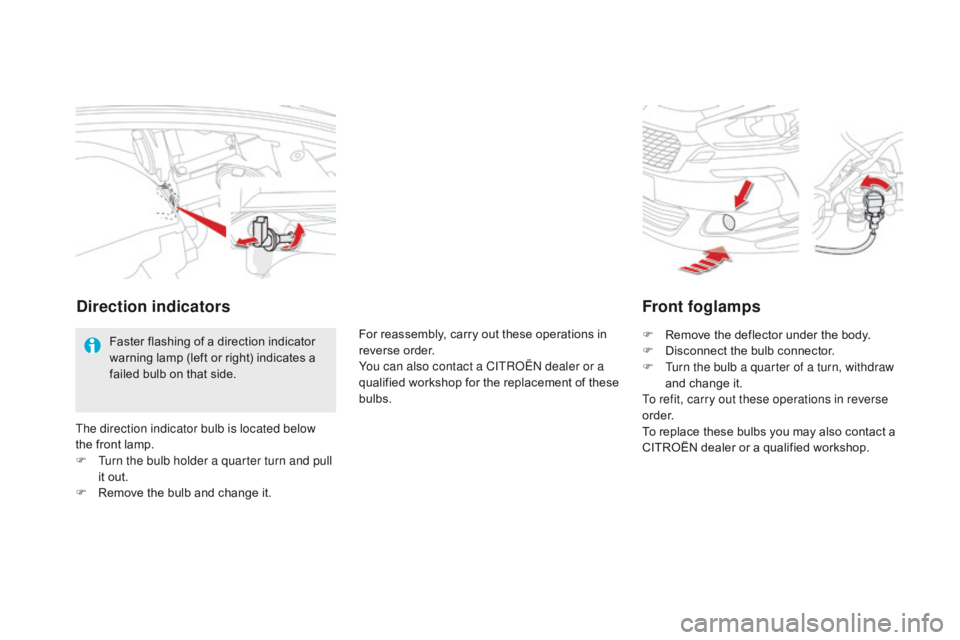

direction indicators
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
The direction indicator bulb is located below
the front lamp.
F

T

urn the bulb holder a quarter turn and pull
it out.
F

R

emove the bulb and change it. For reassembly, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

217
DS5_en_Chap08_info-pratiques_ed01-2015

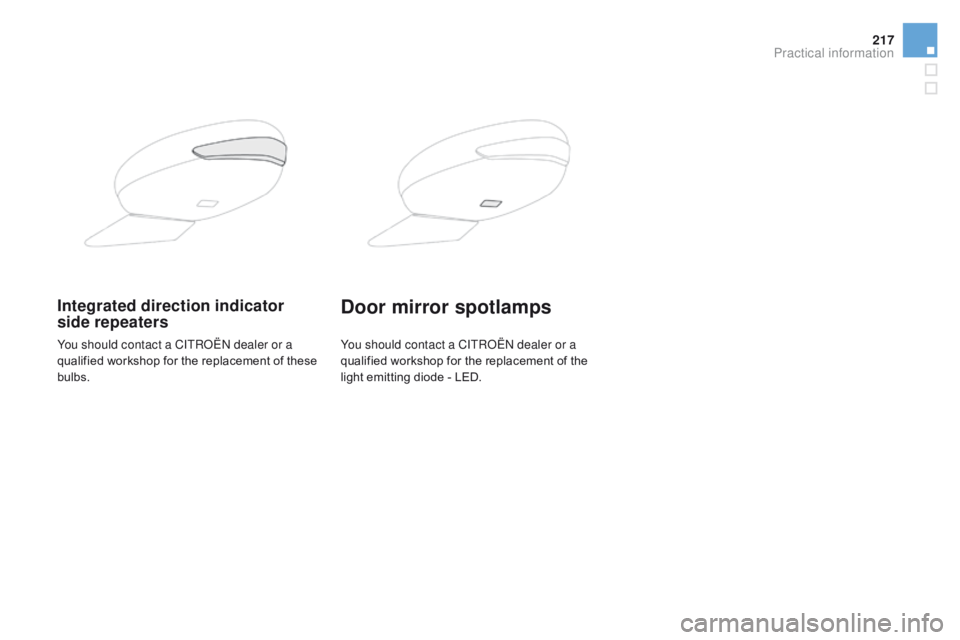

Integrated direction indicator
side repeatersdoor mirror spotlamps
You should contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.You should contact a CITROËN dealer or a
qualified workshop
for the replacement of the
light emitting diode - LED.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015

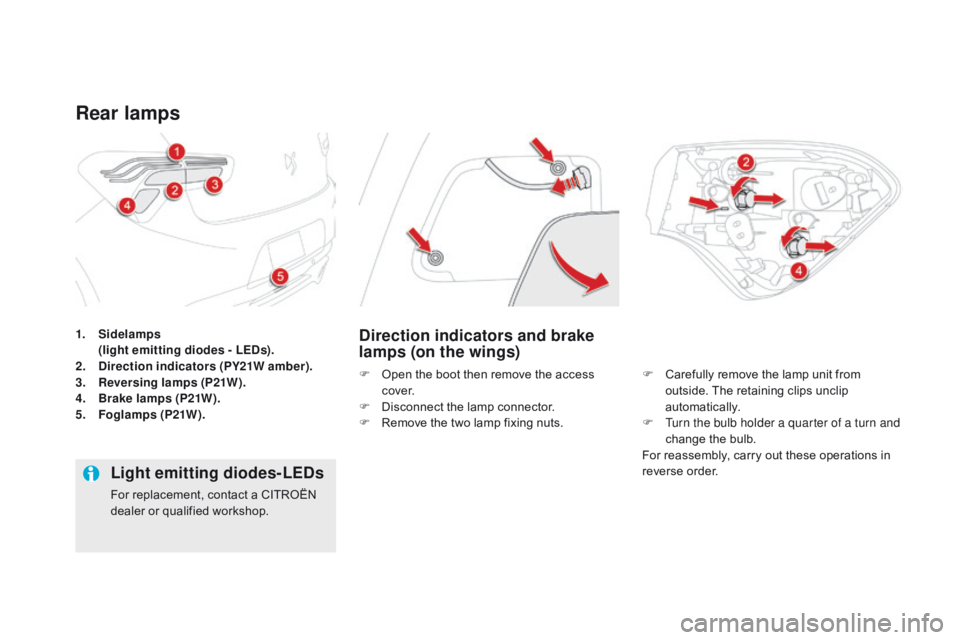

1. Sidelamps (light emitting diodes - LEds ).
2.


d
i
rection indicators (PY21W amber).
3.

R
eversing lamps (P21W).
4.

B
rake lamps (P21W).
5.

F
oglamps (P21W).
Rear lamps
direction indicators and brake
lamps (on the wings)
F Open the boot then remove the access c ove r.
F

D
isconnect the lamp connector.
F

R
emove the two lamp fixing nuts. F
C arefully remove the lamp unit from
outside. The retaining clips unclip
automatically.
F

T
urn the bulb holder a quarter of a turn and
change the bulb.
For reassembly, carry out these operations in
reverse order.
Light emitting diodes-LEds
For replacement, contact a CITROËN
dealer or qualified workshop.
