When the dipped or main beam headlamps
are on, this function, allows the light beams to
better follow the road.
The use of this function, coupled with the
xenon headlamps and the cornering lighting,
considerably improves the quality of your
lighting round bends.
Directional lighting
with directional lighting
without directional lighting
Programming
Operating fault
The system is activated or
deactivated in the vehicle
configuration menu.
The system is activated by default.
The state of the system stays in
memory on switching off the ignition.
This function is inactive:
-
wh
en stationary or at low speeds,
-
when
reverse is engaged. If a fault occurs, this warning lamp
flashes in the instrument panel,
accompanied by a message in the
screen.
Contact a CITROËN dealer or a
qualified workshop.
visibility
Page 156 of 376
DS5_en_Chap05_visibilite_ed02-2015
Rear wiper
If a significant accumulation of snow
or ice is present, or when using a
bicycle carrier on the boot, deactivate
the automatic rear wiper via the
configuration menu.park,
intermittent wipe,
wash-wipe (set duration).Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.
The function is activated or
deactivated via the configuration
menu.
This function is activated by default.
Programming
F Pull the windscreen wiper stalk towards
you. The windscreen wash then the
windscreen wipers operate for a fixed
period.
The headlamp washers only operate when the
dipped or main beam headlamps are on,
with the vehicle moving .
Windscreen and headlamp
wash
Rear wiper selection ring:
To reduce the consumption of the fluid by the
headlamp washers, they operate only with
every seventh use of the screenwash or every
25 miles (40 km) during a given journey.
Page 213 of 376
2 11
DS5_en_Chap08_info-pratiques_ed02-2015
Changing a bulb
Front lamps
Model with directional xenon
headlamps
1. daytime running lamps / sidelamps
( LEds).
2. dir
ectional main beam / dipped beam
headlamps (
d1S)
.
3.
dire
ction indicators (LE
ds)
.
4.
dire
ctional foglamps (LE
ds).
Model with halogen headlamps
1. Main beam headlamps (H1).
2. dip
ped beam headlamps (H7).
3.
day
time running lamps / sidelamps
(LE
ds
)* .
4.
dire
ction indicators (HY21).
5.
dire
ctional foglamps ( H11) .
For bulbs with lugs (type H7...) take
care to observe their correct installation
so as to ensure the best lighting
performance. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.Risk of electrocution
Xenon bulbs (D1S) must be replaced
by a CITROËN dealer or a qualified
workshop.
Light-emitting diodes (LEd)
For the replacement of this type of lamp, go to
a CITROËN dealer or a qualified workshop.
LED (light-emitting diode) replacement kits are
available from CITROËN dealers.
* LEDs: light-emitting diodes.
Practical information
Page 214 of 376
DS5_en_Chap08_info-pratiques_ed02-2015
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
do n
ot clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
us
e a sponge and soapy water or a
pH neutral product,
F
wh
en using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
Do n
ot touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
daytime running lamps / sidelamps
For the replacement of this type of LED lamp
and lighting guides, contact a CITROËN dealer
or a qualified workshop.
A replacement kit for the LEDs is available from
CITROËN dealers.
Page 215 of 376
213
DS5_en_Chap08_info-pratiques_ed02-2015

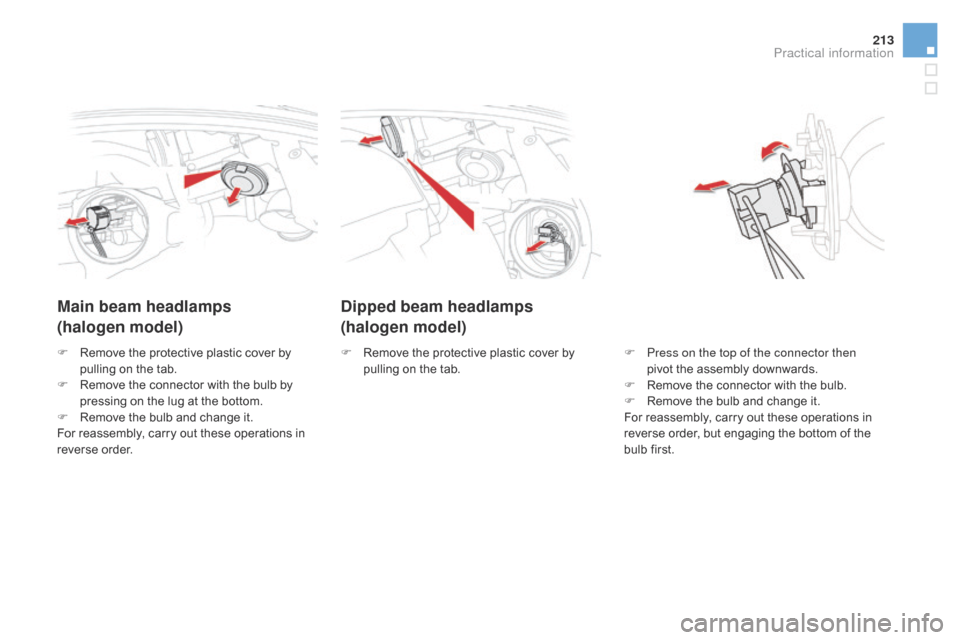

dipped beam headlamps
( halogen model)
Main beam headlamps
(halogen model)
F Press on the top of the connector then
p
ivot the assembly downwards.
F
Re
move the connector with the bulb.
F
Re
move the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of the
bulb first.
F Re
move the protective plastic cover by
pulling on the tab.
F Re
move the protective plastic cover by
pulling on the tab.
F
Re
move the connector with the bulb by
pressing on the lug at the bottom.
F
Re
move the bulb and change it.
For reassembly, carry out these operations in
reverse order.
Practical information
Page 224 of 376
DS5_en_Chap08_info-pratiques_ed02-2015

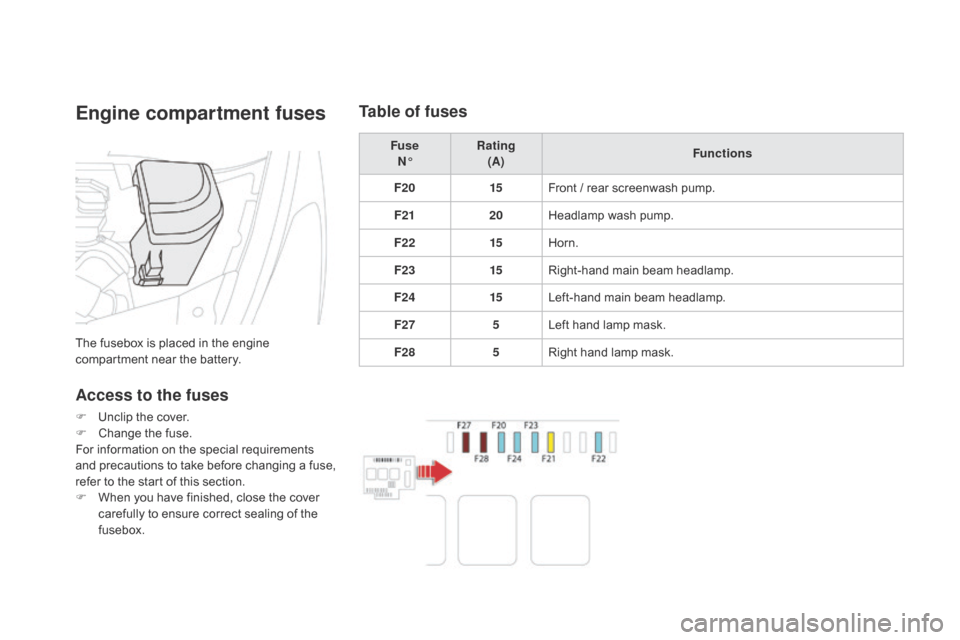

Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery.
Access to the fuses
F Unclip the cover.
F Ch ange the fuse.
For information on the special requirements
and precautions to take before changing a fuse,
refer to the start of this section.
F
Wh
en you have finished, close the cover
carefully to ensure correct sealing of the
fusebox. Fuse
N° Rating
(A) Functions
F20 15Front / rear screenwash pump.
F21 20Headlamp wash pump.
F22 15Horn.
F23 15Right-hand main beam headlamp.
F24 15Left-hand main beam headlamp.
F27 5Left hand lamp mask.
F28 5Right hand lamp mask.
Table of fuses
Page 225 of 376
223
DS5_en_Chap08_info-pratiques_ed02-2015
12 V battery
The battery is located under the bonnet.
To gain access to it:
F
op
en the bonnet using the interior release
lever, then the exterior safety catch,
F
ra
ise the plastic cover on the (+) terminal.
Access to the battery
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands after wards.
Procedure for starting the engine using another battery or charging a discharged battery.
General points
Lead-acid starter batteries
Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
If your vehicle has an automatic
gearbox, do not try to start the engine
by pushing the vehicle.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried out
only by a CITROËN dealer or a qualified
workshop.
The battery (-) terminal is not accessible.
A remote earth point is provided at the front of
the vehicle.
For access to it:
F
un
clip the plastic cover, located alongside
the left-hand headlamp.
Practical information
Page 229 of 376
227
DS5_en_Chap08_info-pratiques_ed02-2015
Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.System which manages the duration of use of
certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio and
telematics system,
w
indscreen wipers, dipped
beam headlamps,
c
ourtesy lamps, etc. for
a maximum combined duration of about
forty
mi
nutes.
Energy economy mode
Switching to economy mode
A message then appears in the instrument
panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time,
it
w
ill be maintained for around 10 minutes
with the Bluetooth hands-free system of your
audio
s
ystem.
Exiting economy mode
These functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
-
fo
r less than ten minutes, to use the
equipment for approximately five minutes,
-
fo
r more than ten minutes, to use the
equipment for up to approximately
thirty
mi
nutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from
starting.
For more information on the battery,
refer to the corresponding section.
Practical information
Page 235 of 376
233
DS5_en_Chap08_info-pratiques_ed02-2015

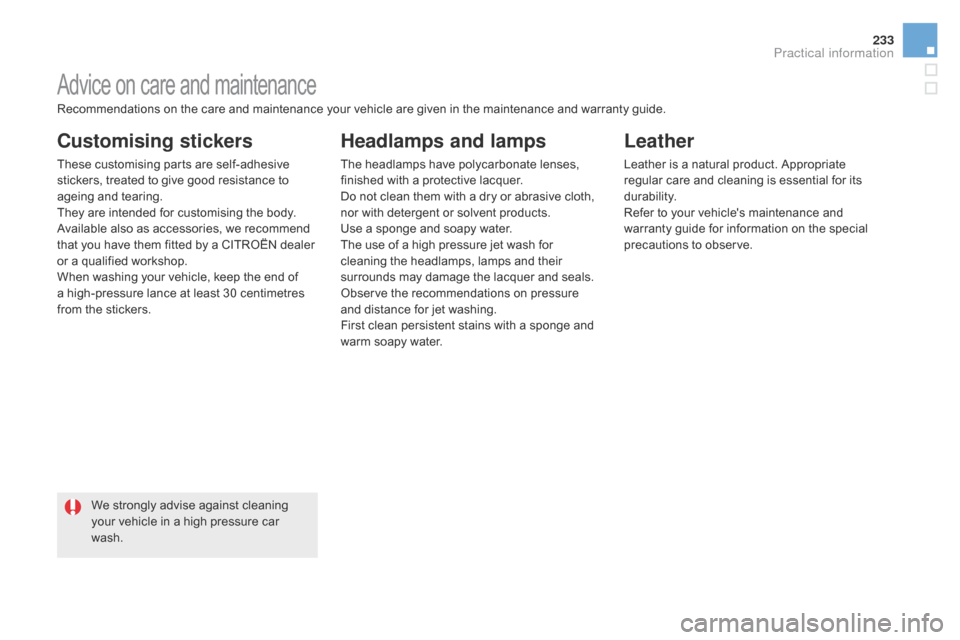

Advice on care and maintenance
customising stickers
These customising parts are self-adhesive
stickers, treated to give good resistance to
ageing and tearing.
They are intended for customising the body.
Available also as accessories, we recommend
that you have them fitted by a CITROËN dealer
or a qualified workshop.
When washing your vehicle, keep the end of
a high-pressure lance at least 30 centimetres
from the stickers.We strongly advise against cleaning
your vehicle in a high pressure car
wash.
Headlamps and lamps
The headlamps have polycarbonate lenses,
finished with a protective lacquer.
Do not clean them with a dry or abrasive cloth,
nor with detergent or solvent products.
Use a sponge and soapy water.
The use of a high pressure jet wash for
cleaning the headlamps, lamps and their
surrounds may damage the lacquer and seals.
Observe the recommendations on pressure
and distance for jet washing.
First clean persistent stains with a sponge and
warm soapy water.
Recommendations on the care and maintenance your vehicle are given in the maintenance and warranty guide.
Leather
Leather is a natural product. Appropriate
regular care and cleaning is essential for its
durability.
Refer to your vehicle's maintenance and
warranty guide for information on the special
precautions to observe.
Practical information
Page 246 of 376
DS5_en_Chap09_verifications_ed02-2015

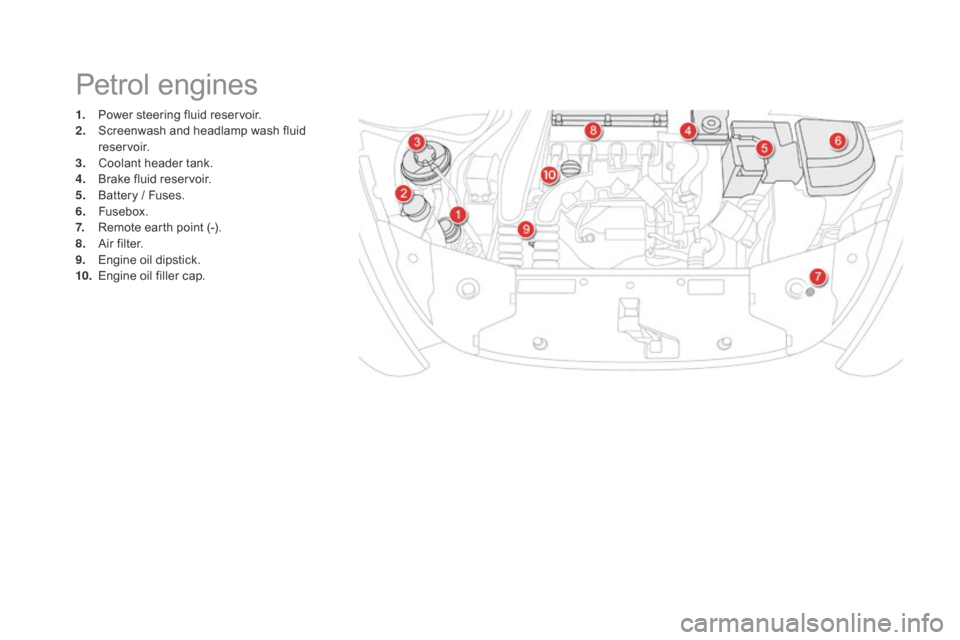

1. Power steering fluid reservoir.
2. Sc reenwash and headlamp wash fluid
reservoir.
3.
Co
olant header tank.
4.
Br
ake fluid reservoir.
5.
Ba
ttery / Fuses.
6.
Fus
ebox.
7.
Re
mote earth point (-).
8.
Ai
r filter.
9.
En
gine oil dipstick.
10.
En
gine oil filler cap.
Petrol engines
