Head-up display 126 -127
Instrument panels, screens
18
, 37-38
-
ch

eck / service indicator /
trip distance recorder
-
li

ghting dimmer
Warning lamps
19

-31
Indicators
32-

36
Electric parking brake
10

3 -108
Ignition switch / Starting and
switching off using the
START/STOP button
10
0 -102
Clock 38
H azard warning lamps
18
0
Instruments and
controls
Courtesy lamps 157-158
Seat belt / passenger's front airbag warning lamps display
187

, 190
Rear view mirror
81
H

eating / Ventilation
89
-90
Digital air conditioning
91

-94
Demisting / Defrosting
95
U

SB Player / Jack auxiliary socket
82
, 85
Dashboard fuses
21

9 -221
6 -speed manual gearbox
11

0
A u t o m a t i c g e a r b o x
111 -

114
Gear shift indicator
11

5
Hill start assist
10

9 Audio system/ Bluetooth
28

1-307
Monochrome screen C
39

- 42
Setting the date/time
42
V

ehicle configuration
40
- 41
Touch screen
43

- 45
Vehicle configuration
45
O

pening the bonnet
24

3 Rear electric windows
66

- 67
12 V accessory socket
82

, 83

choice of language
Once this menu has been selected, you can
choose the language used by the display from
a pre-defined list.
Display configuration
This menu gives access to the following
settings:
-
"C
hoice of units",
-
"D

ate and time adjustment",
-
"D

isplay parameters",
-
"B

rightness".
As a safety measure, configuration of
the multifunction screen by the driver
must only be done when stationary.
Adjusting the date and time
F
Pr

ess the "
7" or " 8" button to display
the "Display configuration" menu, then
press
"O
K"
.
F
Pr
ess the "
5" or " 6" button to select the
"Date and time adjustment" button, then
press "OK" .
F
Pr
ess the "
7" or " 8" button to select
the setting to modify. Confirm by
pressing "OK "
, then modify the setting and
confirm again to save the modification.
F
Ad

just the settings one by one, confirming
with the "OK" button.
F
Pr

ess the "5" or " 6" button, then the "OK"
button to select the "OK" box and confirm
or the "Back" button to cancel. The analogue clock, located in the
dashboard, is synchronised with the
time in the screen. It is set after the
time is adjusted using the configuration
menu and every time the ignition is
switched on.

DS5_en_Chap03_confort_ed02-2015
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
To o
btain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F
Do n

ot cover the sunshine sensor, located on the dashboard; this is used for regulation
of the digital air conditioning system.
F
Op

erate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F
En

sure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly (refer to the "Checks" section).
We r

ecommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F
To e

nsure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F
If t

he system does not produce cold air, switch it off and contact a CITROËN dealer or a
qualified workshop.
You can switch off the air conditioning (AC button) and stay in Automatic mode in order
to limit fuel consumption. If misting appears while in this mode, you can switch the air
conditioning back on temporarily to improve the situation.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.
If you want to prioritise heating, start
and leave the engine running by
pressing ECO OFF.

DS5_en_Chap04_conduite_ed02-2015

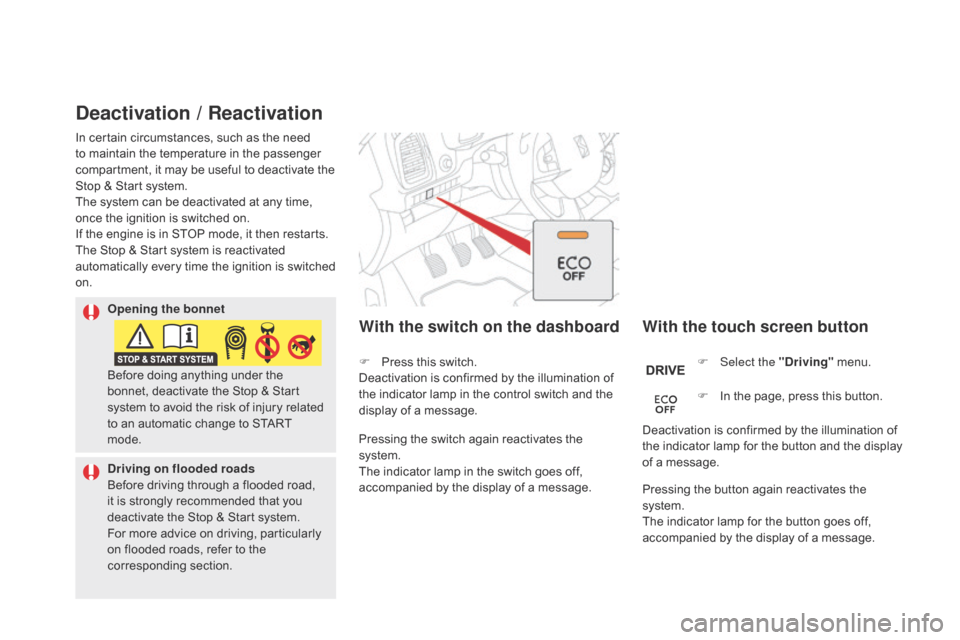

deactivation / Reactivation
With the touch screen button
With the switch on the dashboard
F Select the "dri ving" menu.
F
In t
he page, press this button.
Deactivation is confirmed by the illumination of
the indicator lamp for the button and the display
of a message.
Pressing the switch again reactivates the
system.
The indicator lamp in the switch goes off,
accompanied by the display of a message. F Pr
ess this switch.
Deactivation is confirmed by the illumination of
the indicator lamp in the control switch and the
display of a message.
Pressing the button again reactivates the
system.
The indicator lamp for the button goes off,
accompanied by the display of a message.

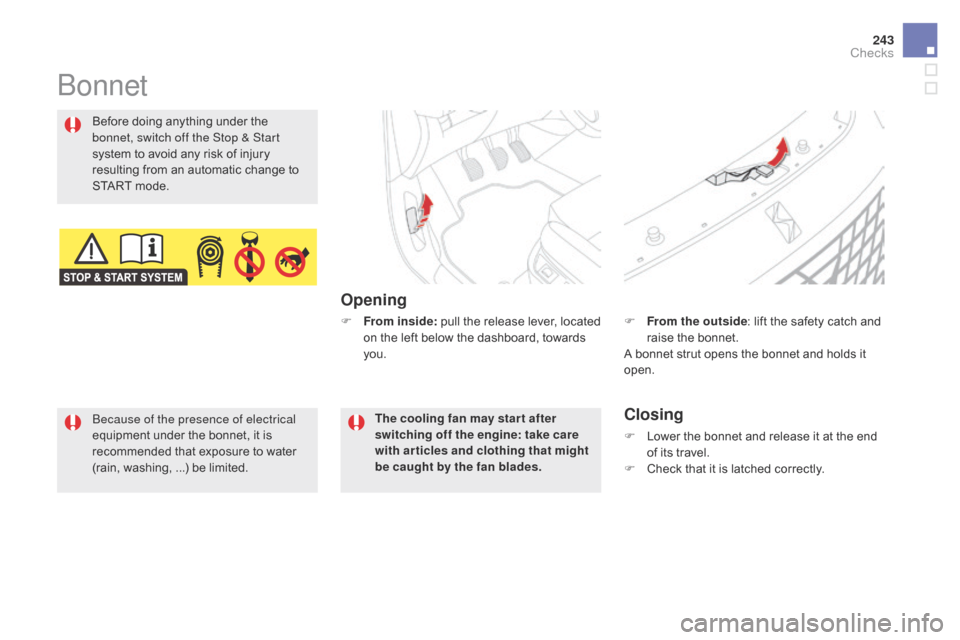

Opening the bonnet
dri

ving on flooded roads
Before driving through a flooded road,
it is strongly recommended that you
deactivate the Stop & Start system.
For more advice on driving, particularly
on flooded roads, refer to the
corresponding section.
In certain circumstances, such as the need
to maintain the temperature in the passenger
compartment, it may be useful to deactivate the
Stop & Start system.
The system can be deactivated at any time,
once the ignition is switched on.
If the engine is in STOP mode, it then restarts.
The Stop & Start system is reactivated
automatically every time the ignition is switched
on.
Before doing anything under the
bonnet, deactivate the Stop & Start
system to avoid the risk of injury related
to an automatic change to START
mode.

189
DS5_en_Chap07_securite_ed02-2015
Airbags
General information
System designed to contribute towards
improving the safety of the occupants (with
the exception of the rear centre passenger)
in the event of violent collisions. The airbags
supplement the action of the seat belts fitted
with force limiters (all except the centre rear
passenger belt).
If a collision occurs, the electronic detectors
record and analyse the front and side impacts
sustained in the impact detection zones:
-
in t
he case of a serious impact, the airbags
are deployed instantly and contribute
towards better protection of the occupants
of the vehicle (with the exception of the
rear centre passenger); immediately after
the impact, the airbags deflate rapidly so
that they do not hinder visibility or the exit
of the occupants,
-
in t

he case of a minor or rear impact or in
certain roll-over conditions, the airbags
may not be deployed; the seat belt
alone contributes towards ensuring your
protection in these situations.
The airbags do not operate when the
ignition is switched off. Deployment of one or more of the
airbags is accompanied by a slight
emission of smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
This smoke is not harmful, but sensitive
individuals may experience slight
irritation.
The noise of detonation related to the
deployment of one or more airbags may
result in a slight loss of hearing for a
short time.
Impact detection zones
A. Front impact zone.
B. Si de impact zone.
Front airbags
deployment
The airbags are deployed, except the
passenger's front airbag if it is deactivated, in the
event of a serious front impact to all or part of the
front impact zone A , in the longitudinal centreline
of the vehicle on a horizontal plane and directed
from the front to the rear of the vehicle.
The front airbag inflates between the thorax and
head of the front occupant of the vehicle and the
steering wheel, driver's side, and the dashboard,
passenger's side to cushion their for ward
movement. System which protects the driver and front
passenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the
steering wheel; the front passenger's airbag is
fitted in the dashboard above the glove box.
This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again.
Safety

Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child, pet,
object...), nor fix or attach anything close to
the inflation trajectory of the airbags; this
could cause injuries during their deployment.
Never modify the original definition of your
vehicle, particularly in the area directly
around the airbags.
After an accident or if the vehicle has been
stolen or broken into, have the airbag
systems checked.
All work on the airbag system must be
carried out by a CITROËN dealer or a
qualified workshop.
Even if all of the precautions mentioned
are observed, a risk of injury or of minor
burns to the head, chest or arms when an
airbag is deployed cannot be ruled out. The
bag inflates almost instantly (within a few
milliseconds) then deflates within the same
time discharging the hot gas via openings
provided for this purpose.Lateral airbags
Use only approved covers on the seats,
compatible with the deployment the lateral
airbags. For information on the range of seat
covers suitable for your vehicle, you can
contact a CITROËN
d
ealer.
For more information on accessories, refer
to the corresponding section.
Do not fix or attach anything to the seat
backs (clothing...). This could cause injury
to the chest or arms if the lateral airbag is
deployed.
Do not sit with the upper part of the body any
nearer to the door than necessary.
Front airbags
Do not drive holding the steering wheel by its
spokes or resting your hands on the centre
part of the wheel.
Passengers must not place their feet on the
dashboard.
Do not smoke as deployment of the airbags
can cause burns or the risk of injury from a
cigarette or pipe.
Never remove or pierce the steering wheel or
hit it violently.
Do not fit or attach anything to the steering
wheel or dashboard, this could cause injuries
with deployment of the airbags.

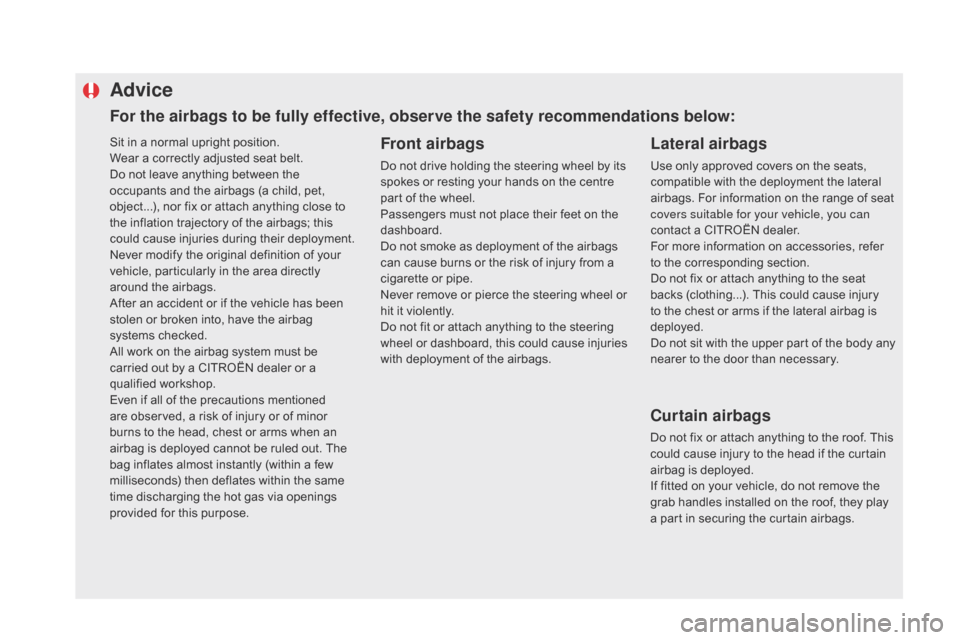

Advice
curtain airbags
Do not fix or attach anything to the roof. This
could cause injury to the head if the curtain
airbag is deployed.
If fitted on your vehicle, do not remove the
grab handles installed on the roof, they play
a part in securing the curtain airbags.
For the airbags to be fully effective, observe the safety recommendations below:

219
DS5_en_Chap08_info-pratiques_ed02-2015
Changing a fuse
The fuse extraction tweezer is fitted to the back
of the dashboard fusebox cover.
For access to it:
F
re
move the cover completely and turn it
ove r,
F
re

move the tweezer.
Access to tooling
Before changing a fuse, it is necessary to:
F identify the cause of the failure and
correct it,
F
sw

itch off all electrical consumers,
F
im

mobilise the vehicle and switch off the
ignition,
F
id

entify the failed fuse using the allocation
tables and diagrams presented on the
following pages.
changing a fuse
Good Failed
To remove or fit a fuse, it is essential to:
F
us

e the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F
al

ways replace the failed fuse with a fuse
of the same rating (same colour); a fuse of
different rating could cause a fault (risk of
f i r e).
The replacement of a fuse not
mentioned in the tables below could
cause a serious malfunction of your
vehicle. Contact a CITROËN dealer or a
qualified workshop.
If the fault recurs after replacing a fuse, have
the electrical system checked by a CITROËN
dealer or a qualified workshop. Tw e e z e r
Practical information

221
DS5_en_Chap08_info-pratiques_ed02-2015
dashboard fuses
The fusebox is placed in the lower dashboard
(left-hand side).
Access to the fuses
F See the "Access to tooling" section.
Table of fuses
Fuse N° Rating
(A) Functions
F6 A or B 15Audio system.
F8 3Alarm.
F13 10Front cigarette lighter, front 12 V socket.
F14 10Rear 12 V socket.
F16 3Rear map reading lamps.
F17 3Courtesy mirror.
F28 A or B 15Audio system.
F30 20Rear wiper.
F32 10Audio amplifier.
Practical information

243
DS5_en_Chap09_verifications_ed02-2015
Bonnet
Opening
Before doing anything under the
bonnet, switch off the Stop & Start
system to avoid any risk of injury
resulting from an automatic change to
START mode.
closing
F Lower the bonnet and release it at the end
of its travel.
F
Ch

eck that it is latched correctly.
F
Fr

om the outside
: lift the safety catch and
raise the bonnet.
A bonnet strut opens the bonnet and holds it
open.
Because of the presence of electrical
equipment under the bonnet, it is
recommended that exposure to water
(rain, washing, ...) be limited. The cooling fan may star t after
switching off the engine: take care
with articles and clothing that might
be caught by the fan blades.
F
Fro

m inside:
pull the release lever, located
on the left below the dashboard, towards
you.
checks

3 11
Diesel ......................................................21, 241
Dimensions ................................................... 2
73
Dipstick
....................................................

36, 247
Direction indicators
........ 14

8, 180, 211, 214-216
Display screen, instrument panel
........... 46

, 115
Display screen, multifunction (with audio system)
....................................... 39
Dr

iving economically ....................................... 14
Driving positions (storing)
............................... 74
Dy

namic stability control (DSC)
...... 27
, 182, 184
Gauge, fuel.............................................. 18, 239
Gearbox, automatic
...14

, 109, 111, 118, 223, 252
Gearbox, manual
.............14

, 109, 110, 118, 252
Gear lever, automatic gearbox
...................... 111
Ge

ar lever, manual gearbox
.........................11 0I

dentification, vehicle
....................................2 74
I

gnition
...........................................................10

1
Eco-driving
.....................................................
14
E

conomy mode
............................................. 2

27
Electronic brake force distribution (EBFD)
..................................... 182
E

mergency braking assistance (EBA)
.......... 182
E

mergency call
..................................... 18
1, 278
Emergency warning lamps
..................... 88

, 180
Emissions control system, SCR
............. 30

, 253
Energy economy mode
................................. 227
E

ngine compartment
............................ 24
4, 245
Engine, Diesel
....................... 24

1, 245, 246, 267
Engine, petrol
................................24

0, 244, 264
Environment
..................14

, 59, 90, 95, 225, 261 Hazard warning lamps
....................................
88
Ha

zard warning lamps, automatic
operation
..................................................... 18

0
Headlamp adjustment
................................... 150
H

eadlamps, automatic illumination
......143

, 146
Headlamps, dipped beam
............... 20

, 142, 211
Headlamps, directional
..........................15

1, 211
Headlamps, halogen
..................................... 2 11
H

eadlamps, main beam
...........20
, 142, 211, 213
Headlamps, Xenon
....................................... 2 11
H

eadlamp wash
.................................... 15
4, 249
Head restraints, front
................................ 72

, 75
Head restraints, rear
....................................... 79
He

ad-up display
............................ 12
6, 130, 133
Heating
............................................................ 91
H

ill start assist
...............................................109
F
G
I
E
H
Filling the fuel tank .................................
23 9 -242
Filter, air ........................................................ 2
51
Filter, oil
......................................................... 2 51
F

ilter, particle
........................................ 25
0, 251
Filter, passenger compartment
..................... 2 51
F

itting a wheel
............................................... 20

8
Fitting roof bars
............................................. 232
F

ittings, boot
................................................... 87
Fit

tings, interior
............................................... 82
F

ittings, rear
.................................................... 86
F

lap, fuel filler
........................................
239, 242
Flashing indicators
................................ 14

8, 180
Foglamps, front
......................14

4, 152, 211, 214
Foglamps, rear
.............................. 14

4, 216, 217
Folding/unfolding
the door mirrors
............................................ 80
Fu

el........................................................ 240, 241
Fuel consumption
............................................ 14
Fu

el tank........................................................ 242
Fusebox, dashboard
..................................... 221
F

usebox, engine compartment
..................... 222
Fu

ses
............................................................. 2

19Gear shift indicator .......................................
115
G
uide-me-home ....................................14
6, 148
Alphabetical index
