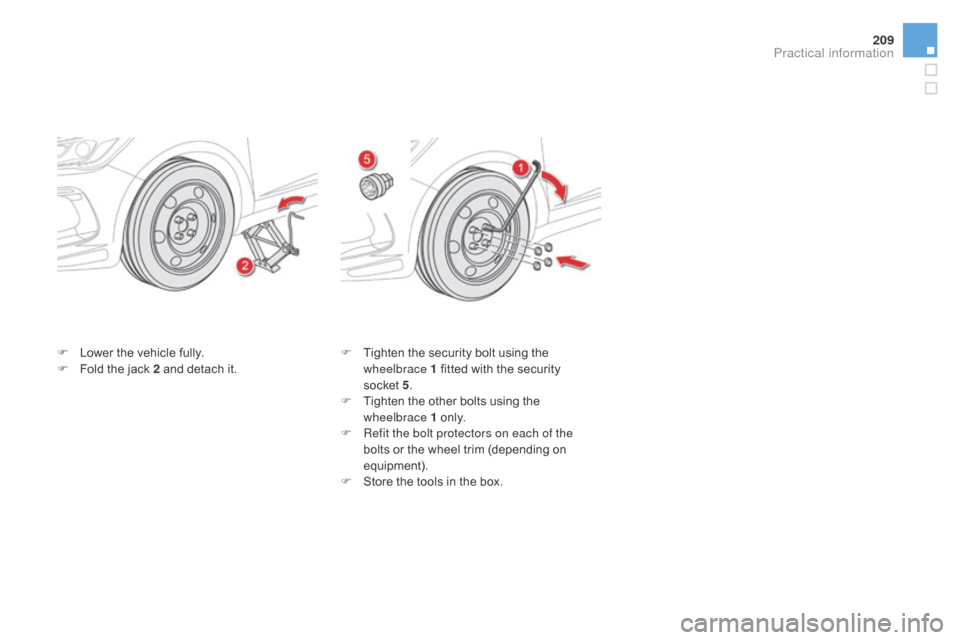

F Lower the vehicle fully.
F F old the jack 2 and detach it. F
T ighten the security bolt using the
wheelbrace 1 fitted with the security
socket 5.
F

T
ighten the other bolts using the
wheelbrace 1 o n l y.
F

R
efit the bolt protectors on each of the
bolts or the wheel trim (depending on
equipment).
F

S
tore the tools in the box.
Practical information

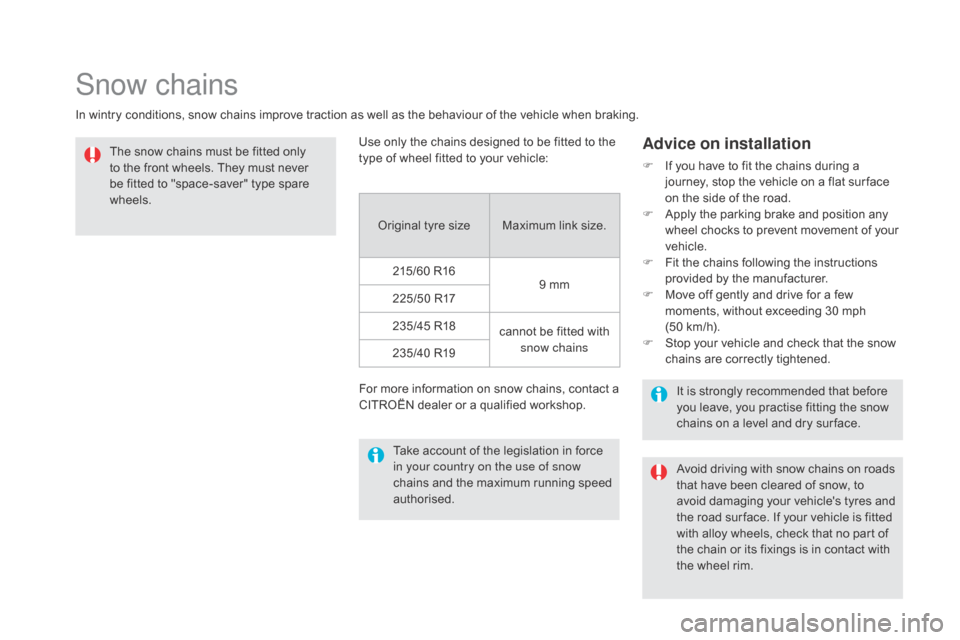

Snow chains
In wintry conditions, snow chains improve traction as well as the behaviour of the vehicle when braking.The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
Advice on installation
F If you have to fit the chains during a journey, stop the vehicle on a flat sur face
on the side of the road.
F

A
pply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F

F
it the chains following the instructions
provided by the manufacturer.
F

M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50
km/h).
F

S
top your vehicle and check that the snow
chains are correctly tightened.
Avoid driving with snow chains on roads
that have been cleared of snow, to
avoid damaging your vehicle's tyres and
the road sur face. If your vehicle is fitted
with alloy wheels, check that no part of
the chain or its fixings is in contact with
the wheel rim.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
Original tyre size Maximum link size.215/60 R16 9 mm
225/50 R17
235/45 R18 cannot be fitted with
snow chains
235/40 R19
For more information on snow chains, contact a
CITROËN dealer or a qualified workshop. It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.

2 11

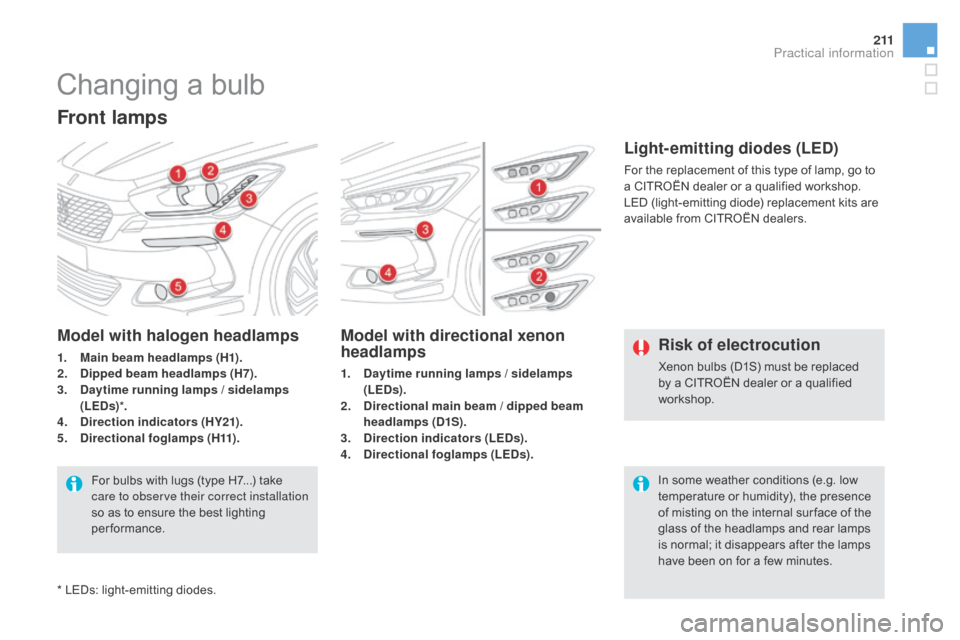

Changing a bulb
Front lamps
Model with directional xenon
headlamps
1. daytime running lamps / sidelamps
(LEds ).
2.
di

rectional main beam / dipped beam
headlamps (
d1S

).
3.
di

rection indicators (LE
ds
).
4.
di

rectional foglamps (LE
ds

).
Model with halogen headlamps
1. Main beam headlamps (H1).
2. di
pped beam headlamps (H7).
3.
da

ytime running lamps / sidelamps
(LE
d s)*.
4.
di

rection indicators (HY21).
5.
di

rectional foglamps ( H11) .
For bulbs with lugs (type H7...) take
care to observe their correct installation
so as to ensure the best lighting
performance. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.Risk of electrocution
Xenon bulbs (D1S) must be replaced
by a CITROËN dealer or a qualified
workshop.
Light-emitting diodes (LEd)
For the replacement of this type of lamp, go to
a CITROËN dealer or a qualified workshop.
LED (light-emitting diode) replacement kits are
available from CITROËN dealers.
* LEDs: light-emitting diodes.
Practical information

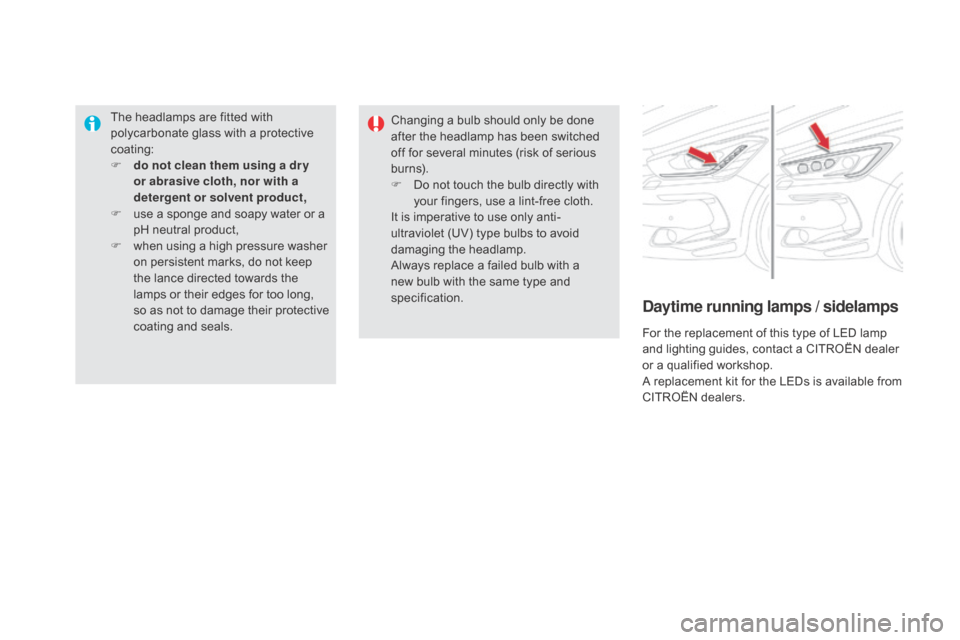

The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
daytime running lamps / sidelamps
For the replacement of this type of LED lamp
and lighting guides, contact a CITROËN dealer
or a qualified workshop.
A replacement kit for the LEDs is available from
CITROËN dealers.

213

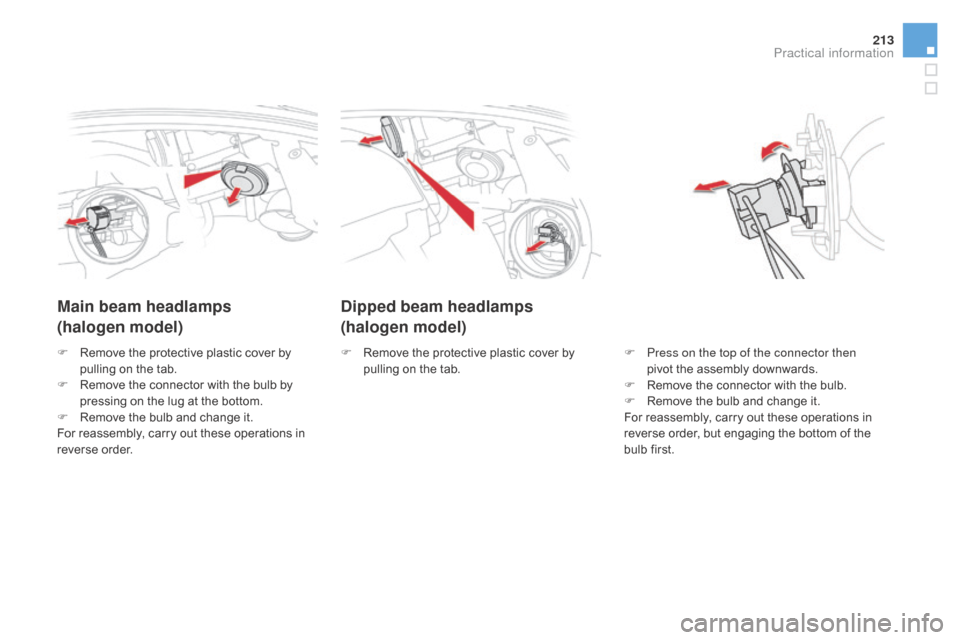

dipped beam headlamps
(halogen model)
Main beam headlamps
(halogen model)
F Press on the top of the connector then
pivot the assembly downwards.
F

R
emove the connector with the bulb.
F

R
emove the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of the
bulb first.
F
R
emove the protective plastic cover by
pulling on the tab.
F
R
emove the protective plastic cover by
pulling on the tab.
F

R

emove the connector with the bulb by
pressing on the lug at the bottom.
F

R

emove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
Practical information

Front foglamps
F Remove the deflector under the body.
F D isconnect the bulb connector.
F

T
urn the bulb a quarter of a turn, withdraw
and change it.
To refit, carry out these operations in reverse
o r d e r.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.

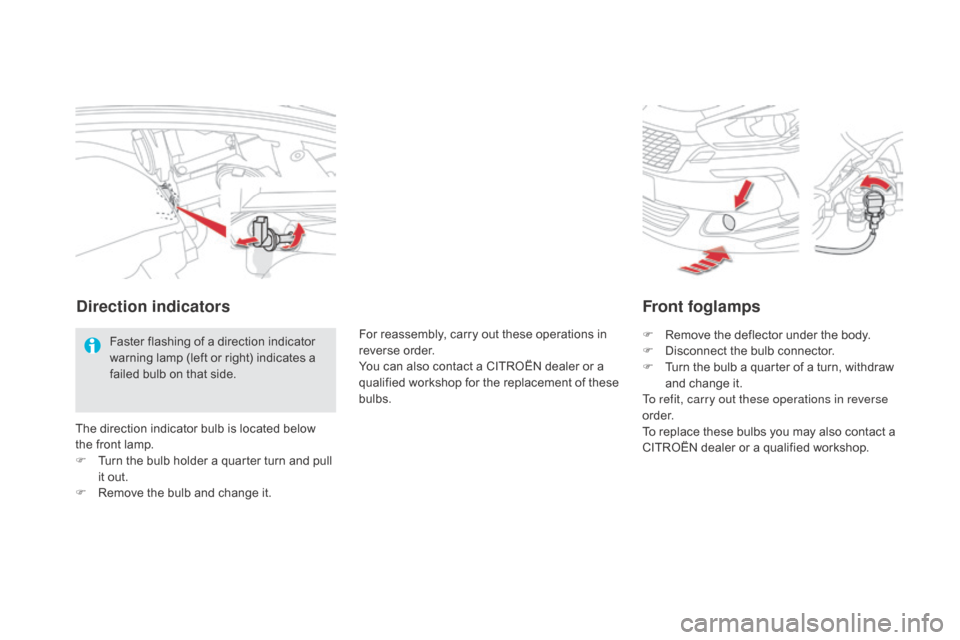

direction indicators
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
The direction indicator bulb is located below
the front lamp.
F

T

urn the bulb holder a quarter turn and pull
it out.
F

R

emove the bulb and change it. For reassembly, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

215

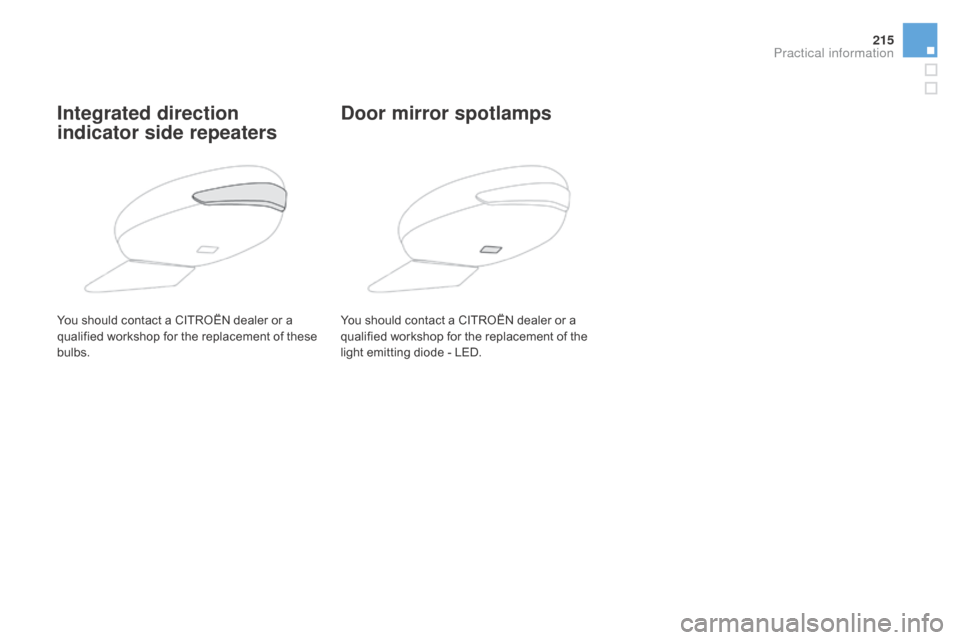

Integrated direction
indicator side repeatersdoor mirror spotlamps
You should contact a CITROËN dealer or a
qualified workshop
for the replacement of the
light emitting diode - LED.
You should contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
Practical information

1. Sidelamps (light emitting diodes - LEds ).
2.


d
i
rection indicators (PY21W amber).
3.

R
eversing lamps (P21W).
4.

B
rake lamps (P21W).
5.
F

oglamps (P21W).
Rear lamps
direction indicators and brake
lamps (on the wings)
F Open the boot then remove the access c ove r.
F

D
isconnect the lamp connector.
F

R
emove the two lamp fixing nuts. F
C arefully remove the lamp unit from
outside. The retaining clips unclip
automatically.
F

T
urn the bulb holder a quarter of a turn and
change the bulb.
For reassembly, carry out these operations in
reverse order.
Light emitting diodes-LEds
For replacement, contact a CITROËN
dealer or qualified workshop.

217

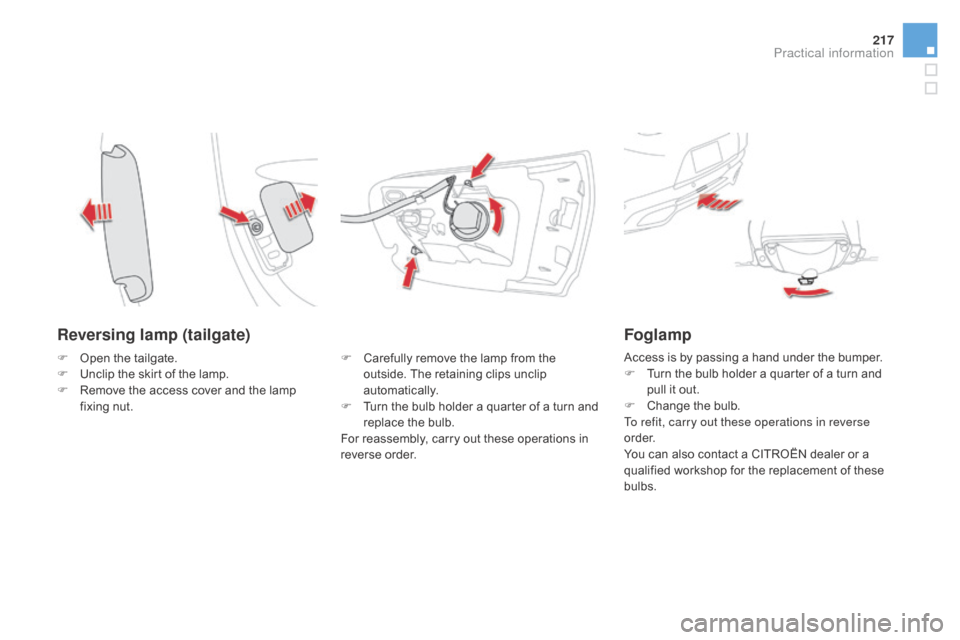

Reversing lamp (tailgate)
F Carefully remove the lamp from the outside. The retaining clips unclip
automatically.
F

T
urn the bulb holder a quarter of a turn and
replace the bulb.
For reassembly, carry out these operations in
reverse order.
Foglamp
F Open the tailgate.
F U nclip the skirt of the lamp.
F

R
emove the access cover and the lamp
fixing nut. Access is by passing a hand under the bumper.
F
T urn the bulb holder a quarter of a turn and
pull it out.
F

C
hange the bulb.
To refit, carry out these operations in reverse
o r d e r.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
Practical information

number plate lamps
F Insert a thin screwdriver into the slot in the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

P
ull the bulb out and change it.
Third brake lamp
(light emitting diodes - LEds )
Contact a CITROËN dealer or qualified
