When towing
distribution of loads
F Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches
the maximum permitted without
exceeding
it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1
000 metres, the maximum towed load must
be reduced by 10
% for every 1 000 metres of
altitude.
Side wind
F Take into account the increased sensitivity to side wind.
cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.
F

T
o lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
F

I
f the warning lamp and the
STOP warning lamp come on,
stop the vehicle and switch off
the engine as soon as possible.
Braking
Towing a trailer increases the braking distance.
To avoid overheating of the brakes, the use of
engine braking is recommended.
Ty r e s
F Check the tyre pressures of the towing vehicle and of the trailer, observing the
recommended pressures.
Lighting
F Check the electrical lighting and signalling on the trailer and the hadlamp beam height
of your vehicle.
For more information on adjusting the
headlamp beam height, refer to the
corresponding section.
For more information on weights (and the
towed loads which apply to your vehicle) refer
to the corresponding section.
The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.
driving

This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the field of detection of
sensors located in the bumper.
Certain types of obstacle (stake, roadworks
cone, etc.) detected initially will no longer be
detected at the end of the manoeuvre, if they
are located in blind spots in the sensors' field
of detection.

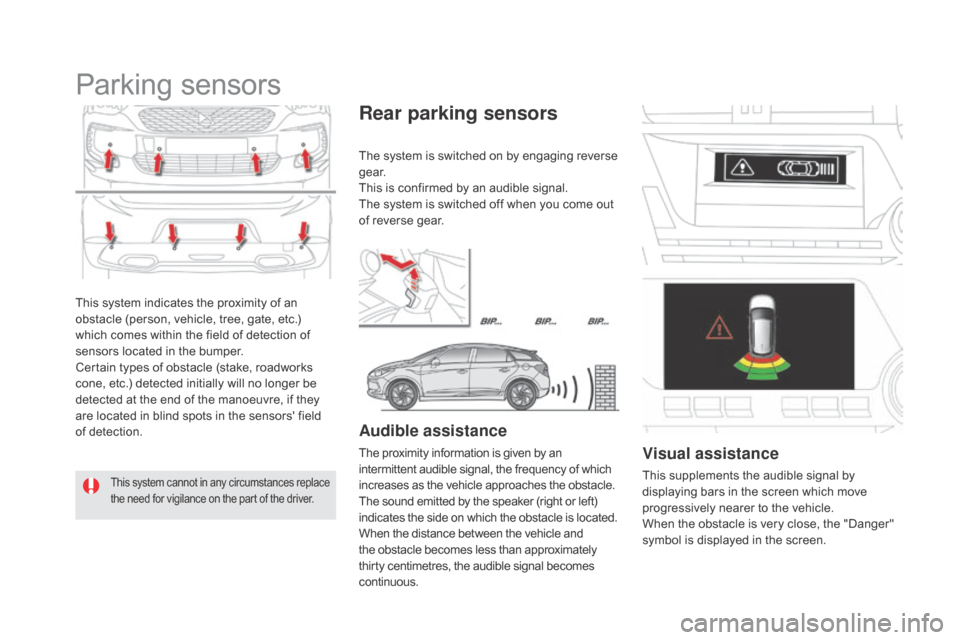

Parking sensors
This system cannot in any circumstances replace
the need for vigilance on the part of the driver.
Rear parking sensors
Audible assistance
The proximity information is given by an
intermittent audible signal, the frequency of which
increases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or left)
indicates the side on which the obstacle is located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.Visual assistance
This supplements the audible signal by
displaying bars in the screen which move
progressively nearer to the vehicle.
When the obstacle is very close, the "Danger"
symbol is displayed in the screen.
The system is switched on by engaging reverse
g e a r.
This is confirmed by an audible signal.
The system is switched off when you come out
of reverse gear.

137
In bad weather or in winter, ensure
that the sensors are not covered with
mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)
indicates that the sensors may be dirty.
Certain sound sources (motorcycle,
lorry, pneumatic drill, etc.) may trigger
the audible signals of the parking
sensor system.
In the event of a malfunction of the
system, when reverse gear is engaged
this warning lamp is displayed in the
instrument panel and/or a message
appears in the screen, accompanied
by an audible signal (short beep).
Operating fault
In addition to the rear parking sensors, the
front parking sensors are triggered when an
obstacle is detected in front and the speed of
the vehicle is still below 6 mph (10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in for ward gear, if no further obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).

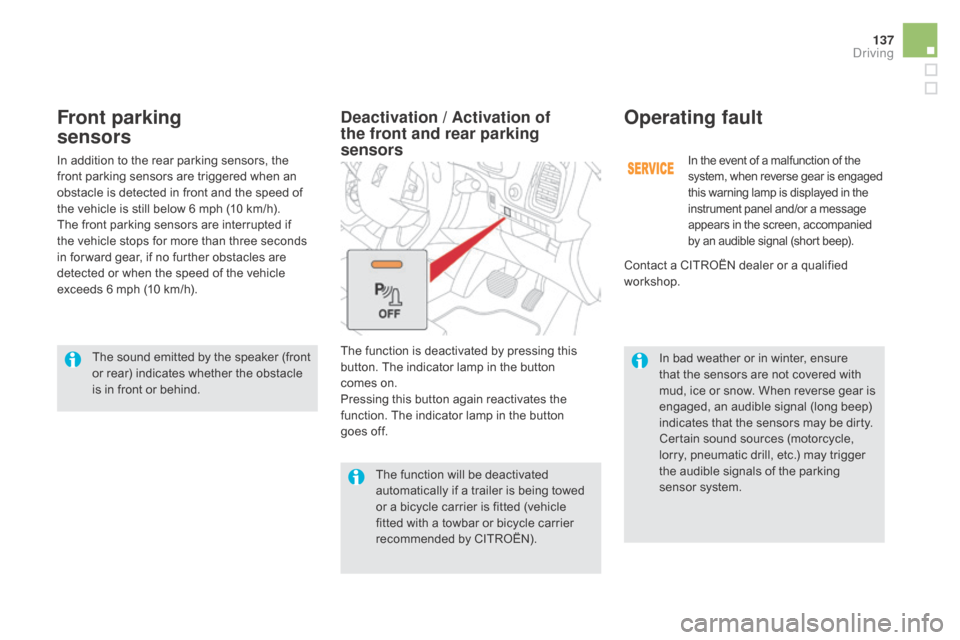

Front parking
sensors
The function will be deactivated
automatically if a trailer is being towed
or a bicycle carrier is fitted (vehicle
fitted with a towbar or bicycle carrier
recommended by CITROËN).
deactivation / Activation of
the front and rear parking
sensors
The function is deactivated by pressing this
button. The indicator lamp in the button
comes on.
Pressing this button again reactivates the
function. The indicator lamp in the button
goes off.
The sound emitted by the speaker (front
or rear) indicates whether the obstacle
is in front or behind. Contact a CITROËN dealer or a qualified
workshop.
driving

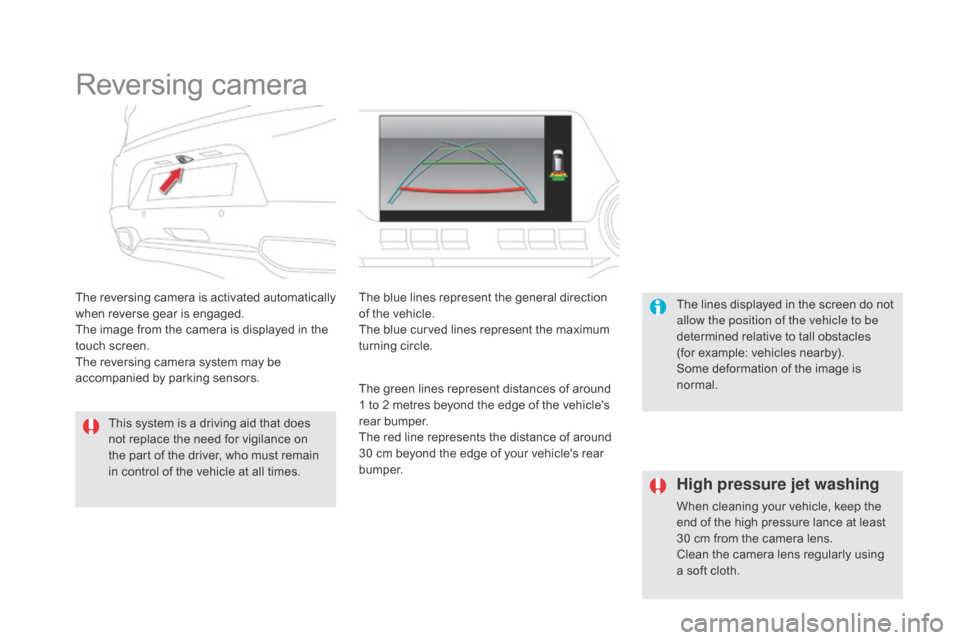

Reversing camera
The reversing camera is activated automatically
when reverse gear is engaged.
The image from the camera is displayed in the
touch screen.
The reversing camera system may be
accompanied by parking sensors.The blue lines represent the general direction
of the vehicle.
The blue curved lines represent the maximum
turning circle.
The green lines represent distances of around
1 to 2 metres beyond the edge of the vehicle's
rear bumper.
The red line represents the distance of around
30 cm beyond the edge of your vehicle's rear
b u m p e r. The lines displayed in the screen do not
allow the position of the vehicle to be
determined relative to tall obstacles
(for example: vehicles nearby).
Some deformation of the image is
normal.
This system is a driving aid that does
not replace the need for vigilance on
the part of the driver, who must remain
in control of the vehicle at all times.
High pressure jet washing
When cleaning your vehicle, keep the
end of the high pressure lance at least
30 cm from the camera lens.
Clean the camera lens regularly using
a soft cloth.

Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's recommendation and warranty.
"comfort":
door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, parking sensors, scented air
freshener, cigarette lighter, ...
"Transport systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
"Styling":
aluminium pedals, aluminium foot rest, alloy
wheels, chrome mirror shells, ...*

T
o avoid any risk of jamming the pedals:
-

e
nsure that mats are correctly positioned
and secured,
-

n
ever fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle
tracking system, child seats and booster
cushions, dog guard, breathalyser, first aid
kit, fire extinguisher, warning triangle, belt
cutter/glass breaker, high visibility vest, wheel
security bolts, snow chains, snow socks, ...
"Protection":
mats*, mud flaps, bumper protection strips,
boot sill protector, vehicle cover...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network,
the installation must be done using
the vehicle's electrical pre-equipment
and fitted following the manufacturer's
recommendations. The rear bodywork has been designed
to avoid spray.

313
Radio ............................................................. 285
Range, AdBlue ............................... ....... 254, 255
Rear screen, demisting
............................. 8

0, 95
Recharging the battery

.................................2

25
Reduction of electrical load

..........................2

27
Regeneration of the particle filter
........

..................................................... 2 51
Reinitialising the remote control

.....................59
R

emote control
.................................... 5
2-55, 60
Removing a wheel

..............................
..........206
Removing the mat

...............................
............84
Replacing bulbs
..............................

.......211-218
Replacing fuses
..............................

.......219-222
Replacing the air filter

................................... 2

51
Replacing the oil filter

................................... 2

51 Table of weights

....................................2
65, 269
Tables of engines

...............................
... 264, 267
Tables of fuses

..............................................2

19
Tank, AdBlue
® additive ......................... 2 53, 258
Tank, fuel
............................... ................ 239, 242
Technical data
....................................... 2

64-276
Temperature, coolant
...................................... 32
T

hird brake lamp
........................................... 2

18
Three flashes (direction indicators)

..............18

0
Time (setting)

..............................
........ 38, 39, 42
To o l s
................

...................................... 202, 203
Topping-up the AdBlue
® additive ................. 25 8
Replacing the passenger

compartment filter

......................................
2

51
Resetting the service indicator

.......................
35
R

esetting the trip recorder

.................. 3

7, 46, 47
Reversing camera
...............................

..........
13 8
Reversing lamp
............................................. 2

16
Roof bars
....................................................... 2

32
Roof, Cockpit glass

.........................................
68
R

unning out of fuel (Diesel)

..........................
24

6
P
R
T
S
Safety, children ......................1
60 -176, 188, 190
Saturation of the particle filter (Diesel) .........2
51
Screen, instrument panel

.......................... 1
8, 46
Screen menu map

................................. 3
01, 302
Screen, monochrome
.....................3

9, 284, 301
Screenwash reservoir
................................... 24

9
Screenwash, front
......................................... 15

4
Screenwash, rear
...............................

...........15 4
SCR (Selective Catalytic Reduction)

............25

3
Seat belts
....................................... 1

68, 18 6 -188
Seats, front
...............................

..................7 2 -74
Seats, heated
...............................

...................76
Seats, rear
................................................. 7

7, 79
Serial number, vehicle

..................................2

74
Service indicator
............................................. 33
S

ervicing
...............................
..........................14
Settings, equipment
.................................. 3

9, 45
Sidelamps
.............. 1

42, 145, 148, 211-213, 216
Side repeater
..............................

..................215
Ski flap

..............................
..............................86
Pads, brake
...................................................
2

52
Paint colour code

..........................................
2

74
Parking brake, electric

............ 2

6, 103, 107, 252
Parking sensors, front

...................................
13

7
Parking sensors, rear.................................... 13 6
Petrol

...............................

..............................
240
Plates, identification ...................................... 2 74
Player, MP3 CD

...............................

...... 288, 289
Port, USB

................................................8

5, 290
Pressures, tyres
.....................................1

97, 274
Pre-tensioning seat belts

..............................
18

8
Priming the fuel system

................................
24

6
Protecting children

.................1

60 -176, 188, 190
Puncture
................

........................................
19 6 Snow chains
..................................................
2
10
Socket, 12 V accessory
............................ 8
2, 83
Sockets, audio
................................8
5, 290, 291
Speed limiter
...............................
.......... 128, 130
Spotlamps, side
.................................... 1
49, 215
Starting the engine
....................... 1
00, 102, 111
Starting using another battery
......................
2
24
Steering mounted controls, audio
................
28
3
Steering wheel, adjustment
............................
81
S
tickers, expressive
......................................
23
3
Stop & Start
.......................... 2
2, 48, 92, 95, 118,

223, 226, 239, 243, 251
Storage
................
................................ 82, 85 - 87
Storing driving positions
.................................
74
S
towing rings
..............................
.................... 87
Switching off the engine
............... 1
00, 102, 111
Synchronising the remote control
...................
59
Alphabetical index
