229Practical information





Accessories
A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.



"Comfort":

door deflectors, side window blinds, rear screen blind, isotherm module, coat hanger fixed to head restraint, mobile reading lamp, mirror for caravan, parking sensors...


"Transport systems":

child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bic
ycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network, theinstallation must be done using the vehicle's electrical pre-equipment and fitted following the manufacturer's recommendations.
"Styling":
gear lever knobs, aluminium foot rest, alloy wheels, chrome mirror shells, chrome door aperture finishers...

*
To avoid an
y risk of jamming the pedals:
- ensure that mats are correctly positionedand secured,
- never fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen
vehicle tracking system, child seats and
booster cushions, breathalyser, first aid kit, fire
extinguisher, warning triangle, high visibility
vest, wheel security bolts, snow chains, non-
slip covers...

"Protection":

mats * , seat covers compatible with lateral
airbags, mud flaps, door protective mouldings,bumper protection strips, vehicle cover...
The rear bodywork has been designed to avoid spray.

The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electricalconsumption.
Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.


Installation of radio communication transmitters

Before installing any after-market radiocommunication transmitter, you can contact a CITROËN dealer for the specification of transmitters which can be fitted (frequency, maximum power, aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/10 4/EC).
Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest,warning triangle and spare bulbs andfuses available in the vehicle.
B
y visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of
your vehicle, refills (sealant car tridge for the
temporary puncture repair kit...), ...
"Multimedia":
audio systems, steering mounted audio controls, speakers, Hi-Fi module, Bluetooth hands-free system, por table satellite navigationsystem, semi-integral suppor t bracket for portable navigation system, driving assistancesystems, USB Box, reversing camera, por table
video screen, por table video support bracket,
230 V/50 Hz socket, 230 V/12 V adaptor, Wi-Fion board...

231Practical information

009
Checks

235
Checks

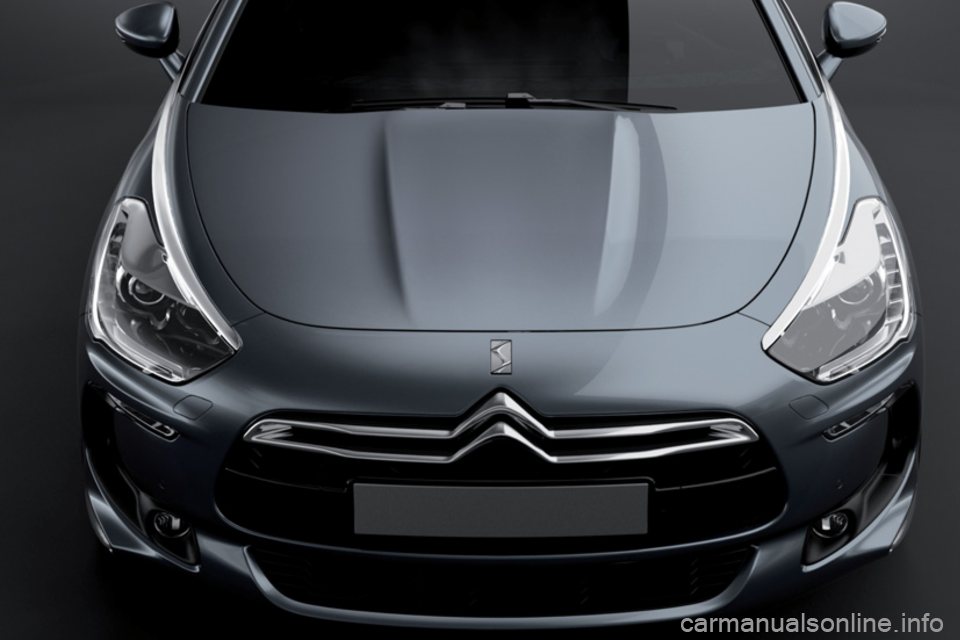

Opening the bonnet
Opening
)
From inside
: pull the release lever, located
on the left below the dashboard, towards you.
Before doing anything under the bonnet,
switch off the ignition (Ready lamp off) to avoid any risk of injury resulting fromautomatic operation of the engine.


Closing
)
Lower the bonnet and release it at the endof its travel. )
Check that it is latched correctly.


)From the outside: lift the safety catch and
raise the bonnet.
A bonnet strut opens the bonnet and holds itopen.


Never touch, handle or remove the orange "high voltage" cables.

The various caps and covers allow access for
checking the levels of the various fluids, for replacing cer tain components and for primingthe fuel system.














Diesel engine
1.
Power steering reservoir.2.
Screenwash and headlamp wash reser voir.3.
Coolant reservoir. 4.
Brake fluid reservoir.5.
Battery / Fuses.
6.Fusebox.
7. Air filter.8.Engine oil dipstick. 9.
Engine oil filler cap.10.Priming pump. 11.
Bleed screw.
HDi 160 PEF 6-SPEED ELECTRONIC GEARBOX

237
Checks
On vehicle fitted with HDi engines, the fuel
system must be primed if you run out of fuel;
refer to the corresponding engine compar tment
view.











Running out of fuel (Diesel)


If the tank on your vehicle is fitted witha misfuel prevention device, refer to the"Misfuel prevention (Diesel)" section.
)
Fill the fuel tank with at least five litres of Diesel.)
Open the bonnet. )
If necessary, unclip the style cover for
access to the priming pump.
) Slacken the bleed screw. )
Squeeze and release the priming pump
repeatedly until fuel appears in the
transparent pipe.
) Tighten the bleed screw.)
Operate the star ter until the engine star ts (if the engine fails to star t at the first
attempt, wait around 15 seconds before
trying again).) If the engine fails to star t after a few
attempts, operate the priming pump again,
th
en the starter.) Put the style cover back in position and clip it in place, ensuring that it has clippedcorrectly. )
Close the bonnet.

2 litre HDi engine


If the engine does not star t first time, don't keep trying. Star t the procedure
again from the beginning.

Before doing anything under the bonnet, switch off the ignition ( Readylamp off)to avoid any risk of injury resulting from automatic operation of the engine.

Checking levels Check all of these levels regularly and top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.

When working under the bonnet, take care, as cer tain areas of the engine may be extremely hot (risk of burns).


Oil level

The reading will only be correct if the
vehicle is on level ground and theengine has been off for more than30 minutes.
The check is carried out either when the ignition
is switched on using the oil level indicator in the
instrument panel, or usin
g the dipstick.
Engine oil change

Refer to the ser vicing booklet for the inter val for
this operation.
In order to maintain the reliability of the engine
and emission control system, the use of
additives in the engine oil is prohibited.


Oil specifi cation

The oil must correspond to your engineand conform to the manufacturer's
recommendations.
It is normal to top up the oil level between two ser vices. CITROËNrecommends that you check the oil level, and top up if necessary,every 3 000 miles (5 000 kilometres).
Before doing anything under the bonnet,switch off the ignition (Readylamp off) to avoid any risk of injury resulting from automatic operation of the engine.
