Visibility





Exterior welcome
lighting
The remote switching on of the lighting makesyour approach to the vehicle easier in poor
light. It is activated according to the level of
light detected by the sunshine sensor.

Switching on

Switchin
g off


The exterior welcome lighting switches off
automatically after a set time, when the ignitionis switched on or on locking the vehicle.
Programming

The lighting duration is selected via
the vehicle configuration menu.
The duration of the welcome lighting isassociated with and identical to that of the automatic guide-me-home lighting.) Press the open padlock on the
remote control or the door handlewith Keyless Entry and Starting.







Door mirror
spotlamps

Switching on

The spotlamps come on:


- when you unlock the vehicle,

- when you switch off the ignition,

- when you open a door,

- when you use the remote control to locate
the vehicle.

Switching off

They are timed to go off automatically.
To m a k e
your approach to the vehicle easier,
these illuminate:


- the zones facing the driver’s andpassenger’s doors,

- the zones forward of the door mirrors and
rearward of the front doors.

The dipped beam headlamps and the sidelamps come on; your vehicle is also unlocked.

165
Visibility

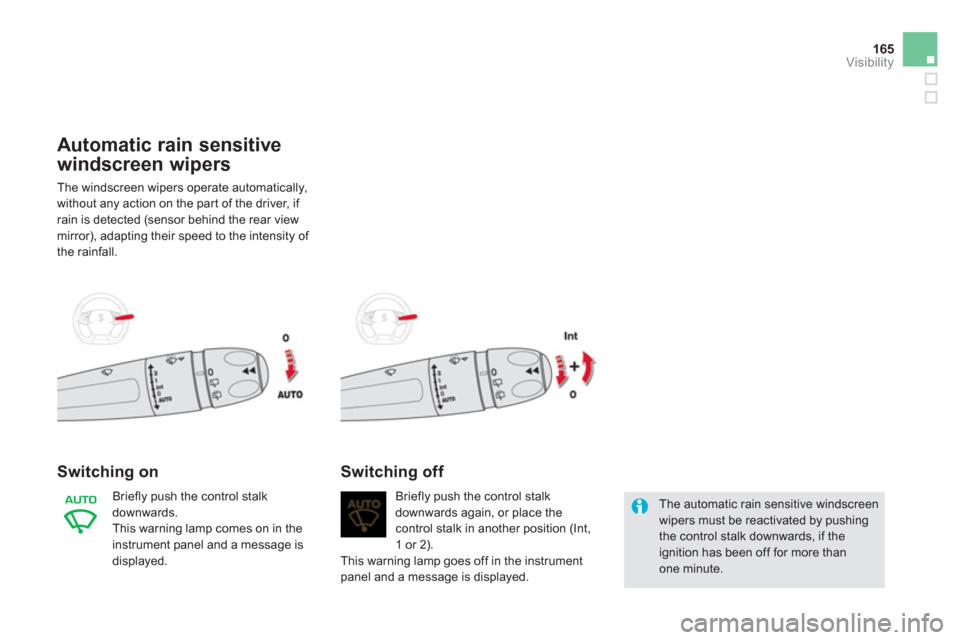

Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically,
without any action on the par t of the driver, if
rain is detected (sensor behind the rear view mirror), adapting their speed to the intensity of
the rainfall.

Switching on

Briefly push the control stalkdownwards.
This warning lamp comes on in the
instrument panel and a messa
ge is
displayed. Brie
fly push the control stalkdownwards again, or place the control stalk in another position (Int,
1 or 2
).
This warning lamp goes off in the instrumentpanel and a message is displayed.
Switching off


The automatic rain sensitive windscreenwipers must be reactivated by pushing the control stalk downwards, if theignition has been off for more than one minute.

Do not cover the rain sensor, linked with the sunshine sensor and located in the centre of the windscreen behind the rear view mirror. Switch off the automatic rain sensitivewipers when using an automatic car wash.
In winter, it is advisable to wait until thewindscreen is completely clear of ice before activating the automatic rain sensitive wipers.

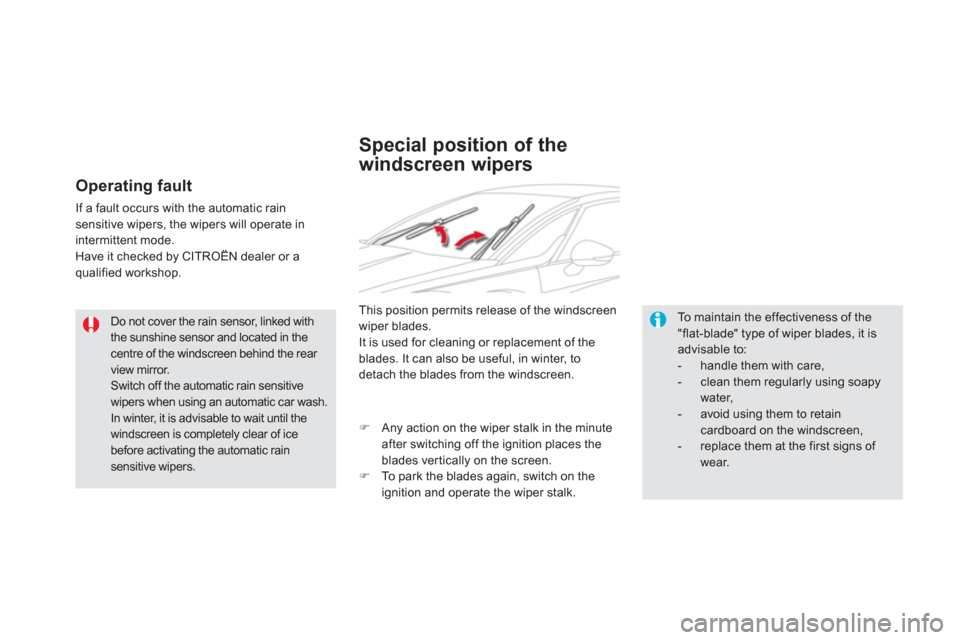

Operating fault
If a fault occurs with the automatic rain
sensitive wipers, the wipers will operate in intermittent mode.
Have it checked by CITROËN dealer or a
qualified workshop.
Special position of the
windscreen wipers
This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the blades. It can also be useful, in winter, todetach the blades from the windscreen.


To maintain the effectiveness of the "flat-blade" type of wiper blades, it is advisable to:


- handle them with care,

- clean them regularly using soapywater,

- avoid using them to retain cardboard on the windscreen,

- replace them at the first signs of wear.


)
Any action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.) To park the blades again, switch on theignition and operate the wiper stalk.

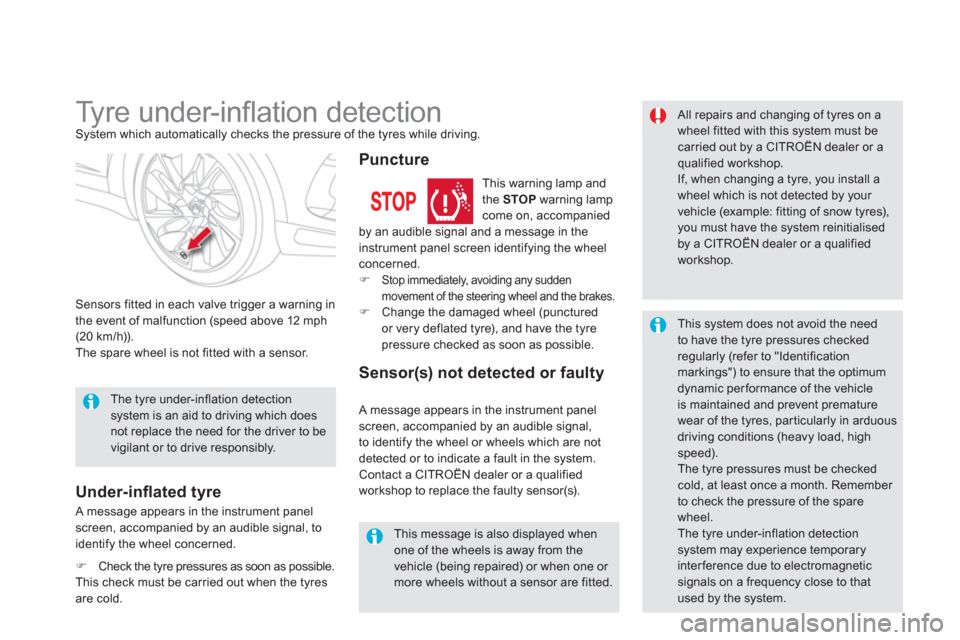

Ty r e u n d e r - i nfl ation detection System which automatically checks the pressure of the tyres while driving.
Sensors fitted in each valve trigger a warning in
the event of malfunction (speed above 12 mph(20 km/h)).
The spare wheel is not fitted with a sensor.

All repairs and changing of tyres on a wheel fitted with this system must becarried out by a CITROËN dealer or a
qualified workshop.
If, when changing a tyre, you install a wheel which is not detected by your vehicle (example: fitting of snow tyres),you must have the system reinitialised by a CITROËN dealer or a qualifiedworkshop.
This message is also displayed whenone of the wheels is away from thevehicle (being repaired) or when one or more wheels without a sensor are fitted.


The tyre under-inflation detectionsystem is an aid to driving which doesnot replace the need for the driver to bevigilant or to drive responsibly.

This system does not avoid the needto have the tyre pressures checkedregularly (refer to "Identification markings") to ensure that the optimumdynamic per formance of the vehicle is maintained and prevent premature wear of the tyres, particularly in arduousdriving conditions (heavy load, highspeed). The tyre pressures must be checked cold, at least once a month. Remember to check the pressure of the spare wheel.

The tyre under-inflation detectionsystem may experience temporary inter ference due to electromagnetic signals on a frequency close to thatused by the system.
A message appears in the instrument panel screen, accompanied by an audible signal, to
identify the wheel concerned.
Under-infl ated tyre
This warning lamp andthe STOPwarning lamp come on, accompanied by an audible signal and a message in the
instrument panel screen identifying the wheelconcerned. )Stop immediately, avoiding any suddenmovement of the steering wheel and the brakes. ) Change the damaged wheel (puncturedor very deflated tyre), and have the tyre
pressure checked as soon as possible.


Puncture

A message appears in the instrument panel
screen, accompanied by an audible signal,
to identi
fy the wheel or wheels which are not
detected or to indicate a fault in the system.
Contact a CITROËN dealer or a qualified
workshop to replace the faulty sensor(s).


Sensor(s) not detected or faulty
)Check the tyre pressures as soon as possible. This check must be carried out when the tyres are cold.

Changing a wheel Procedure for changing a faulty wheel for the spare wheel using the tools provided with the vehicle *
.
Th
e tools are installed in the boot under
the floor.
Access to the tools

List of tools *
















Tyre under-infl ation detection

The spare wheel is not fitted with a sensor. The punctured wheel must berepaired by a CITROËN dealer or a
qualified workshop.

Before doing any work on your vehicle,switch off the ignition ( Ready
lamp off)to avoid any risk of injury resulting fromautomatic operation of the engine.











When using lifting equipment (a jack
for example), take care to use the jacking points provided, so as to avoiddamaging the high voltage cables.
All of these tools are specific to your vehicle and can vary according to the level of equipment.
Do not use them for other purposes. 1. Wheelbrace.
For removing the wheel trim and removingthe wheel bolts. 2.Jack with integral handle.
For raising the vehicle.3."Bolt cover" tool.
For removing the bolt protectors (covers)
on alloy wheels.4. Wheel trim remover.
For removing the alloy wheel finishers.
5. Socket for the security bolts (located in the glove box).
For adapting the wheelbrace to the special"security" bolts.
6.Wheel chocks for blocking the vehicle's
wheels.7. Towing eye.
See the "Towing the vehicle" section.8.Extension spanner.
For slackening/tightening the spare wheelcarrier nut. 9. Emergency release control for the electric parking brake.
See the "Electric parking brake" section, "Emergency braking".


*

According to country of sale.

We recommend the use of genuine
CITROËN towbars and their harnesses that have been tested and approved from the design stage of your vehicle,and that the fitting of the towbar is
entrusted to a CITROËN dealer or aqualified workshop.
If the towbar is not fitted by a CITROËN dealer, it is imperative that it isfitted in accordance with the vehiclemanufacturer's instructions.


Driving advice


Distribution of loads
)
Distribute the load in the trailer so that the
heaviest items are as close as possible to
t
he axle and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of altitude.


Side wind
)
Take into account the increased sensitivity
to side wind.



Cooling

To w i ng a trailer on a slope increases the
temperature of the coolant.
As the
fan is electrically controlled, its cooling capacity is not dependent on the engine speed.)
To lower the engine speed, reduce your speed.
)
If the warning lamp and the STOPwarning lamp come on,stop the vehicle and switch off
the engine as soon as possible.

Braking

To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine braking is recommended.

Tyres
)Check the tyre pressures of the towingvehicle and of the trailer, obser ving the recommended pressures.



Lighting
)Check the electrical lighting and signalling on the trailer.


The rear parking sensors will be deactivated automatically if a genuine CITROËN towbar is used.



Driving with a trailer places greater demands on the towing vehicle and thedriver must take par ticular care.

The maximum towed load on a long incline depends on the gradient and the ambient
tem
perature.
In all cases, keep a check on the coolant
temperature.

R
efer to the "Technical data" section for detailsof the weights and towed loads which apply toyour vehicle.

Accessories
A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
"Comfort":
door deflectors, side window blinds, rear screen blind, isotherm module, coat hanger fixed to head restraint, mobile reading lamp, mirror for caravan, parking sensors...
"Transport systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network, the installation must be done using the vehicle'selectrical pre-equipment and fitted following the
manufacturer's recommendations.

"Styling":
gear lever knobs, aluminium foot rest, alloy
wheels, chrome mirror shells, chrome door
aperture finishers...

*
To avoid an
y risk of jamming the pedals:
- ensure that mats are correctly positionedand secured,
- never fit one mat on top of another.


"Security and safety":

anti-intrusion alarm, anti-tilt unit, stolen
vehicle tracking system, child seats andbooster cushions, breathalyser, first aid kit, fire extinguisher, warning triangle, high visibility
vest, wheel security bolts, snow chains, non-
slip covers...


"Protection":

mats * , seat covers compatible with lateral
airbags, mud flaps, door protective mouldings, bumper protection strips, vehicle cover...
The rear bodywork has been designed to avoid spray.
