stop start Citroen DS5 HYBRID4 2013 1.G User Guide

ECO OFF switch
This function prevents the Diesel engine
being switched off and so ensures that a comfor table temperature can be maintained in
the passenger compar tment (air conditioningrunning continuously).On pressing the switch, the engine restar ts
immediately.
To return to normal operation, press the switch
again.
After switching off the ignition, the vehicle will return to normal operation (lamp in the switch off).

*

Except in ZEV mode, which favours electric
running over assuring a comfortable
temperature.
During electric running and when the engine is
stopped, the hybrid system manages restarting
automatically to assure comfor t levels in the
passenger compartment * .
However, variations in temperature may still be felt in very hot climates. To avoid anydiscomfor t in these conditions you can operate
the ECO OFF switch.

200 V high voltage battery
The 200 V high voltage battery cannot berecharged from a mains supply.
The battery is Ni-MH (Nickel Metal Hydride) and is located below the boot floor, close to the electric motor.

Charging


The battery is charged when the vehicle
decelerates, the electric motor then becomes
a
generator and conver ts kinetic energy intoelectrical energy (except if the speed of the
vehicle is above 70 mph (120 km/h)).
The battery is not recharged from a mains
supply.
The battery may also be charged automatically
when required b
y the Stop & Start system of
the Diesel engine.
This recover
y allows the use of "free" energy.
The battery charging time is very shor t and iscontinuous.
A discharged battery (following ZEV running or high load, for example) will quickly return to astate of charge sufficient for full operation of the
different hybrid modes.
The charging takes place automaticallywhen driving.
The energy recovery can be faster during deceleration.
The average state of charge is 4 to 5 bars, sopreserving a margin for energy recovery when
deceleration of going downhill (free energy).
To preser ve the ser vice life of thebattery, the level of charge never fallsbelow 20 %, even if a level of 0 bars is displayed after ZEV running. Where the battery is close to maximum, vehicle deceleration with your foot off the accelerator pedal will be at a lower level.

Car washing machine or tunnel
the wash.
With the hybrid system active, Ready
lamp on, parking brakereleased: - Place the gear selector in position N.- Switch off the engine (press on STA R T/STOP). The parking brake is applied automatically and the Ready
lamp goes off inthe instrument panel.- Switch on the ignition again (press on START/STOP) without your foot on the brake pedal. The Ready
lamp remains off. - Release the parking brake using the manual control on thecentre console, while keeping your foot on the brake pedal. - Switch off the ignition (press on STA R T/STOP without your foot on the brake pedal) checking that the parking brake
remains released.



If the Diesel engine is not running, it restar ts.If the Diesel engine is running, it remains running without timelimit.

With the hybrid system active, Readylamp on, parking brakereleased: - Place the gear selector in position N(Auto or Sport mode). - Press the brake pedal then the ECO OFF button.
Car washing machines or tunnels in which theDiesel engine must be switched off.
Car washing machines or tunnels in which the Diesel engine must not be switched off.

61Monitoring

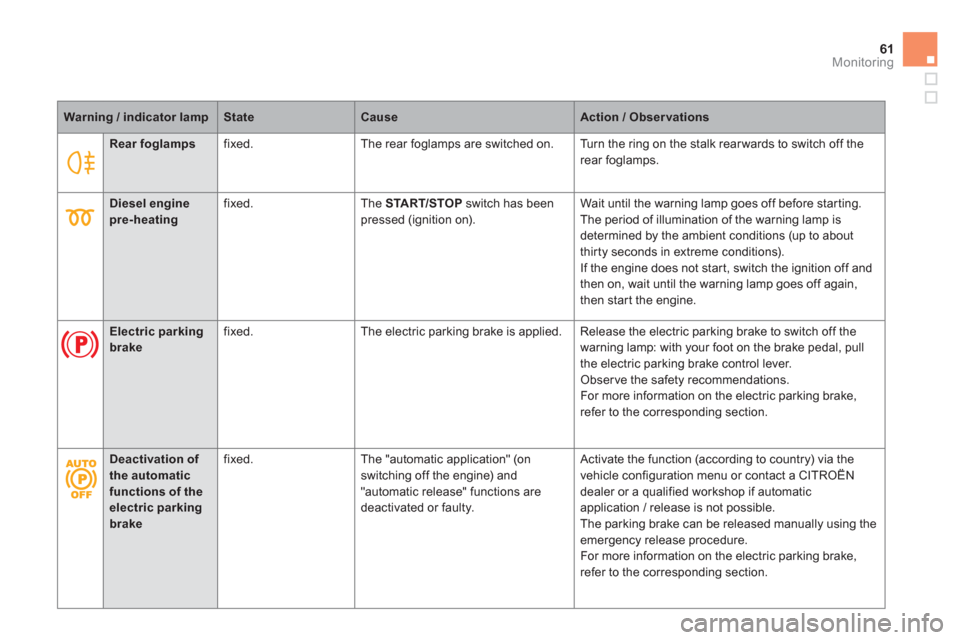

Rear foglamps

fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.
Warning / indicator lampStateCauseAction / Observations



Diesel engine pre-heating fixed. The STA R T/STOP
switch has been pressed (ignition on). Wait until the warning lamp goes off before star ting.
The period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.

Electric parking brake
fixed. The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, pull
the electric parking brake control lever.

Obser ve the safety recommendations.
For more information on the electric parking brake,
refer to the corresponding section.

Deactivation of the automatic functions of the electric parkingbrake

fixed. The "automatic application" (on switching off the engine) and
"automatic release" functions aredeactivated or faulty.
Activate the function (according to country) via the
vehicle configuration menu or contact a CITROËN
dealer or a qualified workshop if automatic
application / release is not possible.
The parking brake can be released manually using the emergency release procedure.
For more information on the electric parking brake,
refer to the corresponding section.

With the hybrid system active or when the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations



STOPfixed, associated with another warning lamp, accompanied by an audible signal and a message in the screen.It is associated with a punctured wheel,
the brakin
g system, the power steering,
the engine oil pressure, the enginecoolant temperature, the hybrid system
or a major electrical fault.Stop as soon as it is safe to do so as the en
gine may cut out.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.



Serviceon temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in the screen, such as, for example:
- the closing of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- the tyre pressures,
- saturation of the par ticle emission filter (Diesel). - ...For any other faults, contact a CITROËN dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown on the screen and contact a CITROËN dealer or a yyg g
qualified workshop.
PEF: particle emissions filter,Diesel
fixed, associated
temporarily with a message on the risk of
blockage of the PEF.Thi
s indicates the start of saturation
of the par ticle emissions filter. As soon as traffic conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the ser vice warning lamp goes off.
fixed.This indicates the low level in theDiesel additive reservoir. Have the level topped up by a CITROËN dealer or a
qualified workshop as soon as possible.

Warning / indicator lampStateCauseAction / Observations



Dynamic stability control(DSC/ASR)
flashing.The DSC/ASR regulation is
operating. The system optimises traction and improves the
directional stability of the vehicle.
fix
ed. Unless it has been deactivated
(button pressed and its indicator lamp
on) the DSC/ASR system has a fault.Have it checked b
y a CITROËN or a qualified
workshop.

Engine autodiagnosis system
flashing.The engine management system hasa fault. Risk of destruction of the catalytic converter.
Have it checked by a CITROËN dealer or a qualified workshop.
fixed. The emission control system has afault. The warning lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or qualified
workshop without delay.



Anti-lockBraking System(ABS)
fixed. The anti-lock braking system has a
fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact a CITROËN dealer or a qualified workshop without delay.

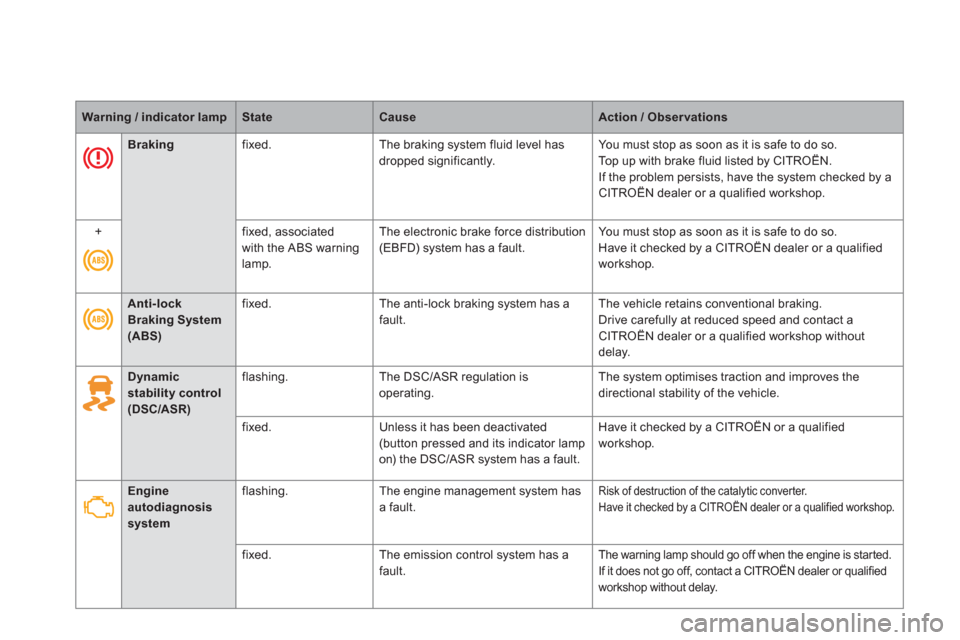

Brakingfixed. The braking system fluid level has
dropped significantly.You must stop as soon as it is safe to do so.
Top up with brake fluid listed by CITROËN.
If the problem persists, have the system checked by aCITROËN dealer or a qualified workshop.

+ fixed, associated
with the ABS warnin
glamp. Th
e electronic brake force distribution(EBFD) system has a fault.You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.

81Access
Unlocking the vehicle



















"Keyless Entry and Starting" system


System that allows the opening, closingand star ting of the vehicle while keeping theelectronic key on your person.
Complete unlocking
)
With the electronic key on your personand in the defined zone A
, pass your hand behind the door handle to unlock thevehicle, then pull on the handle to open the door.
Yo u r p a s s e ngers can also open their doors,
as soon as the electronic key is in the defined zone around the vehicle.



Selective unlocking
This setting is done via the configuration menu.
By default, complete unlocking is activated.
)
To unlock only the drivers door, with the electronic key on your person, pass your hand behind the driver's door handle thenpull on the door handle to open.)
To unlock the complete vehicle, pass your hand behind one of the passenger door handles on the same side of the vehicle asthe electronic key is located, then pull on
the door handle to open.



Unlocking is confirmed by rapidflashing of the direction indicators for approximately two seconds.
The door mirrors unfold at the sametime.
If the alarm is on, the audible warningwhen opening a door with the key(integral with the remote control), willstop on star ting the engine.

Accumulations (water, dust, grime, salt...) on
the inner sur face if the door handle may affect detection.
If cleaning the inner sur face of the door handle
using a cloth does not resolve the problem, contact a CITROËN dealer or a qualified
workshop.

A sudden splash of water (stream of water, highpressure jet washer, …) may be identified by
the system as the desire to open the vehicle.

It can also be used as a remote control;see the "Electronic key/remote control" section.

83Access
Deadlocking
Deadlocking renders the exterior and
interior door controls inoperative. It also deactivates the manual centralcontrol button. Therefore, never leave anyone inside the vehicle when it is deadlocked.
Using the remote control
) Press the closed padlock to lockthe vehicle completely.
Maintain pressure with your finger for more than two seconds to close the windows. ) Press the closed padlock again within fiveseconds to deadlock the vehicle.

With the electronic ke
y in the reader or the
Keyless Entry and Starting key inside the
vehicle, pressin
g the "STA R T/STOP" button,
with no action on the pedals, allows the ignition
to be switched on and so activate the ancillary
equipment.
Ignition on without starting
the engine
(accessory position)
)
Press the "STA R T/STOP" button,
the instrument panel comes on
but the engine does not star t.) Press the button again to switch
off the ignition and so allow the
vehicle to be locked.

If you use the accessory position for too long, the system automatically goes intoeconomy mode to avoid the risk of a flat
battery.


With the Keyless Entry and
Startin
g system
By the doors: )
With the electronic key in the defined
zone A , press a finger on the door handle (at the markings) to lock the vehicle.
)
Within five seconds, press the door handle
again to deadlock the vehicle.
Ensure that no one is preventing the correct closing of the windows. Be aware of children when operating
the windows.

Lost electronic key
Visit a CITROËN dealer with the vehicle's registration document and your personal identification documents and if possible the key code label.
The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a new key.
Electronic key
The electronic key is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.Do not repeatedly press the buttons of your electronic key out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised.The electronic key cannot operate as a remote control when it is in the reader or even when the ignition is switched on.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), take the Keyless Entry and Starting electronic key when you leave the vehicle, even for a shorttime.
Electrical interference
The Keyless Entry and Starting electronic key may not operate if close to certain electronic devices: telephone, laptop computer, strongmagnetic fields, ...
Anti-theft protection
Do not make any modifications to the electronic engine immobiliser system; this could cause malfunctions. Don't forget to turn the steering to engage the steering lock.
When purchasing a second-hand vehicle
Have all of the keys in your possession paired by a CITROËN dealer, to ensure that only your keys allow your vehicle to be unlocked and star ted.

OFF
OFF
OFF
Locking the vehicle
w
ith exterior perimeter
monitoring only
Deactivate the interior volumetric and anti-liftmonitoring to avoid unwanted triggering of thealarm in certain cases such as:
- leaving a window par tially open,
- washing your vehicle,
- changing a wheel,
- having your vehicle towed,
- transportation by sea.
Deactivation of the interior volumetric and anti-tilt monitoring
)
Switch of the ignition and within
ten seconds, press this button
until the indicator lamp is on
continuously.) Get out of the vehicle.
)
Press the locking button on
the remote control immediatelyor lock the vehicle using the Keyless Entry and Starting system.
The exterior perimeter monitorin
g alone is activated: the indicator lamp in the buttonflashes once per second.
To be effective, this deactivation must be carried out each time the ignition is switchedoff.


Reactivation of the interior
volumetric and anti-tilt monitoring

Tr iggering of the alarm


This is indicated by sounding of the siren
and flashing of the direction indicators for
thirty seconds.
The monitoring
functions remain active until
the alarm has been triggered eleven times in
succession.
)Press the unlocking button on
the remote control or unlock thevehicle using the Keyless Entry and Starting system to deactivate
the exterior perimeter monitoring.
) Press the locking button on theremote control or lock the vehicle
using the Keyless Entry and Starting system to activate all the monitoring functions.
The indicator lamp in the button
again flashes once per second.

When the vehicle is unlocked usin
gthe remote control or unlockedusing the Keyless Entry and Starting
system, rapid flashing of the indicator lamp in the button informs you that the alarm
was triggered during your absence. When
the i
gnition is switched on, this flashing stops
immediately.



Failure of the remote control

To deactivate the monitoring functions:
)Unlock the vehicle using the key (integral with
the remote control) in the driver's door lock. )Open the door; the alarm is triggered.)Switch on the ignition; the alarm stops. The
indicator lamp in the button goes off.

Locking the vehicle without
activating the alarm
)Lock or deadlock the vehicle using the key(integral with the remote control) in the driver's door lock.




Operating fault


When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault in the s
ystem. Have it checked by a CITROËN dealer or a y
qualified workshop.


*
According to country.


Automatic activation *



2 minutes after the last door or the boot isclosed, the system is activated automatically. )To avoid triggering the alarm on entering
the vehicle, first press the unlocking buttonon the remote control or unlock the vehicleusing the Keyless Entry and Starting system.
