001001002002003003COMFORT ACCESS MONITORING HYBRID SYSTEM

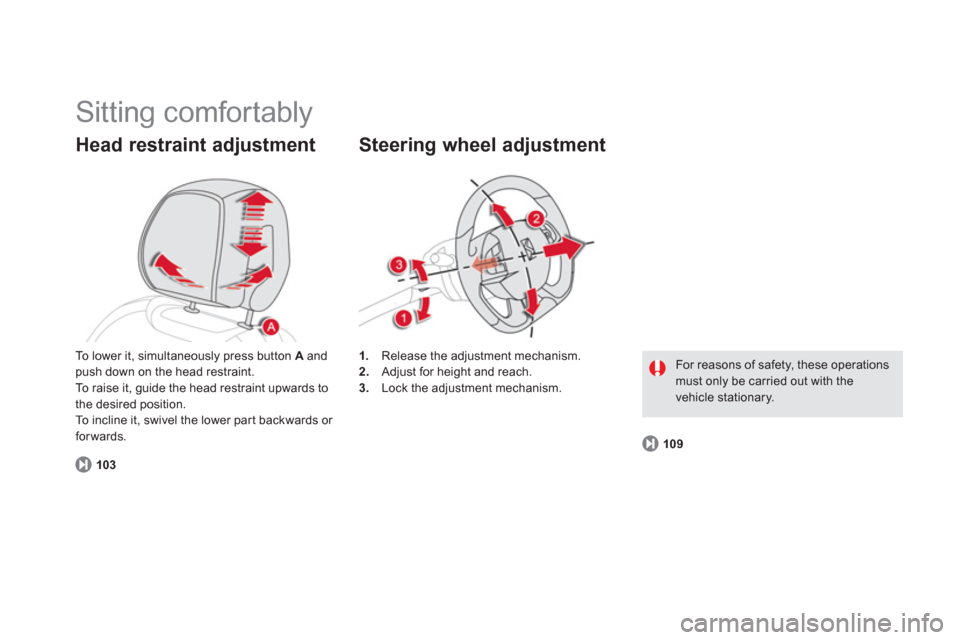

Sitting comfortably
Head restraint adjustment
103
1.Release the adjustment mechanism.
2. Adjust for height and reach. 3.
Lock the adjustment mechanism.


Steering wheel adjustment
109

For reasons of safety, these operationsmust only be carried out with the vehicle stationary. To lower it, simultaneousl
y press button A andpush down on the head restraint.
To raise it, guide the head restraint upwards to
the desired position. To incline it, swivel the lower part backwards or forwards.

The electronic power super visor - 4automatically manages the operation of the twopower units (Diesel and electric) to provide the
lowest consumption.
An inverter and a transformer are needed to manage the electric power.
The inver ter acts on the torque of the electric
motor, by regulating the current coming from
the high voltage battery pack. Its operatingrange is between 150 and 270 volts.
The transformer converts the 200 V of thebattery pack to 12 V, to power the vehicle'sancillary systems.
The Stop & Start system - 5allows the Dieselengine to be put into standby during stops(traffic lights, a stop, or in a traffic jam, for example) or during phases of running in all-electric mode.
The stopping and restar ting of the Diesel engine is done in a way that is instantaneous
and transparent for the driver.
The electronic gearbox - 6
provides, in
automatic mode, significant savings in fuelconsumption compared to a conventional manual gearbox, thanks to its electronic control system.
It also offers improved driving pleasure with
the possibility at any time of choosing the gear changing mode: automatic or manual, using the paddles located behind the steering wheel.

31Hybrid system

Before starting




- Place the gear selector lever in position N.

- If your vehicle has Keyless Entry and Starting, simply having the key inside the
vehicle is sufficient.

- If not, place the electronic key in the reader.

- Press the brake
pedal.
- Make a single shor t press (about a second) on the START/STOP
button.
- The steering column locks (noticeable
noise and movement of the steeringwheel).
- Keep your foot on the brake pedal until theHybrid4 system starts up (the instrument panel and the Readylamp come on, confirmed by an audible signal).
Starting the Hybrid4 system















Starting - switching off the engine

The hybrid system determines whether it is
necessary to star t the Diesel engine.

Warning / indicator lampStateCauseAction / Observations



Left-hand direction indicatorflashing with buzzer. The lighting stalk is pushed down.





Right-handdirection indicatorflashing with buzzer. The lighting stalk is pushed up.





Sidelampsfixed.The lighting stalk is in the
"Sidelamps" position.



Dipped beamheadlampsfixed.The lighting stalk is in the "Dipped
beam headlamps" position.




Main beam headlampsfixed. The lighting stalk is pulled towardsyou. Pull the stalk to return to dipped beam headlamps.



Frontfoglampsfixed.The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.

For more information on the lighting controls, refer to the corresponding section.




Automatic headlamp dipping
fixed.The lighting stalk has been pulledtowards you and the button (located
to the left of the steering wheel) has
been pressed.
Its indicator lamp is on.
The camera, located in the interior rear view mirror,
authorises or not switching between main and dipped beam, depending on the ambient light level and the
driving conditions.
Pullin
g the lighting stalk to return to dipped beam.
Readyfixed. The vehicle is ready to move off; you can press the accelerator. It comes on once high voltage is established in the
vehicle.

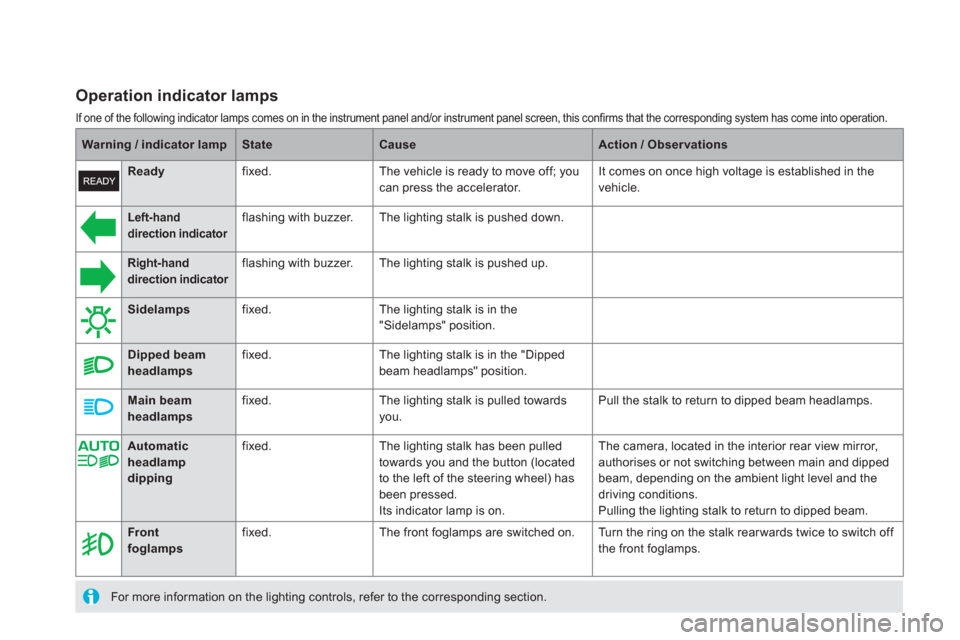

Operation indicator lamps

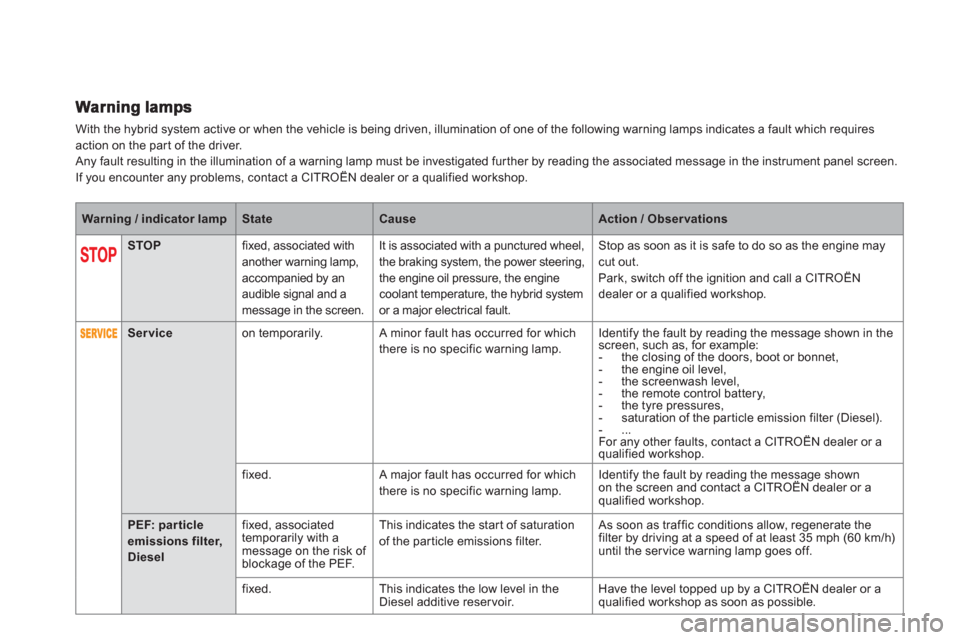

If one of the following indicator lamps comes on in the instrument panel and/or instrument panel screen, this confirms that the corresponding system has come into operation.

With the hybrid system active or when the vehicle is being driven, illumination of one of the following warning lamps indicates a fault which requires action on the par t of the driver.
Any fault resulting in the illumination of a warning lamp must be investigated further by reading the associated message in the instrument panel screen.
If you encounter any problems, contact a CITROËN dealer or a qualified workshop.
Warning / indicator lampStateCauseAction / Observations



STOPfixed, associated with another warning lamp, accompanied by an audible signal and a message in the screen.It is associated with a punctured wheel,
the brakin
g system, the power steering,
the engine oil pressure, the enginecoolant temperature, the hybrid system
or a major electrical fault.Stop as soon as it is safe to do so as the en
gine may cut out.
Park, switch off the ignition and call a CITROËN
dealer or a qualified workshop.



Serviceon temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown in the screen, such as, for example:
- the closing of the doors, boot or bonnet,
- the engine oil level,
- the screenwash level,
- the remote control battery,
- the tyre pressures,
- saturation of the par ticle emission filter (Diesel). - ...For any other faults, contact a CITROËN dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message shown on the screen and contact a CITROËN dealer or a yyg g
qualified workshop.
PEF: particle emissions filter,Diesel
fixed, associated
temporarily with a message on the risk of
blockage of the PEF.Thi
s indicates the start of saturation
of the par ticle emissions filter. As soon as traffic conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the ser vice warning lamp goes off.
fixed.This indicates the low level in theDiesel additive reservoir. Have the level topped up by a CITROËN dealer or a
qualified workshop as soon as possible.

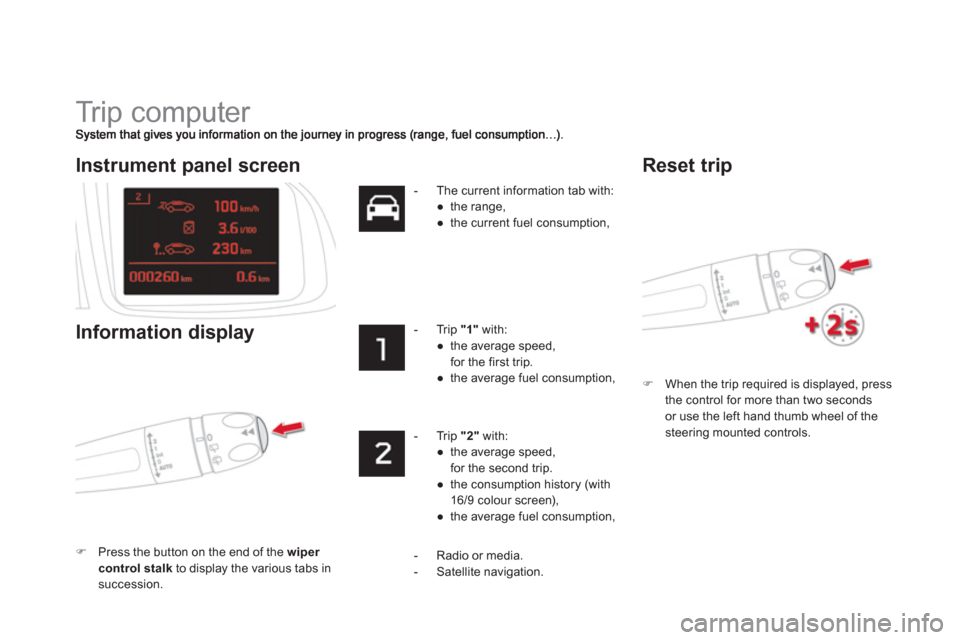

Tr i p c o m p u t e r
)When the trip required is displayed, press
the control for more than two secondsor use the left hand thumb wheel of the
steering mounted controls.


Instrument panel screen
Information displa
y
)Press the button on the end of the wiper control stalk
to display the various tabs in succession.- Th
e current information tab with:
●
the range,
●
the current fuel consumption,
-
Trip "1"
with:
●
the average speed, for the first trip.
●
the average fuel consumption,


-
Trip "2"with:
●
the average speed, for the second trip.
●
the consumption history (with
16/9 colour screen),
●
the average fuel consumption,




Reset trip
- Radio or media.
- Satellite navigation.

109Comfort
Automatic day/night model
By means of a sensor, which measures the
light from the rear of the vehicle, this system
automatically and progressively changes
between the day and night uses.
Adjustable mirror providing a central rearwardview.
Equipped with an anti-dazzle system, whichdarkens the mirror glass and reduces thenuisance to the driver caused by the sun, headlamps from other vehicles...





Rear view mirror
In order to ensure optimum visibility during your manoeuvres, the mirror lightens automatically when reverse gear is engaged.










Steering wheel adjustment
)When stationary, pull the control lever to yrelease the adjustment mechanism.)
Adjust the height and reach to suit your driving position.)
Push the control lever to lock theadjustment mechanism.

As a safety precaution, these operations should only be carried out while the vehicle is stationary.

As a safety measure, the mirrors shouldbe adjusted to reduce the "blind spot".
Seeing clearly
For better rear vision, align the bottom of the rear view mirror with the bottom of the rear screen.

135
Driving

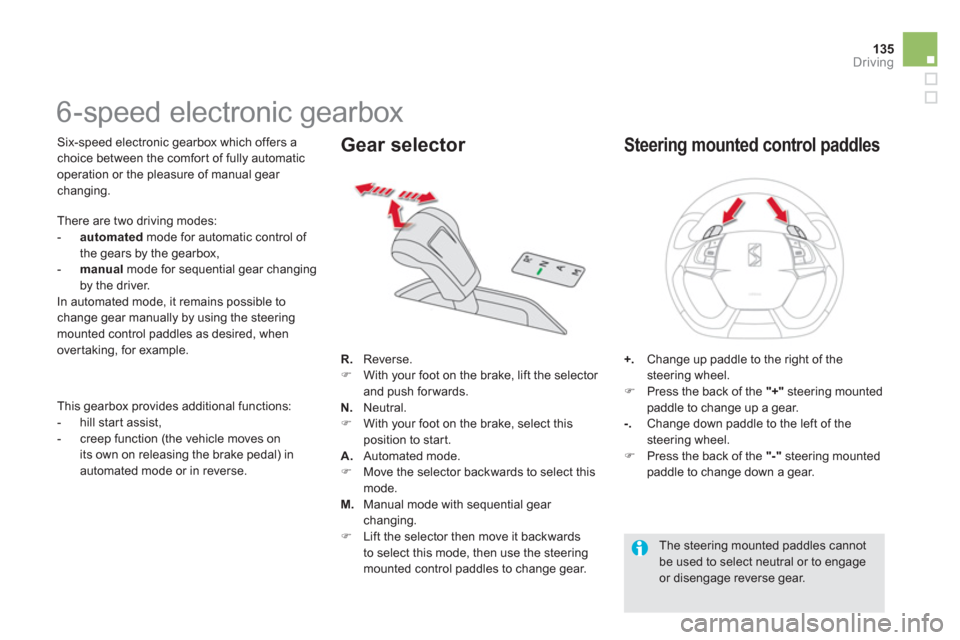

6-speed electronic gearbox

Six-speed electronic gearbox which offers a
choice between the comfor t of fully automatic
operation or the pleasure of manual gear changing.
R. Reverse. )
With your foot on the brake, lift the selector
and push forwards. N.Neutral.)
With your foot on the brake, select this
position to start.
A.
Automated mode.)
Move the selector backwards to select this
mode. M.Manual mode with sequential gear changing. )
Lift the selector then move it backwards
to select this mode, then use the steering
mounted control paddles to change gear.

Gear selector
+.Change up paddle to the right of the steering wheel.)
Press the back of the "+"
steering mounted paddle to change up a gear. -.
Change down paddle to the left of the
steering wheel.)
Press the back of the "-"
steering mounted paddle to change down a gear.


Steering mounted control paddles


The steering mounted paddles cannotbe used to select neutral or to engage or disengage reverse gear. This
gearbox provides additional functions:


- hill star t assist,

- creep
function (the vehicle moves on
its own on releasing the brake pedal) in automated mode or in reverse. There are two drivin
g modes: -automatedmode for automatic control of
the gears by the gearbox,-manualmode for sequential gear changing by the driver.
In automated mode, it remains possible to change gear manually by using the steering mounted control paddles as desired, when
over taking, for example.

143Driving
The programmed information is grouped
together in the instrument panel screen.
6. Speed limiter on / off indication. 7.Speed limiter mode selection indication. 8.
Programmed speed value.9.Selection of a memorised speed.
(see "Memorising speeds")

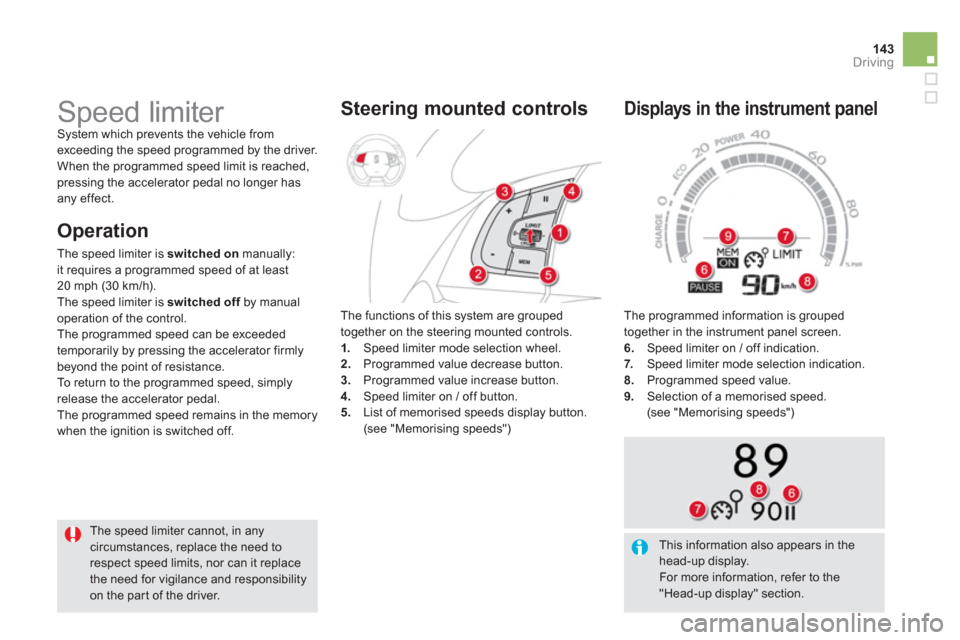

Displays in the instrument panel





Speed limiter System which prevents the vehicle fromexceeding the speed programmed by the driver.
When the programmed speed limit is reached, pressing the accelerator pedal no longer has
any effect.
The speed limiter cannot, in any
circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibilityon the par t of the driver.The functions of this s
ystem are grouped
together on the steering mounted controls. 1.Speed limiter mode selection wheel. 2. Programmed value decrease button. 3.
Programmed value increase button.
4. Speed limiter on / off button.
5. List of memorised speeds display button. (see "Memorising speeds")
Steering mounted controls

O
peration

The speed limiter is switched onmanually:
it requires a programmed speed of at least
20 mph (30 km/h).
The speed limiter is switched offby manual foperation of the control.
The programmed speed can be exceeded
temporaril
y by pressing the accelerator firmlybeyond the point of resistance.
To return to the programmed speed, simply
release the accelerator pedal.
The pro
grammed speed remains in the memory
when the i
gnition is switched off.
This information also appears in thehead-up display.
For more information, refer to the "Head-up display" section.
