seat adjustment Citroen DS5 HYBRID4 2014 1.G Owner's Manual

DS5-HYBRID_EN_CHAP00A _SOMMAIRE_ED02-2013
58 Instrument panel
59 Indicator and warning lamps
70 Gauges and indicators
74 Adjustment buttons
76 Setting the date and time
76 Clock
78 Trip computer
82 Electronic key - remote control
84 "Keyless Entry and Starting"
93 Boot
94 Alarm
97 Electric windows
99 Cockpit glass roof
101 Fuel tank
102 Misfuel prevention (Diesel)
106 Front seats
111 Rear seats
114 Mirrors
115 Steering wheel adjustment
116 Interior fi ttings
120 Boot fi ttings
121 Triangle (stowing)
122 Heating and Ventilation
124 Dual-zone digital air conditioning
128 Rear screen demist - defrost
28 Presentation
31 Starting / switching off
35 Ready lamp
35 Hybrid4 mode selector
38 Energy consumption / generation indicator
40 Display of hybrid power fl ow
43 Hybrid4 frequently asked questions
46 Eco off
47 Eco-driving
49 Consumption
50 High voltage battery
54 Car washing machine or tunnel
55 Vehicle on a fl at-bed
001002003COMFORT
ACCESS
MONITORING
HYBRID SYSTEM

DS5-HYBRID_EN_CHAP00A _SOMMAIRE_ED02-2013
SAFETY
CHILD SAFETY
VISIBILITY
160 Lighting controls
163 Daytime running lamps
164 Automatic illumination of headlamps
165 Automatic headlamp dipping
168 Headlamp adjustment
169 Directional lighting
171 Wiper controls
173 Automatic rain sensitive wipers
175 Courtesy lamps
176 Interior mood lighting
180 Child seats
182 Deactivating the passenger's front airbag
188 ISOFIX mountings
193 Child lock
196 Direction indicators
197 Emergency or assistance call
197 Horn
198 ESC system
202 Seat belts
205 Airbags
DRIVING
132 Electric parking brake
139 Hill start assist
14 0 Electronic gearbox
14 4 Tyre under-infl ation detection
14 6 Lane departure warning system
147 Head-up display
15 0 Speed limiter
152 Cruise control
15 4 Parking sensors
15 6 Reversing camera
005006007004

15Familiarisation
DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013
Sitting comfortably
Front seats
Manual
1. Head restraint height and angle adjustment.
2. Backrest angle adjustment.
3. Seat cushion height adjustment. 4. Seat forwards-backwards adjustment. 5. Driver's lumbar support adjustment.
Electric
1. Angle, seat height and seat forwards-backwards adjustment. 2. Backrest angle adjustment. 3. Driver's lumbar support adjustment. 4. Manual cushion adjustment.
106
107

DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013
14 . Controls for electric windows / electric child lock / central locking. 15. eMyWay controls. 16. Gear selector. 17. Hybrid4 mode selector.
18. Heating / air conditioning controls. 19. Audio system. 20. Hazard warning lamps. 21. Multifunction screen. 22. Central adjustable air vents. 23. Clock. 24. Starting with the START/STOP button. 25. Electronic key reader. 26. Wiper / screenwash / trip computer stalk.

Instruments and controls
1. Bonnet release lever. 2. Headlamp height adjustment. 3. Side adjustable air vents. 4. Front door window demisting/defrosting vents.
5. Quarter light demisting windows. 6. Head-up display. 7. Windscreen demisting/defrosting vent. 8. Passenger's airbag. 9. Glove box / Passenger's airbag deactivation inside. 10. 12 V accessory socket. 11. Rear electric window controls. 12 . Central armrest with storage. USB port / auxiliary socket. 13. Electric parking brake.
2 7. Audio equipment steering mounted controls. 28. Driver's airbag. Horn. 29. Cruise control / speed limiter controls.
30. Switch panel (see previous page). 31. Door mirror adjustment. 32. Lighting and direction indicator stalk 33. Instrument panel. 34. Seat belt and airbag warning lamps. 35. Courtesy lamp. 36. Head-up display controls. 3 7. Controls for cockpit glass roof blind. 38. CITROËN Localised Emergency Call - CITROËN Localised Assistance Call.

19Familiarisation
DS5-HYBRID_EN_CHAP00B_PRISE EN MAIN_ED02-2013
Sitting comfortably
Door mirrors
Adjustment
1. Selection of the left or right mirror. 2. Adjusting the position of the mirror glass. 3. Deselection of the mirror. 4. Folding the mirror.
Rear view mirror
1. Automatic detection of day/night mode. 2. Rear view mirror adjustment.
Front seat belts
1. Fastening. 2. Adjusting for height.
114
115
202

DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013

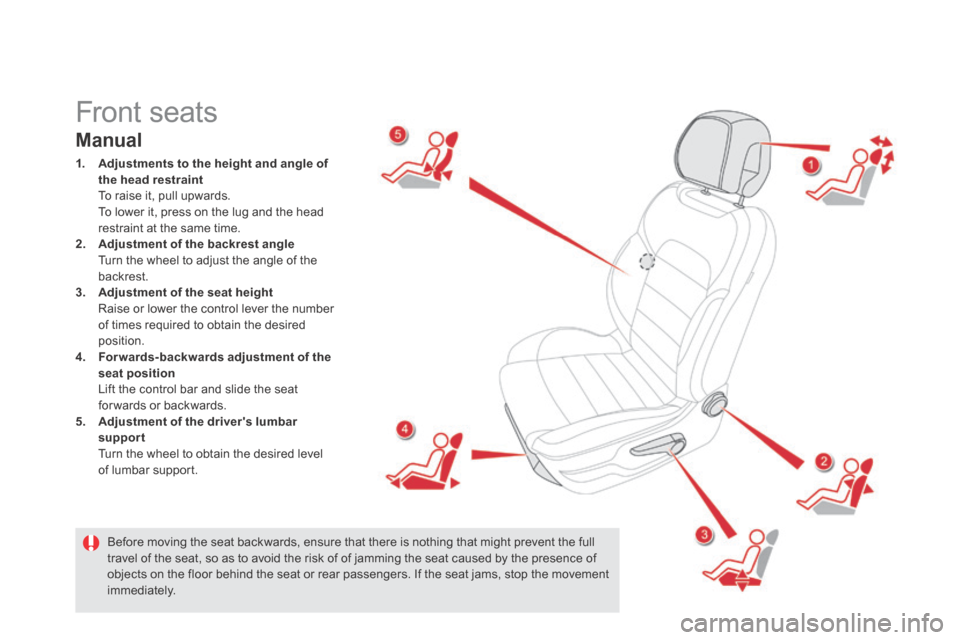

Front seats
Manual
1. Adjustments to the height and angle of the head restraint To raise it, pull upwards. To lower it, press on the lug and the head restraint at the same time. 2. Adjustment of the backrest angle Turn the wheel to adjust the angle of the backrest. 3. Adjustment of the seat height Raise or lower the control lever the number of times required to obtain the desired position. 4. Forwards-backwards adjustment of the seat position Lift the control bar and slide the seat for wards or backwards. 5. Adjustment of the driver's lumbar support Turn the wheel to obtain the desired level of lumbar support.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

107Comfort
DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013
Switch on the ignition or start the engine if the vehicle has gone into economy mode. The electric functions of the driver's seat are active for about 45 seconds after opening the front door. They are deactivated about 45 seconds after switching off the ignition and in economy mode.
To reactivate them, switch on the ignition.

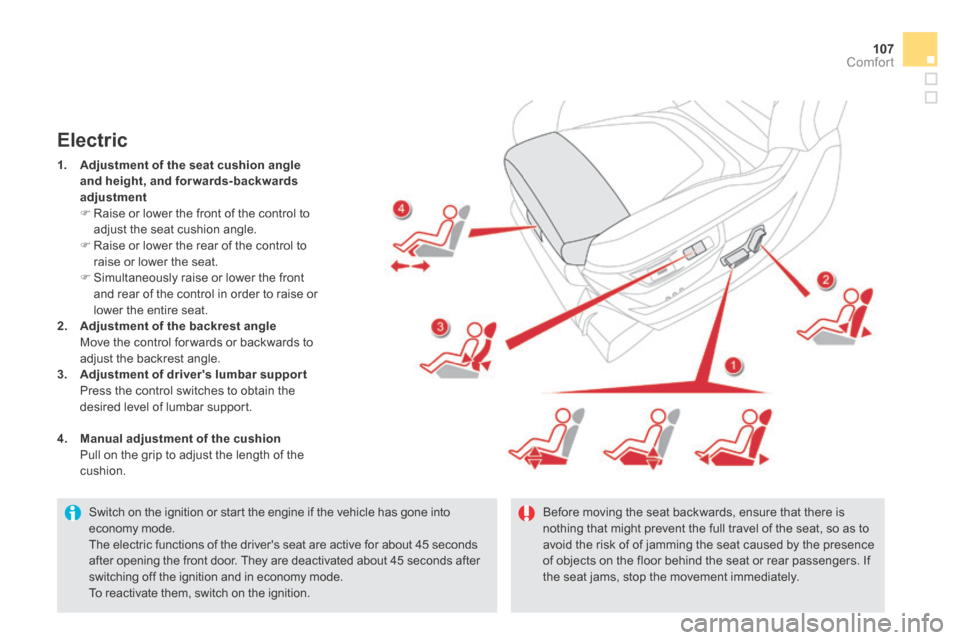

Electric
1. Adjustment of the seat cushion angle and height, and forwards-backwards adjustment Raise or lower the front of the control to adjust the seat cushion angle.  Raise or lower the rear of the control to raise or lower the seat.  Simultaneously raise or lower the front and rear of the control in order to raise or lower the entire seat. 2. Adjustment of the backrest angle Move the control for wards or backwards to adjust the backrest angle. 3. Adjustment of driver's lumbar support Press the control switches to obtain the desired level of lumbar support.
4. Manual adjustment of the cushion Pull on the grip to adjust the length of the cushion.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat, so as to avoid the risk of of jamming the seat caused by the presence of objects on the floor behind the seat or rear passengers. If the seat jams, stop the movement immediately.

DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013

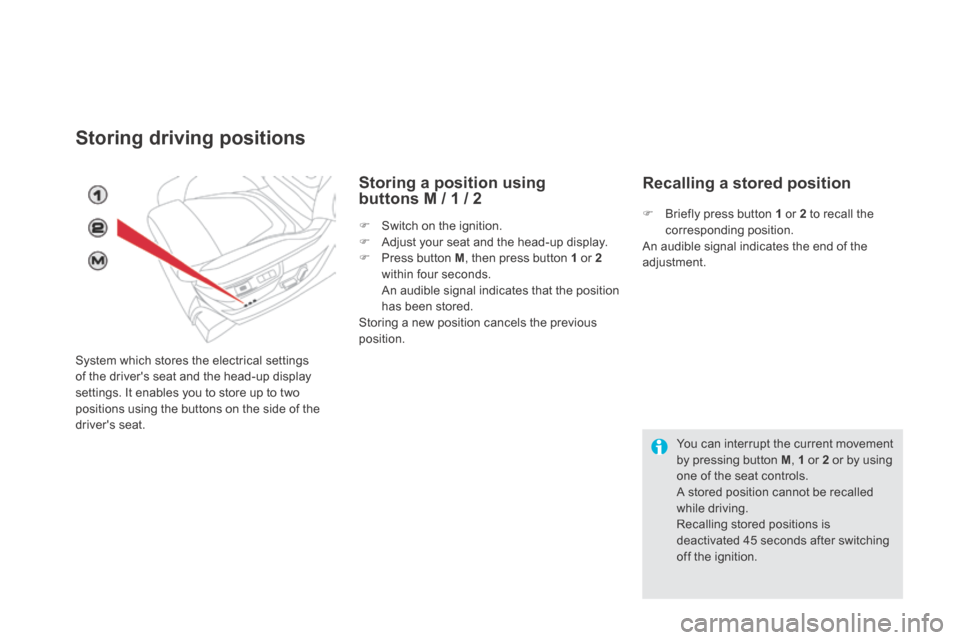

Storing driving positions
System which stores the electrical settings of the driver's seat and the head-up display settings. It enables you to store up to two positions using the buttons on the side of the driver's seat.
Storing a position using buttons M / 1 / 2
 Switch on the ignition.  Adjust your seat and the head-up display.  Press button M , then press button 1 or 2within four seconds. An audible signal indicates that the position has been stored. Storing a new position cancels the previous position.
Recalling a stored position
 Briefly press button 1 or 2 to recall the
corresponding position. An audible signal indicates the end of the adjustment.
You can interrupt the current movement by pressing button M , 1 or 2 or by using one of the seat controls. A stored position cannot be recalled while driving. Recalling stored positions is deactivated 45 seconds after switching off the ignition.

109Comfort
DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013
The head restraint is fitted with a frame with notches which prevents it from lowering; this is a safety device in case of impact. The adjustment is correct when the upper edge of the head restraint is level with the top of the head. Never drive with the head restraints removed; they must be in place and adjusted correctly.

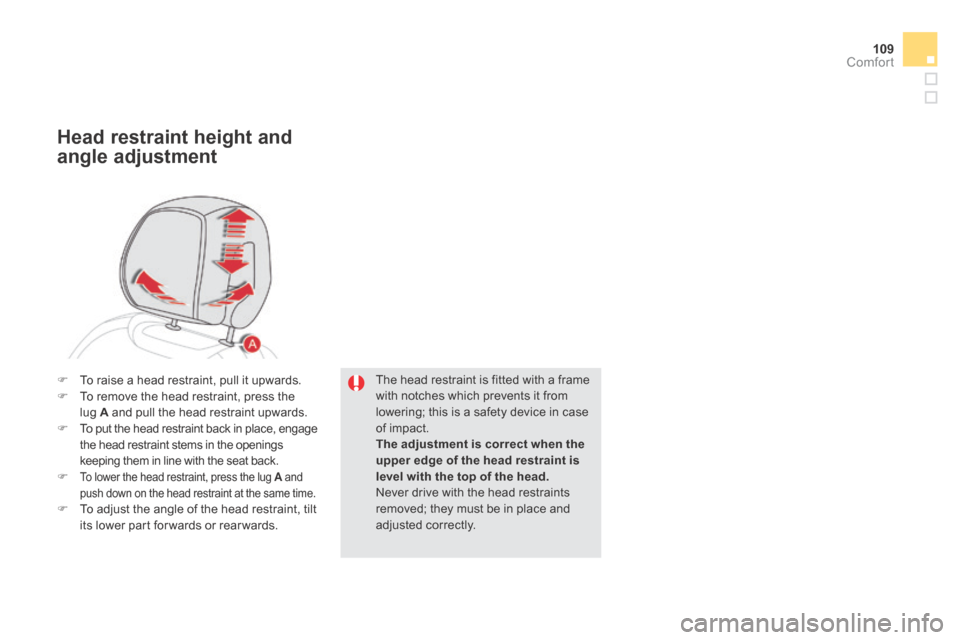

Head restraint height and
angle adjustment
 To raise a head restraint, pull it upwards.  To remove the head restraint, press the lug A and pull the head restraint upwards. To put the head restraint back in place, engage
the head restraint stems in the openings keeping them in line with the seat back. To lower the head restraint, press the lug A and A and Apush down on the head restraint at the same time.  To adjust the angle of the head restraint, tilt its lower part forwards or rearwards.

DS5-HYBRID_EN_CHAP03_CONFORT_ED02-2013

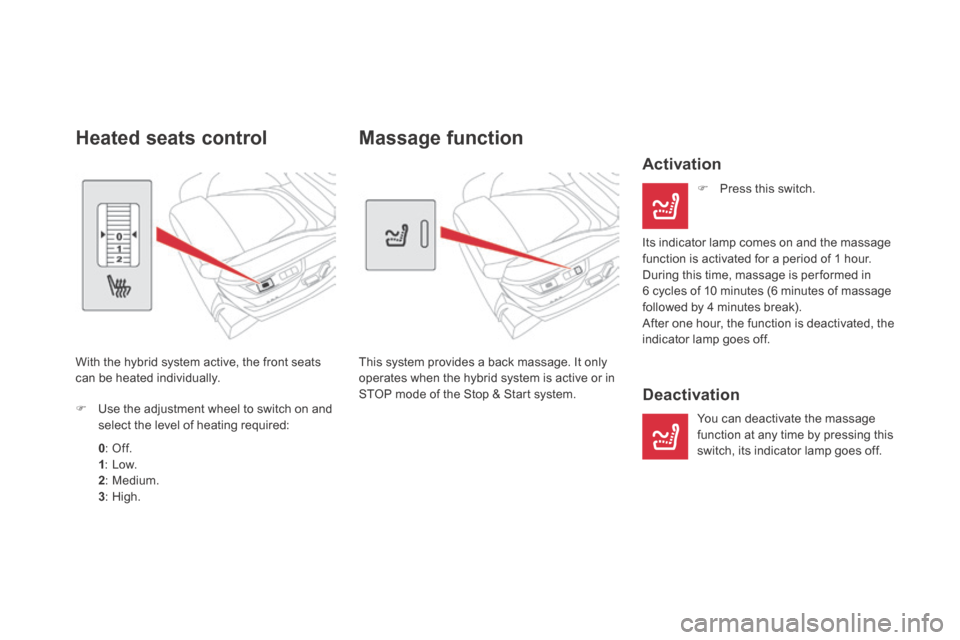

Massage function
This system provides a back massage. It only operates when the hybrid system is active or in STOP mode of the Stop & Start system.
Activation
 Press this switch.
Its indicator lamp comes on and the massage function is activated for a period of 1 hour. During this time, massage is per formed in 6 cycles of 10 minutes (6 minutes of massage followed by 4 minutes break). After one hour, the function is deactivated, the indicator lamp goes off.
Deactivation
You can deactivate the massage
function at any time by pressing this switch, its indicator lamp goes off.
Heated seats control
With the hybrid system active, the front seats can be heated individually.
 Use the adjustment wheel to switch on and select the level of heating required:
0 : Off. 1 : Low. 2 : Medium. 3 : High.
