battery capacity Citroen DS5 HYBRID4 2015 1.G Owner's Manual

225
DS5_en_Chap08_info-pratiques_ed01-2015
After refitting the battery, the Stop &
Start system will only be active after a
continuous period of immobilisation of the
vehicle, a period which depends on the
climatic conditions and the state of charge
of the battery (up to about 8 hours). With Stop & Start, the battery does not
have to be disconnected for charging.

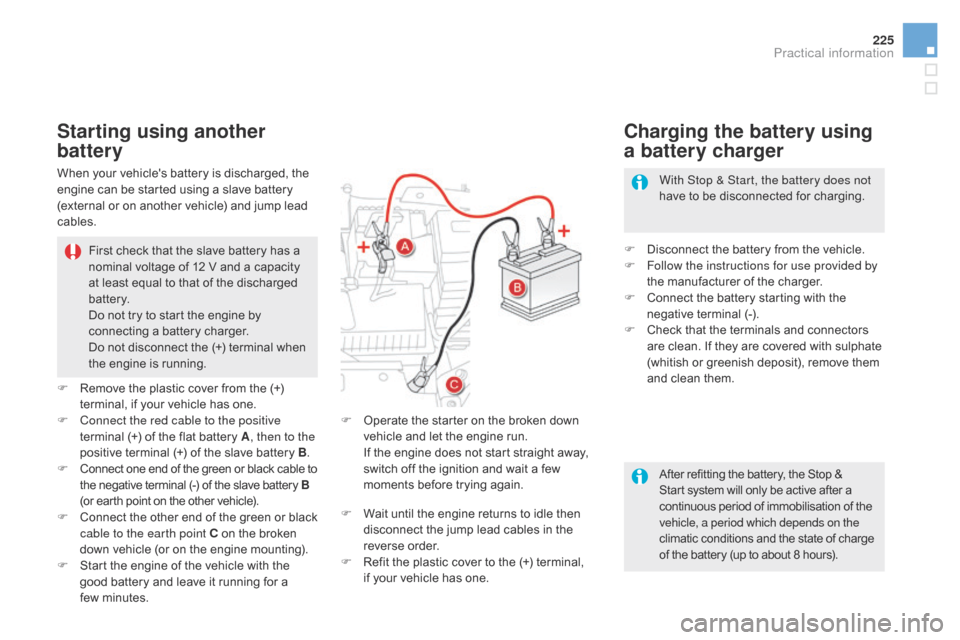

Starting using another
battery
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
Do not try to start the engine by
connecting a battery charger.
Do not disconnect the (+) terminal when
the engine is running.
F

R
emove the plastic cover from the (+)
terminal, if your vehicle has one.
F

C
onnect the red cable to the positive
terminal (+) of the flat battery A , then to the
positive terminal (+) of the slave battery B.
F

C

onnect one end of the green or black cable to
the negative terminal (-) of the slave battery B
(or earth point on the other vehicle).
F

C
onnect the other end of the green or black
cable to the earth point
c on the broken
down vehicle (or on the engine mounting).
F

S

tart the engine of the vehicle with the
good battery and leave it running for a
few
m

inutes. F

O
perate the starter on the broken down
vehicle and let the engine run.
I

f the engine does not start straight away,
switch off the ignition and wait a few
moments before trying again. F
D isconnect the battery from the vehicle.
F F ollow the instructions for use provided by
the manufacturer of the charger.
F

C
onnect the battery starting with the
negative terminal (-).
F

C
heck that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.
charging the battery using
a battery charger
When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables.
F

W
ait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
F

R
efit the plastic cover to the (+) terminal,
if your vehicle has one.
Practical information

DS5_en_Chap12_index-recherche_ed01-2015
Accessories ................................................. 235
Accessory position ....................................... 10
0
Accessory socket, 12V

............................. 8
2, 83
Additive, AdBlue
.............................. 2

9, 255 -263
Adjusting headlamps
.................................... 15

2
Adjusting head restraints

..........................7

2, 75
Adjusting seat belt height

.............................18

9
Adjusting the steering wheel

..........................81
A

dvice on care and maintenance
.................23

4
Advice on driving

..............................
..............98
Airbags
...............

..................................... 31, 191
Airbags, curtain
..................................... 19

3, 19 4
Airbags, front......................................... 191, 19 4
Airbags, lateral
...................................... 19

3, 19 4
Air conditioning, automatic

....................... 9
0, 91
Air filter

...............
........................................... 253
Air flow

..............................
..............................14
Air vents
..............................

............................89
Alarm
............................................................... 63
A

nti-lock braking system (ABS)
....................18

4
Anti-pinch
.................................................. 6

7, 68
Anti-theft immobiliser
.................................... 10

0
Apple
® player ................................................ 31 6
Armrest, front ............................................ 8
2, 85
Armrest, rear

............................................. 8
2, 86
Ashtray
...............

............................................. 82
Assistance call
...............................

....... 183, 282
Assistance, emergency braking
................... 18

4
Audible warning
............................................ 18

3
Audio cable
........................................... 3

14, 355
Audio streaming (Bluetooth)
..............................

............ 316, 359
Audio system

...............................
............ 39, 349
Automatic headlamps
............................. 2

0, 149
Automatic illumination of headlamps

....14

5, 148
Automatic operation of hazard warning
lam

ps
............................................ 18

2Automatic rain sensitive windscreen
wipers
...............
..................................
155, 157
Auxiliary sockets
............................. 8
5, 314, 359
Changing a fuse
.....................................
2
21-223
Changing a wheel
...............................
...
2 0 3 - 2 11
Changing a wiper blade
........................
15
8, 228
Changing the date
..................................... 4
2, 47
Changing the remote control battery ............................................... 59
Changing the time
......................... 3
8, 39, 42, 47
Checking levels
......................................
2
4 8 - 2 51
Checking the engine oil level
.................. 3
6, 248
Checking tyre pressures (using the kit)
..............................
................
203
Checks
...............
................... 245, 246, 252-254
Children
...............................
... 162-178, 190, 192
Child lock
...............................
........................
178
Child seats
..............................
...............
16 4 -17 7
Child seats, conventional
....................... 17
0, 171
Child seats, ISOFIX
...............................
17
3 -175
Cigarette lighter............................................... 83
CITROËN Localised Emergency Call
.......................................... 28
2
Cleaning (advice)
.......................................... 23
4
Clock ............... ................................................
38
Closing the boot ............................... ...............62
Closing the doors
............................... ....... 53, 55
Cockpit glass roof

...........................................68
C

onnectors, audio
...................8
5, 314, 358, 359
Coolant level
..............................

............. 32, 250
Coolant temperature indicator

........................32
C

ourtesy lamps
.............................................15

9
Cruise control
........................................ 13

1, 13 6
Cup holder

...............................
........................82
Customising stickers
..................................... 23

4
Battery
...............................

............ 224-226, 252
Battery, charging
...............................
.... 225, 226
Battery, remote control
............................. 5
9, 60
Black panel ...................................................... 38
Blind spot sensors
........................................ 12
6
BlueHDi
...............................
..................
118 , 2 5 5
Bluetooth connection
............3
28, 336, 337, 360
Bluetooth (hands-free)
.................. 3
36, 337, 360
Bluetooth (telephone)
............................3
36, 360
Boot
........
.........................................................
62
Boot (opening)
...............................
..................
53
Brake discs ....................................................
25 4
Brake lamps ............................... ...................
218
Brake pads ............................... .....................254
Braking assistance system

...........................18

4
Braking system warning lamp

.........................2

7
Capacity, fuel tank ........................................2 41
CD .............................. ........................... 314, 355
CD MP3

................
................................. 314, 357
Central locking

.......................................... 5
3, 55
Changing a bulb
..................................... 2

13 -2 20

DS5Hy4_en_Chap00c_hybride_ed01-2015

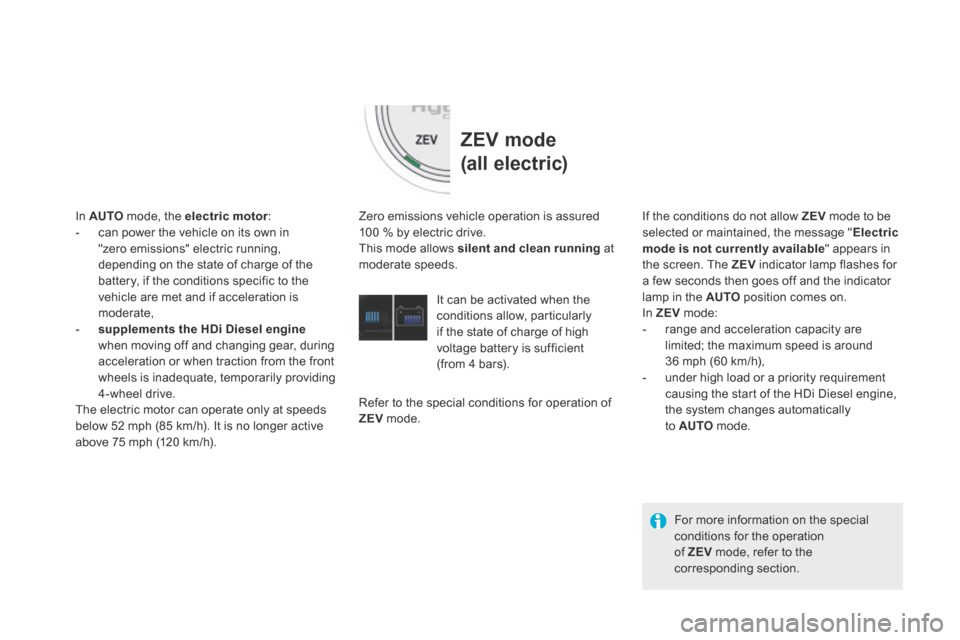

ZEV mode
(all electric)
Zero emissions vehicle operation is assured 100 % by electric drive. This mode allows silent and clean running at moderate speeds.
It can be activated when the conditions allow, particularly if the state of charge of high voltage battery is sufficient (from 4 bars).
In AUTO mode, the electric motor : - can power the vehicle on its own in "zero emissions" electric running, depending on the state of charge of the battery, if the conditions specific to the vehicle are met and if acceleration is moderate, - supplements the HDi Diesel enginewhen moving off and changing gear, during acceleration or when traction from the front wheels is inadequate, temporarily providing 4-wheel drive. The electric motor can operate only at speeds below 52 mph (85 km/h). It is no longer active above 75 mph (120 km/h).
Refer to the special conditions for operation of ZEV m o d e .
For more information on the special conditions for the operation of ZEV mode, refer to the corresponding section.
If the conditions do not allow ZEV mode to be selected or maintained, the message " Electric mode is not currently available " appears in the screen. The ZEV indicator lamp flashes for a few seconds then goes off and the indicator lamp in the AUTO position comes on. In ZEV mode: ZEV mode: ZEV - range and acceleration capacity are limited; the maximum speed is around 36 mph (60 km/h), - under high load or a priority requirement causing the start of the HDi Diesel engine, the system changes automatically to AUTO m o d e .

21Hybrid4 system
DS5Hy4_en_Chap00c_hybride_ed01-2015

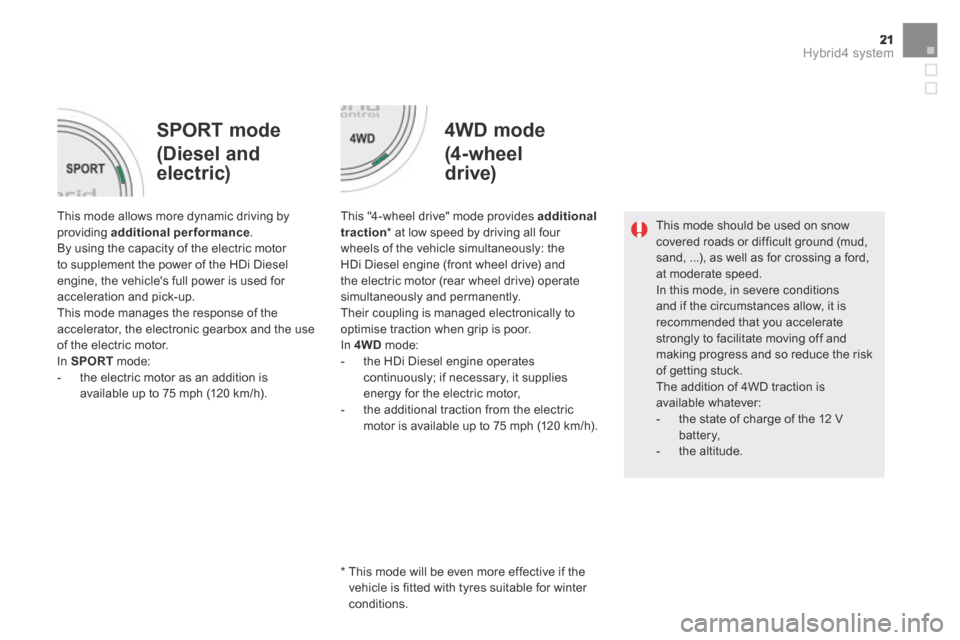

SPORT mode
(Diesel and
electric)
4WD mode
(4 - wheel
drive)
This mode allows more dynamic driving by providing additional performance . By using the capacity of the electric motor to supplement the power of the HDi Diesel engine, the vehicle's full power is used for acceleration and pick-up. This mode manages the response of the accelerator, the electronic gearbox and the use of the electric motor. In SPORT mode: - the electric motor as an addition is available up to 75 mph (120 km/h).
This "4-wheel drive" mode provides additional traction * at low speed by driving all four wheels of the vehicle simultaneously: the HDi Diesel engine (front wheel drive) and the electric motor (rear wheel drive) operate simultaneously and permanently. Their coupling is managed electronically to optimise traction when grip is poor. In 4WD mode: - the HDi Diesel engine operates continuously; if necessary, it supplies energy for the electric motor, - the additional traction from the electric motor is available up to 75 mph (120 km/h).
This mode should be used on snow covered roads or difficult ground (mud, sand, ...), as well as for crossing a ford, at moderate speed. In this mode, in severe conditions and if the circumstances allow, it is recommended that you accelerate strongly to facilitate moving off and making progress and so reduce the risk of getting stuck. The addition of 4WD traction is available whatever: - the state of charge of the 12 V
battery, - t h e a l t i t u d e .
* This mode will be even more effective if the vehicle is fitted with tyres suitable for winter conditions.

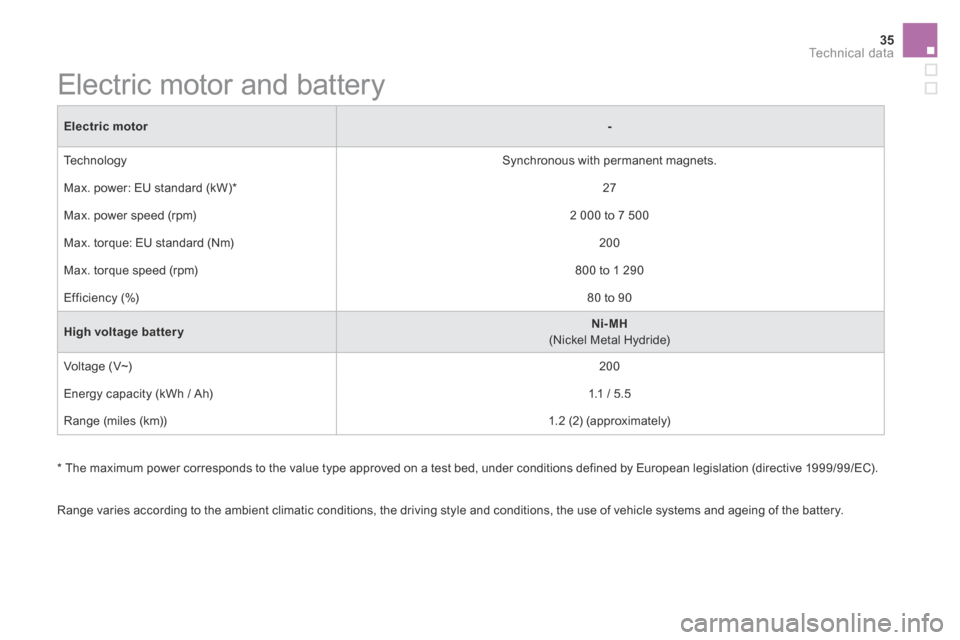

35Technical data
DS5Hy4_en_Chap10_caracteristiques_ed01-2015
Electric motor-
Technology Synchronous with permanent magnets.
Max. power: EU standard (kW) * 27
Max. power speed (rpm) 2 000 to 7 500
Max. torque: EU standard (Nm) 200
Max. torque speed (rpm) 800 to 1 290
Efficiency (%) 80 to 90
High voltage batteryNi-MH (Nickel Metal Hydride)
Voltage (V~) 200
Energy capacity (kWh / Ah) 1.1 / 5.5
Range (miles (km)) 1.2 (2) (approximately)
Electric motor and battery
Range varies according to the ambient climatic conditions, the driving style and conditions, the use of vehicle systems and ageing of the battery.
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (directive 1999/99/EC).

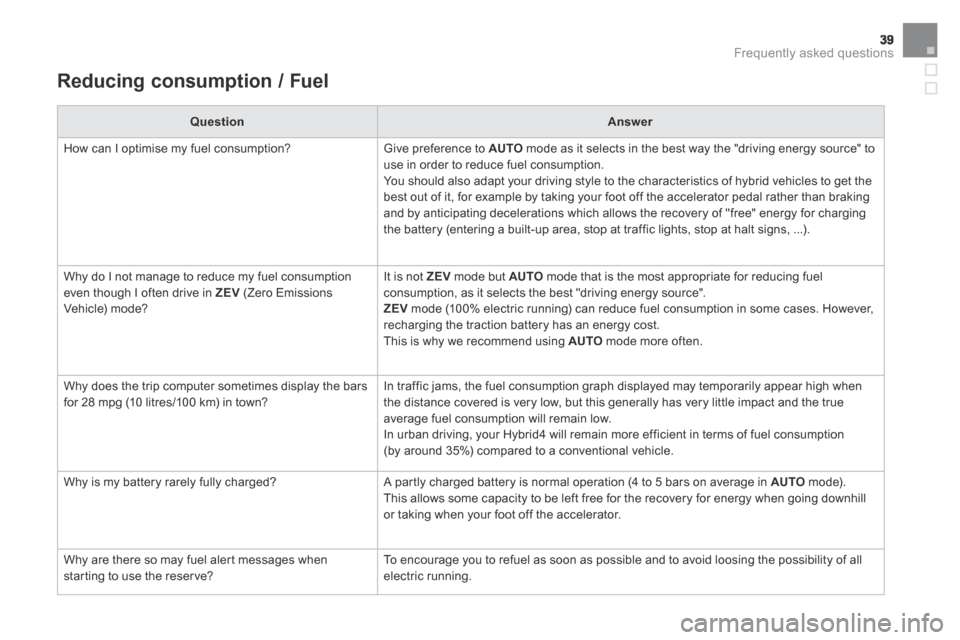

39Frequently asked questions
DS5Hy4_en_Chap11_questions-frequentes_ed01-2015
Reducing consumption / Fuel
QuestionAnswer
How can I optimise my fuel consumption? Give preference to AUTO mode as it selects in the best way the "driving energy source" to use in order to reduce fuel consumption. You should also adapt your driving style to the characteristics of hybrid vehicles to get the best out of it, for example by taking your foot off the accelerator pedal rather than braking and by anticipating decelerations which allows the recovery of "free" energy for charging the battery (entering a built-up area, stop at traffic lights, stop at halt signs, ...).
Why do I not manage to reduce my fuel consumption even though I often drive in ZEV (Zero Emissions Vehicle) mode?
It is not ZEV mode but AUTO mode that is the most appropriate for reducing fuel consumption, as it selects the best "driving energy source". ZEV mode (100% electric running) can reduce fuel consumption in some cases. However, recharging the traction battery has an energy cost. This is why we recommend using AUTO mode more often.
Why does the trip computer sometimes display the bars for 28 mpg (10 litres/100 km) in town? In traffic jams, the fuel consumption graph displayed may temporarily appear high when the distance covered is very low, but this generally has very little impact and the true average fuel consumption will remain low. In urban driving, your Hybrid4 will remain more efficient in terms of fuel consumption (by around 35%) compared to a conventional vehicle.
Why is my battery rarely fully charged? A partly charged battery is normal operation (4 to 5 bars on average in AUTO mode). This allows some capacity to be left free for the recovery for energy when going downhill or taking when your foot off the accelerator.
Why are there so may fuel alert messages when starting to use the reserve? To encourage you to refuel as soon as possible and to avoid loosing the possibility of all electric running.
