child restraint Citroen DS5 HYBRID4 2015 1.G Owner's Manual

9

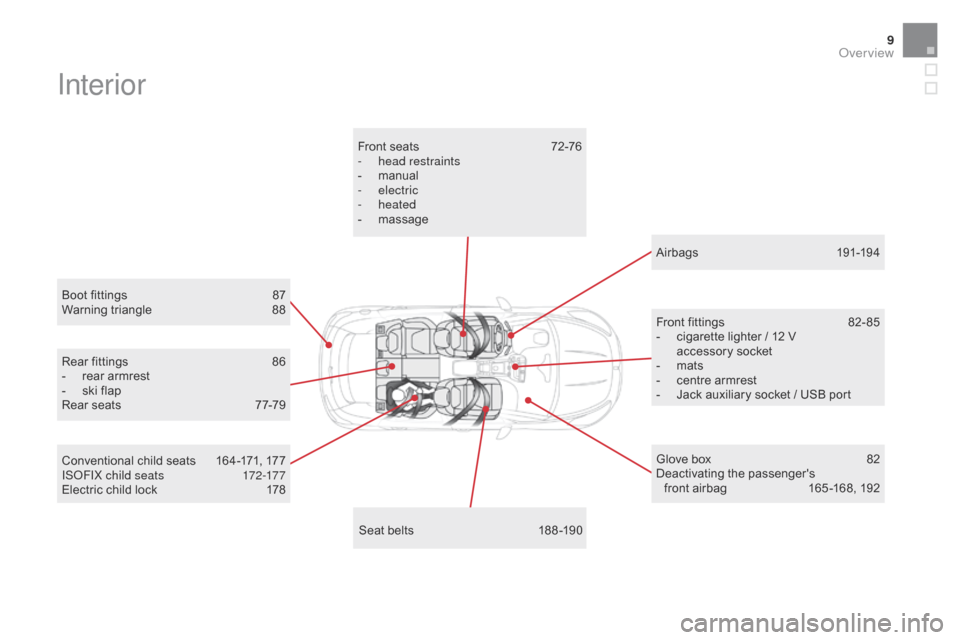

Interior
Boot fittings 87
W arning triangle 8 8
Seat belts

1
88 -190
Front seats

7
2-76
-
h
ead restraints
-
m
anual
-

electric
-

heated
-
m
assage
Conventional child seats
1
64-171, 177
ISOFIX child seats

1
72-177
Electric child lock

1
78 Airbags
19

1-19 4
Front fittings
8
2- 85
-

c
igarette lighter / 12 V
accessory socket
-

m
ats
-

c
entre armrest
-

J
ack auxiliary socket / USB port
Glove box

8
2
Deactivating the passenger's
front airbag

1
65 -168, 192
Rear fittings

8
6
-

r
ear armrest
-

s
ki flap
Rear seats

7
7-79
DS5_en_Chap00b_vue-ensemble_ed01-2015
Over view

DS5_en_Chap06_securite-enfants_ed01-2015

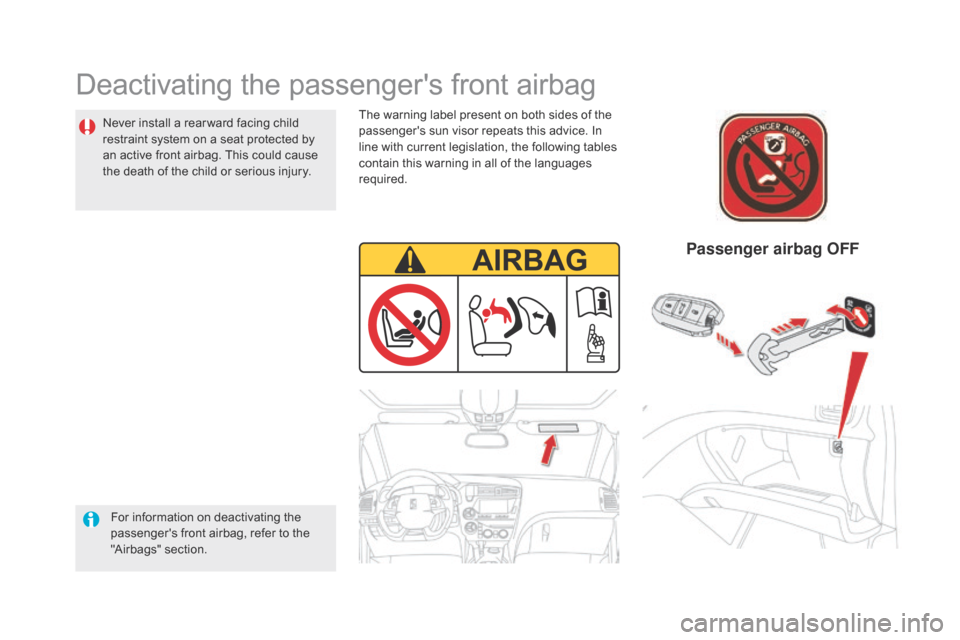

Deactivating the passenger's front airbag
For information on deactivating the
passenger's front airbag, refer to the
"Airbags" section.
Passenger airbag OFF
Never install a rear ward facing child
restraint system on a seat protected by
an active front airbag. This could cause
the death of the child or serious injury.The warning label present on both sides of the
passenger's sun visor repeats this advice. In
line with current legislation, the following tables
contain this warning in all of the languages
required.

AR
BG
НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦ А. Това може да причини
СМЪРТ или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CSNIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí
nebezpečí SMRTI DÍTĚTE nebo VÁ ŽNÉHO ZR ANĚNÍ.
DABrug ALDRIG en bagudvendt barnestol på et sæde, der er beskyttet af en AKTIV AIRBAG. BARNET risikerer at blive ALVORLIGT
K VÆSTET eller DR ÆBT.
DEMontieren Sie auf einem Sitz mit AKTIVIERTEM Front-Airbag NIEMALS einen Kindersitz oder eine Babyschale entgegen der Fahr trichtung,
das Kind könnte schwere oder sogar tödliche Verletzungen erleiden.
ELΜη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από
ΜΕΤΩΠΙΚΟ αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
ENNEVER use a rear ward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the
CHILD can occur
ESNO INSTALAR NUNCA un sistema de retención para niños de espaldas al sentido de la marcha en un asiento protegido mediante un
AIRBAG frontal ACTIVADO, ya que podría causar lesiones GR AVES o incluso la MUERTE del niño.
ETÄrge MITTE KUNAGI paigaldage "seljaga sõidusuunas" lapseistet juhi kõr valistmele, mille ESITURVAPADI on AKTIVEERITUD. Tur vapadja
avanemine võib last TÕSISELT või ELUOHTLIKULT vigastada.
FIÄLÄ KOSK A AN aseta lapsen tur vaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVAT Y YNY. Sen
laukeaminen voi aiheuttaa LAPSEN KUOLEMAN tai VAK AVAN LOUKK A ANTUMISEN.
FRNE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE
frontal ACTIVÉ.
Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GR AVEMENT
HRNIK ADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZR AČNIM JASTUKOM. To bi
moglo uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.
HUSOHA ne használjon menetiránynak háttal beszerelt gyermekülést AKTIVÁLT (BEK APCSOLT) FRONTLÉGZSÁKK AL védett ülésen. Ez a
gyermek HALÁLÁT vagy SÚLYOS SÉRÜLÉSÉT okozhatja.
ITNON installare MAI seggiolini per bambini posizionati in senso contrario a quello di marcia su un sedile protetto da un AIRBAG frontale
ATTIVATO. Ciò potrebbe provocare la MORTE o FERITE GR AVI al bambino.
LTNIEK ADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO
PAGALVĖS. Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TR AUMUOTAS.
167
DS5_en_Chap06_securite-enfants_ed01-2015
Child safety

171
DS5_en_Chap06_securite-enfants_ed01-2015

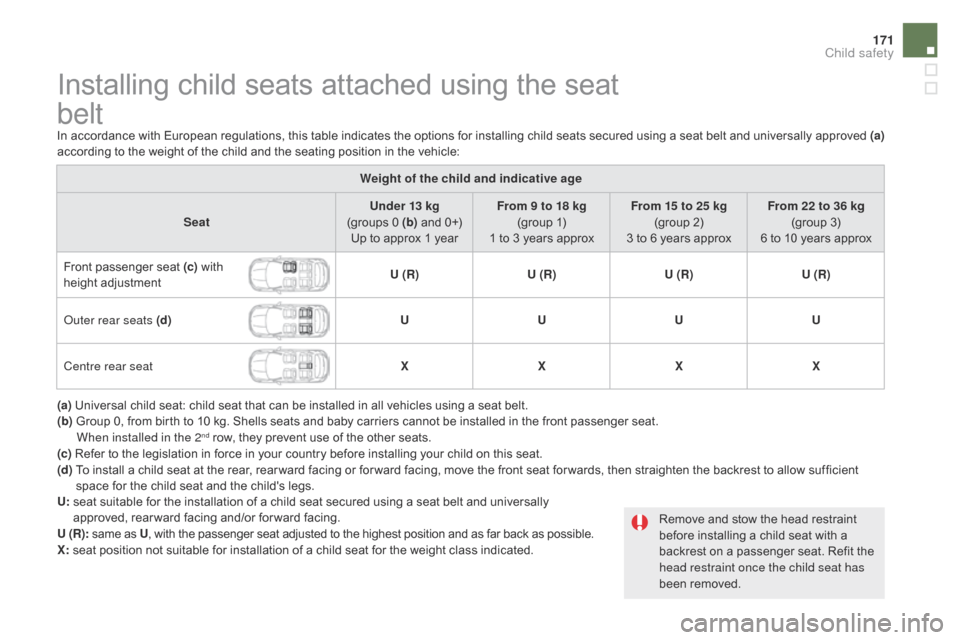

Installing child seats attached using the seat
belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a)
according to the weight of the child and the seating position in the vehicle:
Weight of the child and indicative age
Seat Under 13 kg
(groups 0 (b) and 0+)
Up to approx 1 year From 9 to 18 kg
(group 1)
1 to 3 years approx From 15 to 25 kg
(group 2)
3 to 6 years approx From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger seat (c) with
height adjustment U (R)
U (R)U (R)U (R)
Outer rear seats (d) UUUU
Centre rear seat XXXX
(a) Universal child seat: child seat that can be installed in all vehicles using a seat belt.
(b) Group 0, from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat.
W

hen installed in the 2
nd row, they prevent use of the other seats.
(c) Refer to the legislation in force in your country before installing your child on this seat.
(d)

T

o install a child seat at the rear, rear ward facing or for ward facing, move the front seat for wards, then straighten the backrest to allow sufficient
space for the child seat and the child's legs.
Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
U:


s

eat suitable for the installation of a child seat secured using a seat belt and universally
approved, rear ward facing and/or for ward facing.
U (R):

s

ame as U , with the passenger seat adjusted to the highest position and as far back as possible.
X: seat position not suitable for installation of a child seat for the weight class indicated.
child safety

DS5_en_Chap06_securite-enfants_ed01-2015

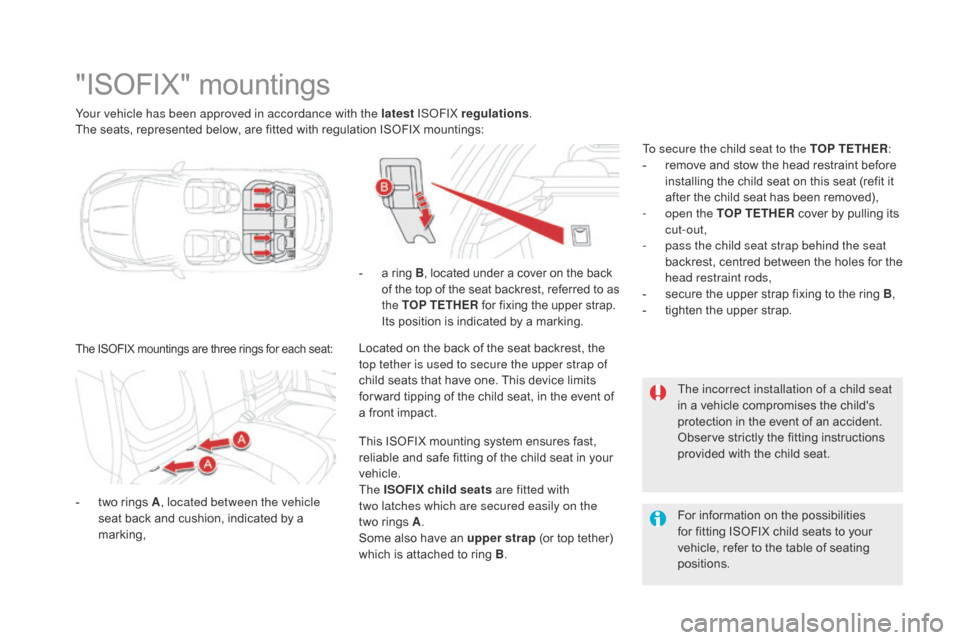

Your vehicle has been approved in accordance with the latest ISOFIX regulations.
The seats, represented below, are fitted with regulation ISOFIX mountings:
"ISOFIX" mountings
- two rings A , located between the vehicle
seat back and cushion, indicated by a
marking, This ISOFIX mounting system ensures fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seats are fitted with
two latches which are secured easily on the
two rings A
.
Some also have an upper strap (or top tether)
which is attached to ring B . The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
Observe strictly the fitting instructions
provided with the child seat.
- a ring B
, located under a cover on the back
of the top of the seat backrest, referred to as
the TOP TETHER for fixing the upper strap.
Its position is indicated by a marking. To secure the child seat to the TOP TETHER
:
-
r
emove and stow the head restraint before
installing the child seat on this seat (refit it
after the child seat has been removed),
-
o
pen the TOP TETHER cover by pulling its
cut-out,
-
p
ass the child seat strap behind the seat
backrest, centred between the holes for the
head restraint rods,
-
s
ecure the upper strap fixing to the ring B,
- t ighten the upper strap.
The ISOFIX mountings are three rings for each seat:Located on the back of the seat backrest, the
top tether is used to secure the upper strap of
child seats that have one. This device limits
for ward tipping of the child seat, in the event of
a front impact.
For information on the possibilities
for fitting ISOFIX child seats to your
vehicle, refer to the table of seating
positions.

DS5_en_Chap06_securite-enfants_ed01-2015
I UF: seat suitable for the installation of an I sofix
U niversal seat, F or ward-facing secured
using the upper strap secured to the upper
ring on ISOFIX seating positions.
IL- SU:

s
eat suitable for the installation of an
I sofix S emi-Universal seat either:
-

r
ear ward facing fitted with an upper strap
or a support leg,
-

f
or ward facing fitted with a support leg,
-

a s
leeper cot fitted with an upper strap or a
support leg.
For advice on securing of the upper strap, refer
to the "Isofix mountings" section. Remove and stow the head restraint
before installing a child seat with a
backrest on a passenger seat. Refit the
head restraint once the child seat has
been removed.
X:
s eat not suitable for the installation of a child
seat or shell for the weight group indicated.

177
DS5_en_Chap06_securite-enfants_ed01-2015
The incorrect installation of a child seat in a
vehicle compromises the child's protection in
the event of an accident.
Ensure that there is no seat belt or seat belt
buckle under the child seat, as this could
destabilise it.
Remember to fasten the seat belts or the
child seat harnesses keeping the slack
relative to the child's body to a minimum,
even for short journeys.
When installing a child seat using the seat
belt, ensure that the seat belt is tightened
correctly on the child seat and that it secures
the child seat firmly on the seat of your
vehicle. If your passenger seat is adjustable,
move it for wards if necessary.
At rear seating positions, always leave
sufficient space between the front seat and:
-
a r
ear ward facing child seat,
-

t
he child's feet for a child seat fitted
forward facing.
To do this, move the front seat for wards
and, if necessary, move its backrest into the
upright position.

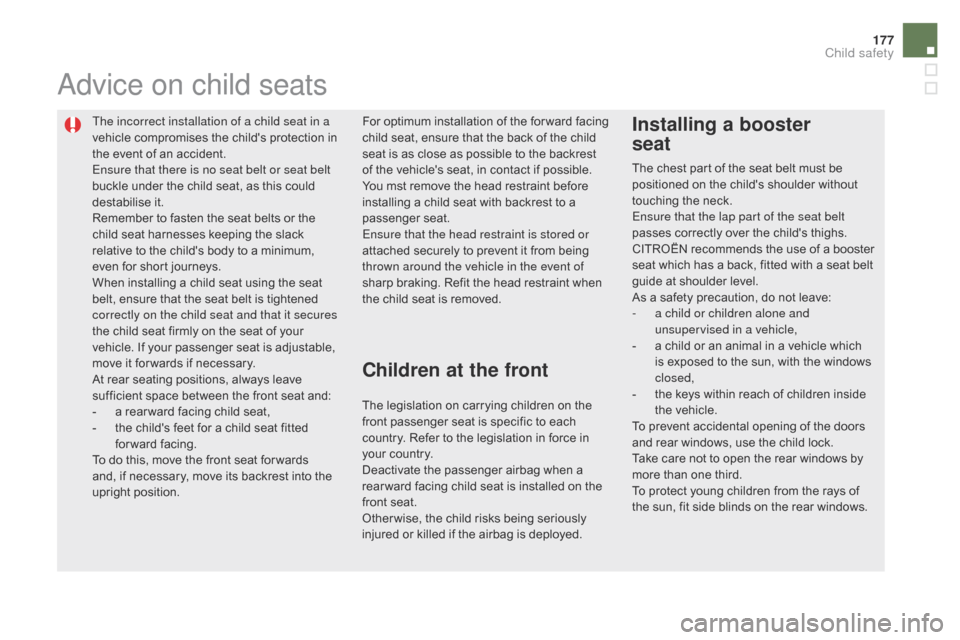

Advice on child seats
For optimum installation of the forward facing
child seat, ensure that the back of the child
seat is as close as possible to the backrest
of the vehicle's seat, in contact if possible.
You mst remove the head restraint before
installing a child seat with backrest to a
passenger seat.
Ensure that the head restraint is stored or
attached securely to prevent it from being
thrown around the vehicle in the event of
sharp braking. Refit the head restraint when
the child seat is removed.
children at the front Installing a booster
seat
The chest part of the seat belt must be
positioned on the child's shoulder without
touching the neck.
Ensure that the lap part of the seat belt
passes correctly over the child's thighs.
CITROËN recommends the use of a booster
seat which has a back, fitted with a seat belt
guide at shoulder level.
As a safety precaution, do not leave:
-

a c
hild or children alone and
unsupervised in a vehicle,
-

a c
hild or an animal in a vehicle which
is exposed to the sun, with the windows
closed,
-

t
he keys within reach of children inside
the vehicle.
To prevent accidental opening of the doors
and rear windows, use the child lock.
Take care not to open the rear windows by
more than one third.
To protect young children from the rays of
the sun, fit side blinds on the rear windows.
The legislation on carrying children on the
front passenger seat is specific to each
country. Refer to the legislation in force in
your country.
Deactivate the passenger airbag when a
rear ward facing child seat is installed on the
front seat.
Otherwise, the child risks being seriously
injured or killed if the airbag is deployed.
child safety

235
DS5_en_Chap08_info-pratiques_ed01-2015

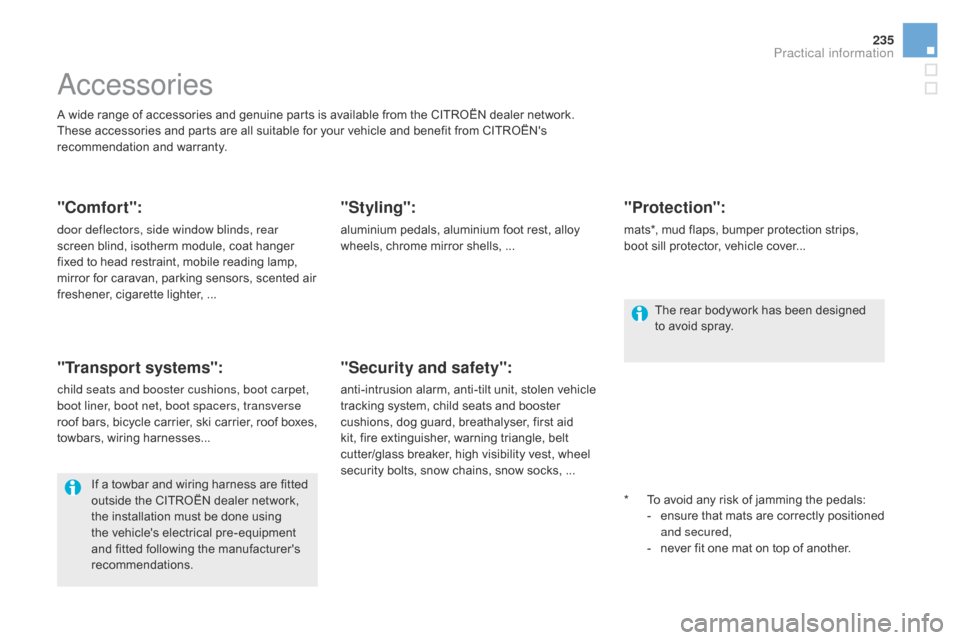

Accessories
A wide range of accessories and genuine parts is available from the CITROËN dealer network.
These accessories and parts are all suitable for your vehicle and benefit from CITROËN's
recommendation and warranty.
"comfort":
door deflectors, side window blinds, rear
screen blind, isotherm module, coat hanger
fixed to head restraint, mobile reading lamp,
mirror for caravan, parking sensors, scented air
freshener, cigarette lighter, ...
"Transport systems":
child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bicycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
"Styling":
aluminium pedals, aluminium foot rest, alloy
wheels, chrome mirror shells, ...*

T
o avoid any risk of jamming the pedals:
-

e
nsure that mats are correctly positioned
and secured,
-

n
ever fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen vehicle
tracking system, child seats and booster
cushions, dog guard, breathalyser, first aid
kit, fire extinguisher, warning triangle, belt
cutter/glass breaker, high visibility vest, wheel
security bolts, snow chains, snow socks, ...
"Protection":
mats*, mud flaps, bumper protection strips,
boot sill protector, vehicle cover...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network,
the installation must be done using
the vehicle's electrical pre-equipment
and fitted following the manufacturer's
recommendations. The rear bodywork has been designed
to avoid spray.
Practical information

DS5_en_Chap12_index-recherche_ed01-2015

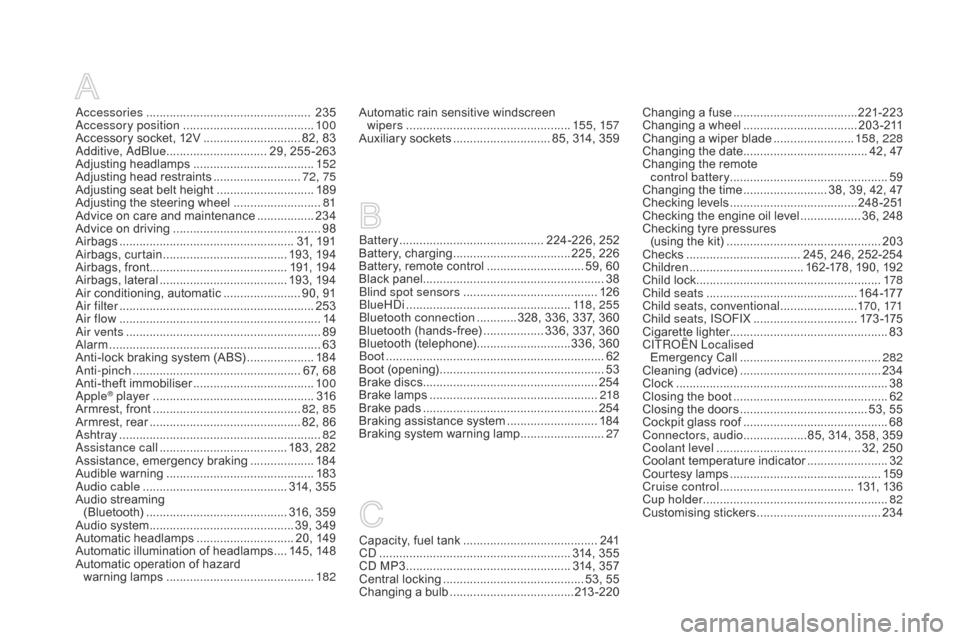

Accessories ................................................. 235
Accessory position ....................................... 10
0
Accessory socket, 12V

............................. 8
2, 83
Additive, AdBlue
.............................. 2

9, 255 -263
Adjusting headlamps
.................................... 15

2
Adjusting head restraints

..........................7

2, 75
Adjusting seat belt height

.............................18

9
Adjusting the steering wheel

..........................81
A

dvice on care and maintenance
.................23

4
Advice on driving

..............................
..............98
Airbags
...............

..................................... 31, 191
Airbags, curtain
..................................... 19

3, 19 4
Airbags, front......................................... 191, 19 4
Airbags, lateral
...................................... 19

3, 19 4
Air conditioning, automatic

....................... 9
0, 91
Air filter

...............
........................................... 253
Air flow

..............................
..............................14
Air vents
..............................

............................89
Alarm
............................................................... 63
A

nti-lock braking system (ABS)
....................18

4
Anti-pinch
.................................................. 6

7, 68
Anti-theft immobiliser
.................................... 10

0
Apple
® player ................................................ 31 6
Armrest, front ............................................ 8
2, 85
Armrest, rear

............................................. 8
2, 86
Ashtray
...............

............................................. 82
Assistance call
...............................

....... 183, 282
Assistance, emergency braking
................... 18

4
Audible warning
............................................ 18

3
Audio cable
........................................... 3

14, 355
Audio streaming (Bluetooth)
..............................

............ 316, 359
Audio system

...............................
............ 39, 349
Automatic headlamps
............................. 2

0, 149
Automatic illumination of headlamps

....14

5, 148
Automatic operation of hazard warning
lam

ps
............................................ 18

2Automatic rain sensitive windscreen
wipers
...............
..................................
155, 157
Auxiliary sockets
............................. 8
5, 314, 359
Changing a fuse
.....................................
2
21-223
Changing a wheel
...............................
...
2 0 3 - 2 11
Changing a wiper blade
........................
15
8, 228
Changing the date
..................................... 4
2, 47
Changing the remote control battery ............................................... 59
Changing the time
......................... 3
8, 39, 42, 47
Checking levels
......................................
2
4 8 - 2 51
Checking the engine oil level
.................. 3
6, 248
Checking tyre pressures (using the kit)
..............................
................
203
Checks
...............
................... 245, 246, 252-254
Children
...............................
... 162-178, 190, 192
Child lock
...............................
........................
178
Child seats
..............................
...............
16 4 -17 7
Child seats, conventional
....................... 17
0, 171
Child seats, ISOFIX
...............................
17
3 -175
Cigarette lighter............................................... 83
CITROËN Localised Emergency Call
.......................................... 28
2
Cleaning (advice)
.......................................... 23
4
Clock ............... ................................................
38
Closing the boot ............................... ...............62
Closing the doors
............................... ....... 53, 55
Cockpit glass roof

...........................................68
C

onnectors, audio
...................8
5, 314, 358, 359
Coolant level
..............................

............. 32, 250
Coolant temperature indicator

........................32
C

ourtesy lamps
.............................................15

9
Cruise control
........................................ 13

1, 13 6
Cup holder

...............................
........................82
Customising stickers
..................................... 23

4
Battery
...............................

............ 224-226, 252
Battery, charging
...............................
.... 225, 226
Battery, remote control
............................. 5
9, 60
Black panel ...................................................... 38
Blind spot sensors
........................................ 12
6
BlueHDi
...............................
..................
118 , 2 5 5
Bluetooth connection
............3
28, 336, 337, 360
Bluetooth (hands-free)
.................. 3
36, 337, 360
Bluetooth (telephone)
............................3
36, 360
Boot
........
.........................................................
62
Boot (opening)
...............................
..................
53
Brake discs ....................................................
25 4
Brake lamps ............................... ...................
218
Brake pads ............................... .....................254
Braking assistance system

...........................18

4
Braking system warning lamp

.........................2

7
Capacity, fuel tank ........................................2 41
CD .............................. ........................... 314, 355
CD MP3

................
................................. 314, 357
Central locking

.......................................... 5
3, 55
Changing a bulb
..................................... 2

13 -2 20
