DIESEL
DS5_en_Chap09_verifications_ed01-2015
Low fuel level
When the low fuel level in the tank is
reached, this warning lamp comes on in
the instrument panel, accompanied by
an audible warning and a message in
the instrument panel screen.
Fuel supply cut-off
Your vehicle is equipped with a safety device
which cuts off the fuel supply in the event of a
collision.
Fuel used for petrol engines
The petrol engines are compatible with
E10 bio-petrol (containing 10 % ethanol),
conforming to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.
Fuel used for diesel
engines
The Diesel engines are compatible with
biofuels which conform to current and future
European standards (Diesel fuel which
complies with standard EN 590 mixed with
a biofuel which complies with standard
EN
14214) available at the pumps (containing
up to 7 % Fatty Acid Methyl Ester).
B30 biofuel can be used in certain Diesel
engines. However, this use, even occasional,
requires strict application of the special
servicing conditions. Contact a CITROËN
dealer or a qualified workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
When it first comes on, around 6 litres of fuel
remain in the tank.
Until sufficient fuel has been added, this
warning lamp appears every time the ignition
is switched on, accompanied by an audible
signal and a message. This audible signal
and message are repeated with increasing
frequency as the fuel level drops and
approaches "0".
You must refuel as soon as possible to avoid
running out.

DS5_en_Chap10_caracteristiques_ed01-2015
Petrol engineTHP 15 0THP 155 THP 160 THP 165 S&S THP 200
Gearbox 6-speed
automatic 6-speed
automatic 6-speed
automatic EAT6 6-speed
automatic 6-speed manual
Model code 5FEA5 F
v

A - A /15FMA -Y -A /
d5

GZT/S -T/1S -T/2S 5FU8
Cubic capacity (cc) 1 5981 5981 5981 5981 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8 77 x 85.8 77 x 85.8 77 x 85.8
Max power*: EU standard (kW) 11 0115120 121147
Max power engine speed (rpm) 6 0506 000 6 0006 000 5 800
Max torque: EU standard (Nm) 240240240240 275
Max torque engine speed (rpm) 1 4001 4001 4001 400 1 700
Fuel Unleaded Unleaded Unleaded Unleaded Unleaded
Catalytic converter Ye sYe sYe sYe sYe s
Engine oil capacity (with filter replacement)
(in litres) 4.25
4.254.254.254.25
Petrol engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation
(Directive 1999/99/EC).
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.

269
DS5_en_Chap10_caracteristiques_ed01-2015
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
e-H d i 110
e-H d i 115
BlueH d i 115
BlueH d i 120
Gearbox ETG6 6-speed
electronic ETG6 6-speed
electronic 6-speed
manual 6-speed
manual
Model code 9HR8/PS9H
d8
/PS
BHXM/S -M/1S -M/2S BHZM/S -M/1S -M/2S
Cubic capacity (cc) 1 5601 5601 5601 560
Bore x stroke (mm) 75 x 88.375 x 88.375 x 88.375 x 88.3
Max power*: EU standard (kW) 8284 8588
Max power engine speed (rpm) 3 6003 600 3 7503 750
Max torque: EU standard (Nm) 270270300 300
Max torque engine speed (rpm) 1 7501 7501 7501 750
Fuel DieselDieselDieselDiesel
Catalytic converter Ye sYe sYe sYe s
Particle filter Ye sYe sYe sYe s
Engine oil capacity (with filter replacement)
(in litres) 3.75
3.753.753.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
Technical data

DS5_en_Chap10_caracteristiques_ed01-2015
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
H d i 135
BlueH d i 135
BlueH d i
15 0
Gearbox 6-speed
manual 6-speed
automatic 6-speed
manual 6-speed
manual
Model code RH
d8 -
8/1 - 8/2
RH
d
A -A /1
AH
v
AHSM/S - M/1S
-M/2S AHX AHRM/S -M/1S
-M/2S
Cubic capacity (cc) 1 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 88
Max power*: EU standard (kW) 10 010 011 0
Max power engine speed (rpm) 4 0004 0004 000
Max torque: EU standard (Nm) 320320370
Max torque engine speed (rpm) 2 0002 0002 000
Fuel DieselDieselDiesel
Catalytic converter Ye sYe sYe s
Particle filter Ye sYe sYe s
Engine oil capacity (with filter replacement)
(in litres) -
-6 .1
Diesel engines and gearboxes
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.

271
DS5_en_Chap10_caracteristiques_ed01-2015
Diesel engines and gearboxes
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
di
esel engine
H d i 160
BlueH d i 180
Gearbox 6-speed manual6-speed automaticEAT6 6-speed automatic
Model code RHH8 -8/1 -8/2RHHA -A /1AHW T/S -T/1S -T/2S
Cubic capacity (cc) 1 9971 997
Bore x stroke (mm) 85 x 8885 x 88
Max power*: EU standard (kW) 120132
Max power engine speed (rpm) 3 7503 750
Max torque: EU standard (Nm) 340400
Max torque engine speed (rpm) 2 0002 000
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle filter Ye sYe s
Engine oil capacity (with filter replacement)
(in litres) 5.25
5 .1
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
Technical data

DS5Hy4_en_Chap10_caracteristiques_ed01-2015

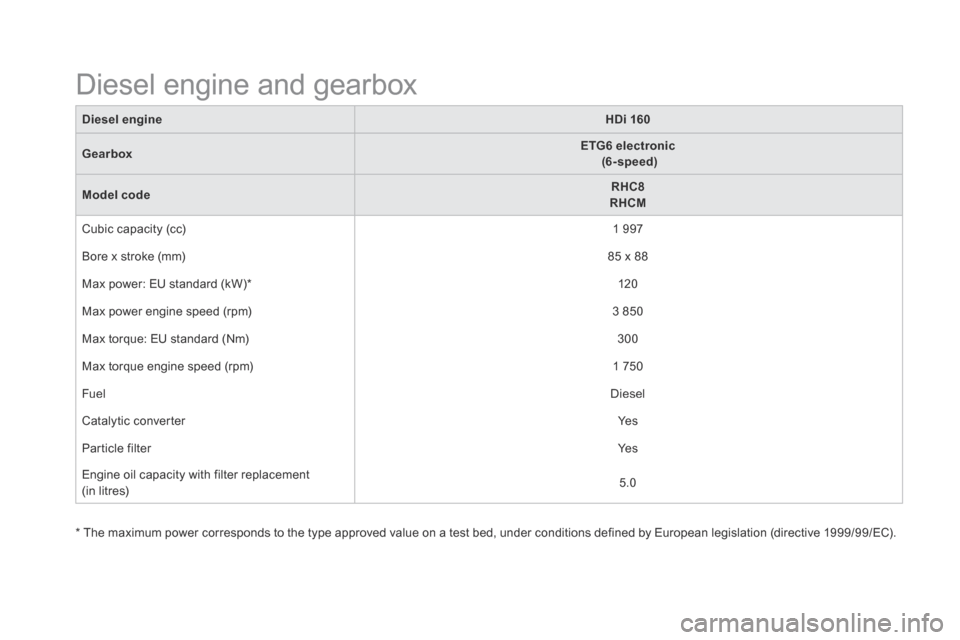

Diesel engine and gearbox
Diesel engineHDi 160
GearboxETG6 electronic (6- speed)
Model codeRHC8 RHCM
Cubic capacity (cc) 1 9 9 7
Bore x stroke (mm) 85 x 88
Max power: EU standard (kW) * 120
Max power engine speed (rpm) 3 8 5 0
Max torque: EU standard (Nm) 300
Max torque engine speed (rpm) 1 750
Fuel Diesel
Catalytic converter Ye s
Particle filter Ye s
Engine oil capacity with filter replacement (in litres) 5 . 0
* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation (directive 1999/99/EC).
