Citroen DS5 HYBRID4 RHD 2013.5 1.G Owner's Manual

369Visual search

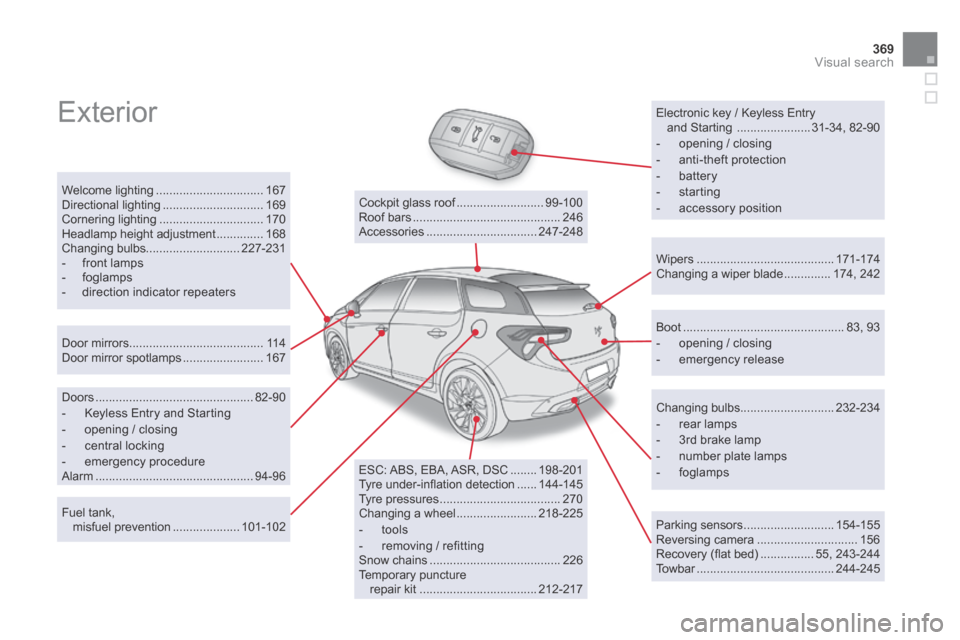

Exterior Electronic key / Keyless Entry and Starting ...................... 31-34, 82-90
- opening / closing - anti-theft protection - battery - starting - accessory position
Welcome lighting ................................ 167
Directional lighting .............................. 169
Cornering lighting ............................... 170
Headlamp height adjustment ..............168
Changing bulbs ............................ 227-231
- front lamps - foglamps - direction indicator repeaters
Wipers ......................................... 171-174
Changing a wiper blade ..............174, 242
Doors ............................................... 82-90
- Keyless Entry and Starting - opening / closing - central locking - emergency procedure Alarm ...............................................94-96
Fuel tank, misfuel prevention ....................101-102 Cockpit glass roof ..........................
99-100
Roof bars ............................................ 246
Accessories ................................. 247-248
ESC: ABS, EBA, ASR, DSC ........ 198-201
Tyre under-infl ation detection ......144-145
Tyre pressures .................................... 270
Changing a wheel ........................218-225
- tools
- removing / refitting Snow chains ....................................... 226
Temporary puncture repair kit ................................... 212-217 Boot ................................................
83, 93
- opening / closing - emergency release
Changing bulbs............................ 232-234 - rear lamps - 3rd brake lamp - number plate lamps - foglamps
Parking sensors ........................... 154-155
Reversing camera .............................. 156
Recovery (fl at bed) ................ 55, 243-244
Towbar ......................................... 244-245
Door mirrors ........................................
114
Door mirror spotlamps ........................167

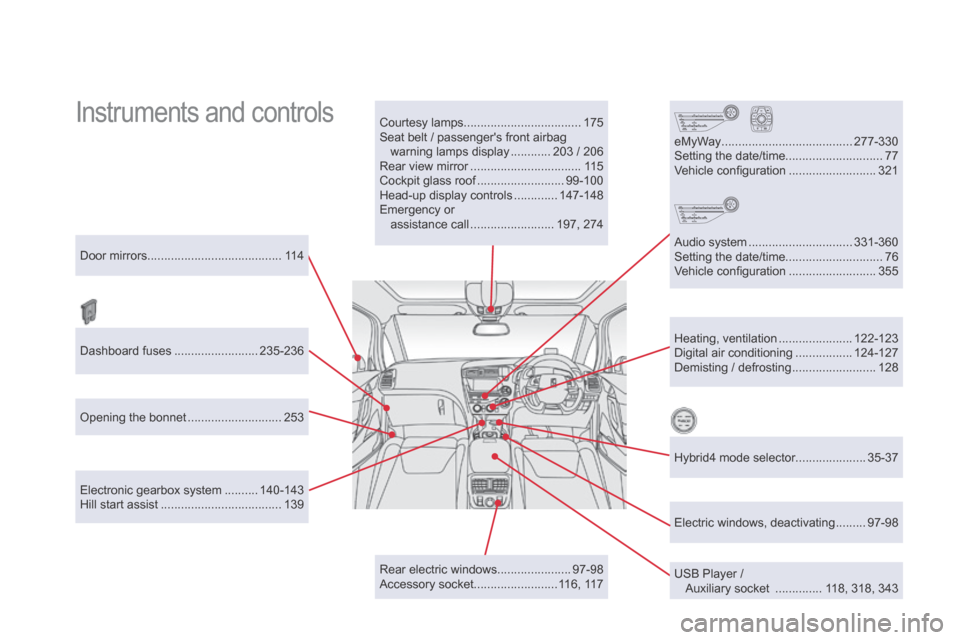

Instruments and controls Courtesy lamps................................... 175
Seat belt / passenger's front airbag warning lamps display ............203 / 206
Rear view mirror ................................. 115
Cockpit glass roof ..........................99-100
Head-up display controls .............147-148
Emergency or assistance call ......................... 197, 274
Door mirrors ........................................ 114
Heating, ventilation ......................122-123
Digital air conditioning .................124-127
Demisting / defrosting .........................128
USB Player / Auxiliary socket ..............118, 318, 343
Dashboard fuses .........................
235-236
Electronic gearbox system .......... 140-143
Hill start assist .................................... 139 eMyWay .......................................
277-330
Setting the date/time .............................77
Vehicle confi guration ..........................321
Audio system ............................... 331-360
Setting the date/time .............................76
Vehicle confi guration ..........................355
Opening the bonnet ............................253
Rear electric windows ......................97-98
Accessory socket .........................116, 117 Electric windows, deactivating
.........97-98
Hybrid4 mode selector
.....................35-37

371Visual search
Steering mounted audio system controls ....................... 280, 333
Head-up display
........................... 147-148
Lighting controls .......................... 160-166
Automatic headlamp dipping ..............165
Direction indicators .............................196 Wiper controls..............................
171-174
Trip computer .................................. 78-79
Instrument panels, screens .......
58, 71-75
- check / service indicator / trip distance recorder - lighting dimmer / black panel Warning lamps ................................. 59-69
Ready lamp .................................... 35, 60
Energy consumption / generation meter ..........................38-39
Indicators ......................................... 70-73
Colour screen ..................................... 281
Screen C ............................................. 334
Hybrid power fl ows .......................... 40-41
Hybrid consumption, eco-driving .................................... 47-49

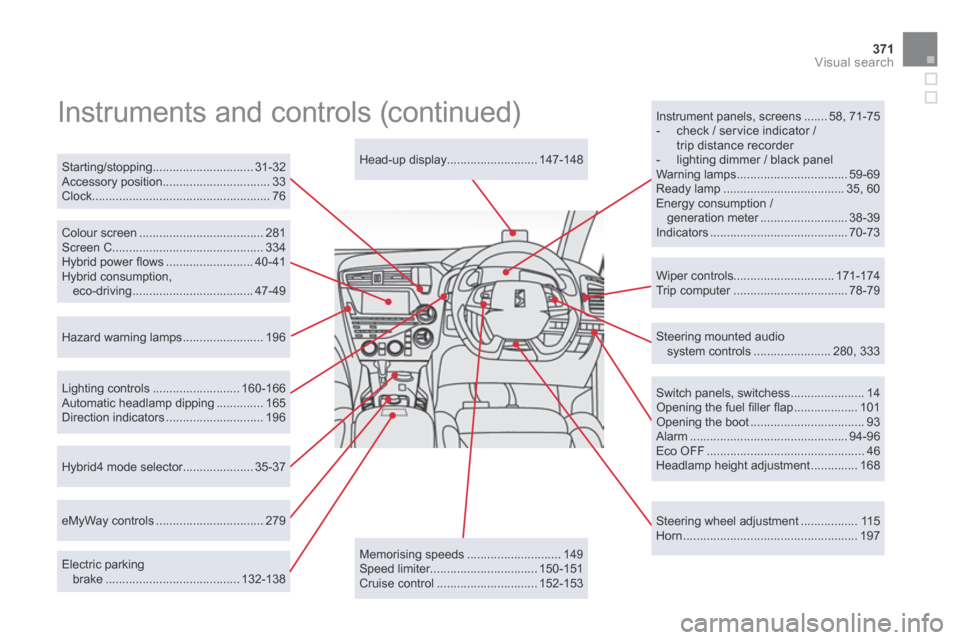

Instruments and controls (continued)
Electric parking
brake ........................................ 132-138
Starting/stopping
.............................. 31-32
Accessory position ................................ 33
Clock..................................................... 76
Hazard warning lamps ........................ 196
Steering wheel adjustment .................115
Horn .................................................... 197
Switch panels, switchess ......................
14
Opening the fuel fi ller fl ap ................... 101
Opening the boot .................................. 93
Alarm ............................................... 94-96
Eco OFF ............................................... 46
Headlamp height adjustment ..............168
Hybrid4 mode selector .....................35-37
eMyWay controls ................................ 279
Memorising speeds ............................149
Speed limiter ................................ 150-151
Cruise control .............................. 152-153

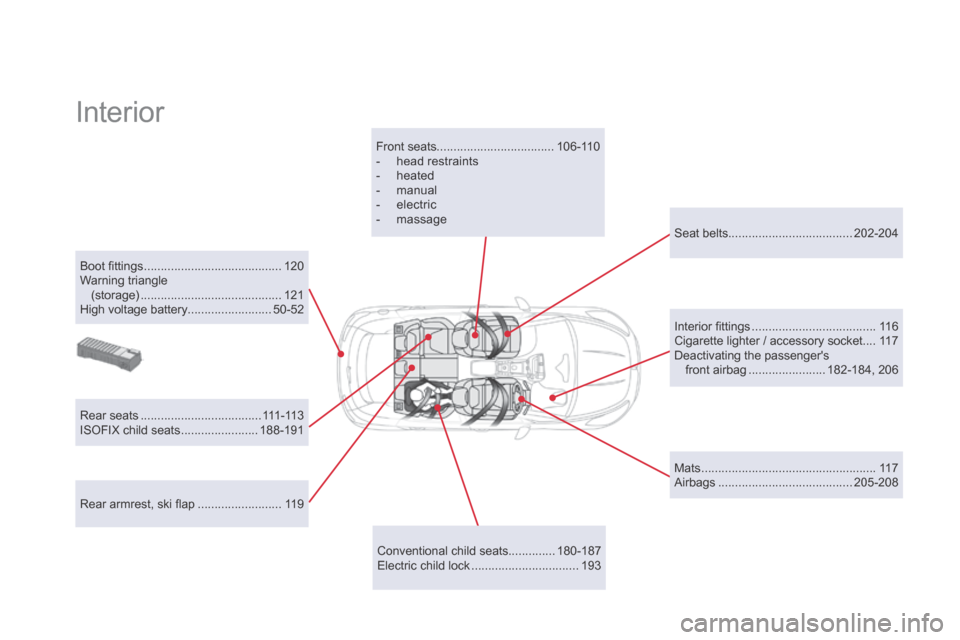

Interior
Boot fi ttings .........................................120
Warning triangle (storage) .......................................... 121
High voltage battery .........................50-52
Conventional child seats ..............180-187
Electric child lock ................................ 193
Front seats
................................... 106-110
- head restraints - heated - manual - electric - massage
Rear armrest, ski fl ap ......................... 119 Mats ....................................................
117
Airbags ........................................ 205-208
Interior fi ttings .....................................
116
Cigarette lighter / accessory socket ....117
Deactivating the passenger's front airbag ....................... 182-184, 206
Seat belts
..................................... 202-204
Rear seats .................................... 111-113
ISOFIX child seats ....................... 188-191

373Visual search
Maintenance - Technical data
Dimensions ......................................... 269
Identifi cation markings ........................270
High voltage cables
.........................52-53
Running out of fuel, Diesel .........254, 255 12 V battery .................................
238-240
Load reduction, economy mode ................................ 241
Engine compartment fuses .........235, 237
Opening the bonnet ............................253 Diesel weights
.................................... 268
Checking levels
........................... 256-260
- oil - brake fluid - power steering fluid - coolant - screenwash/headlamp wash fluid Checking components .................260-262 - 12 V battery - air filter - passenger compartment filter - oil filter - particle emissions filter - brake pads / discs - electric parking brake
Under the bonnet, Diesel ....................254
Diesel engine ...................................... 267
Electric motor...................................... 266
Changing bulbs ............................ 227-234
- front - rear

4DconceptDiadeisEntagos
12-13
This handbook describes all of the equipment
available in the whole range.
Your vehicle will be fi tted with some of this
equipment described in this document, depending
on its trim level, version and the specifi cation for the
country in which it is sold.
The descriptions and illustrations are given without
any obligation. Automobiles CITROËN reserves
the right to modify the technical specifi cations,
equipment and accessories without having to update
this edition of the handbook.
This document is an integral part of your vehicle. It
should be passed on to the new user in the event of
sale or transfer. Automobiles CITROËN declares, by application
of the provisions of the European regulation
(Directive 2000/53) relating to End of Life Vehicles,
that it achieves the objectives set by this regulation
and that recycled materials are used in the
manufacture of the products that it sells.
Reproduction or translation of all or part of this
handbook is prohibited without written authorisation
from Automobiles CITROËN.
Printed in the EU
Anglais
For any work on your vehicle, use a qualifi ed
workshop that has the technical information,
competence and equipment required, which a
CITROËN dealer is able to provide.
