display Citroen DS5 RHD 2011.5 1.G Owner's Manual

FREQUENTLY ASKED QUESTIONS
327
QUESTIONANSWER SOLUTION
The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 MHz is
displayed...).
The vehicle is too far from the transmitter used by the station listened
to or there is no transmitter in the geographical area through which the
vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more powerful
transm
itter in the geographical area.
The environment
(hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been dama
ged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a CITROËN dealer.

Sound cut-outs of 1 to
2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
Th
e traffi c announcement(TA) is displayed. I donot receive any traffi c
information.Th
e radio station does not broadcast traffi c information. Tune to a radio station which broadcasts traffi c
information.

The stored stations arenot found (no sound, 87.5 MHz is displayed...).
An incorrect waveband is selected. Press the BAND button to return to the wavebandon which the stations are stored.

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
The CD is ejected
automatically or is not played by the player. The CD is inserted upside down, is unpla
yable, does not contain any audio data or contains an audio format which the player cannot play.
The
CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
- Check that the CD is inserted in the pla
yer the
right way up.

-
Check the condition of the CD: the CD cannot
be played if it is too damaged.

-
Check the content in the case of a recordedCD: consult the advice in the "Audio" section.

- The audio equipment's
CD player does not
play DVDs.

- Due to their qualit
y level, certain writeableCDs will not be played by the audio system.
The
CD player sound ispoor.The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable conditions.
The audio settin
gs (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.
Th
e Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The messa
ge "USB device error" is displayedon the screen.The USB memor
y stick is not recognised.
The memory stick may be corrupt. Reformat the memor
y stick (FAT 3 2).

FREQUENTLY ASKED QUESTIONS
329
QUESTIONANSWER SOLUTION
A telephone connects
automatically,
disconnecting another
telephone. A
utomatic connection overrides manual connection. Modify the telephone settings to remove automatic connection.
The Apple ®
player is®
not recognised whenconnecting to the USB port.
The Apple ®player is of a generation that is not compatible with the USB. Connect the Apple ®player to the AUX Jack socket using a suitable cable (not supplied).
Th
e hard disk or deviceis not recognised whenconnecting to the USBport.
Some hard disks and devices need a power supply greater than is
provided by the audio system. Connect the device to the 230 V socket, the 12 V socket or an external power supply.
Caution
:
ensure that the device does not transmit
a voltage greater than 5 V (risk of destruction of
the system).

When streaming, the sound cuts momentarily. Some telephones prioritise connection of the "hands-free" profi le. Delete the "hands-free" connection profi le to
improve streaming.
In "Random all" pla
y,not all of the tracks areplayed.In "Random all" pla
y, the system can only take into account up
to 999 tracks.
With the en
gine off, the
audio system switches off after a few minutes of use. When the en
gine is switched off, the audio system operating timedepends on the battery charge.
The switch-o
ff is normal: the audio system switches to economy mode and switches off to prevent discharging the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The messa
ge "the audio system is overheated"
appears on the display. In order to protect the installation if the surroundin
g temperature is too
high, the audio system switches to an automatic thermal protection mode leading to a reduction of the volume or stopping of the playing of the CD. Switch the audio s
ystem off for a few minutes to
allow the system to cool.

335
Alphabetical index
Demisting......................................................90Diesel............................................................31Diesel additive level....................................225Diesel engine pre-heat warning lamp ...........31Dimensions.................................................238Dipped beam .........................30, 132,193, 194Dipstick.................................................. 41, 223Directional lighting..............................141,142Direction indicators.............164,193, 196,198Doors emergency control.............................55Driving economically ....................................24Driving positions (memorising) .....................70Dynamic emergency braking......................100Dynamic stabilitycontrol (DSC) ........................33, 36, 167,169
EBA (Emergency braking assistance)........ 167EBFD ...........................................................167Eco-driving...................................................24Economy mode...........................................207Electronic brake force distribution (EBFD) ......167Electronic engine immobiliser.................r54, 95Emergency boot release...............................56Emergency call...................................165,243Emergency warning lamps .........................164eMyWay................................................43,245Energy economy mode ............................... 207Engine, Diesel ......................65, 221, 222, 235Engine, petrol...............................65, 220,232Engine compartment...........................220, 221Engine compar tment fusebox.....................201
Engine oil level indicator.......................r41,223Engines...............................................232,235Environment........24,53, 85, 90, 111, 206, 225
Filling with fuel ........................................63-65Fitting a wheel.............................................191Fitting roof bars...........................................212Fittings, boot.................................................82Flashing indicators..............................138,164Foglamps, front ...................13 4, 142,193, 197Foglamps, rear............................r134, 198, 19 9Folding/unfolding the door mirrors................76Front seats..............................................68-70Fuel..........................................................24,65Fuel consumption..........................................24Fuel filler cap.................................................63Fuel filler flap.................................................63Fuel gauge....................................................19Fuel tank..................................................63, 64Fusebox, dashboard ...................................202Fuses ...........................................................201
EF
Gearbox, electronic.....................112, 116,228Gearbox, manual ........................ 106, 107,228Gear efficiency indicator.............................r107Gear lever, automatic gearbox...................108Gear lever, electronic gearbox system.......112Gear lever, manual gearbox.......................106Guidance.....................................................251Guide-me-home..................................136, 13 8
G.P.S. ..........................................................251
Gearbox, automatic ............................108, 228
G
Halogen headlamps............................193, 195Hands-free kit......................................268,313Hazard warning lamps ..........................83, 164Head-up display.......................... 120, 123, 125Headlamp adjustment .................................140Headlamps, directional.......................141, 193Headlamp wash..................................144,225Head restraints, front..............................68,71Head restraints, rear.....................................r75Heated seats.................................................72Heating ..........................................................84Height and reach adjustment,steering wheel ............................................77Hill start assist.............................................105
H
Identification plates .....................................239
Ignition .....................................................51,95
I

Instruments and controls Courtesy lamps 147 Seat belt/passenger's frontairbag warning lamps display 171, 174 Rear view mirror 77 Cockpit glass roof 61- 62 Head-up display controls 120-121 Emergency or assistance call 165, 243
Door mirrors 76

Heating, ventilation 84-85 Digital air conditioning 86-89 Demisting/defrosting 90
USB Player/Auxiliary socket 80, 282-286, 307-311


Dashboard fuses 201-202
6 -speed manual gearbox 106 Gear efficiency indicator 107 Automatic ge a r b o x 1 0 8 -111 Electronic gearbox system 112-115 Hill start assist 105

eMyWay 245 -298 Setting the date/time 288


Audio system 299-330 Setting the date/time 323
Opening the bonnet 219
Rear electric windows 59
Accessory socket 78, 79

Electric windows, deactivating 59-60

341Visual search
eMyWay controls 247
Head-up display 120 -121
Memorising speeds 122Speed limiter 123 -124Cruise control 125-126
Lighting controls 132-13 8 Automatic headlamp dipping 137Direction indicators 13 8, 164
Wiper c ontrols 143 -146 Tr i p c o m p u t e r 4 4 - 4 5
Instrument panels, screens 28, 38-43 - check/ser vice indicator/trip distance recorder - lighting dimmer
Warning lamps 29-37 Indicators 38-41 Gear efficiency indicator 107
Colour screen 249, 290-292Screen C 302, 324-325

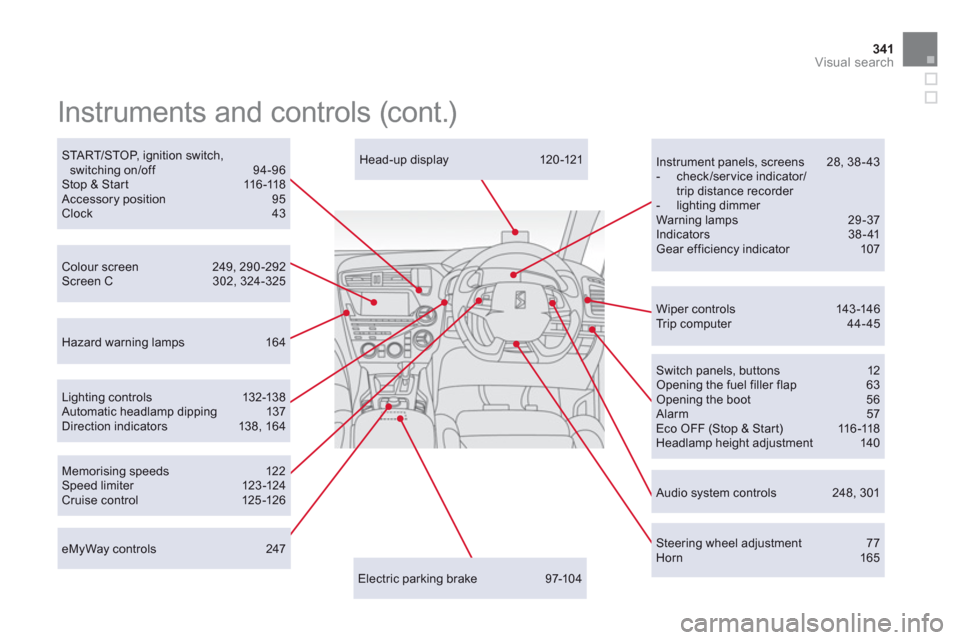

Instruments and controls (cont.)
Electric parking brake 97-104
STA R T/STOP, ignition switch,switching on/off 94-96Stop & Start 116-118 Accessory position 95 Clock 43

Hazard warning lamps 164

Audio system controls 248, 301
Steering wheel adjustment 77 Horn 165
Switch panels, buttons 12 Opening the fuel filler flap 63 Opening the boot 56 Alarm 57 Eco OFF (Stop & Start) 11 6 -11 8 Headlamp height adjustment 140
